Ebac Desiccant Dehumidification System DD200

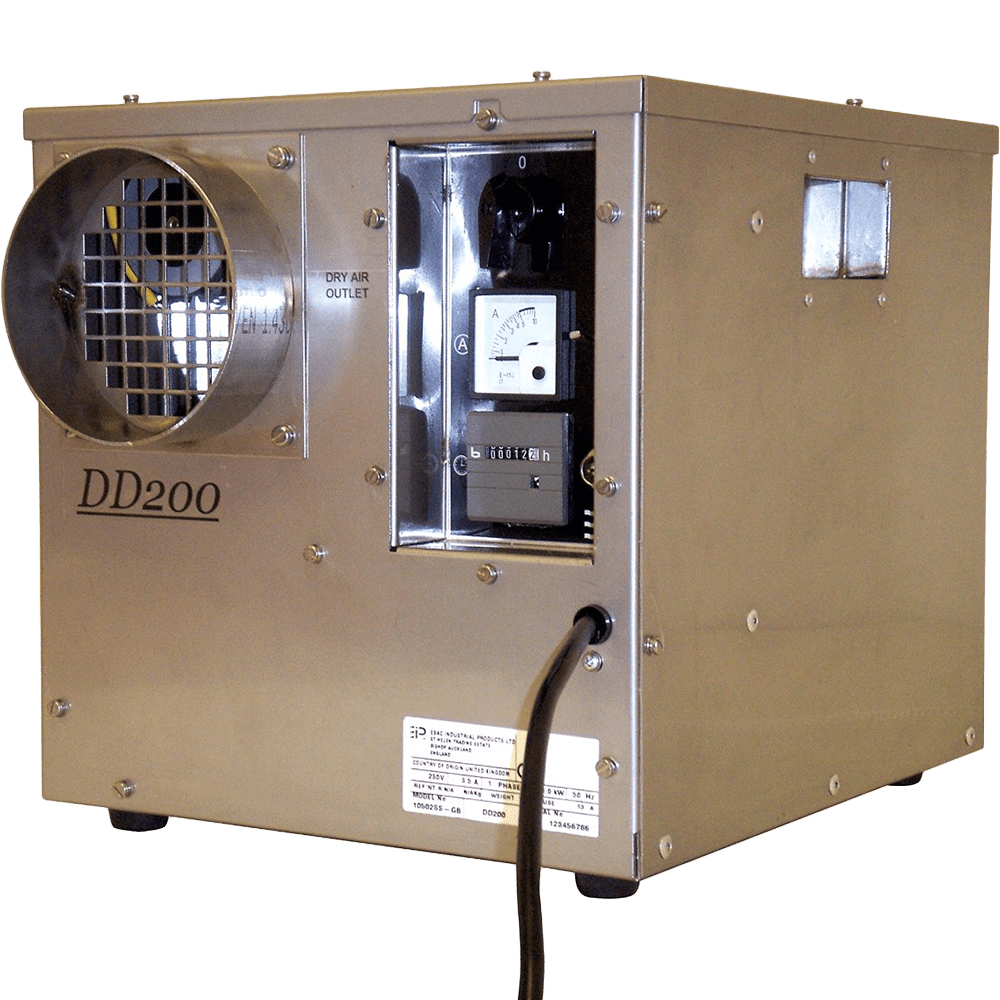

Ebac DD200 Desiccant Dehumidifier

Model: 10502SS-US | SKU: eb1949

Be the first to Write a Review
|
Q&A (3)

Price: $2059.00

If you can read this, don't touch the following text fields.



  • FREE Standard Shipping

  • In Stock - Usually ships in 3 to 5 days.



Special Offers

Additional Warranty Options Available
3-Year Commercial Appliance Warranty ($269.95) Details

5-Year Commercial Appliance Warranty ($499.95) Details


  • Product Overview

    The Ebac DD200 Desiccant Dehumidifier is the smallest desiccant dehumidifier within the Ebac DD Series of desiccant dehumidifiers. It’s compact, rugged, and lightweight design facilitates easy transport by one person and is easily accommodated within space restricted areas. The Ebac DD200 incorporates a PTC (Positive Temperature Coefficient) Heater to ensure that maximum drying is immediately reached and constantly maintained while the unit is running. This unit is ideal for extremely low-temperature drying in industrial, commercial, and heavy residential applications.

    How Desiccant Dehumidifiers Work

    The Ebac DD200 Dehumidifier performs exceptionally well when used in cooler climates, or when a low dew point, deep drying, or low humidity levels are required. Since desiccant dehumidifiers do not produce water, they will dry effectively in sub-zero temperatures. The DD200 removes moisture in temperatures as low as -4 degrees F.

    Desiccant Dehumidification

    This Ebac desiccant dehumidifier dries the air using a special desiccant wheel. During operation, a large volume of air - the "process" air - passes through a silica gel rotor that rotates slowly and continuously. Silica gel is a hygroscopic material that absorbs moisture direct from the air. As the air passes through the rotor, the humidity of the air is reduced, while the moisture content of the rotor is increased. This is how the Ebac DD200 dehumidifies the air.

    Next, a smaller volume of air - the "reactivation" air - is heated by an internal heater and passed through a portion of the rotor in the opposite direction. As the reactivation air moves through the rotor, it will “reactivate” it by removing the moisture content from the silica gel material. The reactivation air will then leave the dehumidifier as warm, moist air and must be vented to outside of the building. This is how moisture is removed from the dehumidifier.

    As the desiccant dehumidification process continues, room air circulates and the overall relative humidity is reduced.

    Moisture Removal Capacity

    The Ebac DD200 Desiccant Dehumidifier removes different amounts of moisture depending on the ambient temperature and relative humidity in the space. Refer to the chart and graph below to get an idea of the amount of moisture removed based on your space's specific conditions. In AHAM testing conditions, which are 80 degrees F and 60% relative humidity, you can expect the DD200 to extract nearly 40 pints of moisture per day.

    Ebac DD200 Extraction

    Ideal Applications

    Desiccant dehumidifiers like the Ebac DD200 are the most effective type of dehumidifier in very low temperatures. Some of the most popular applications for this type of dehumidifier are:

    • Offices
    • Shops
    • Restaurants
    • Warehouses
    • Basements
    • Factories
    • De-Flooding
    • Pharmaceutical
    • Defense Industry
    • Confectionary
    • Laboratories
    • Medical
    • Food Industry
    • Agriculture
    • Cold Stores
    • Hospitals
    • Hotels
    • Stadiums

    Additional Features

    • Electronic Controls - Easy pushbutton electronic controls and indicators.
    • Manual and Automatic Operating Modes - Choose your settings manually or run the unit automatically with the help of an external remote humidistat (sold separately).
    • Remote Humidistat Facility - Connect an external remote humidistat (not included) to control humidity automatically and from a remote location if desired.
    • Low Temperature Operation - This unit continues removing moisture even in temperatures as low as -4 degrees F!
    • Inlet Air Filter - Help clean the air as it enters the dehumidifier.
    • Hours Run Meter - Displays the total time the unit has been in operation.
    • High-Temperature Safety Cutout - Shuts off the unit in temperatures over 104 degrees F.
    • Ammeter - Monitors electrical current.
    • Stainless Steel Construction - Ensures that the dehumidifier remains rust-free even in the harshest environments.

    Summary

    The Ebac DD200 Desiccant Dehumidifier is the smallest model in Ebac's DD Series. This rugged, low-temperature unit removes 40 pints of moisture daily in AHAM conditions.

    What Customers Love

    • Engineered for Low-Temperature Performance - This desiccant dryer can remove moisture continuously even in extremely low temperatures. It works down to -4 degrees F!
    • Rugged and Reliable Construction - Stainless steel construction prevents rust build-up even in harsh marine environments.

    Things to Consider

    • Must Be Ducted - You must duct the "process" and "reactivation" outlet for proper operation.
    • Optional External Humidistat - The unit includes a remote humidistat facility that accommodates an external humidistat, which controls the dehumidifier automatically.

    Manufacturer's Warranty

    1-Year Limited

    Manufacturer's Literature

    Ebac DD200 Owner's Manual
    Includes operating instructions, safety information, and maintenance guidelines.
    Product Brochure
    Product brochure for the Ebac DD200
    Wiring Diagram
    Wiring diagram for the Ebac DD200
    Wiring Schematic
    Wiring schematic for the Ebac DD200

    What's In The Box?

    • Ebac DD200 Desiccant Dehumidifier
    • Free Plug
    • Owner's Manual

    View All Industrial and Commercial Dehumidifiers »
  • Specifications

    Industrial UseWarehouse, Water Damage Restoration
    Manufacturer-Stated Capacity36 pints
    Low Temperature Operation (41 degrees F and Under)Yes
    Practical Room Size 400 sq. ft.
    Energy StarNo
    AHAM-Verified No
    Lowest Operating Temperature-4 degrees
    Height13.3 in.
    Width13 in.
    Depth15 in.
    Weight37.5 lbs.
    Water ContainerNo
    Full Bucket Indicator/Auto ShutoffNo
    Internal Condensate PumpNo
    Continuous Drain CapableNo
    Drain Hose IncludedNo
    ControlsManual
    Humidistat No
    Automatic DefrostYes
    Fan Operation Runs Continuously
    Number of Fan Speeds1
    Cubic Feet Per Minute (Max)115 CFM
    Maximum Noise Level67 dB
    Number of Filters1
    Auto Restart On Power FailureYes
    DuctableYes
    CastersNo
    Maximum Amperage7.5 Amps
    Maximum Wattage800 W
    Voltage110-120 V
