QMark SSAR SmartSeries Wall Heater





QMark SSAR Smart Series Programmable Wall Heaters

QMark SSAR1802 120V Smart Series Programmable Wall Heater

QMark SSAR4808 208V Smart Series Programmable Wall Heater

QMark SSAR4804 240V Smart Series Programmable Wall Heater

QMark SSAR4807 277V Smart Series Programmable Wall Heater


Be the first to Write a Review
|
Q&A (0)

Price: $629.95


  • FREE Shipping



  • Product Overview

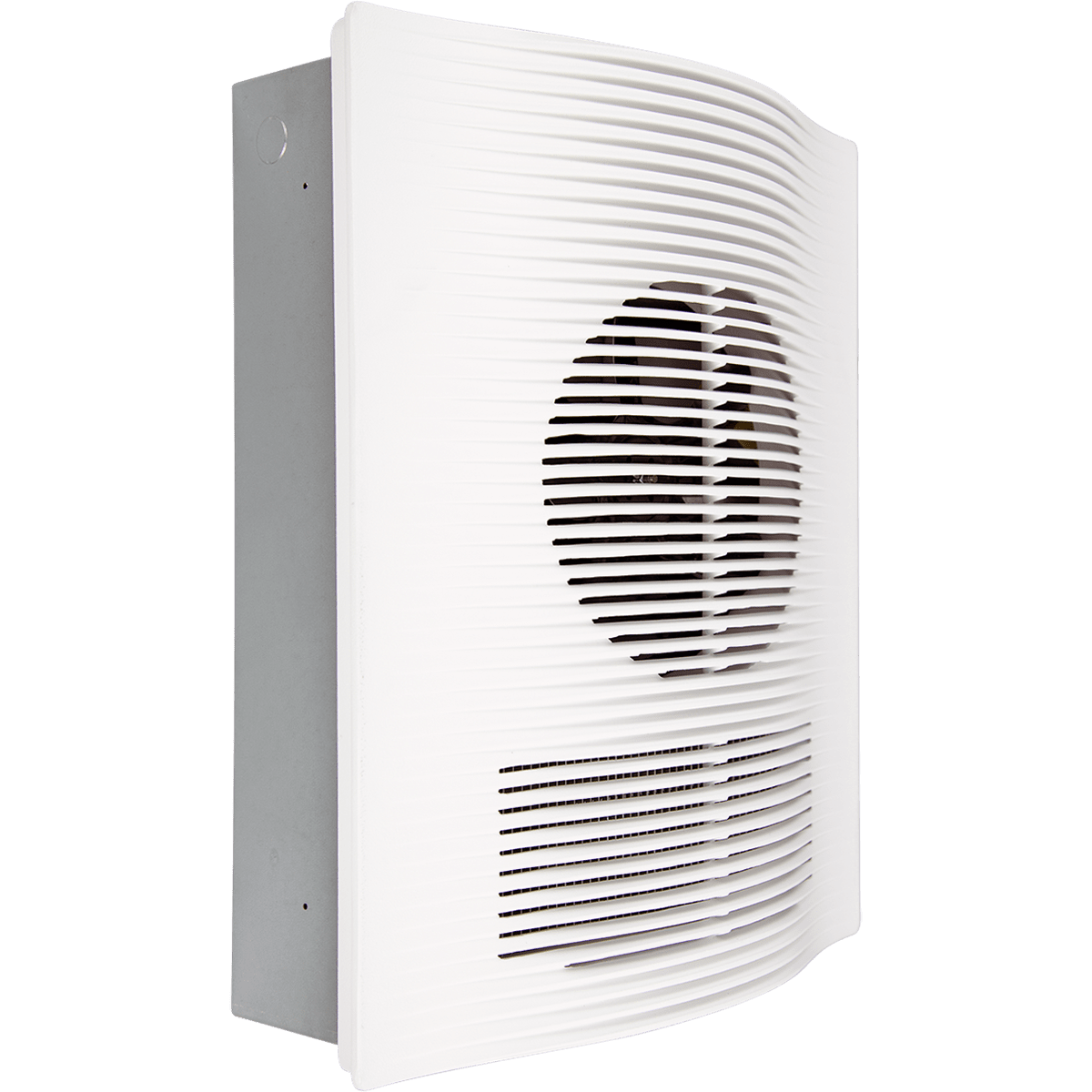

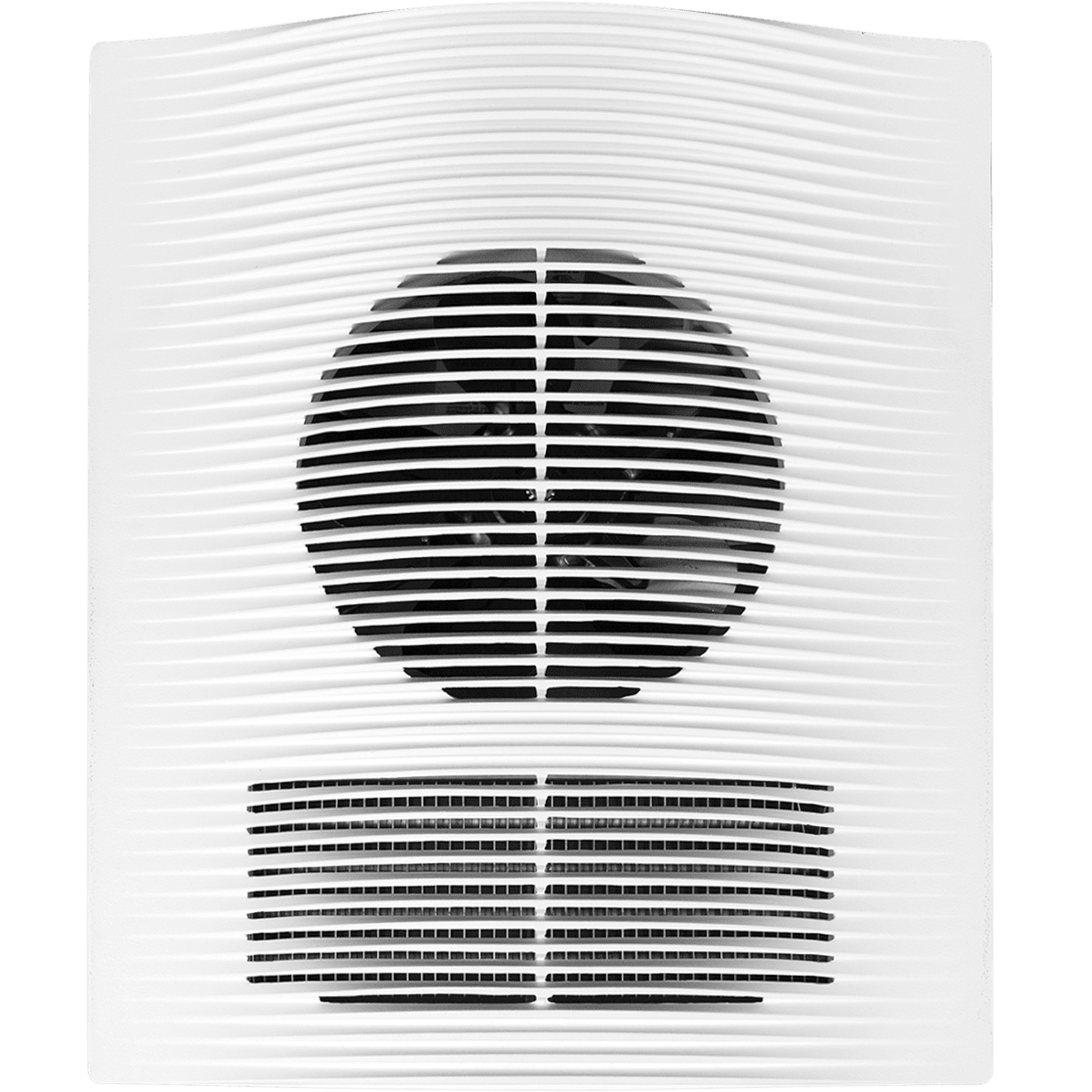

    The QMark Smart Series wall heaters are unique, high-end heating solutions often found in restaurants, hotels lobbies, and bathrooms. Available in various voltage options, the Smart Series Wall Heater can be programmed for up to 7 days.


    It also features an easy-touch digital control board with thermostat, popular sleek design, and a heavy-duty aluminum grille. After being wired into your wall, simply set your ideal temperature and let this wall heater keep you comfortable without taking up space or being an eye sore in your building.

    Voltage and Wattage Options

    This impressive wall heater comes with 4 voltage options and must match your building’s voltage rating. The 120-volt heater, typically used in residential or small spaces like a bathroom, offers up to 6,142 BTUs of heating power per hour, while the more powerful heaters offer up to 16,378 BTUs of power. Compare the heat output for each model below. The larger models are ideal for conference rooms, atriums, lobbies, and restaurants.

    Model #

    Volts

    Watts

    Max Amps

    Max BTU

    QMark SSAR1802

    120

    540-1800

    15

    6,142

    QMark SSAR4808

    208

    1800-4800

    23.1

    16,378

    QMark SSAR4804

    240

    1800-4800

    20

    16,378

    QMARK SSAR4807

    277

    1800-4800

    17.3

    16,378

    Advanced Programmable Operation

    You can program this wall heater to turn on with specific settings any day of the week. Its SmartSeries Digital Thermostat only outputs the amount of heat needed by continually measuring heat output needed to keep your warm at your set temperature.

    A 5-day/2-day programming system allows you to program different settings during the week and on weekends. This not only takes the thinking out of using your heater, but it ensures it only runs when needed. Each day can be broken down into 4 distinct time periods (wake up, daytime, evening, and sleep), so you have total control of it at all times.

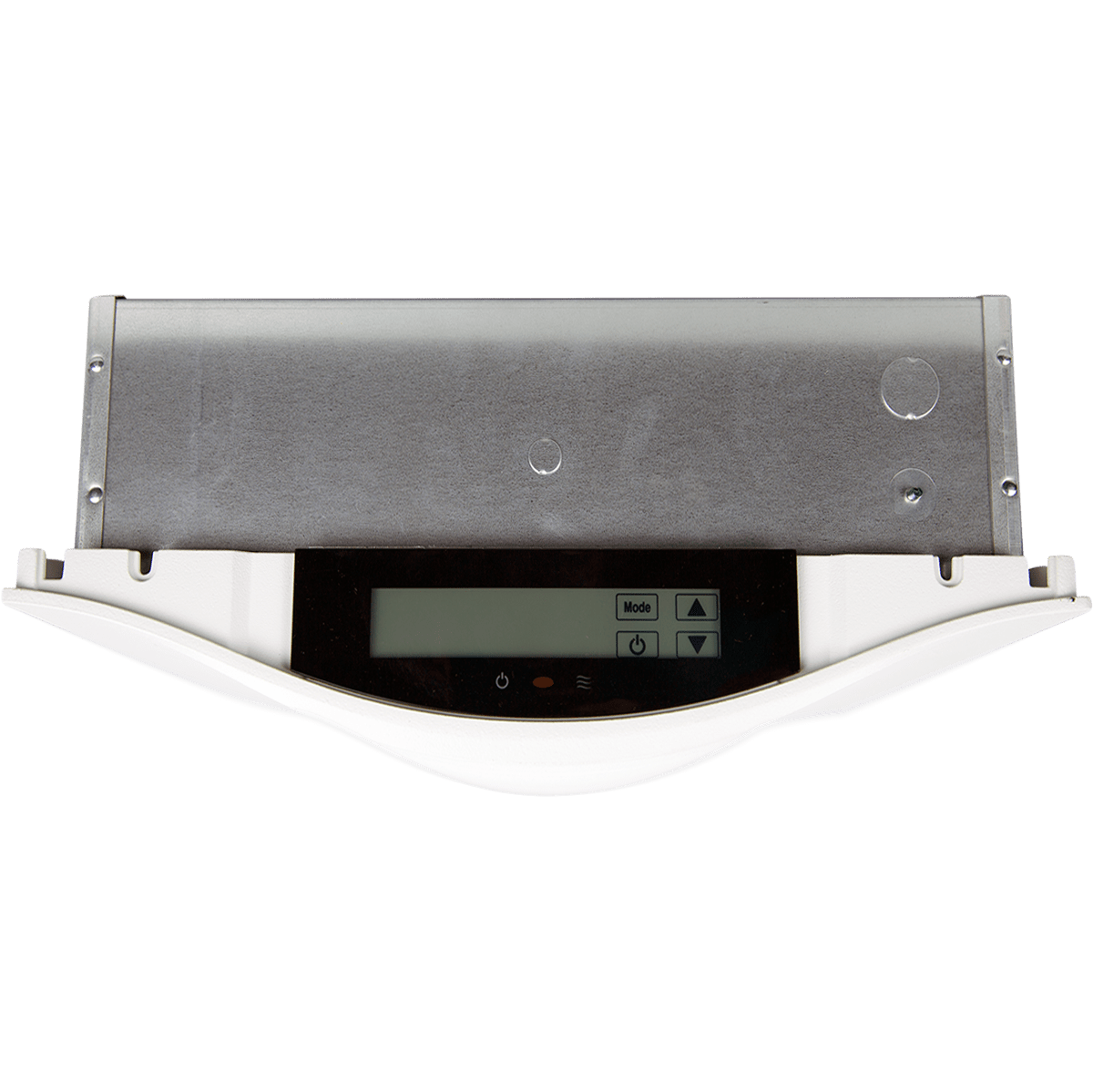

    Heater Dimensions

    This QMark SSAR wall heater was designed to be recessed in wall studs and can be wired with standard building wire. Make sure your wall space is able to fit these dimensions:

    • Back Width: 14.3 inches
    • Back Height: 18.22 inches
    • Depth: 6.25 inches
    • Front Width with Panel: 15.85 inches
    • Front Height with Panel: 19.25 inches

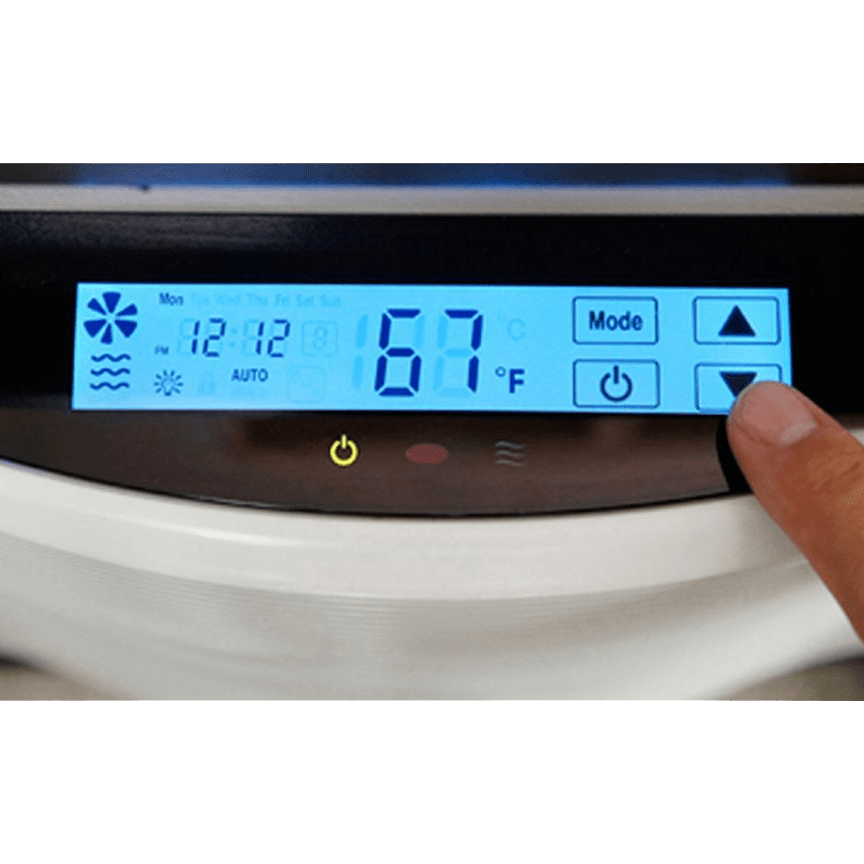

    LED Touch Screen Controls

    An LED touch screen puts all of the heater’s controls at your fingertips, and there are plenty of heating options, highlighted below. You can also make setting changes using the included remote control:













    Additional Features

    • Simple Installation - designed to fit between 2 x 4 feet wall sections and also comes with a wall box for mounting
    • 100% Efficient Operation - this wall heater automatically adjusts its wattage output to keep you warm as efficiently as possible
    • Hold Mode - maintains constant set temperature for freeze protection or vacation setting when you aren’t there
    • Building Management System - allows you to connect this model with your system to easily control your space
    • Fan Mode - use this when you only need a fan on mild days
    • Night Light Option - if you're operating this model at night, turn this feature on so it's easier to see
    • Remote Control - set your room temperature or change the settings with this remote control
    • Lock Out Feature - disables normal functions, so the settings can't be adjusted

    Summary

    The SSAR Smart Series Programmable Heater blends the most contemporary design with up-to-date technology to become a simple, attractive heating solution.

    What Customers Love

    • Little Maintenance: There is practically no maintenance required with this model, except the occasional cleaning.
    • Programmable: There's literally no thinking when it comes to using this heater, since you can program it to run every day.
    • LED Touch Screen: A touch screen is incredibly easy to use (you can also use the remote control for changing settings from anywhere in your space).

    Things to Consider

    • Voltage: The power supply voltage in your building must match this heater's voltage rating.
    • Mounting Limitations: This heater shouldn't be installed closer than 12" to the floor or another wall or 36" to the ceiling.

    Manufacturer's Warranty

    5-Year Limited Warranty

    Manufacturer's Literature

    Qmark SSAR Wall Heater Manual
    User Guide and Installation Instructions

    What's In The Box?

    • QMark Heater Body
    • Grille
    • Remote Control
    • Owner's Manual
  • Specifications

    Heater StyleWall
    Heater TechnologyFan-forced
    Heater BTUs
    • 120V / 1800W: 6,142 BTUs
    • 208V / 4800W, 240V / 4800W, 277V / 4800W: 16,378 BTUs
    Height19.25 in.
    Width
    • 120V / 1800W: 14.3 in.
    • 208V / 4800W, 240V / 4800W, 277V / 4800W: 15.85 in.
    Depth6.25 in.
    Weight26 lbs.
    Adjustable ThermostatYes
    Programmable ThermostatYes
    ControlsElectronic
    Remote ControlYes
    Programmable TimerYes
    Fan-Only ModeYes
    Automatic OscillationNo
    Wall-MountableYes
    Carrying HandleNo
    CastersNo
    ColorWhite
    Voltage
    • 120V / 1800W: 110-120 V
    • 208V / 4800W: 208 V
    • 240V / 4800W: 220-240 V
    • 277V / 4800W: 260-280 V
    Minimum Wattage
    • 120V / 1800W: 540 W
    • 208V / 4800W, 240V / 4800W, 277V / 4800W: 1800 W
    Maximum Wattage
    • 120V / 1800W: 1800 W
    • 208V / 4800W, 240V / 4800W, 277V / 4800W: 4800 W
    Maximum Amperage
    • 120V / 1800W: 15 Amps
    • 208V / 4800W: 23.1 Amps
    • 240V / 4800W: 20 Amps
    • 277V / 4800W: 17.3 Amps
    Wiring StyleHardwired
    GFCI Safety PlugNo
    Tip-Over ProtectionNo
