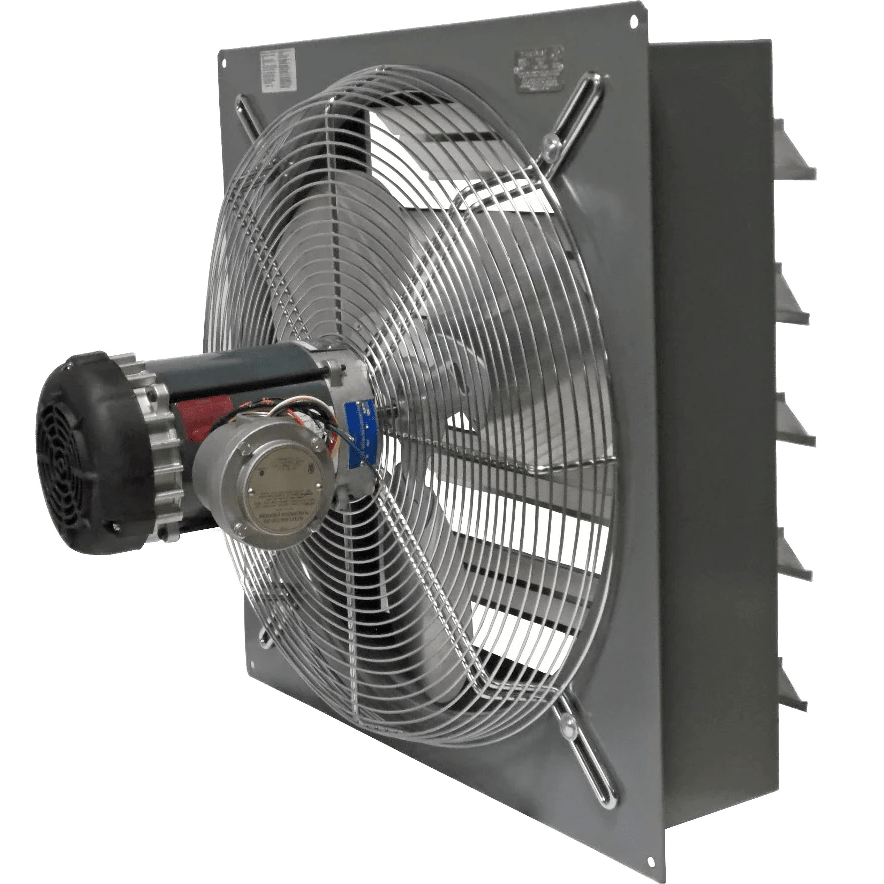

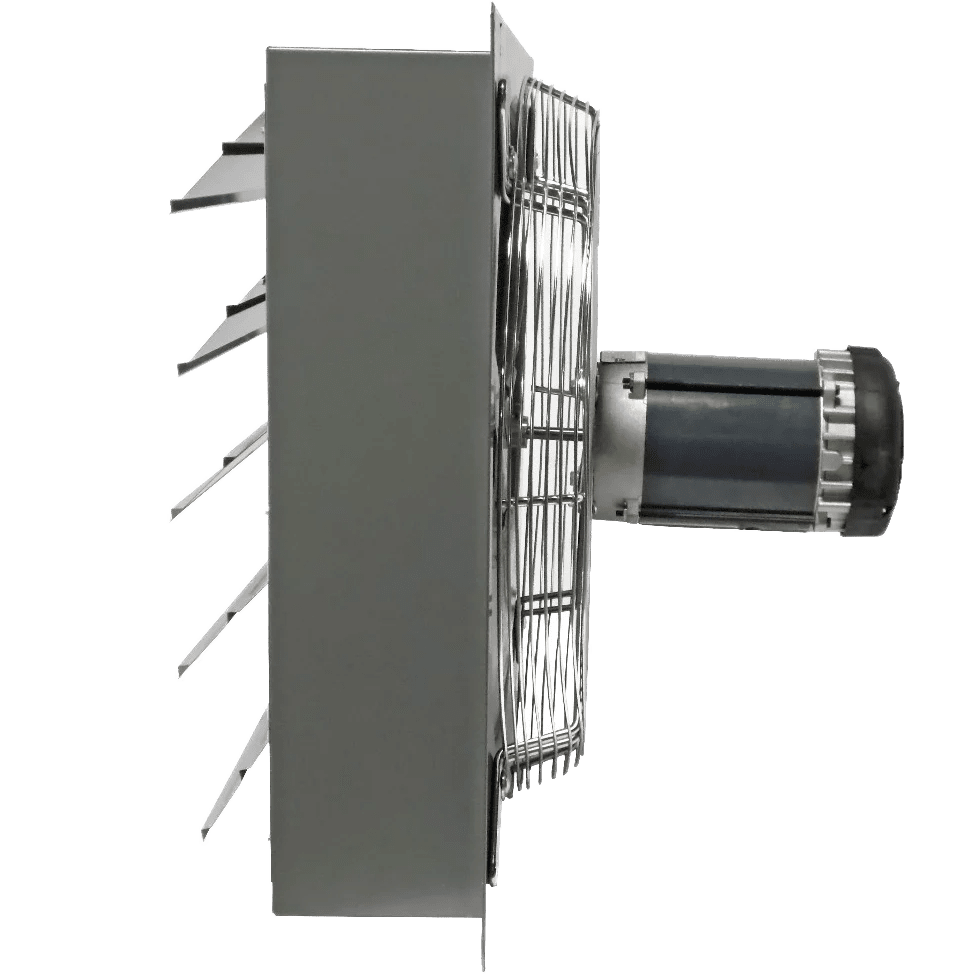

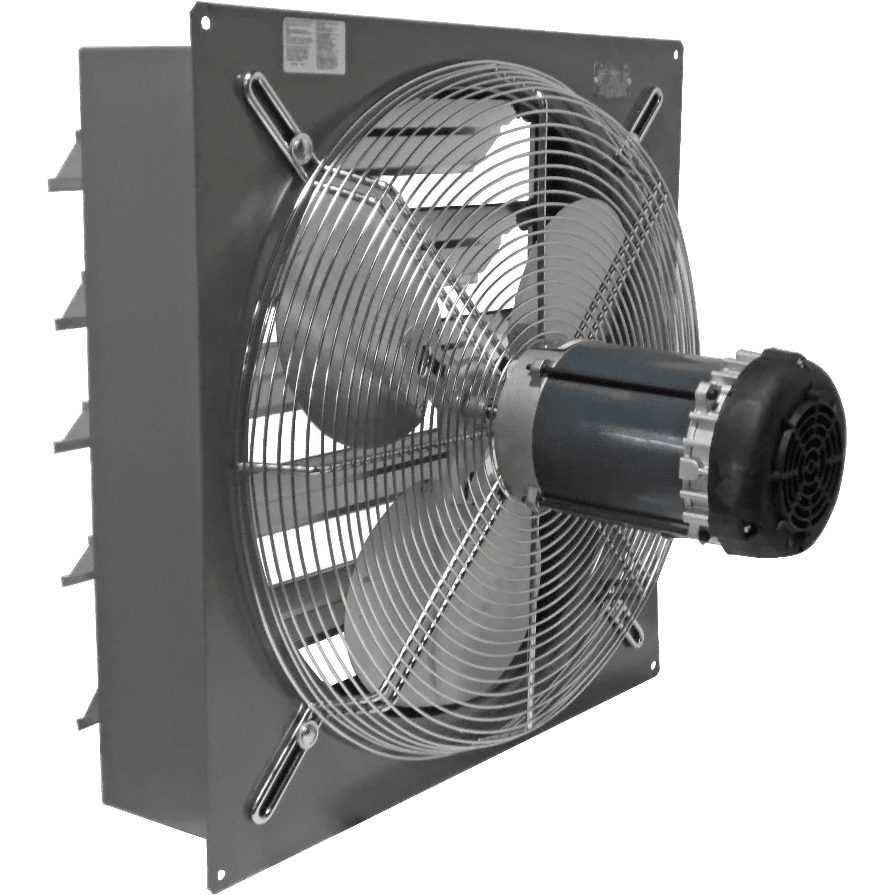

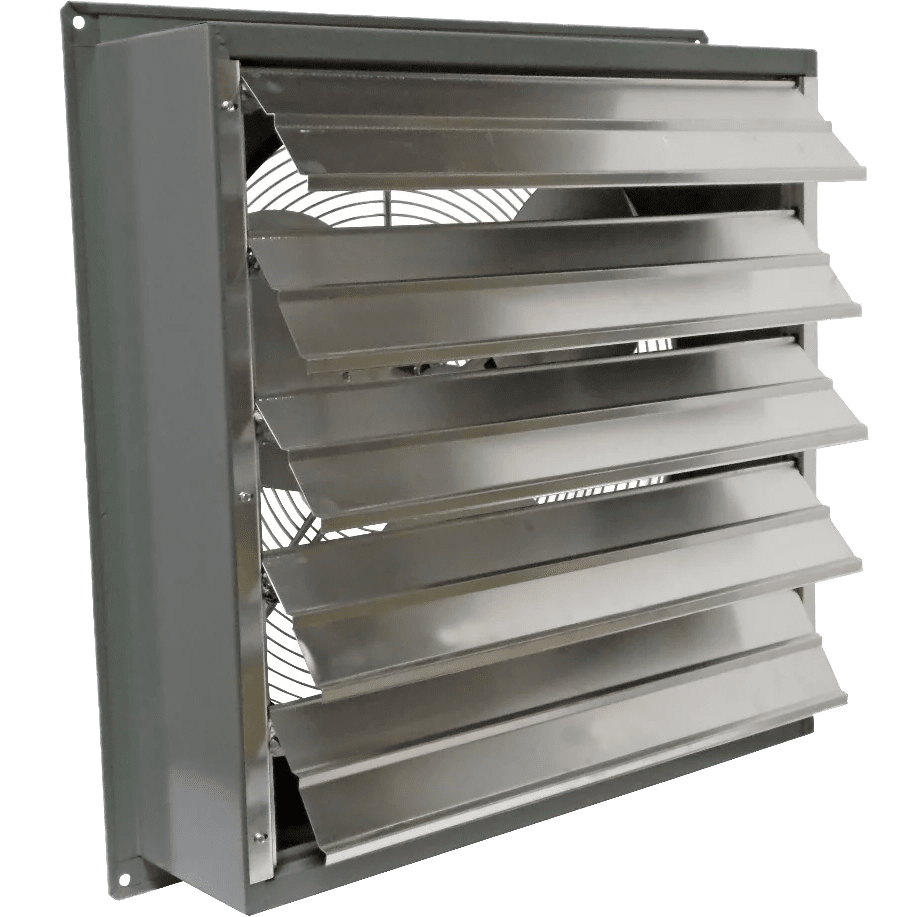

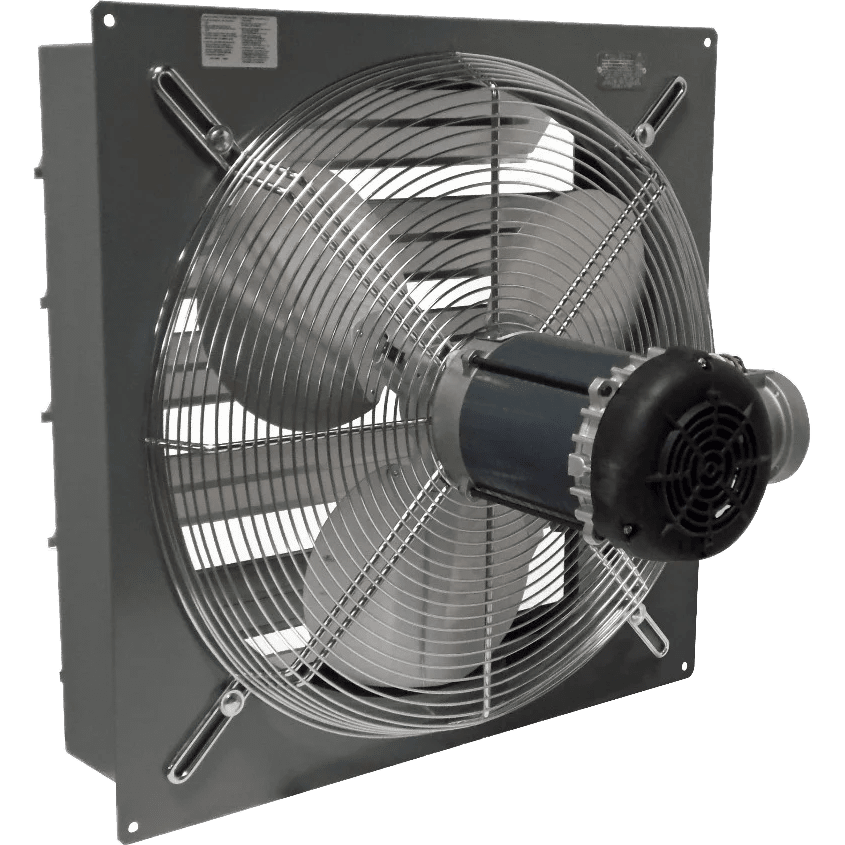

Canarm SD08-XPF 8-In. Explosion Proof Wall Mount Shutter Exhaust Fan

Name: Canarm SD08-XPF 8-In. Explosion Proof Wall Mount Shutter Exhaust Fan
Brand: Canarm
Price: 796.0 USD
Availability: InStock

SKU: ca13541 | Model: SD08-XPF

$796.00

Add extended protection plan. (Select one)

2-Year Warranty - $74.99

learn more

A 2-year major appliance warranty for products less than $1,500.

4-Year Warranty - $119.99

learn more

A 4-year major appliance warranty for products less than $1,500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Limited Warranty

What's In The Box?

Canarm SD08-XPF 8-In. Explosion Proof Wall Mount Shutter Exhaust Fan
Owner's Manual

Info & Guides

Description

A safe and reliable ventilation solution for the toughest of industrial applications, the Canarm SD 8-In. Explosion Proof Wall Mount Shutter Exhaust Fan is a must-have. With durable fan blades and rugged steel box housing, it's a reliable choice. This wall-mounted shutter exhaust fan creates an airflow of up to 320 CFM for effective commercial-grade ventilation.

Explosion Proof Motor

The Canarm SD08-XPF is an explosion proof fan that meets and conforms to the following standards:

Class I, Group C: Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.
Class I, Group D: Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.
Class II, Group F: Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard.
Class II, Group G: G Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals.

Key Features Of The Canarm SD 8-In. Explosion Proof Fan

Powerful Airflow: This Canarm shutter exhaust fan is capable of an airflow of up to 320 CFM.
Ball-Bearing Motor: Features a totally enclosed, ball bearing motor with thermal overload protection.
Durable Fan Blades: Its 8-inch fan blades are constructed of heavy-gauge aluminum.
Rugged Design: The steel welded box housing has a durable powder coated finish.
OSHA Guards: Equipped with heavy wire chrome plated OSHA guards on intake side of fan.
Ships Assembled: This fan ships completely assembled.
Framing Dimensions: 11" x 11"

Summary

This single speed, dual voltage explosion proof fan is a must-have for sensitive commercial applications.

Specifications

Key Specifications

Number of Speeds

1
Type

Shutter Exhaust Fan

General

Application

Commercial/Industrial
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Certifications

cETLus
Color

Gray
Controls

Toggle Switch
Housing Material

Powder-Coated Steel
Maximum Cubic Feet per Minute (CFM) (CFM)

320.0
Maximum RPM

1725

Power

Amperage (Amps)

3.3 to 6.6
Power Supply

Hardwired
Voltage (V)

110-120

Dimensions

Ceiling or Wall Cutout Length (in.)

12.75
Ceiling or Wall Cutout Width (in.)

12.75
Depth (in.)

17.5
Depth (with front cover) (in.)

17.5
Height (in.)

12.0
Height (with front cover) (in.)

12.0
Shutter Fan Size (in.)

8
Weight (lbs.)

38
Width (in.)

13.25
Width (with front cover) (in.)

13.25
