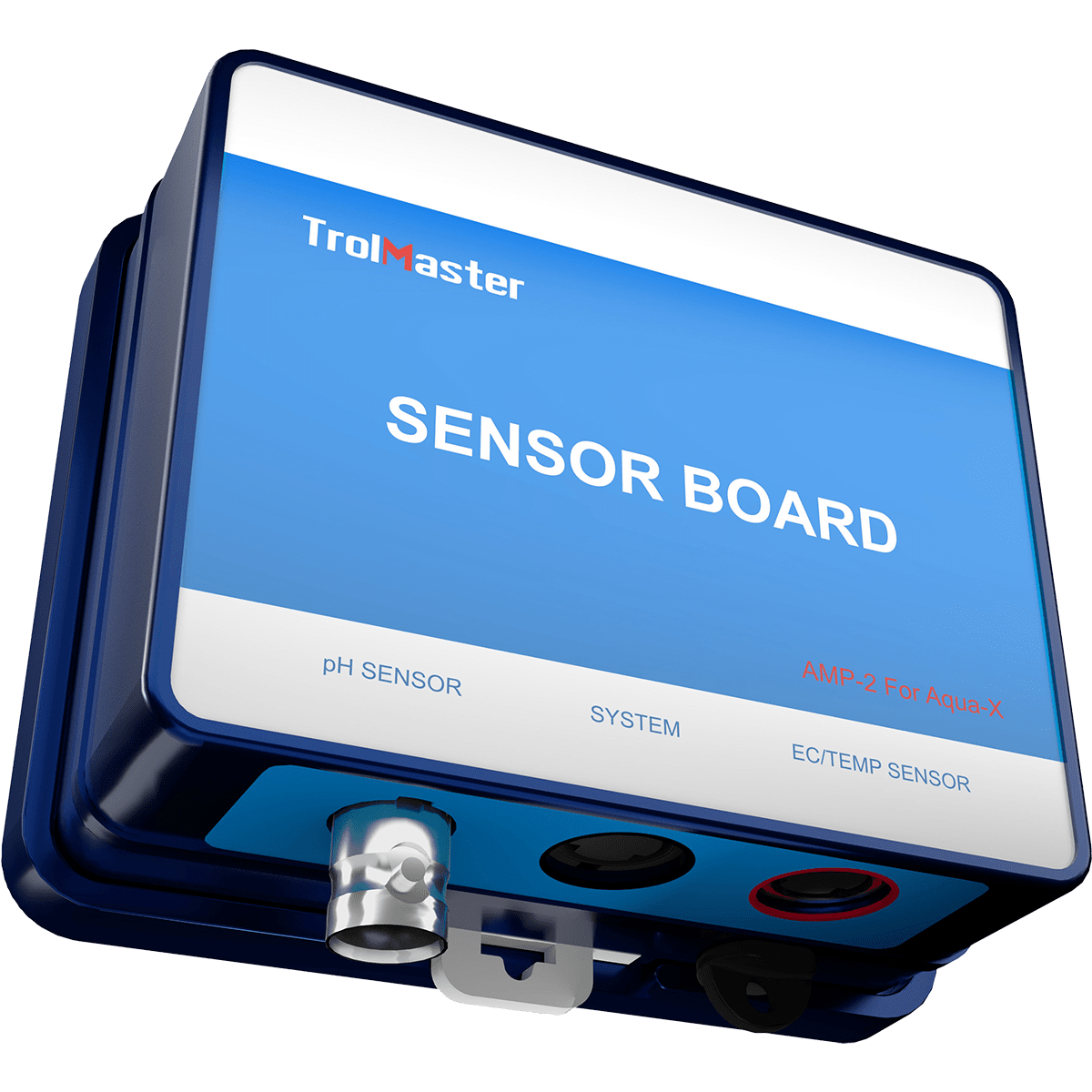

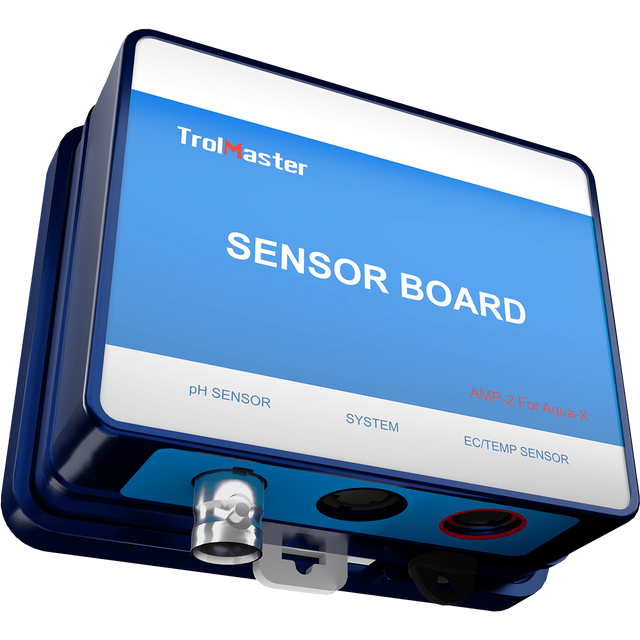

TrolMaster Aqua-X Sensor Board
SKU:
tm12788
| Model:
AMP-2
$109.99
$121.99
Unit price
/
Unavailable
TrolMaster Aqua-X Sensor Board - Aqua-X is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
What's In The Box?
What's In The Box?

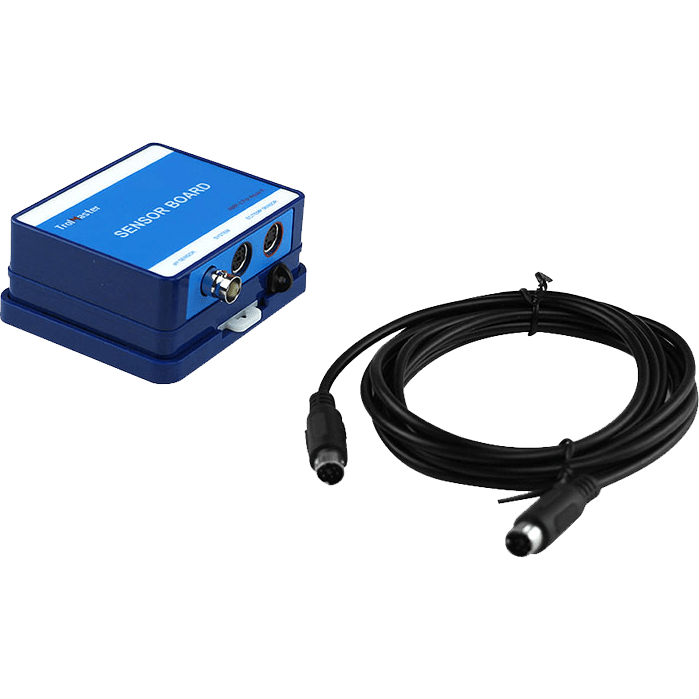

- TrolMaster Aqua-X Sensor Board (AMP-2)
- 2.5-Meter Long Signal Cable
- Owner's Manual
Info & Guides
Info & Guides
Description
Description
The TrolMaster Aqua-X AMP-2 module connects the Aqua-x to a set of precision pH/EC & temperature probes to constantly measure the pH / EC & temperature of the water being sampled.
Two Models Available
Select from two options when choosing the right Aqua X Sensor for you.
- Aqua-X: The Aqua-X is designed to control up to 30 separate irrigation zones (24vac solenoid valves or 120vac pumps), The Aqua-x monitors pH / EC and water temp as well as to monitor actual growing medium moisture levels by using up to (8) Water Content Sensors connected to a single Aqua-x controller. It comes with a water detector WD-1 for leaking alert and watering confirmation.
- Aqua-X Pro: The TrolMaster Aqua-X Pro is a multi-functional controller which can control multiple irrigation solenoids and pumps. The NFS-2 can also monitor multiple water sensors that can measure pH, EC / PPM, temperature and water content sensor.
Monitoring with Probes
These probes work with Aqua-X via the App.
- TrolMaster PCT-1 & PCT-2
- TrolMaster PPH-1 & PPH-2
Once connected to the Aqua-x, the AMP-2 will display the sensor data on the Aqua-x and on the APP. The minimum and maximum “limits” can be set on the Aqua-x providing 24/7 notification of pH/EC or temperatures that are out of set limits.
Additional Features
- Simple-to-Use DIN Type Bracket for Easy Installation
- BNC Terminal allows Direct Connection to pH Sensor
- Mini DIN Terminal allows Direct Connection to EC/Temp Sensor
- Mini DIN Terminal allows Direct Connection to Aqua-X Controller
Specifications
Specifications
-
Growing Product TypeControl Board
-
System ControlspH Level, Temperature
-
Environment Temperature (degrees F)32-122
-
Maximum Operating Temperature (degrees F)122
-
Minimum Operating Temperature (degrees F)32
-
Depth (in.)6.3
-
Depth (with front cover) (in.)6.3
-
Height (in.)3.39
-
Height (with front cover) (in.)3.39
-
Weight (lbs.).49
-
Width (in.)3.39
-
Width (with front cover) (in.)3.39
-
Additional FeaturesAlert, Wi-Fi Capable, Applicable for Indoor Growing
