TrolMaster Hydro-X Low Volt Station
TrolMaster Hydro-X Low Volt Station is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
What's In The Box?
What's In The Box?
- TrolMaster Hydro-X Low Volt Station (DSV-1)
- 16-ft. RJ12 Cable
- 4-ft. RJ12 Cable
- RJ12 T-Splitter

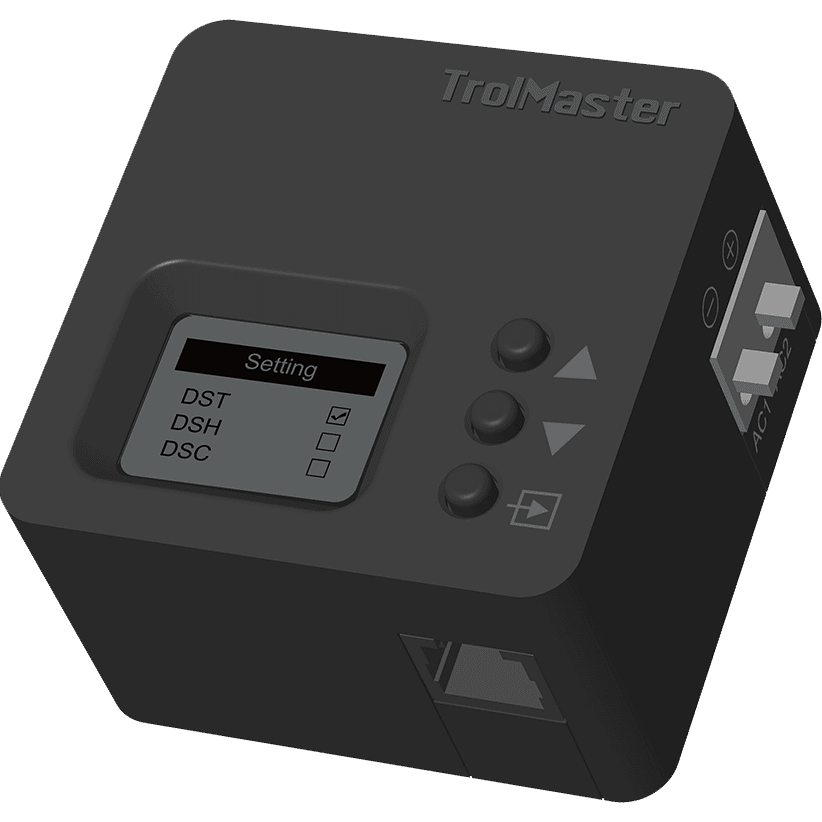

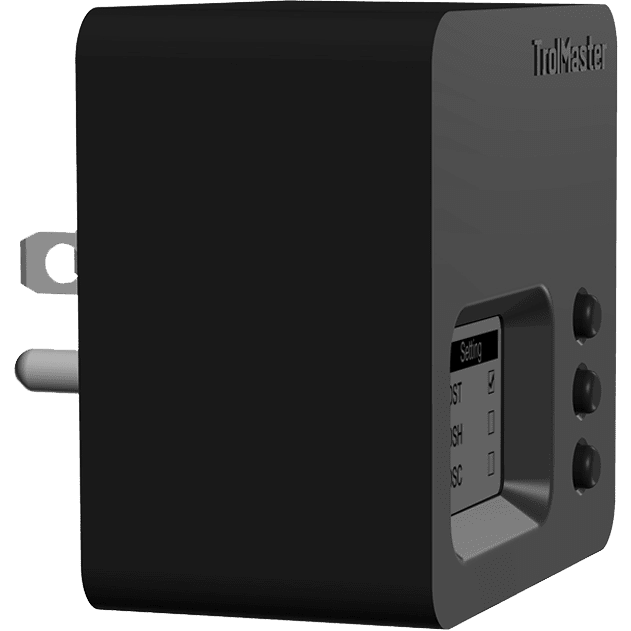

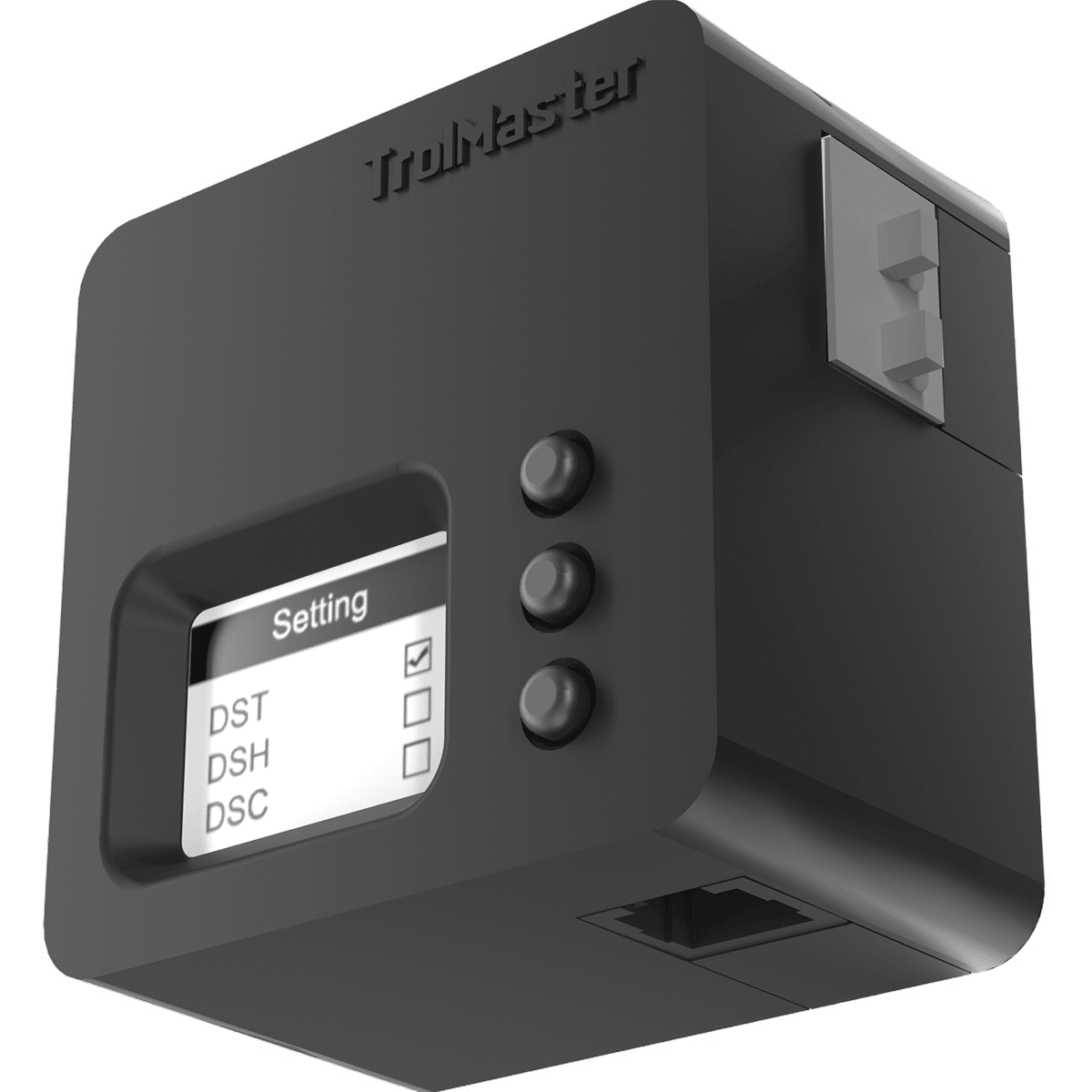

TrolMaster Hydro-X Low Volt Station
Description
Description
The TrolMaster DSV-1 is a low-voltage output module that can be used on the HCS-1, HCS-2 controllers. It can be addressed to be used as a temperature, humidity, CO2, or timer device module.
Multiple Voltage Outputs
Selectable by the grower, the DSV-1 can output either 12 or 24 VDC up to .5 amps, or 12 or 24 VAC up to 4.8VA. Once the module is configured it will activate the low-volt device wired to the DSV-1. This allows the user to directly connect low voltage devices such as solenoids, valves, audio visual alarms or any other device that requires 12 to 24 volt AC or DC power to operate.
Additional Features
- LCD Display, Easy Operation
- Seamless Connection with Hydro-X and Hydro-X Pro
- Multiple Purposes Assignment
- Plug & Play Functionality
Specifications
Specifications
-
Growing Product TypeDevice Station
-
System ControlsTemperature
-
Environment Temperature (degrees F)32-122
-
Maximum Operating Temperature (degrees F)122
-
Minimum Operating Temperature (degrees F)32
-
Maximum Amperage (Amps)0.1
-
Depth (in.)3.35
-
Depth (with front cover) (in.)3.35
-
Height (in.)3.54
-
Height (with front cover) (in.)3.54
-
Weight (lbs.)0.8
-
Width (in.)3.15
-
Width (with front cover) (in.)3.15
-
Additional FeaturesApplicable for Indoor Growing
