Fantech VER 150 159 CFM Energy Recovery Ventilator
SKU:
fn12586
| Model:
463857
$992.00
Unit price
/
Unavailable
Fantech VER 150 159 CFM Energy Recovery Ventilator is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech VER 150 Energy Recovery Ventilator
- Owner's Manual
- Mounting Bolts
Info & Guides
Info & Guides
Fantech VER 150 159 CFM Energy Recovery Ventilator
$992.00
Unit price
/
Unavailable
Description
Description
Designed for use in high static pressure applications, the Fantech VER 150 Energy Recovery Ventilator exhausts contaminated air while bringing fresh air into your home or building. Equipped with an energy recovery core, it helps to make your heating and cooling system more efficient by transferring heat during ventilation.
Key Features Of The Fantech VER 150
- Duct Connection: Features 6-inch oval top duct connections.
- Ideal For Multi-Room Homes: With an airflow of up to 159 CFM, the VER150 is effective in 2 - 5 bedroom homes.
- Use In High Static Pressure: This ventilator is designed to exhaust contaminated indoor air while replacing it with fresh air.

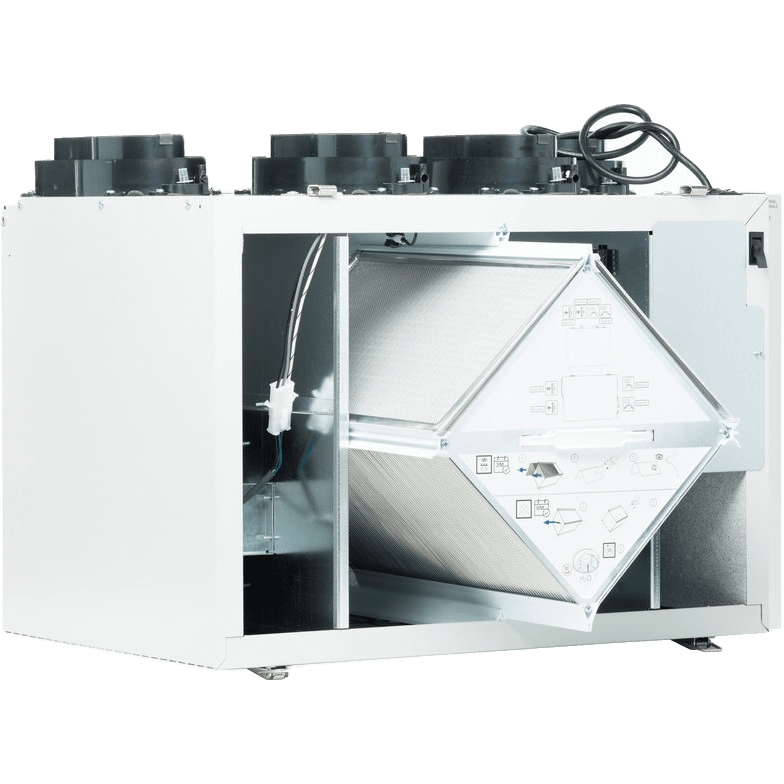

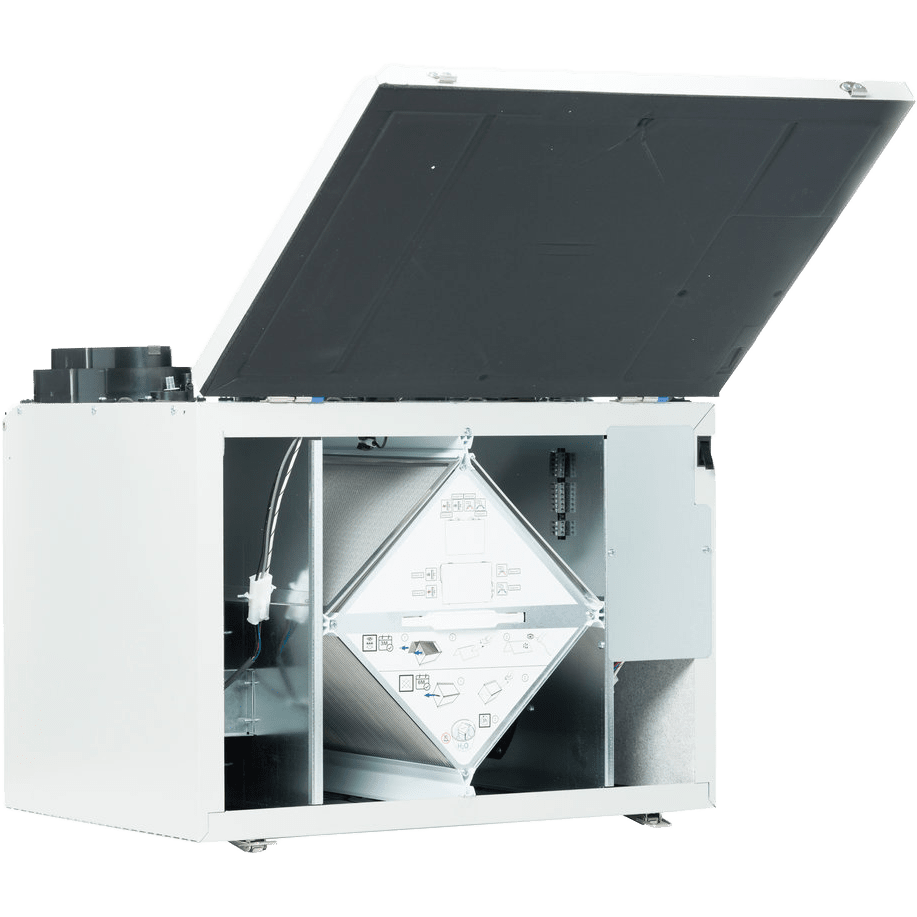

- Energy Recovery Core: Located at the center of the unit, its core transfers heat and moisture from incoming air to the outgoing air that was cooled and dried by your air conditioner.
- Easy to Install: It features a removable screw terminal for easy connection.
- Ventilation Control: An external 3-position (low, stand by, medium) rocker switch makes operation easy.
- Freeze Protection: This unit automatically defrosts when outdoor temperatures are lower than 14 degrees Fahrenheit.
- Low-Voltage Controls: It's compatible with Fantech's low-voltage controls.
- Electrostatic Filters: Washable electrostatic filters capture airborne irritants as air passes through the ventilator.
Summary
Designed for higher static pressure applications, the Fantech VER 150 exhausts contaminated air while replacing it with fresh air.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)75.0
-
Mounting TypeCeiling, Suspended
-
Number of Speeds3
-
Port LocationTop
-
TypeERV-Air Supply Fan
-
ApplicationResidential
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsCSA, HVI-Certified
-
ColorWhite
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)159.0
-
Amperage (Amps)1.6
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)156
-
Depth (in.)23.8
-
Depth (with front cover) (in.)23.8
-
Duct Diameter (in.)6.0
-
Height (in.)18.5
-
Height (with front cover) (in.)18.5
-
Weight (lbs.)41.9
-
Width (in.)17.2
-
Width (with front cover) (in.)17.2
-
Additional FeaturesThermal Cutoff Protection
-
Manufacturer's Warranty7-Year Limited Motor Warranty, 5-Year Limited Energy Recovery Core Warranty, 5-Year Limited Parts Warranty
