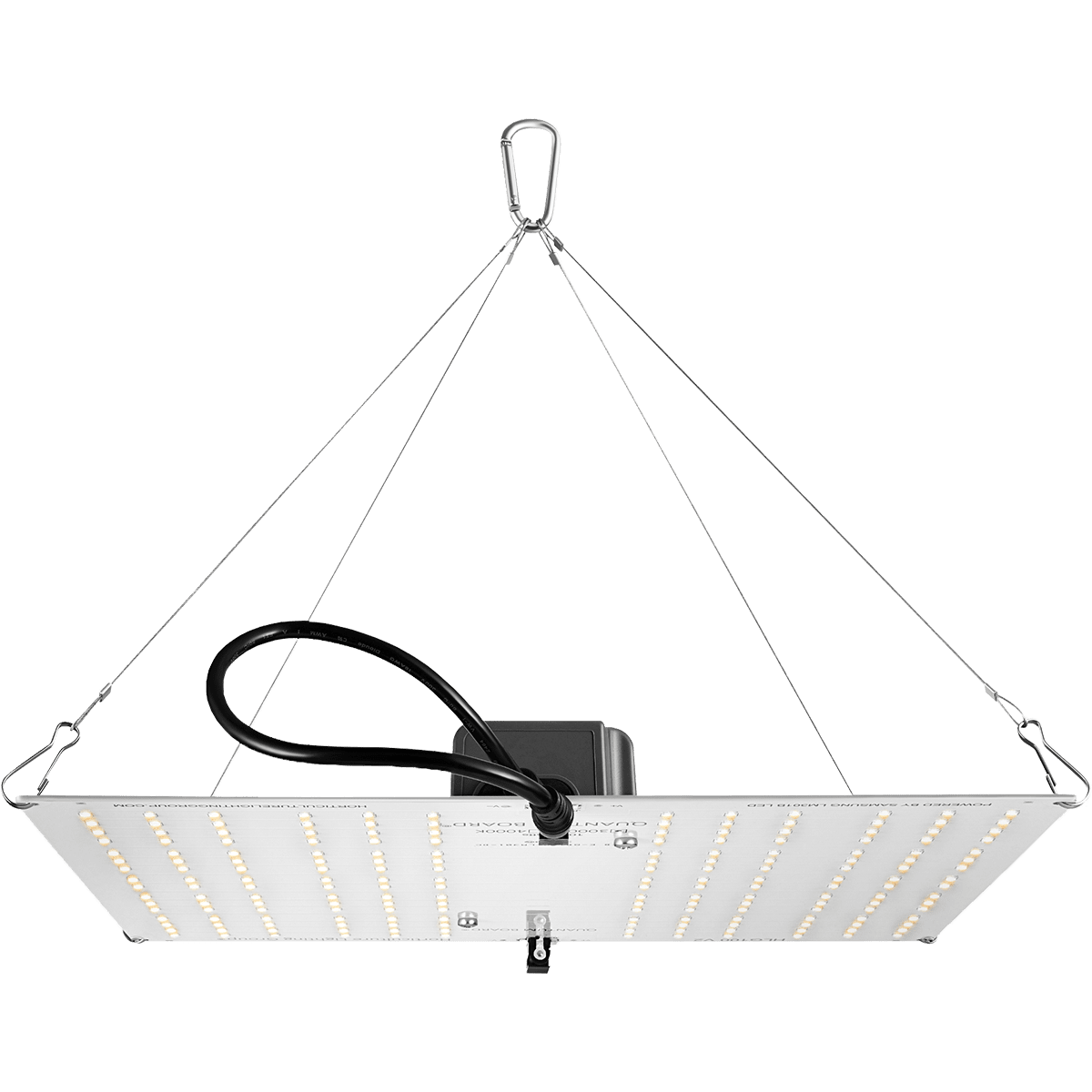

HLG 100 V2 High Efficiency White Light Quantum Board
HLG 100 V2 High Efficiency White Light Quantum Board is backordered and will ship as soon as it is back in stock.
Description
Description
Small spaces heat up fast, and every extra watt of lighting makes it worse. The HLG 100 V2 High Efficiency White Light Quantum Board pairs high-efficiency diodes with a low power draw, so your plants get strong, even light without a heavy cooling load. It fits compact setups where space and electrical capacity are both tight.
Key Features and Benefits of the Horticulture Lighting Group HLG 100 V2 High Efficiency White Light Quantum Board
- Samsung Diodes: Uses 192 Samsung LM301H LEDs with full-spectrum white output, giving your plants one balanced light source through every stage.
- High PPF Efficacy: A system efficacy of 2.45 micromoles per joule means you get more usable plant light from each watt the board draws.
- Total Light Output: Produces a total output of 235 PPF, so your canopy gets a steady supply of the light plants use for photosynthesis.
- Two-Stage Coverage: Covers 2 x 2 feet during flowering and 3 x 3 feet in the vegetative stage, so one board can carry your plants through both phases.
- Low Power Draw: Pulls 95 watts and 0.9 amps at 110-120 volts, leaving plenty of room on a household circuit for fans and similar equipment.
- Lumen Efficiency: Rated at 170 lumens per watt, the board puts out more than 15,000 lumens of bright white light from a modest power draw.
- Passive Heatsink Cooling: Heatsinks shed heat passively, and the 325 BTU per hour heat output helps you keep your space cooler.
- Diffused Light: The LM301H diodes spread their output evenly, helping light reach deeper into the canopy for stronger plants.
- ETL Listed: The board carries an ETL listing, so you have a certified electrical product to plug into your household circuit.
- Compact Size: Measures 12.8 x 11 x 3-Inches (L x W x H) and weighs 4 pounds, so it is easy to position over a small space.
- Power Cord: An 8-foot cord with a 1-15 plug gives you room to reach a standard household outlet.
Planning Around Fixed Output and Footprint
The power supply has no dimming capability, so the board always runs at its full 95 watts. To soften intensity for seedlings or young plants, you change the distance between the board and the canopy instead of turning a dial. Plan your layout around the stage you run most. Size your space to the 2 x 2 feet flowering footprint if you take plants through flowering, or use the 3 x 3 feet vegetative footprint if you keep them in the vegetative stage, which gives you more room per light.
Sylvane's Expert Take
If you're lighting a compact space of about 2 x 2 feet and want efficient light without extra heat, the HLG 100 V2 fits well. It does best where ventilation and circuit capacity are limited, since it draws under 1 amp. Know this before you commit: output is fixed, so you will manage intensity with distance. The features that matter most are the 2.45 micromoles per joule efficacy and passive heatsink cooling, which together keep your energy use and temperatures in check.
Specifications
Specifications
-
Heat Output (BTUs)325
-
Total Output (PPF)235
-
CertificationsETL
-
Flowering Footprint (ft.)2x2
-
Lighting TypeLED
-
System PPF Efficacy (μmol/joule)2.45
-
Veg Footprint (ft.)3 x 3
-
Maximum Amperage (Amps)0.9
-
Plug Face Type1-15
-
Power Cord Length (ft.)8
-
Voltage (V)110-120
-
Watts (W)95
-
Depth (in.)11.0
-
Height (in.)3.0
-
Weight (lbs.)4
-
Width (in.)12.8
-
Additional FeaturesFull Spectrum, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Limited Warranty
