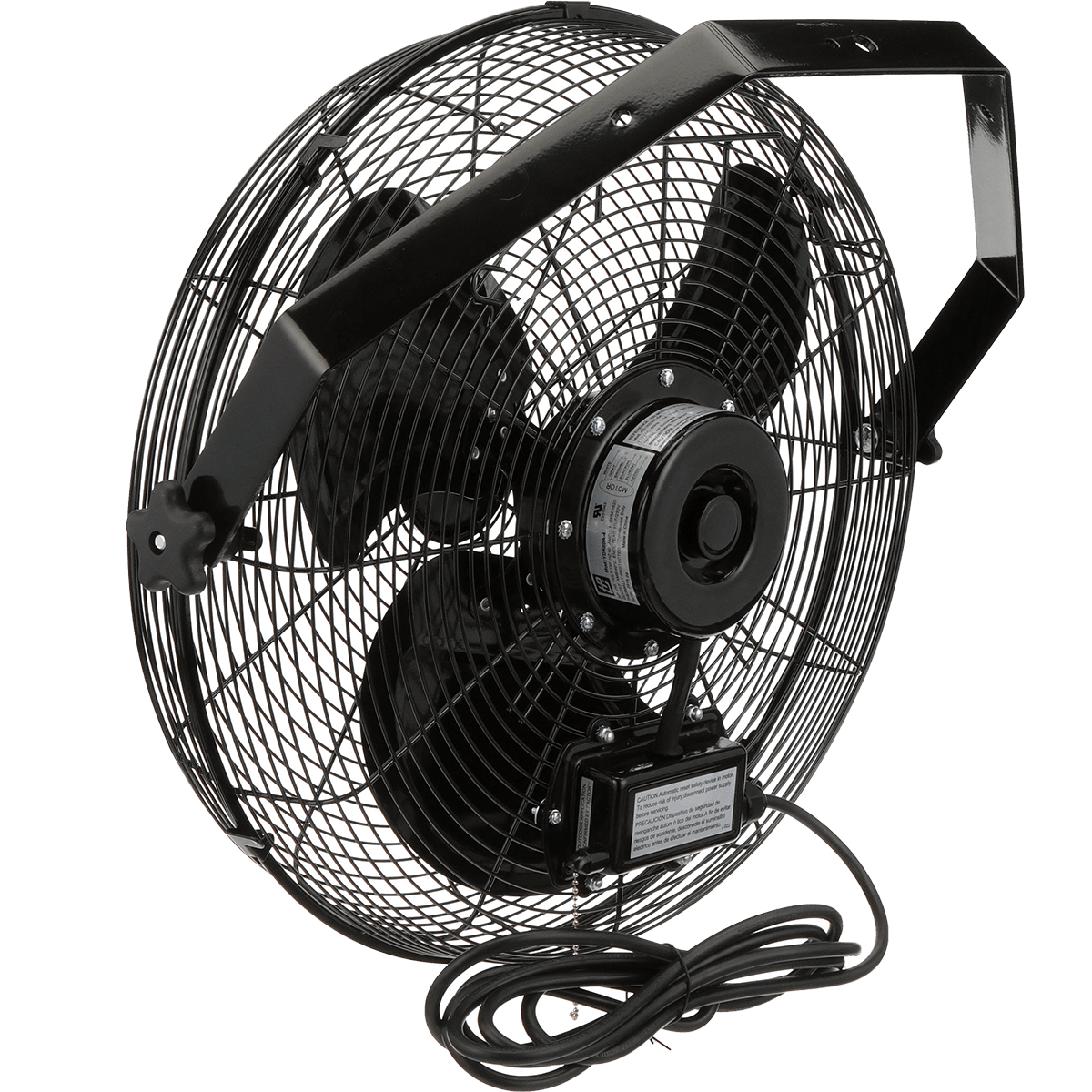

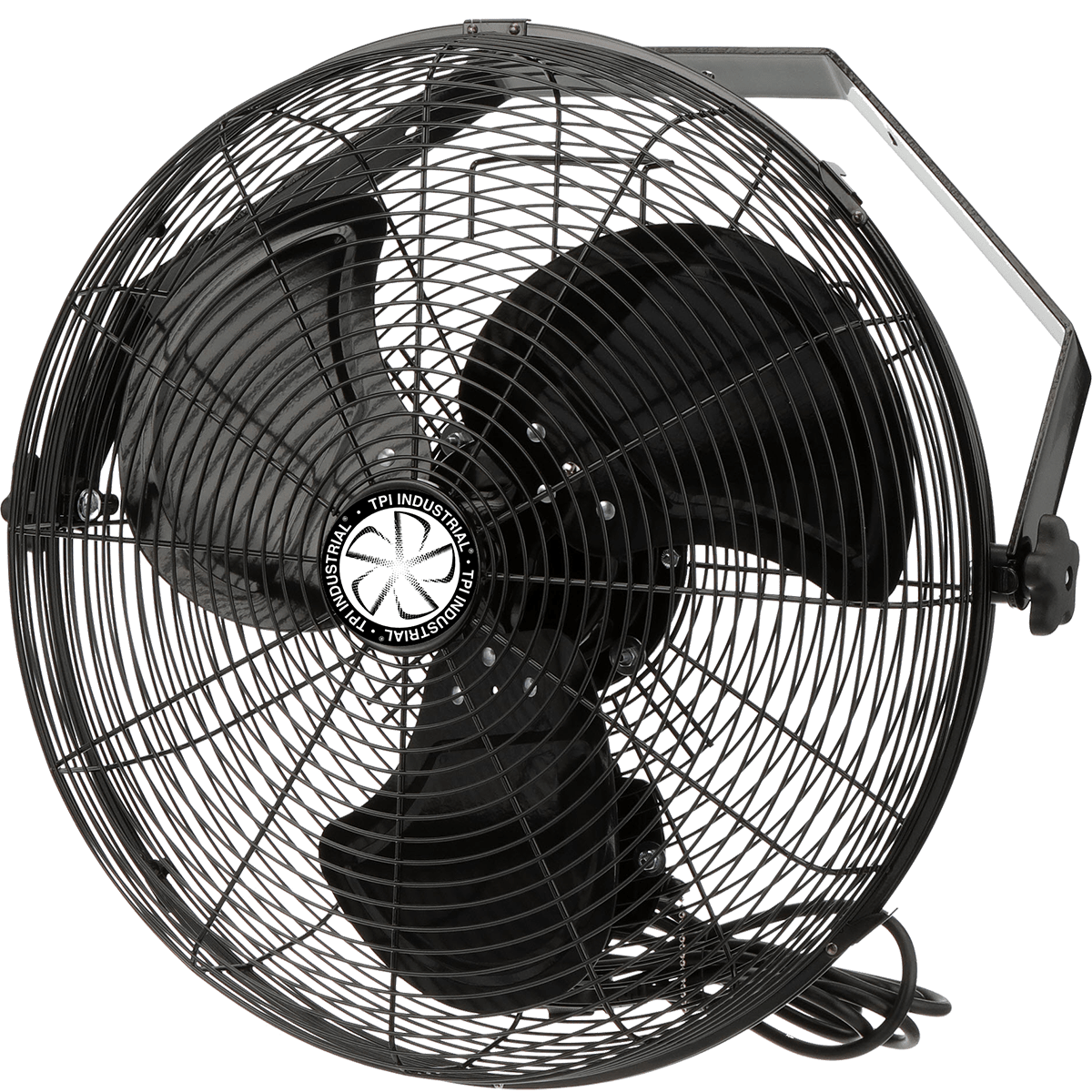

TPI U-TEHD 3-Speed Outdoor Rated Industrial Yoke Mount Fan
TPI U-TEHD 3-Speed Outdoor Rated Industrial Yoke Mount Fan - 18-in is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- TPI U-TE-HD 3-Speed Outdoor Rated Industrial Yoke Mount Fan
- Steel Yoke Mounting Bracket
- Owner's Manual
Info & Guides
Info & Guides
TPI U-TEHD 3-Speed Outdoor Rated Industrial Yoke Mount Fan
Description
Description
For unprotected work areas, the TPI 3-Speed Outdoor Rated Industrial Yoke Mount Fan can be a life-saver. These can be easily mounted to ceilings, walls, supports, or other surfaces including spaces that don’t have positive airflow.
Available in two fan sizes, they feature direct drive motors with simple pull chain switches and rotating fan heads.
Outdoor Rated
TPI U-TE-HD model yoke mount fans are constructed of coated black finish steel guards and equipped with motors that are IP55 rated and UL listed for outdoor use.
- Direct Drive, Single Phase, 120V
- Sleeve Bearing
- Totally Enclosed, Permanently Lubricated
- 3- Speed
- Pull Chain Switch
Choose the Right Size
Based on the size of the work space, you can select the yoke mount fan that will work best for you.
- 18-inch: 1/10 HP motor; CFM High-1900, Medium-1500, Low-1300; Cooled Area-150 sq. ft.
- 24-inch: ¼ HP motor; CFM High-3800, Medium-3600, Low-3400; Cooled Area-240 sq. ft.
Each fan includes a steel yoke mounting bracket which allows the fan head to rotate 360 degrees vertically and horizontally for airflow direction control. Knob on the yoke mount permits 180-degree vertical rotation.
Additional Features
- Power Cord: SJT type 3 conductor, 10-foot power cord.
- Fan Blades: Spider aluminum 3 paddle blades on steel hub.
- Safety Certifications: UL CUS Listed, IP55 rated, meets OSHA standards for safe operation.
- Finish: Black powder coated steel.
Summary
TPI U-TE-HD Outdoor Rated Yoke Mount Fans are IP55 rated for outdoor use and feature 3 fan speeds, totally enclosed direct drive motor, 360-degree rotation, pull chain switch, and include steel yoke mounting bracket.
Specifications
Specifications
-
Number of Speeds3
-
TypeWall-Mountable, Ceiling
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and chromium, which is known to the state of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationscULus
-
ColorBlack
-
ControlsToggle Switch
-
Indoor/OutdoorIndoor
-
Maximum Cubic Feet per Minute (CFM) (CFM)1900.03800.0
-
Recommended Coverage Area (sq. ft.)125240
-
Maximum Amperage (Amps)1.12.4
-
Power Cord Length (ft.)10
-
Power SupplyPlug
-
Voltage (V)110-120
-
Depth (in.)10.5
-
Depth (with front cover) (in.)10.5
-
Height (in.)21.5
-
Height (with front cover) (in.)21.5
-
Weight (lbs.)2028
-
Width (in.)20.5
-
Width (with front cover) (in.)20.5
-
Additional FeaturesAdjustable Head, Wall-Mountable, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Warranty
