S&P PV-150X Powervent 6-in Inline Centrifugal Duct Fan

Name: S&P PV-150X Powervent 6-in Inline Centrifugal Duct Fan
Brand: S&P
Price: 298.0 USD
Availability: InStock

SKU: sp15696 | Model: PV-150X

$298⁰⁰

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

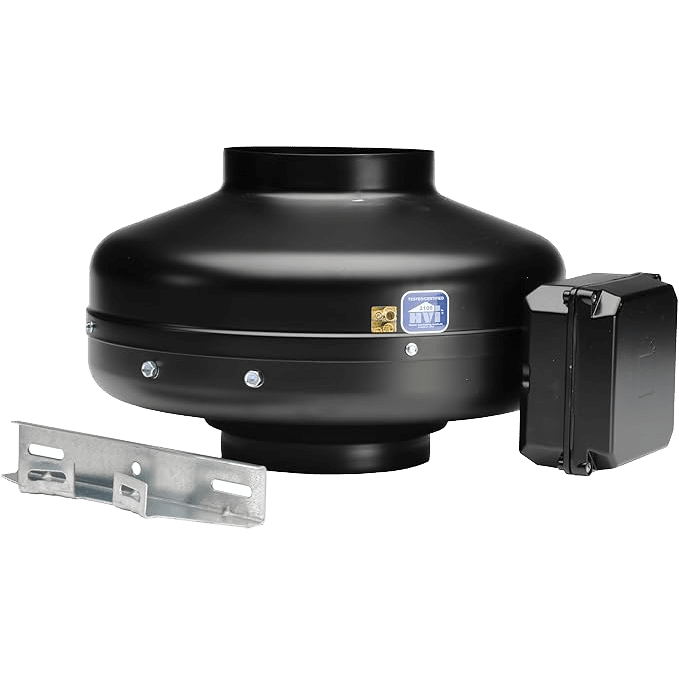

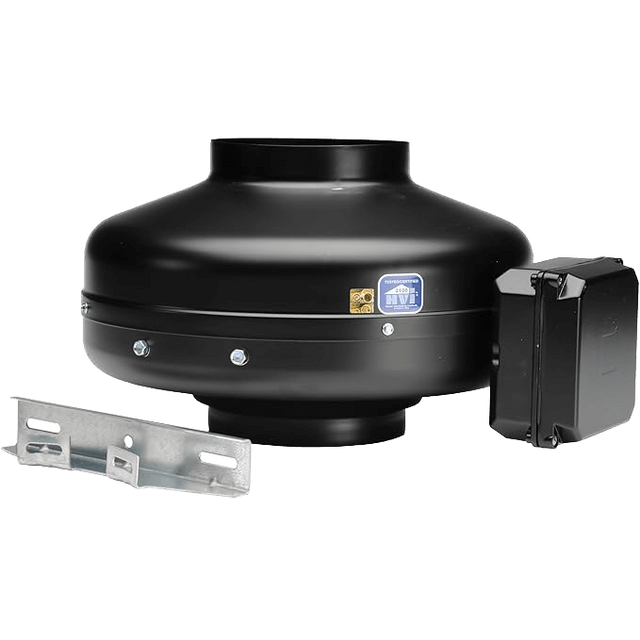

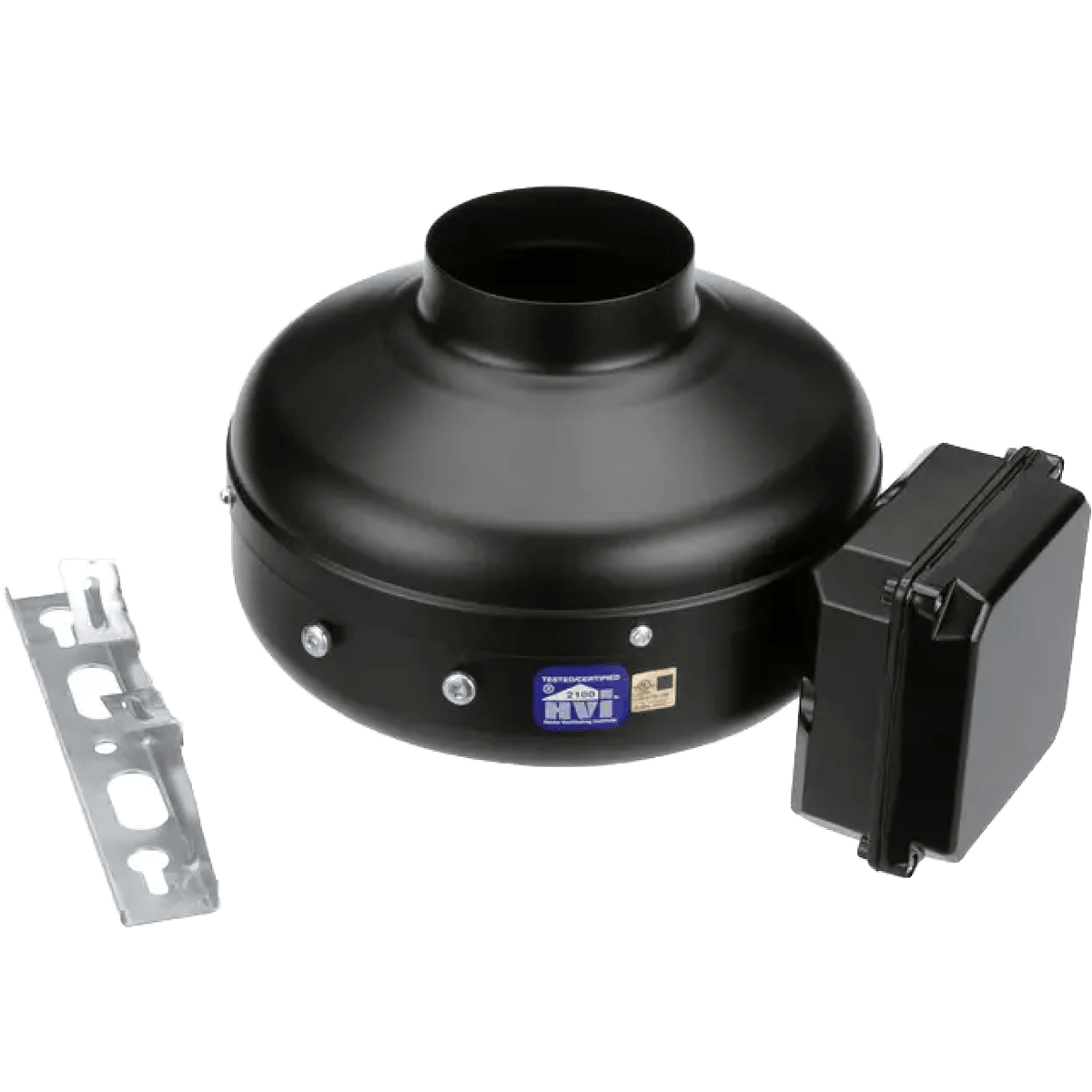

S&P PV 150X Powervent 6-in. Inline Centrifugal Duct Fan
Pre-wired Junction Box
Mounting Bracket
Owner’s Manual

Info & Guides

Description

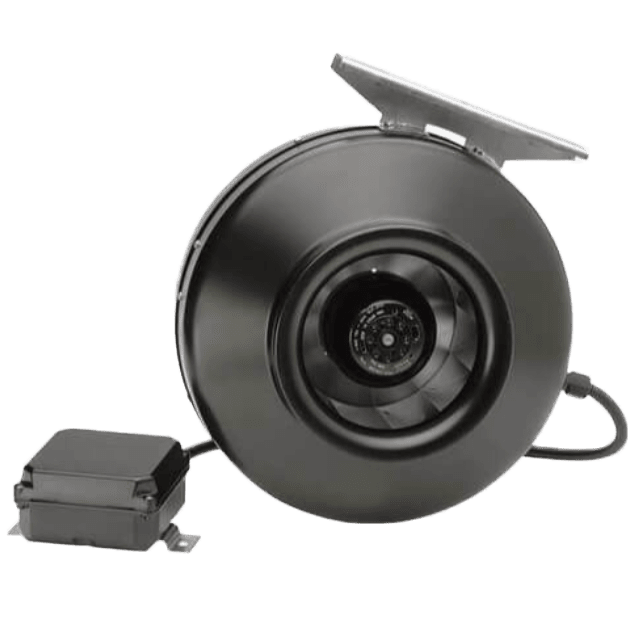

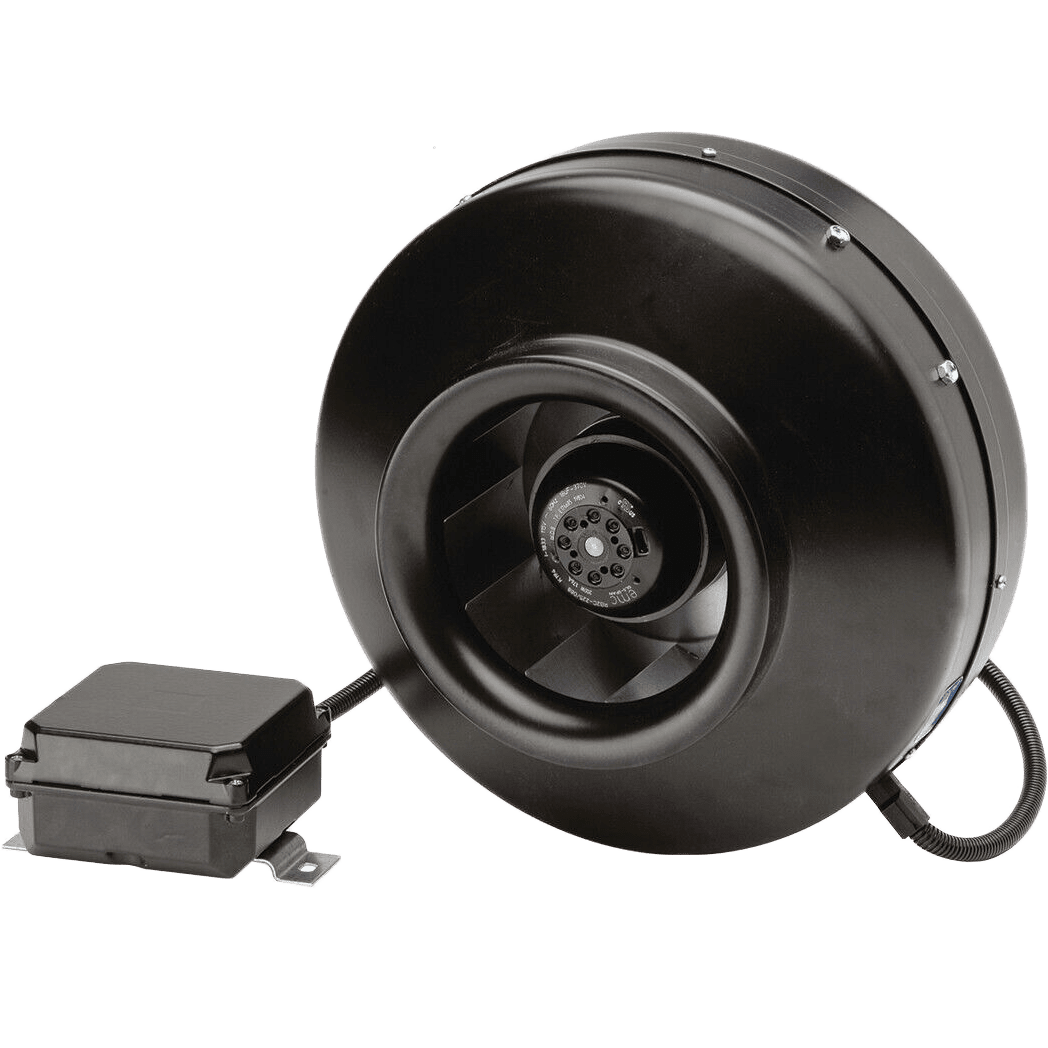

Long duct runs and tight elbows add resistance that weaker fans struggle to overcome. The S&P PV-150X Powervent 6-in Inline Centrifugal Duct Fan pairs a backward-curved centrifugal wheel with an external rotor motor that is matched to it at the factory. Because of that pairing, airflow holds up against the high static pressure common in ducted systems.

You can also place it almost anywhere. Mount the PV-150X at any angle and at any point along the duct, so it goes where your ductwork allows and you don't have to redesign the layout. Extra-long inlet and discharge collars give you more surface for connecting and sealing the ducting.

Key Features and Benefits of the S&P PV-150X Powervent 6-in Inline Centrifugal Duct Fan

Maximum Airflow: Moves up to 390 CFM through 6-inch round ducting, so you can push a large volume of air through long or branching runs.
Variable Speed: Electronic controls support full variable-speed operation through voltage or frequency regulation, so you can match airflow to the space instead of always running at full output.
Long Service Life: Sealed-for-life bearings never need lubrication, and the motor is rated for up to 40,000 hours of continuous operation, so you spend less time on maintenance.
Enclosed PSC Motor: The fully enclosed permanent split capacitor motor is shielded from moisture, lint, and high-particulate air, which protects it inside dusty or humid ducts.
Thermal Overload Protection: Built-in thermal overload protection with automatic cut-out shuts the motor off if it overheats, which adds a safety margin during long run times.
Warm Airstream Rating: Operates in working airstreams up to 158 degrees F, so you can move heated air through your ducting without going past the motor's limits.
Balanced Construction: A dynamically balanced motor inside a galvanized steel casing with baked enamel coating cuts vibration and is built for years of service.
Certified Performance: Carries the AMCA seal and HVI certification for air performance, so the rated airflow figures have been independently verified.
Safety Listings: UL, cUL, cULus, ETL, and cETLus listings confirm the fan meets recognized electrical safety standards in the US and Canada.
Standard Electrical: Hardwires to a 115-volt (110 to 120 volt), 60 Hz single-phase supply and draws up to 135 watts and 1.0 amp, so standard household wiring can power it.
Included Mounting Hardware: A galvanized steel mounting bracket and a pre-wired junction box come with the fan, so you have less wiring and hanging work during installation.

Will the PV-150X Fit Your Duct Run?

The PV-150X measures 8.44 x 13.13 x 13.13-Inches (L x W x H) and weighs 11 pounds. Before you pick a mounting point, check that the joist bay or chase has a little more than 13 inches of clearance around the duct. Its collars connect directly to 6-inch round duct, so it fits best in a system already sized to that diameter. The backward-curved wheel is matched to the high static pressure of ducted systems, which is where its design matters most.

Sylvane's Expert Take

If you're ventilating through long 6-inch duct runs with several bends, the PV-150X is a strong match. A centrifugal wheel keeps air moving under the pressure of a ducted run. It works best mounted mid-run and hardwired to a standard 115-volt circuit.

The 158 degrees F airstream rating is worth knowing about, because it lets you move warm air confidently. The features that matter most are the enclosed motor and the 40,000-hour rating. Install it once and expect long service, since the bearings never need lubrication.
