Friedrich 7,000 BTU ZoneAire Premier PTAC w/ Electric Heat
Description
Description
The Friedrich 7,000 BTU ZoneAire Premier PTAC with Electric Heat is ideal for the hospitality industry thanks to its quiet and efficient cooling and heating. With up to 7,000 BTUs of cooling power, an Energy Efficiency Ratio (EER) of at least 13.0, and a 3.6kW electric coil heater, it can reach and maintain temperatures in rooms up to 300 square feet.
- Digital Controls: The digital control board makes it easy to select the temperature, fan speed, and the cooling, heating, or fan-only mode quickly with the easy-to-use digital control board.
- Even Air Distribution: The three-speed fan has nearly five times the surface area of typical PTAC fans, allowing for broader airflow and even air distribution.
- Temperature Monitoring: The indoor air is monitored and tested every nine minutes to maintain desired conditions.
- Dehumidifier: Remove up to 1.7 pints of excess moisture every hour.

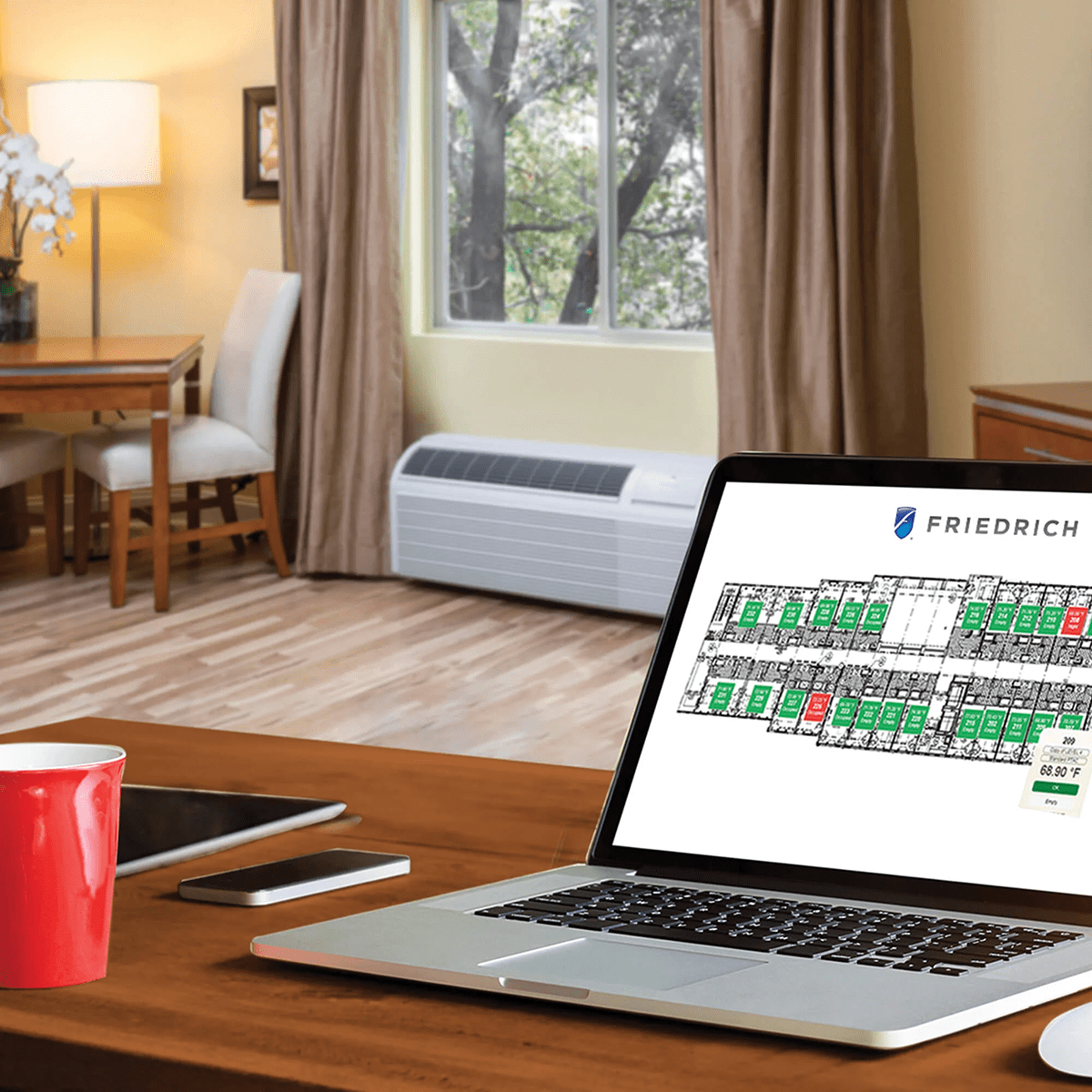

- Central Management System: This system allows you to control multiple models in one location, such as a reception desk, with a simple Friedrich accessory add-on.
Multiple Models
Select the Friedrich ZoneAire Premier PTAC model that best suits your space. It is available in two configurations based on voltage range, helping you find a powerful PTAC system ideal for your needs.
- 208-230V: For rooms up to 300 square feet or less. Features a 13.0 EER. (PDE07K3SGR3)
- 265V: For more powerful cooling and heating in rooms up to 300 square feet. Features a 13.3 EER. (PDE07R3SGR3)
Built to Last
This Friedrich PTAC is engineered for long-term use.
- Durable Design: The galvanized and zinc-coated steel wall sleeves have undergone rigorous testing, ensuring you get the most out of your PTAC for many years.
- Corrosion Resistant: The indoor and outdoor coils are enhanced with Diamonblue Advanced Corrosion Protection, stainless steel endplates, and powder-coat to resist corrosion and rust in even the harshest outdoor environments.
Quiet, Efficient, and Environmentally Friendly Operation
- Two-Motor Design: Features one indoor and one outdoor motor so the indoor motor can run slower to reduce indoor sound levels without giving up heating or cooling power.
- Ultra Quiet: The thick steel inner walls are enhanced with foam to decrease energy loss and noise levels.
- Eco-Friendly Refrigerant: The R-32 refrigerant possesses low global warming potential.
- Energy efficiency: This model features an advanced coil design and a 13 EER rating, delivering exceptional energy efficiency at a lower cost than most PTAC models.
Universal Heater Cord
Friedrich PTACs offers a universal heater cord that allows you to increase or decrease the heat output in any model by changing the power cord. The Friedrich includes a 20-amp, 3.6 kW heater cord to warm rooms up to 300 square feet. If you want more heat, consider the 30-amp, 5 kW heater cord if you want more heat.
Additional Features
- Adjustable Louvers: Direct air in any direction with the adjustable louvers.
- Fresh Air Intake: Adjust the air intake valve to ventilate your space with fresh outdoor air.
- Maintenance-Friendly Design: The modular design allows key components to be easily accessed, removed, cleaned, and serviced.
- Permanent Air Filters: The two filters can be easily cleaned with a vacuum dust attachment or with warm water and mild dishwashing detergent.
- Room Freeze Protection: initiates heat if the temperature falls to 40 degrees Fahrenheit in an unoccupied room.
Note: A standard external grille and wall sleeve should be purchased separately for new installations.
Sylvane's Expert Take
The Friedrich 7,000 BTU ZoneAire Premier PTAC w/ Electric Heat is a durable, environmentally friendly, and energy-efficient cooling and heating solution. With multiple models, this PTAC system provides customizable temperature and humidity control for your space.
- Durable and Efficient Design: A steel base, durable components, and high EER (13.0) ensure the PTAC efficiently cools and heats rooms for years.
- Voltage: Before purchase, ensure your property is wired to handle this 230/208-volt (PDE07K3SGR3) or 265-volt (PDE07R3SGR3) air conditioner. It uses a NEMA 6-20P plug face.
Specifications
Specifications
-
Energy Efficiency Ratio (EER)1313.3
-
Number of Speeds2
-
California Residents⚠ WARNING: Cancer and Reproductive Harm www.p65warnings.ca.gov.
-
CertificationscETLus
-
ColorWhite
-
ControlsElectronic
-
Electric Heat BTU's (BTUs)8,300-17,000
-
Heater TypeElectric Coil
-
Maximum Cubic Feet per Minute (CFM) (CFM)312.0
-
Maximum Noise Level (dB)50
-
Maximum Operating Temperature (degrees F)115
-
Minimum Operating Temperature (degrees F)64
-
Moisture Removal per Hour (pints)1.7
-
Recommended Coverage Area (sq. ft.)300
-
Refrigerant TypeR-32
-
Sensible Heat Ratio.86
-
Branch Circuit Fuse (amps)20
-
Electric Heat Max Amps (Amps)1513.1
-
Electric Heat Max Wattage (W)3450
-
Maximum Cooling Amperage (Amps)2.62.1
-
Maximum Cooling Wattage (W)560
-
Plug Face Type6-20P7-20P
-
Power Cord Length (ft.)62.3
-
Voltage (V)208-230260-280
-
Cut Out Dimensions (H x W) (in.)16.25 x 42.25
-
Depth (in.)13.75
-
Depth (with front cover) (in.)13.75
-
Height (in.)16.0
-
Height (with front cover) (in.)16.0
-
Weight (lbs.)110.25
-
Width (in.)42.0
-
Width (with front cover) (in.)42.0
-
Additional FeaturesAdjustable Louvers, Fan-Only Mode
-
Manufacturer's Warranty
- 2-Year Limited Warranty on Parts and Labor
- 5-Year Limited Warranty on Sealed Refrigeration System
