Canarm 20-in. Variable Speed EC Motor Shutter Mounted Exhaust Fan
SKU:
ca10152
| Model:
SD20-EC
Regular price
$644.00
Unit price
/
Unavailable
Canarm 20-in. Variable Speed EC Motor Shutter Mounted Exhaust Fan is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Canarm 20-inch Motor Exhaust Fan
- Owner's Manual and Installation Guide
Info & Guides
Info & Guides
Canarm 20-in. Variable Speed EC Motor Shutter Mounted Exhaust Fan
Regular price
$644.00
Unit price
/
Unavailable

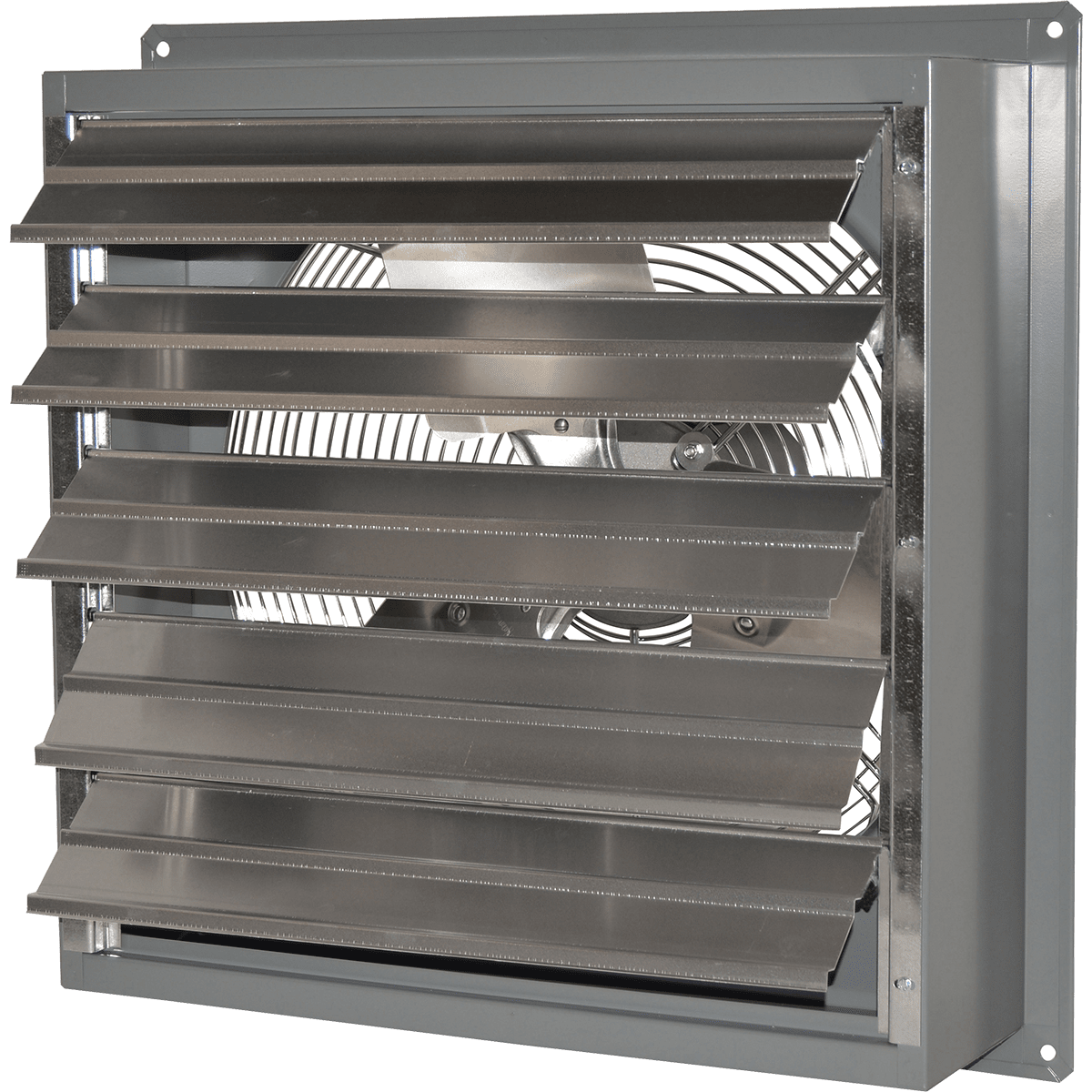

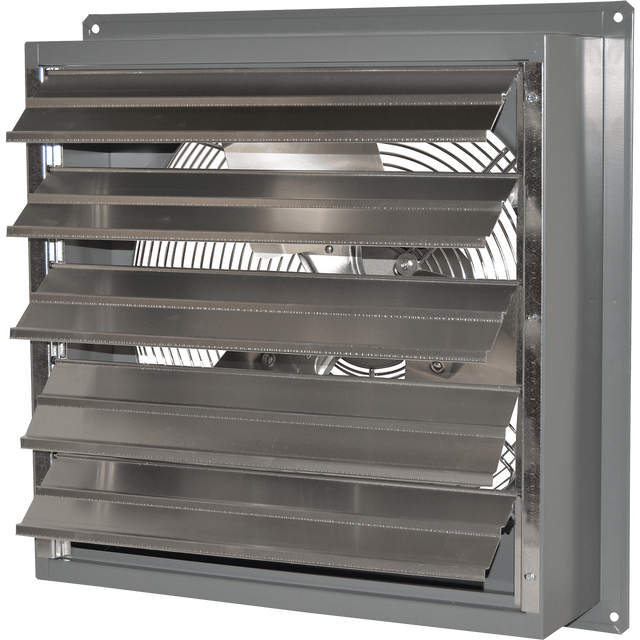

The 20-inch Canarm SD20-EC is an efficient and steel exhaust fan for long-term air quality control.
This variable speed exhaust fan offers an efficient and completely enclosed EC smart motor. Add it to any 23 x 23 opening for immediate ventilation.
Canarm 20-inch Motor Exhaust Fan Features
- OSHA Compliant: Designed with OSHA specific ½-inch wire spacing for safety.
- Fully Assembled: All Canarm fans are shipped completely assembled.
- Durable: Rugged steel welded box housing with durable powder coat finish.
- Variable Speed: From 3,180-3440 CFMs of power.
- Efficient EC Motors: These efficient fans and new EC motors save on energy costs over time.
Dimensions
- Blade Diameter: 20 inches
- Framing Dimensions: 23 x 23 inches
- Dimensions: 23.25 x 23.25 x 6.75 inches (H x W x D)
- Depth with Motor: 17 inches
- Louver Dimensions: 24 x 24 inches
Additional Canarm Shutter Mounted Exhaust Fan Features
- 1,800 RPMs
- ½ HP
- 77 dB noise level
- 115/208-280 voltage
The Canarm SD20-EC requires hardwired electrical connection.
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)4.0
-
TypeShutter Exhaust Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsETL
-
ColorGray
-
ControlsManual
-
Housing MaterialPowder-Coated Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)3440.0
-
Maximum RPM1800
-
Amperage (Amps)5.3
-
Power SupplyHardwired
-
Voltage (V)110-120, 220-240
-
Watts (W)246
-
Ceiling or Wall Cutout Length (in.)22.75
-
Ceiling or Wall Cutout Width (in.)22.75
-
Depth (in.)6.75
-
Depth (with front cover) (in.)6.75
-
Height (in.)25.25
-
Height (with front cover) (in.)25.25
-
Shutter Fan Size (in.)20
-
Weight (lbs.)45
-
Width (in.)25.25
-
Width (with front cover) (in.)25.25
-
Additional FeaturesMeets OSHA Standards, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Warranty
