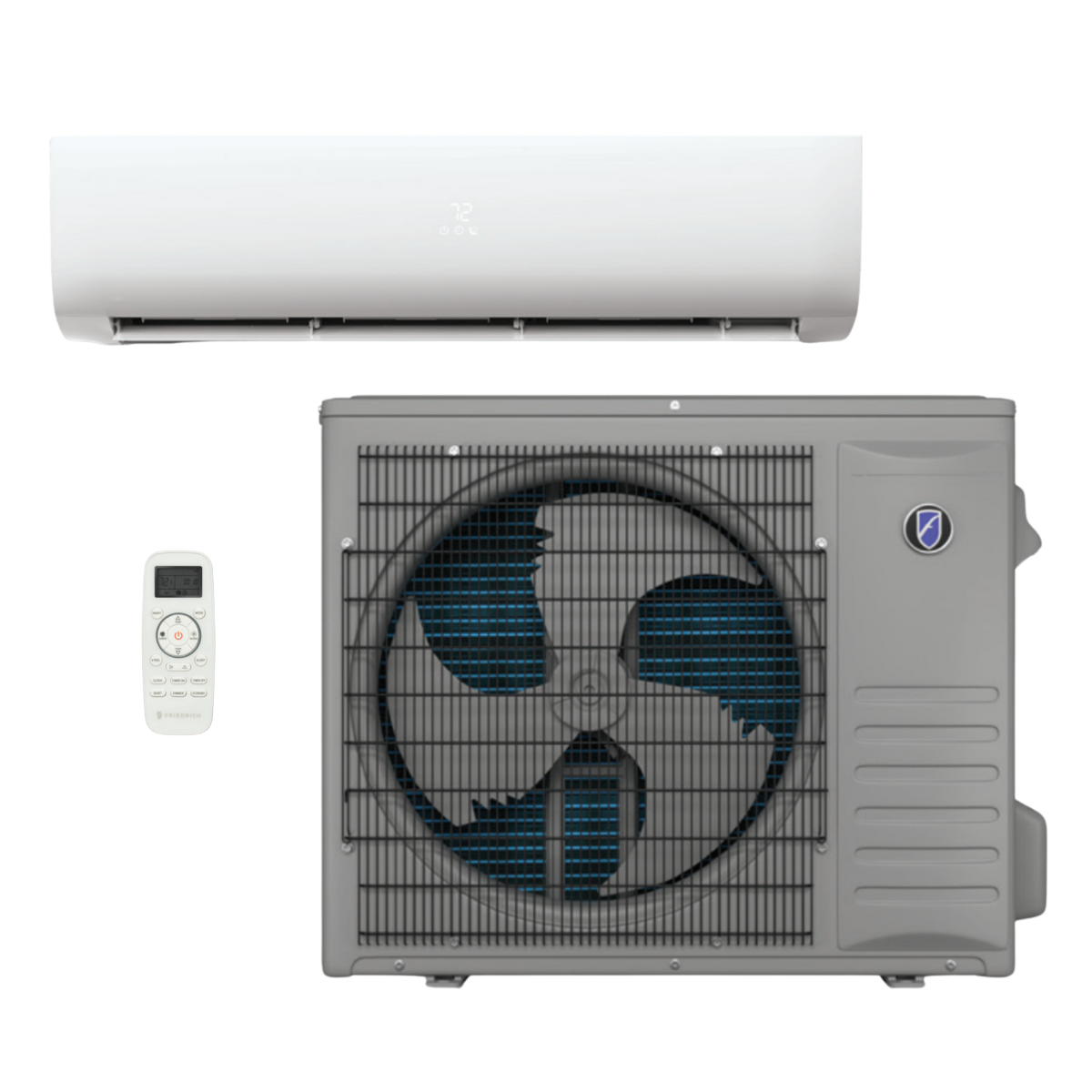

Friedrich 36,000 BTU Floating Air Select Mini Split w/ Electric Heat

SKU: fr9792k  |  Model: FSHW363
$3,299.00 $3,569.00

FREE shipping on orders over $45!

This item is currently Out of Stock.

Add extended protection plan. (Select one)

learn more

A 2-year commercial-grade repair warranty for products less than $5,000.

learn more

A 4-year commercial-grade repair warranty for products less than $5,000.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

7-Year Limited Compressor Warranty, 5-Year Limited Parts and Labor Warranty

What's In The Box?

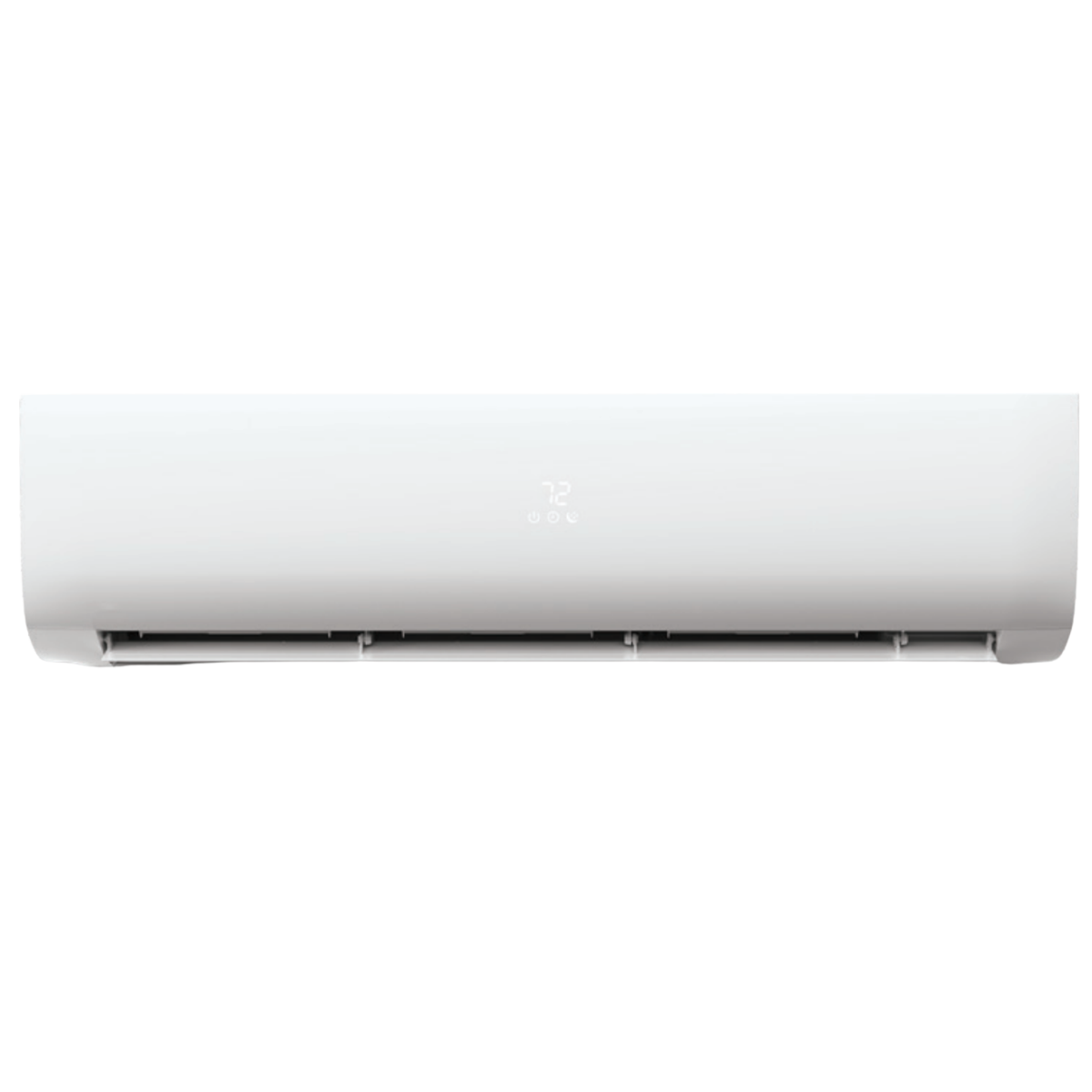

  • Friedrich FAHSW36A3D Indoor Compressor

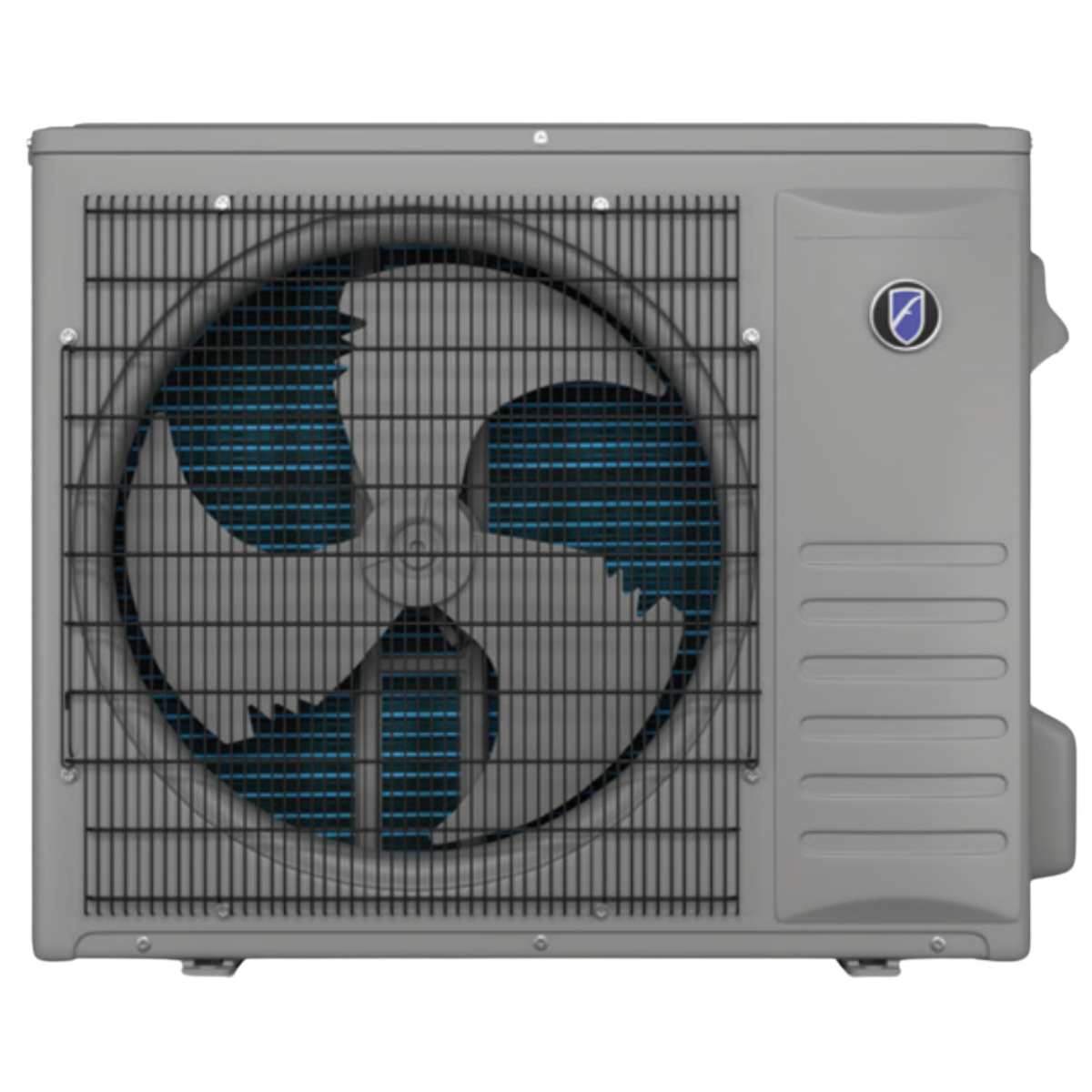

  • Friedrich FSHSR36B3D Outdoor Condenser
  • Owner's Manual
  • Installation Instructions
  • LCD Remote Control
  • Antimicrobial Filter

Info & Guides

Description

For cooling and heating year-round in the largest residential spaces, like basements, offices, and other light commercial applications, choose the Friedrich 36,000 BTU Floating Air Select Mini Split. It's efficient and, with a unique airflow design, can evenly cover every corner of your room.



Multiple Operating Modes

Use this Friedrich mini split to ensure you, your family, customers, or guests stay comfortable every day of the year. It features multiple operating modes for individualized performance.

  • Auto Mode: Simply select your desired room temperature and the unit will choose the best operating setting to reach and maintain it.
  • Cool Mode: Up to 36,000 BTUs of power delivers a cooling performance that few others can match.
  • Heat Mode: When the winter chill sets in, you'll have 34,600 BTUs of warmth.
  • Fan-Only Mode: Sometimes, it's not warm enough to cool or cold enough to heat. Fan-only mode is perfect for those in-between times.
  • Dry Mode: This system is able to remove up to 7.4 pints of excess moisture every hour.

Evenly Distributes Air

With the Friedrich Floating Air Select Mini Split, you can deliver comfortable air to every corner of your space. It continuously sweeps air up and down to ensure every inch of the room is at the perfect temperature.

Additional Features

  • Reduce Your Energy Costs: This low-cost cooling and heating solution features an inverter compressor and impressive energy ratings.
  • Turbo Mode: This setting is perfect for quickly bringing the room to your set temperature.
  • Multi-Speed Fan: Choose between four fan speeds for the setting that is just right for you.
  • Remote Control: Use the included LCD remote control to make changes from across the room.
  • Programmable Timer: A 24-hour programmable timer can be set to automatically turn the unit on or off at predetermined times.
  • Auto-Restart: If a power outage occurs, the unit will resume operation in its previous settings.
  • Washable Antimicrobial Filter: Ensures only the cleanest air possible enters your space.

Summary

Designed for the largest residential spaces and even light commercial applications, the Friedrich Floating Air Select Mini Split delivers a cooling and heating performance others just can't match.

Required Accessories

The following accessories are necessary for installation and are not included with the unit.

Specifications

    Key Specifications

    • AHRI Estimated Annual Cooling Cost
      246
    • AHRI Estimated Annual Heating Cost
      813
    • Energy Efficiency Ratio 2 (EER2)
      9.5
    • Mounting Type
      Wall
    • Number of Speeds
      4
    • Seasonal Energy Efficiency Ratio 2 (SEER2)
      20
    • Total Cooling Capacity (BTUs)
      34600
    • Total Heating Capacity (BTUs)
      35000

    General

    • California Residents
      ⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
    • Certifications
      AHRI, cETLus
    • Color
      White
    • Compressor Type
      Inverter
    • Heat Mode
      Yes
    • Installation Type
      Professional Installation
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      2590.0
    • Maximum Indoor Noise Level (dB)
      52
    • Maximum Operating Temperature - Cooling (degrees F)
      118
    • Maximum Operating Temperature - Heating (degrees F)
      75
    • Minimum Operating Temperature - Cooling (degrees F)
      5
    • Minimum Operating Temperature - Heating (degrees F)
      -5
    • Number of Zones
      1
    • Recommended Coverage Area (sq. ft.)
      2000
    • Refrigerant Type
      R-32
    • Zone Cooling Capacity (BTUs)
      34600
    • Zone Heating Capacity (BTUs)
      35000

    Power

    • Maximum Cooling Amperage (Amps)
      16
    • Maximum Cooling Wattage (W)
      3660
    • Maximum Heating Amperage (Amps)
      14.2
    • Maximum Heating Wattage (W)
      3160
    • Voltage (V)
      208-230

    Dimensions

    • Indoor Unit Depth (in.)
      10.75
    • Indoor Unit Height (in.)
      14.25
    • Indoor Unit Weight (lbs.)
      40.8
    • Indoor Unit Width (in.)
      52.38
    • Maximum Line Length (ft.)
      98.4
    • Outdoor Unit Depth (in.)
      13.38
    • Outdoor Unit Height (in.)
      29.5
    • Outdoor Unit Weight (lbs.)
      121.3
    • Outdoor Unit Width (in.)
      35.38

    Additional Features

    • Additional Features
      Remote Control, Wi-Fi Capable, Applicable for Indoor Growing, Pre-charged Refrigerant

    Warranty

    • Manufacturer's Warranty
      7-Year Limited Compressor Warranty, 5-Year Limited Parts and Labor Warranty
