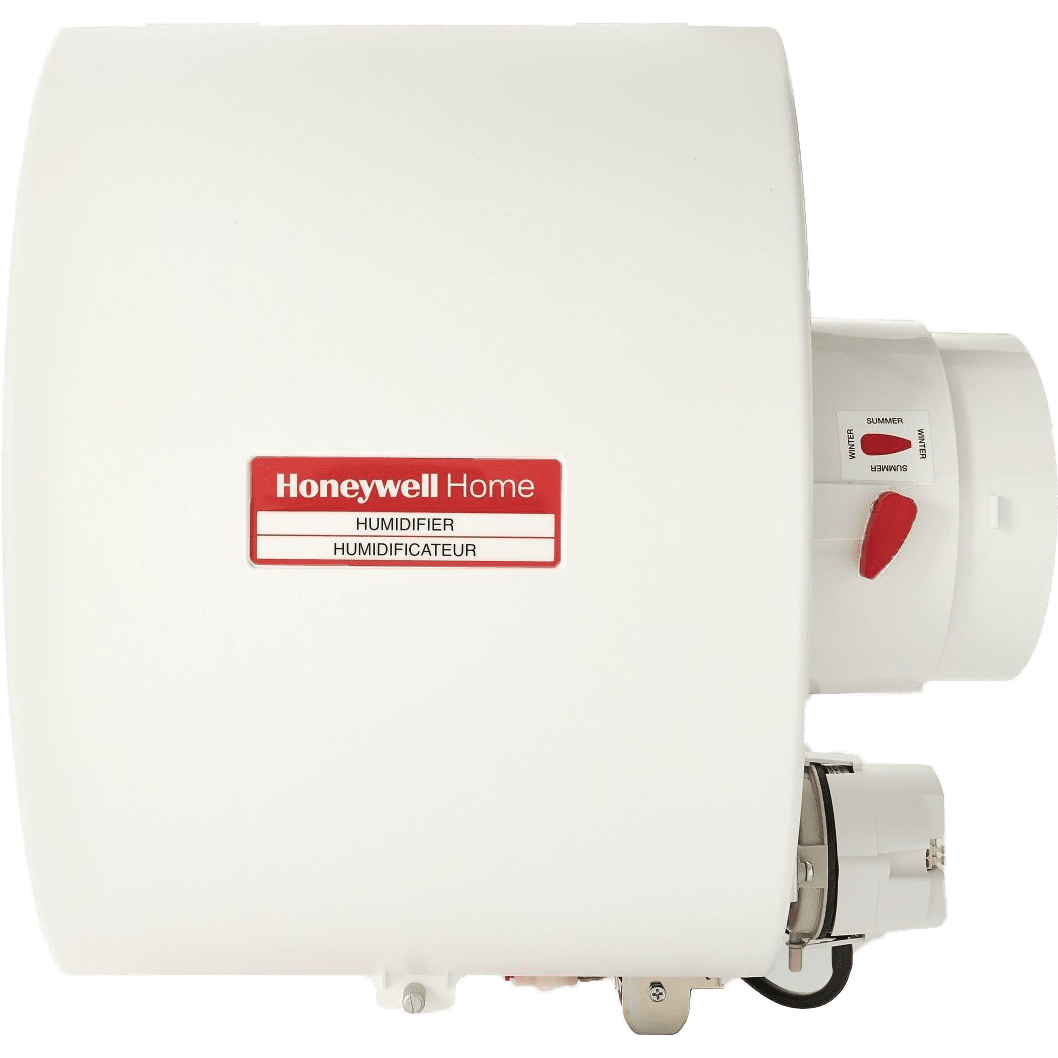

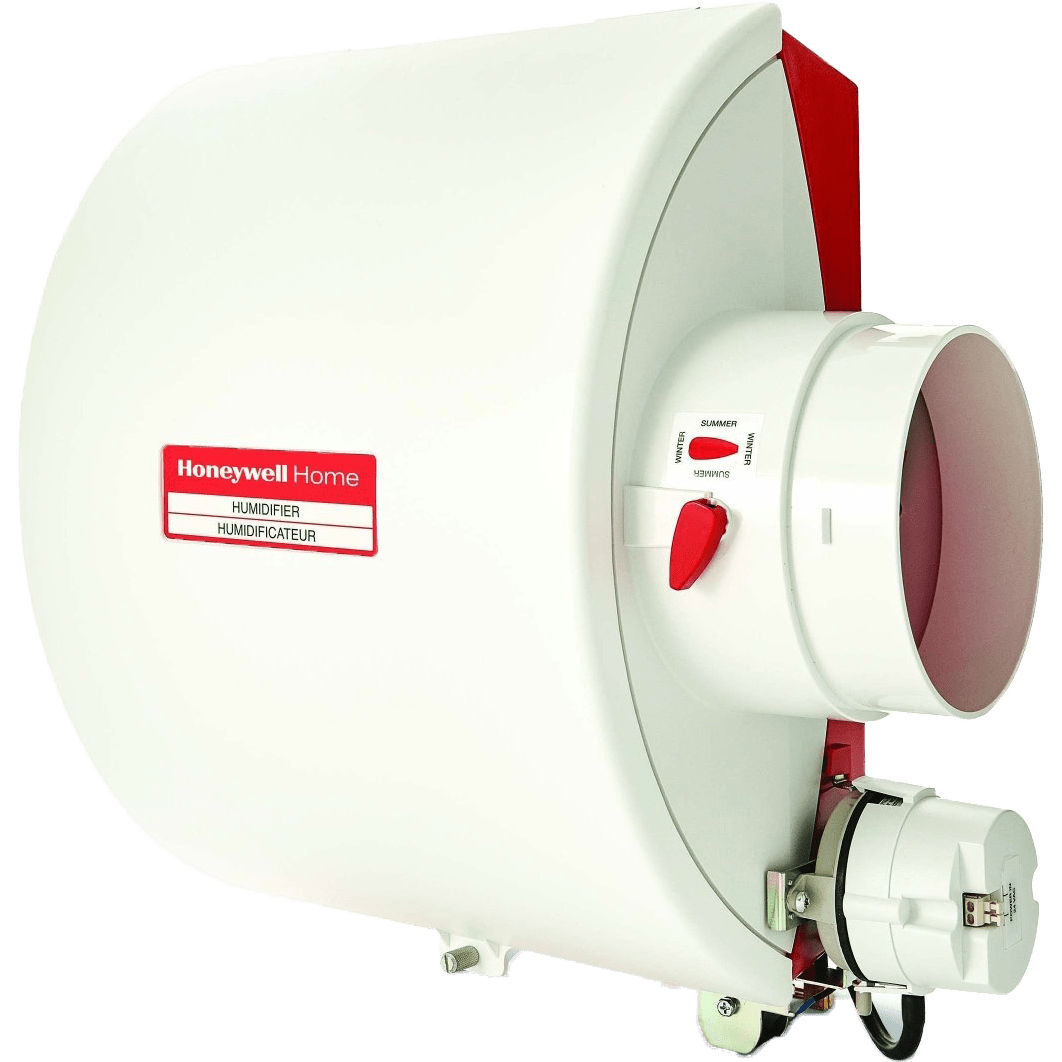

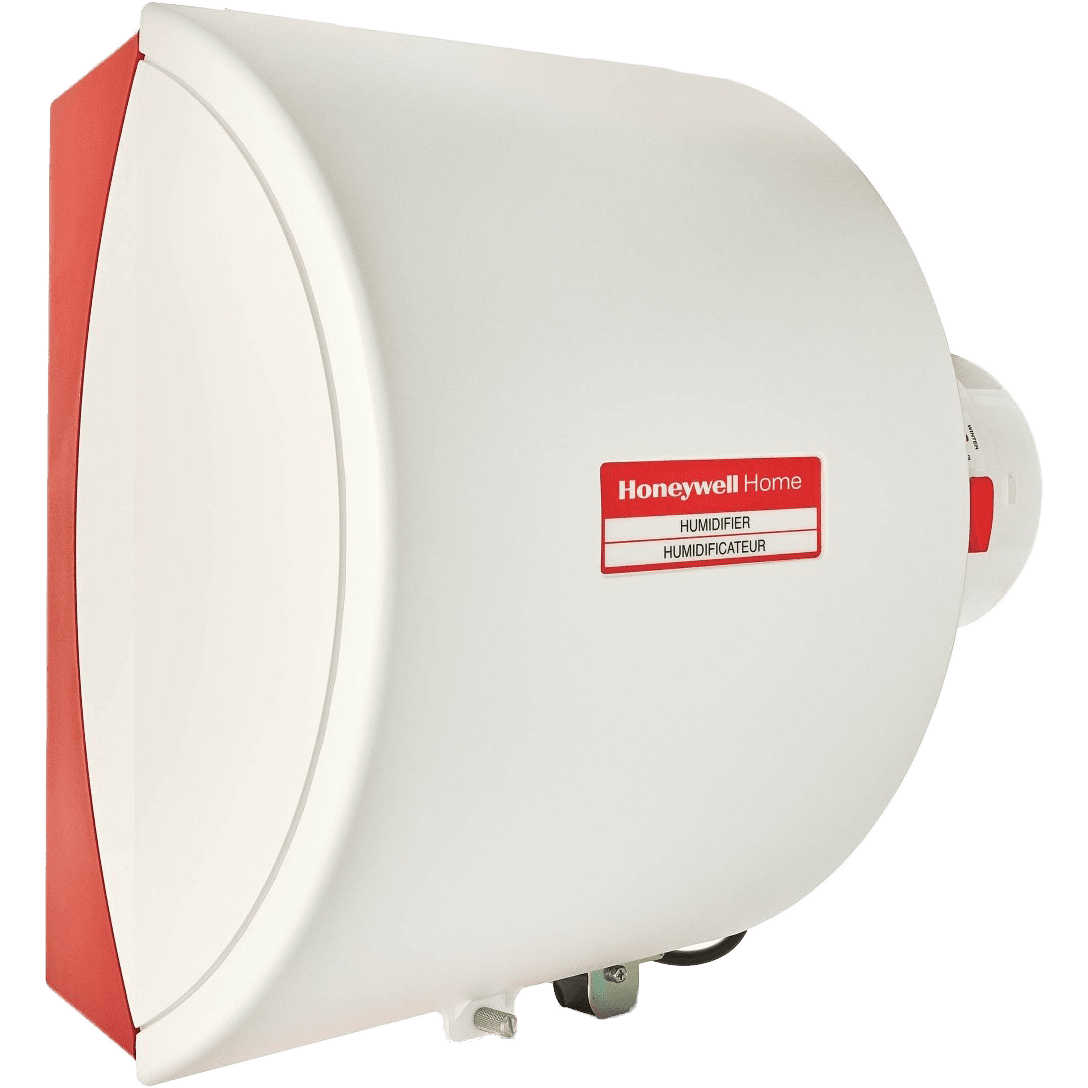

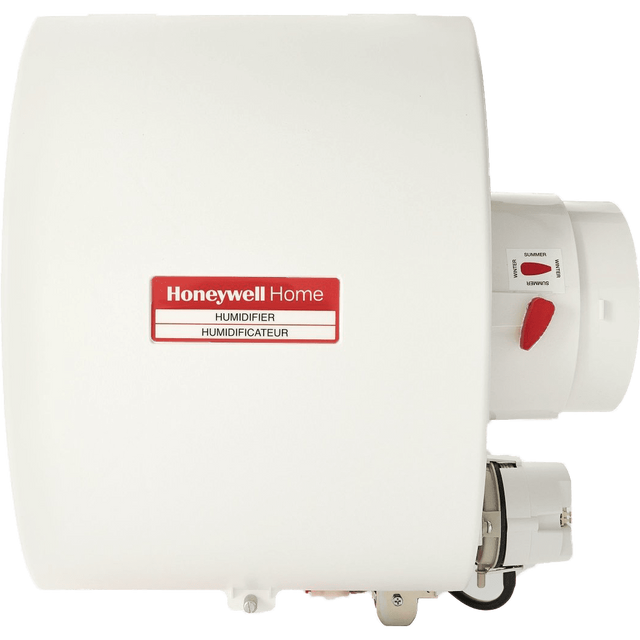

Honeywell HE280D Whole House Bypass Humidifier
Honeywell HE280D Whole House Bypass Humidifier is backordered and will ship as soon as it is back in stock.
Parched winter air can truly make the colder months unbearable if you don't have the right solution. Alleviate your dry skin, soothe irritated nasal passages, and stop costly humidity damage to your home with the Honeywell HE280D Whole House Bypass Humidifier! This furnace humidifier works with any forced air furnace to provide comfortable humidified air in every room of your home. Using efficient PerfectFLO water distribution technology, the HE280D distributes roughly 17 gallons of moisture per day to cover homes up to 4,000 square feet.
Works With Your Furnace

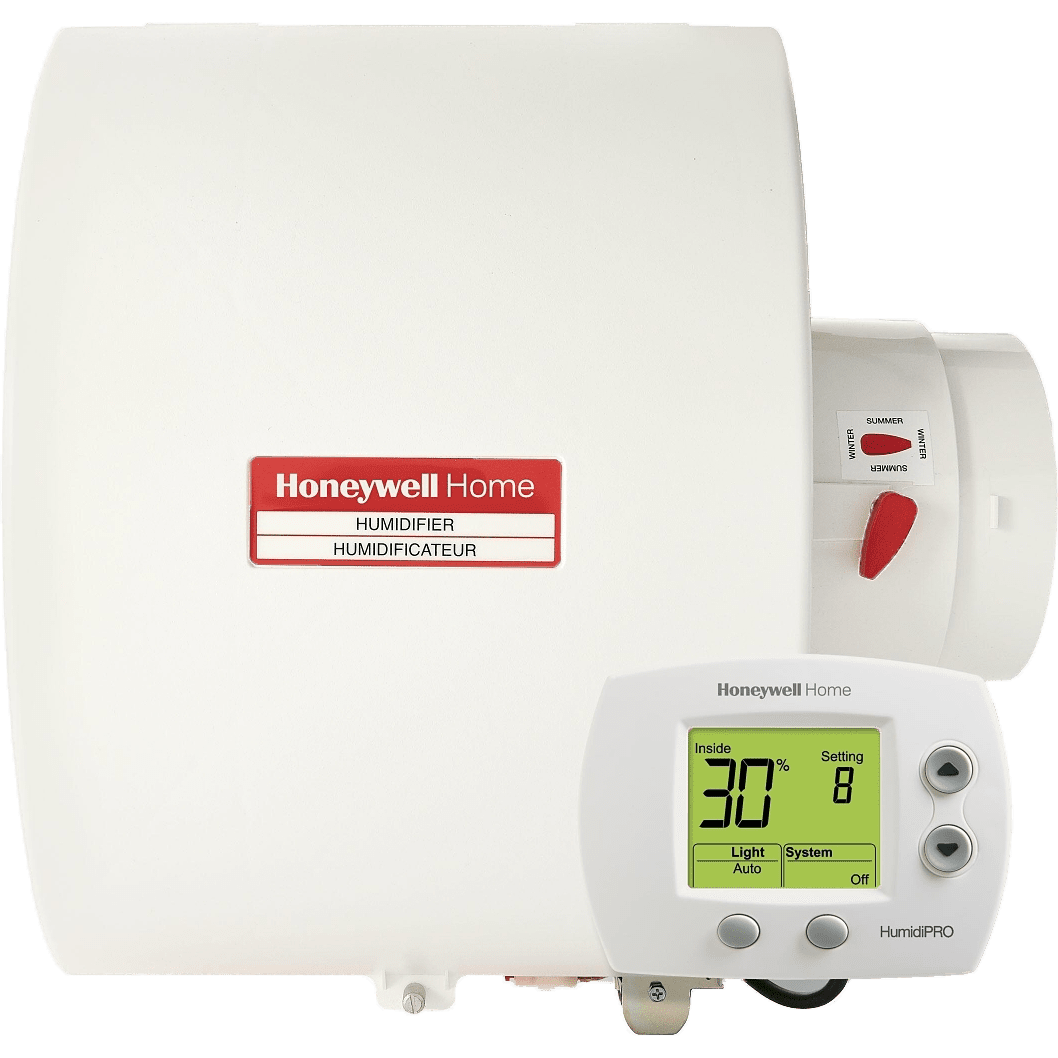

The Honeywell HE280D Humidifier installs easily onto the warm air supply or return air duct of your furnace and hooks to a drain line with simple DIY installation. To operate, warm air from your furnace blows through a water-soaked evaporator pad and wicks up moisture, creating vapor. Warm humidified air is then propelled out through your air ducts to circulate throughout all the rooms of your home. The HE280D includes an easy-to-use digital humidistat that monitors your home's relative humidity and activates the humidifier when it falls below your set humidity level.
Bypass Design for Easy Maintenance
The Honeywell HE280D Whole House Humidifier features a flow-through design that helps keep the unit clean of microorganisms by routinely rinsing and draining itself instead of drawing stagnant water from a reservoir. Plus, the evaporator pad helps filter out minerals from hard water and other impurities for cleaner moisture. These features contribute to less maintenance throughout the humidifying season.
Additional Benefits and Features
- Uses 30% Less Water: Honeywell's water-saving technology helps this unit use 30% less water than conventional whole-house models. That translates into 20 gallons of water savings!
- PerfectFLO Water Distribution: Honeywell's unique PerfectFLO system optimizes water usage and efficiency for low-cost humidifying.
- Easy DIY Installation: Easy step-by-step installation instructions and all the parts you'll need are included. Plus, there's an online installation video available for reference.
- Protects Your Interior: Properly humidified air helps protect your wood floors and furnishings from damage.
- Low Maintenance: Bypass humidifiers typically require cleaning and replacement evaporator pads just once a year, depending on your water quality.
- Saves Energy: Improved humidity can actually make it feel warmer indoors.
- Set It and Forget It: Set your desired humidity level on the humidity control and the humidifier will run only when needed. No need to turn it on and off manually.
What You'll Need for Installation
The installation kit for this model is included. But you'll also need the following items:
- Forced-Air Furnace
- Floor Drain in Furnace Room
- Tin Snip
- Screwdriver
- Pliers
- Adjustable or open-end wrench
- Drill
- ¾-inch (19mm) sheet metal drill bit
- Level
- Marking pen or pencil
- Foil tape roll
- 6-inch diameter flexible duct
- 6-inch duct collar
- 18 gauge, two-strand thermostat wire
- 1/4-inch OD feed water tubing
- 1/2-inch ID drain tubing
Summary
Say good-bye to uncomfortable symptoms caused by parched wintry air with a single solution, the Honeywell HE280 Whole House Bypass Humidifier.
Things To Consider
- How Old is Your Home? The HE280D covers humidifies up to 4,000 square feet in homes less than 20 years old. When used in homes older than 20 years, the HE280D can humidity up to 2,000 square feet.
- Have Hard Water? If you have hard water, keep in mind that you might have to perform more frequent maintenance to keep this humidifier running optimally.
-
HVAC TypeBypass
-
Moisture Output Per Day (gallons)17.0
-
TypeEvaporative
-
ColorWhite
-
ControlsElectronic
-
Fill TypeDirect Water Line
-
Humidifier StyleHVAC/Duct
-
Recommended Coverage Area (sq. ft.)4000
-
Recommended ForWhole House
-
Voltage (V)110-120
-
Depth (in.)9.59
-
Depth (with front cover) (in.)9.59
-
Height (in.)16.25
-
Height (with front cover) (in.)16.25
-
Weight (lbs.)14
-
Width (in.)9.75
-
Width (with front cover) (in.)9.75
-
Additional FeaturesHumidistat, Wick Filter, Automatic Safety Shutoff
-
Manufacturer's Warranty1-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories

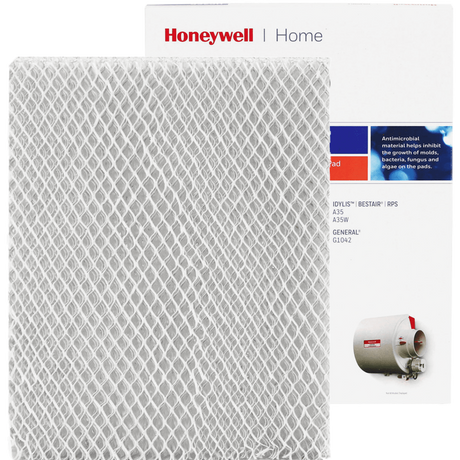

Shop All Honeywell Humidifier Replacement Filters
