KwiKool 24,000 BTU 2 Ton Portable Air Conditioners
KwiKool 24,000 BTU 2 Ton Portable Air Conditioners - 208-230 is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- KwiKool KIB2411 or KwiKool KIB2421
- External Condensate Tank
- Internal Condensate Pump
- Owner's Manual
Info & Guides
Info & Guides

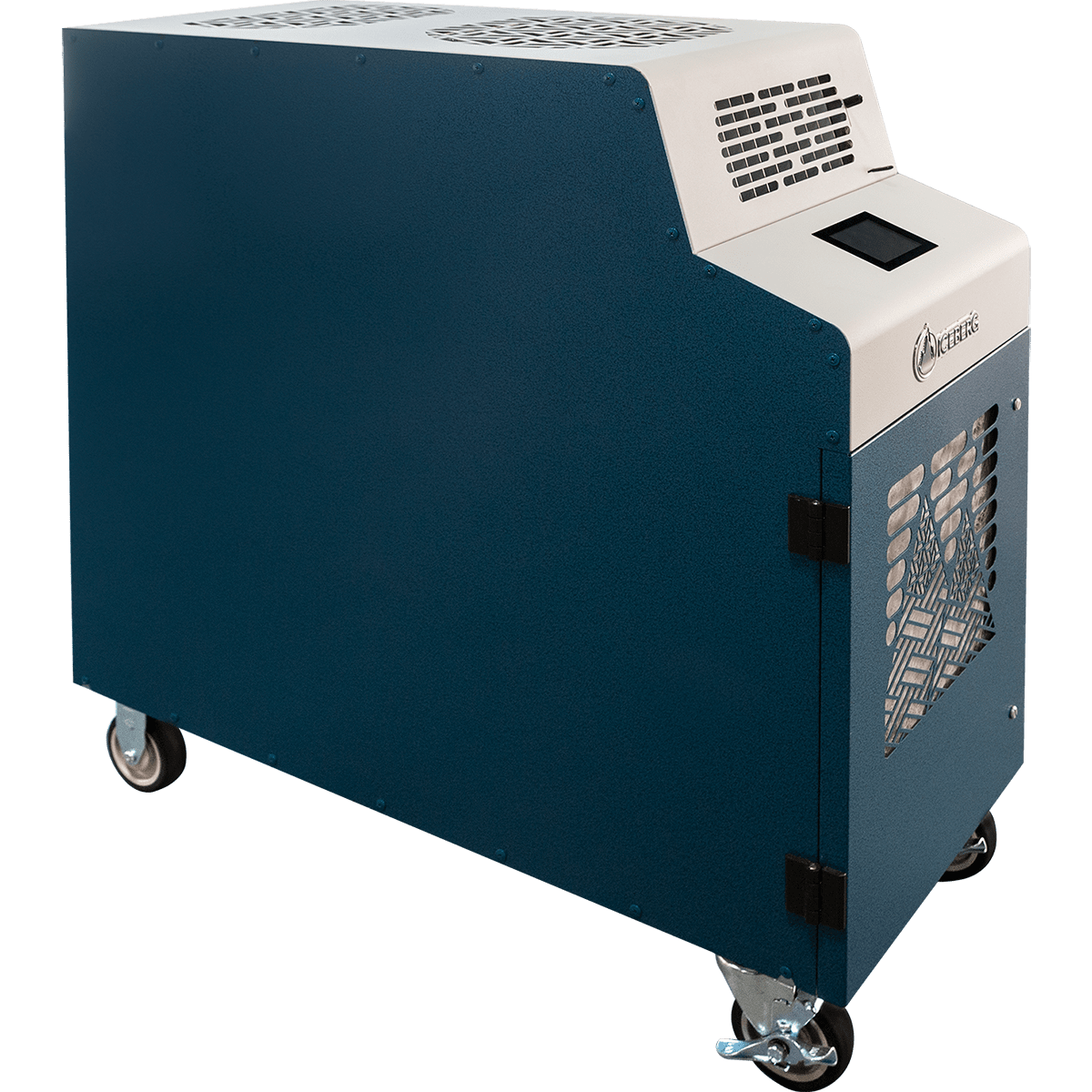

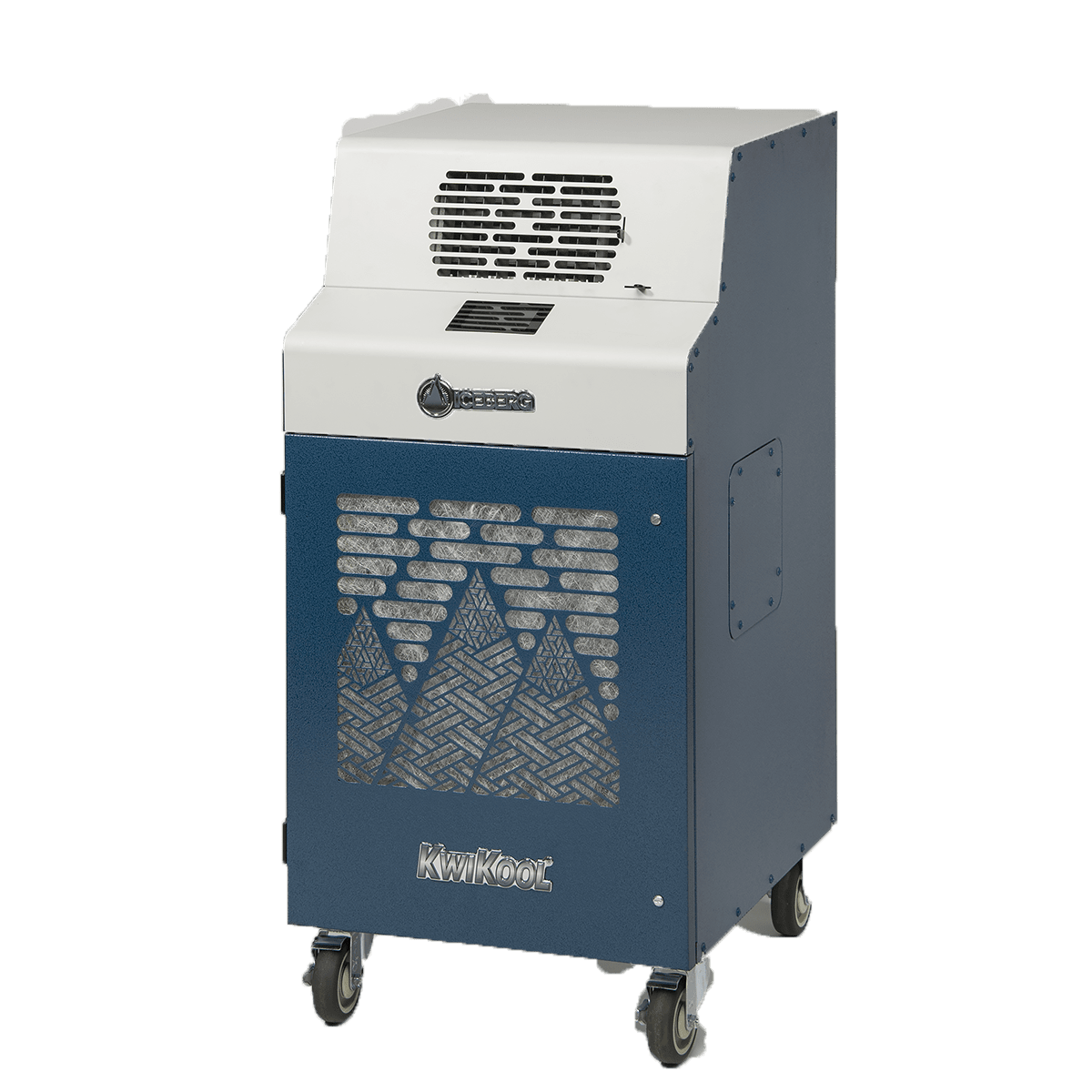

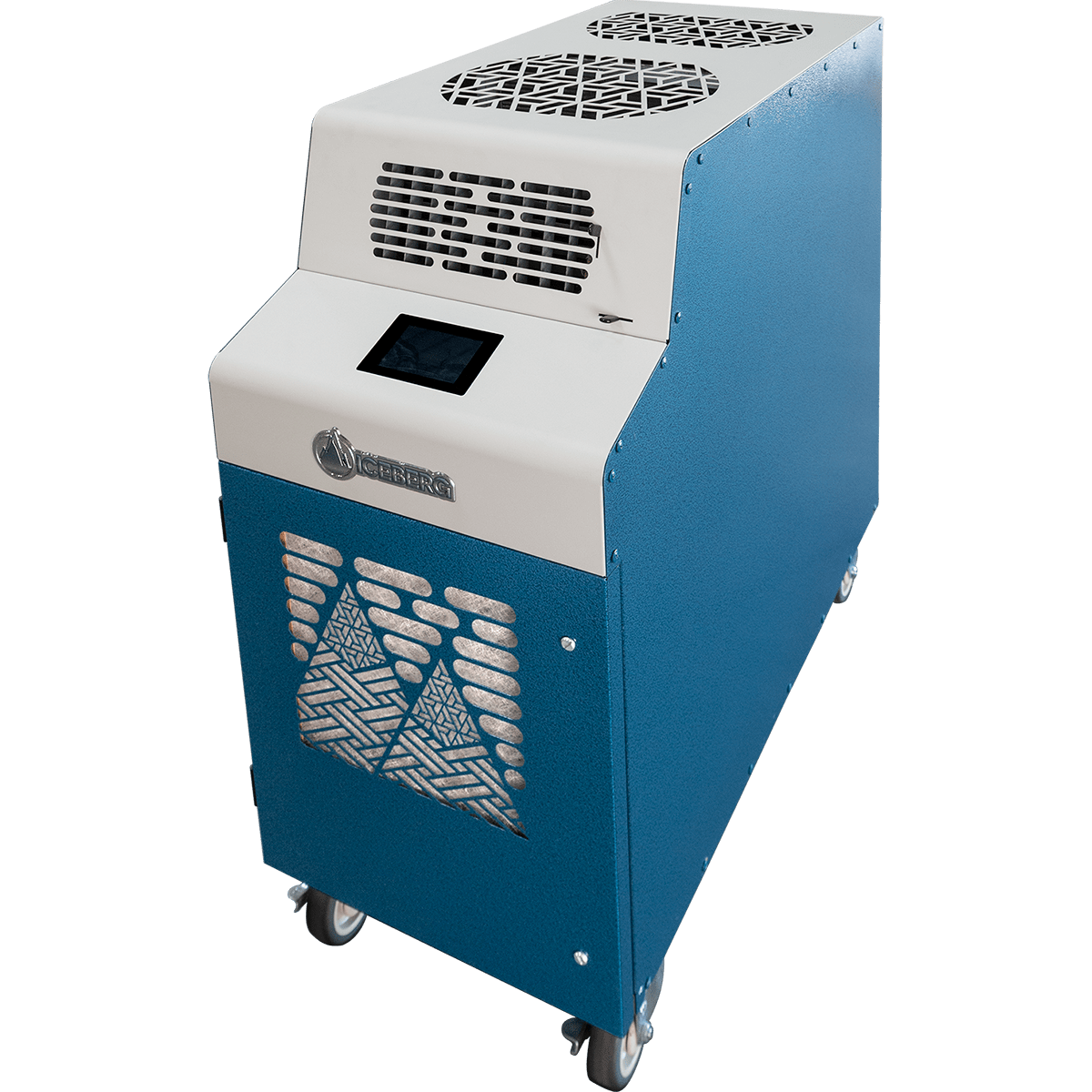

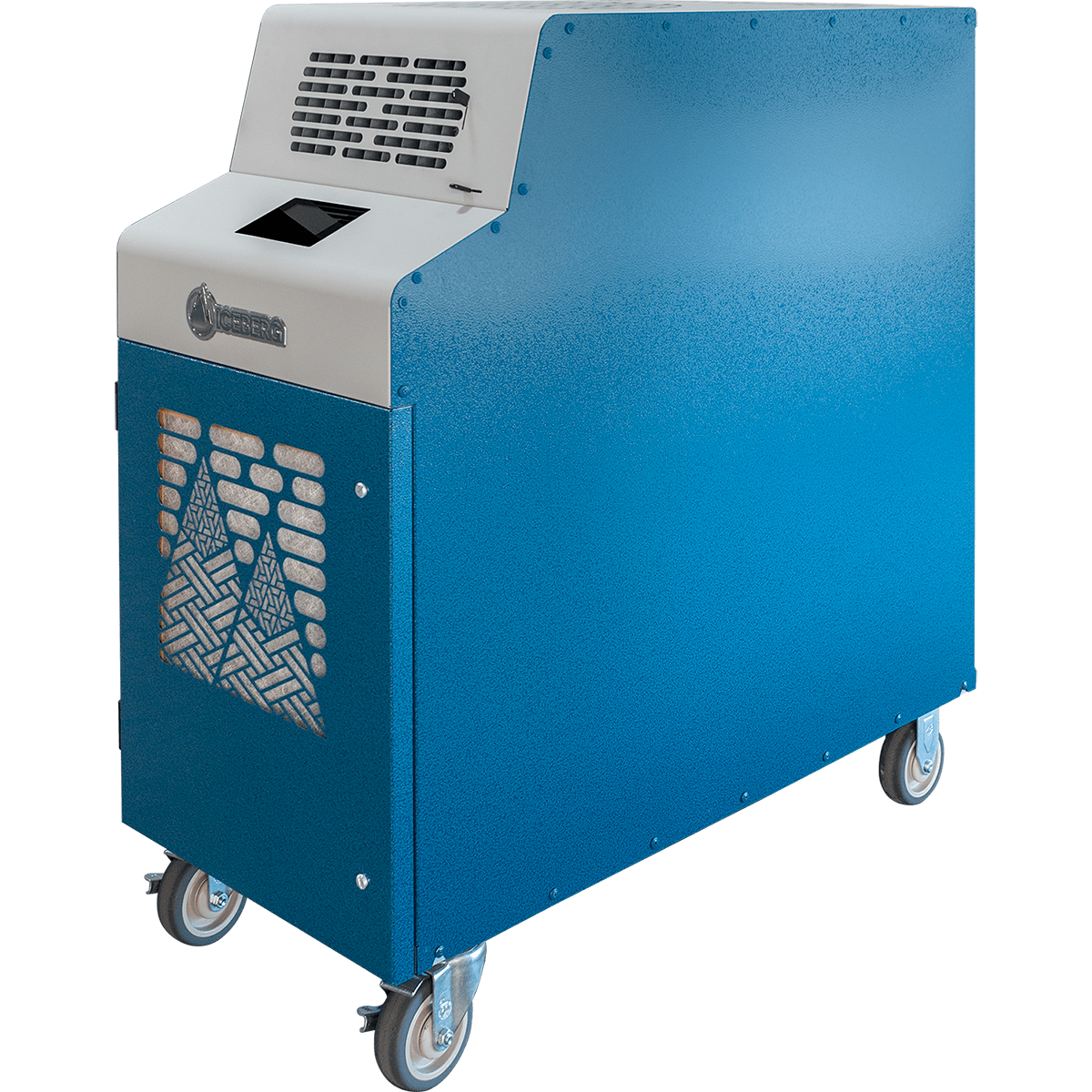

KwiKool 24,000 BTU 2 Ton Portable Air Conditioners
Description
Description
KwiKool's 2-ton portable air conditioners offer powerful cooling to industrial and commercial spaces like restaurants, offices, hospitals, and server rooms. Offering 23,500 BTUs of cooling power, these durable portable ACs are ideal for rooms up to 800 square feet. They share similar features but have different voltage requirements. Both need to be vented through the ceiling-ventilation kit.
Made in the USA, these industrial portable air conditioners also have internal condensate pumps, digital control panels, and large locking wheels for easy transport.
Note: This KwiKool portable AC is designed for commercial use only.
Main Specs and Considerations
|
|
KwiKool KIB2411 |
KwiKool KIB2421 |
|
Cooling Power |
23,500 BTUs |
23,500 BTUs |
|
Airflow CFM (Evaporator) |
725 CFM - 1 Fan Speed |
750 CFM - 3 Fan Speeds |
|
Airflow CFM (Condenser) |
1050 CFM |
1100 CFM |
|
Power Supply (Voltage) |
115-volt |
230-volt |
|
Plug Type |
NEMA 5-20 |
NEMA 6-20 |
|
Internal Condensate Pump |
Yes |
Yes |
|
Thermostat |
Digital |
Digital |
Multiple Operating Options
An external condensate tank holds 5 gallons of moisture collected during cooling. There's an alarm that notifies you when it's full, and operation is cut off at that time. This external tank is easy to remove and empty when needed. Use the tank option for short-term cooling in offices, restaurants, and more.
If you need continuous draining for 24-hour operation, use the internal pump and tube. The pump moves moisture up into the ceiling vent up to 150 feet and into a nearby drain. This set up allows for continuous use in server rooms and other industrial set ups. As with a full tank, operation will cut off and an alarm with sound if the drain hose is blocked or not working properly.
Durable Construction
Both the KwiKool KIB2411 and KwiKool KIB2421 are heavy-duty models made in the USA. Built for durability and long-lasting use, they include:
- An internal fan is used to cool down the motor to avoid overheating.
- Features a hammercoat finish to protect its exterior.
- The galvanized cabinet and insulated motor means efficient, quiet operation.
- High pressure switch automatically turns off the unit if it's subjected to ambient temperatures higher than it can handle or if the condenser ducting is longer than the recommended length.
- Low pressure switch protects the compressor from low-pressure damage in case the condenser air pressure drops below the recommended level.
- HP alarm will sound and operation will shut down if there's a blockage of air flow from the ducts.
Control Panel
These air cooled models run in a very similar manner, with control panels allowing you to program your settings. Set your ideal room temperature using the digital microprocessor.
Both models offer fan-only modes, but the KwiKool KIB2421 also lets you choose between 3 fan speeds. You can also select "Auto" fan speed, which selects a speed based on your set temperature.
Required Accessories
Ducting and flanges aren’t included with this KwiKool portable AC. Depending on whether you’re replacing an existing unit and already have the parts or not, based on your needs you will need to purchase either a set of condenser flanges, a ceiling duct kit, or an air chute kit.
Additional Features
- Large Operating Range: These impressive models work in a range from 60 to 110 degrees F.
- Direct Drive Fan: Add quick, fan-forced cool air to your space quickly and efficiently.
- Air Filter: Catch unwanted particles from your air as it cools.
- Auto-Restart: If you were to lose power, it will turn back on to the previously programmed settings once power is restored.
- Six Foot Power Cord: It allows you to place your industrial portable AC exactly where you need it. It also wraps easily on the back of this model.
- Adjustable Vent: Adjust airflow directly where you need it.
- No Negative Air Pressure: KwiKool models use a 2-direction ceiling duct kit to cool down the unit. One of the hoses pulls air in from the ceiling to cool down the unit as it cools, while the second is used to release warm, moisturized air back up into the ceiling/ducting area.
- Want to Direct Cool Air?: Add the KwiKool KDC-24 Air Chute Kit to direct cool air where you need it. It comes with 2 adjustable air chutes for pointing cool air to specific areas.
Summary
These 2-ton portable air cooled models are powerful, easy-to-use, and perfect for commercial areas up to 800 square feet.
What Customers Love
- Multiple Safeguards: These models can be used 24-hours a day thanks to multiple automatic shut-off measures—a great feature for cooling server rooms with expensive equipment.
- Made in the USA: Trusted, durable portable ACs, they are proudly made in the USA.
- High Pressure Pump: An internal pump provides 20 feet of head pressure and can pump water up to 150 feet to a nearby drain for continuous operation.
Specifications
Specifications
-
Internal Condensate PumpYes
-
ApplicationCommercial
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationsETL
-
ColorBlue
-
ControlsManual
-
Heat ModeNo
-
Hose TypeDual Hose
-
Maximum Cubic Feet per Minute (CFM) (CFM)750.0725.0
-
Maximum Noise Level (dB)62
-
Maximum Operating Temperature (degrees F)110
-
Maximum Thermostat Setting (degrees F)110
-
Minimum Operating Temperature (degrees F)60
-
Minimum Thermostat Setting (degrees F)60
-
Moisture Removal per Hour (pints)0
-
Recommended Coverage Area (sq. ft.)800
-
Recommended ForServer Room & Precise Indoor Applications
-
Refrigerant TypeR-454B
-
Self-EvaporationPartial
-
Maximum Amperage (Amps)10.416.9
-
Maximum Wattage (W)32
-
Plug Face Type6-20P5-20P
-
Power Cord Length (ft.)6
-
Recommended Breaker Size (Amps)20
-
Voltage (V)208-230110-120
-
Depth (in.)41.0
-
Depth (with front cover) (in.)41.0
-
Height (in.)42.8
-
Height (with front cover) (in.)42.8
-
Vent Hose Diameter (in.)14
-
Vent Hose Length (ft.)Up to 25
-
Weight (lbs.)295311
-
Width (in.)20.2
-
Width (with front cover) (in.)20.2
-
Additional FeaturesFull Bucket Indicator/Auto Shutoff, Adjustable Louvers, Drain Hose Capable, Fan-Only Mode, Auto-Restart, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Limited Warranty
