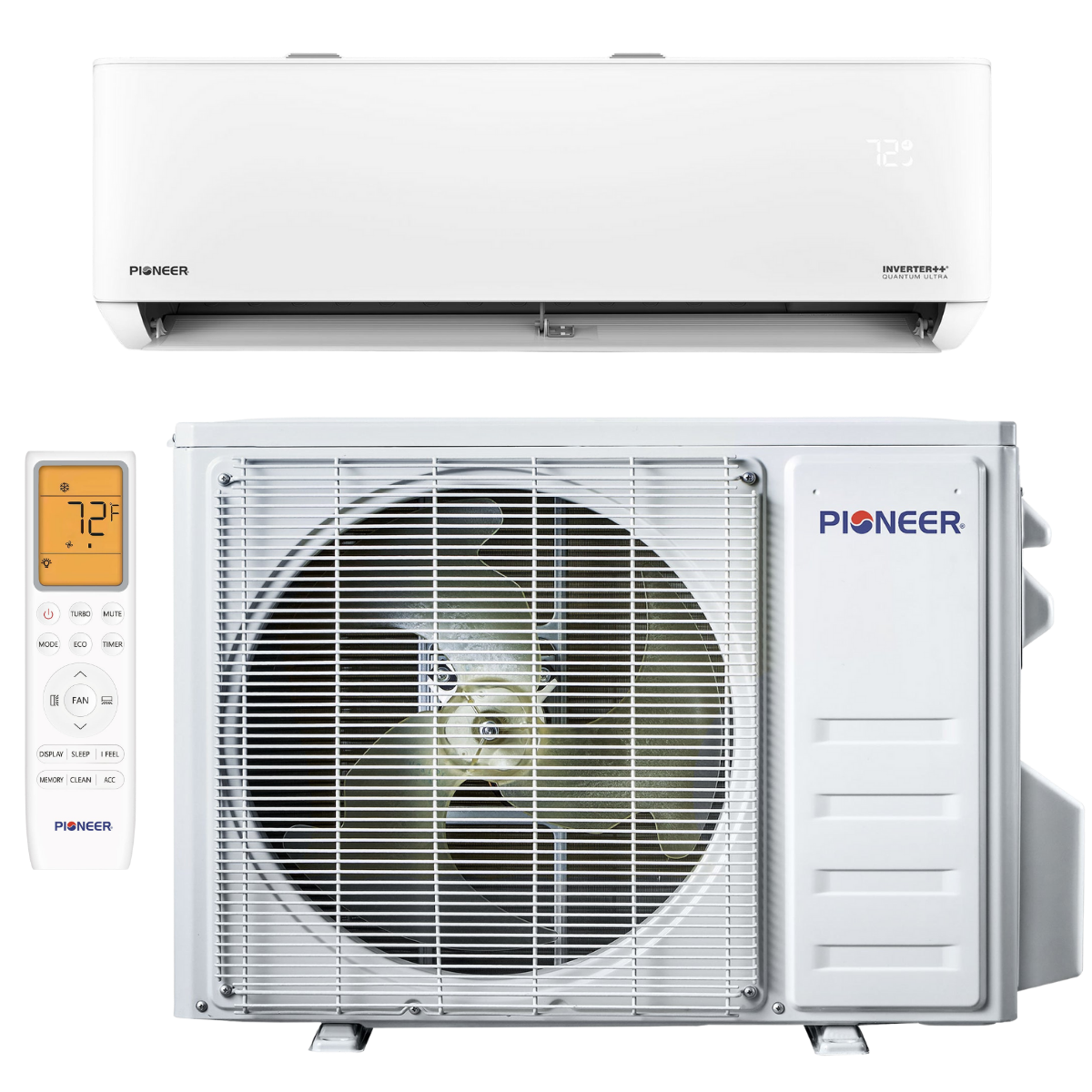

Pioneer 12,000 BTU Quantum Ultra High-Wall Series Ductless Mini Split 115V
Pioneer 12,000 BTU Quantum Ultra High-Wall Series Ductless Mini Split 115V is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?

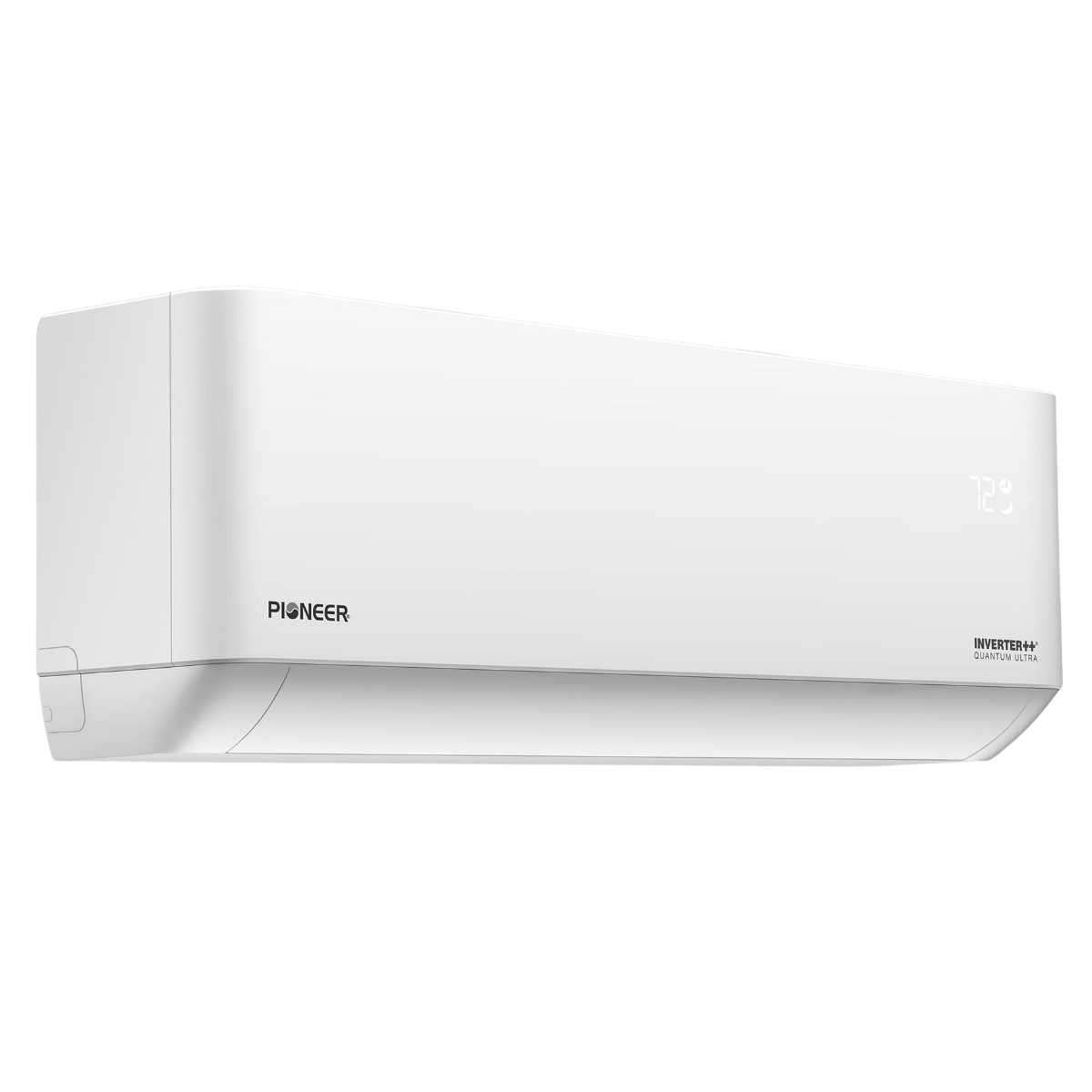

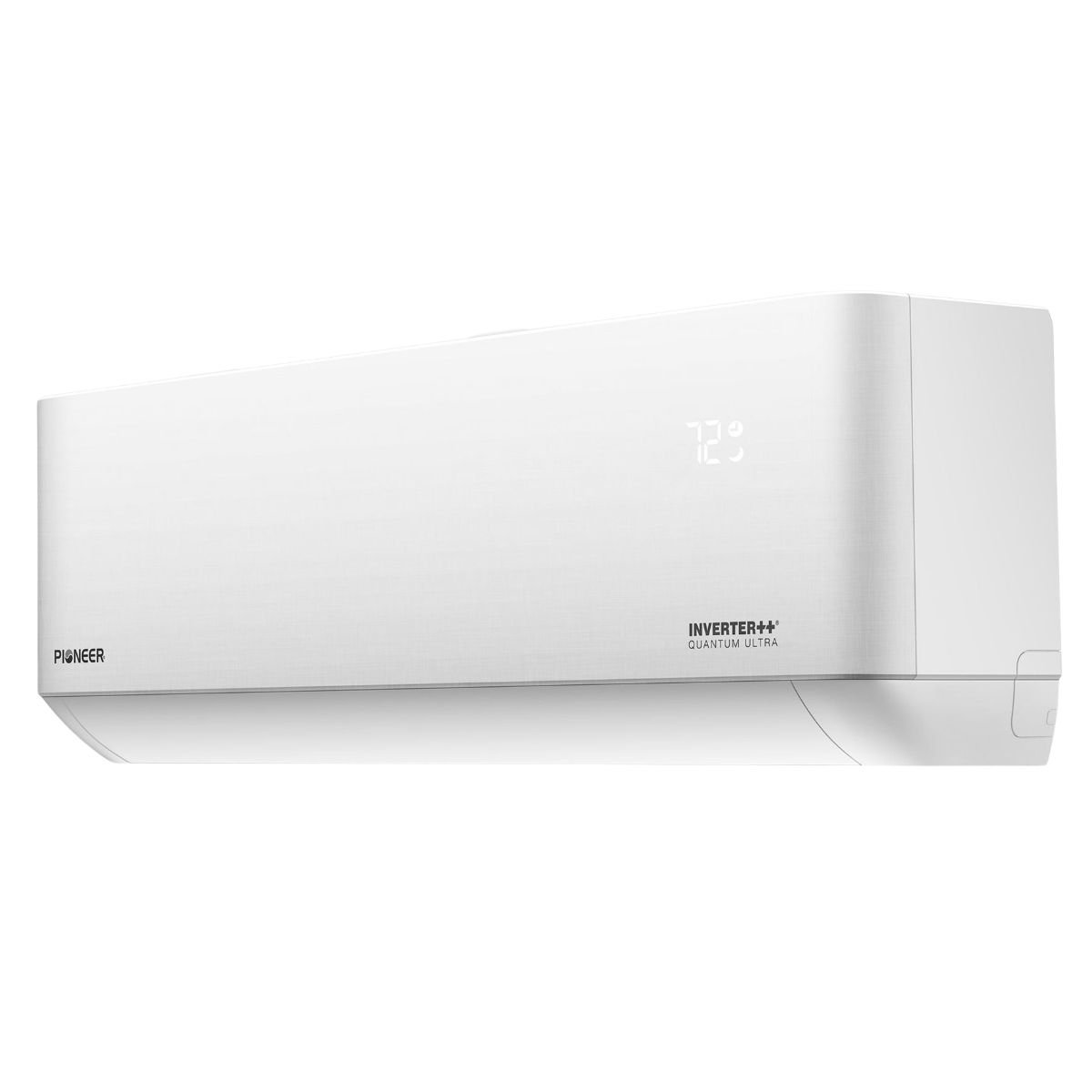

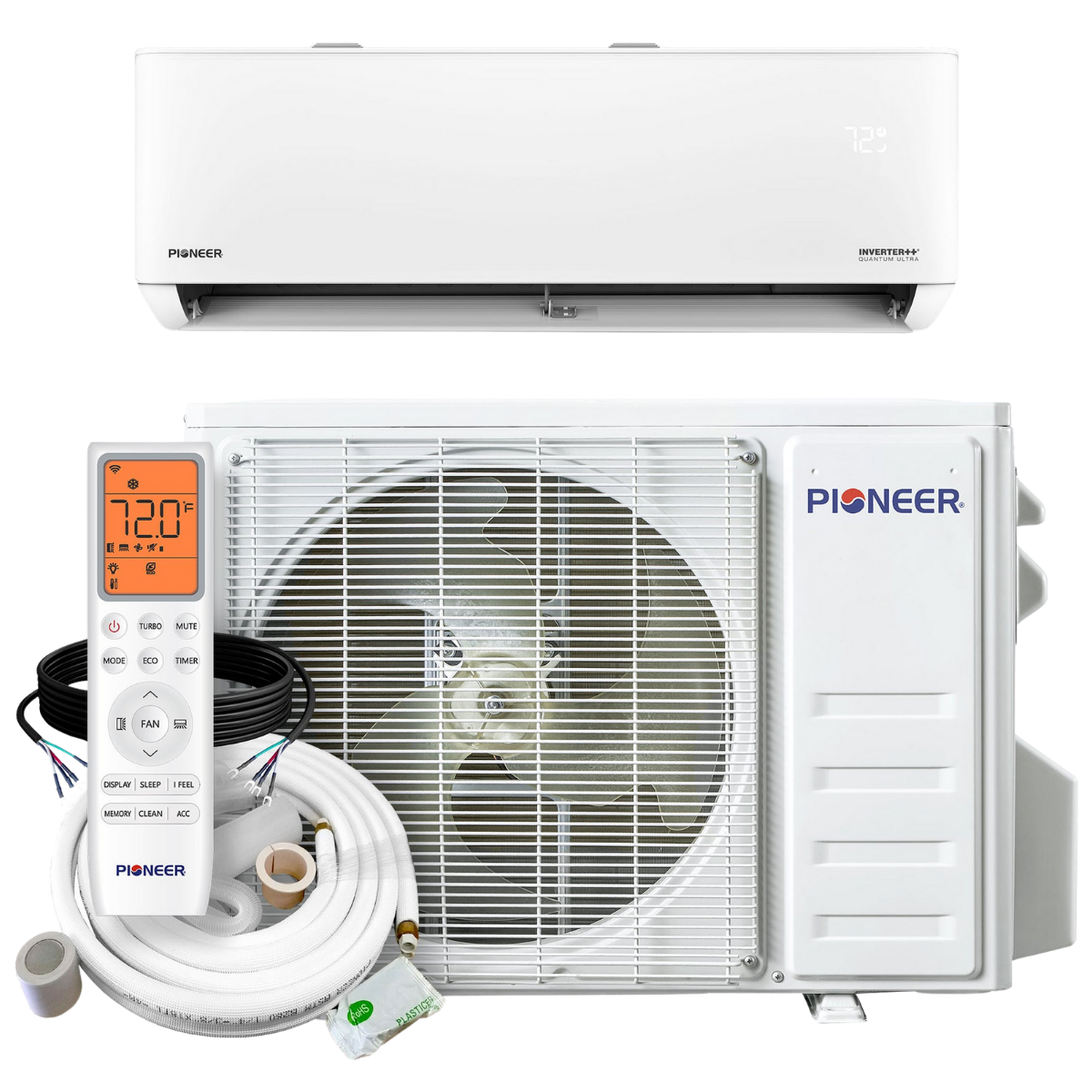

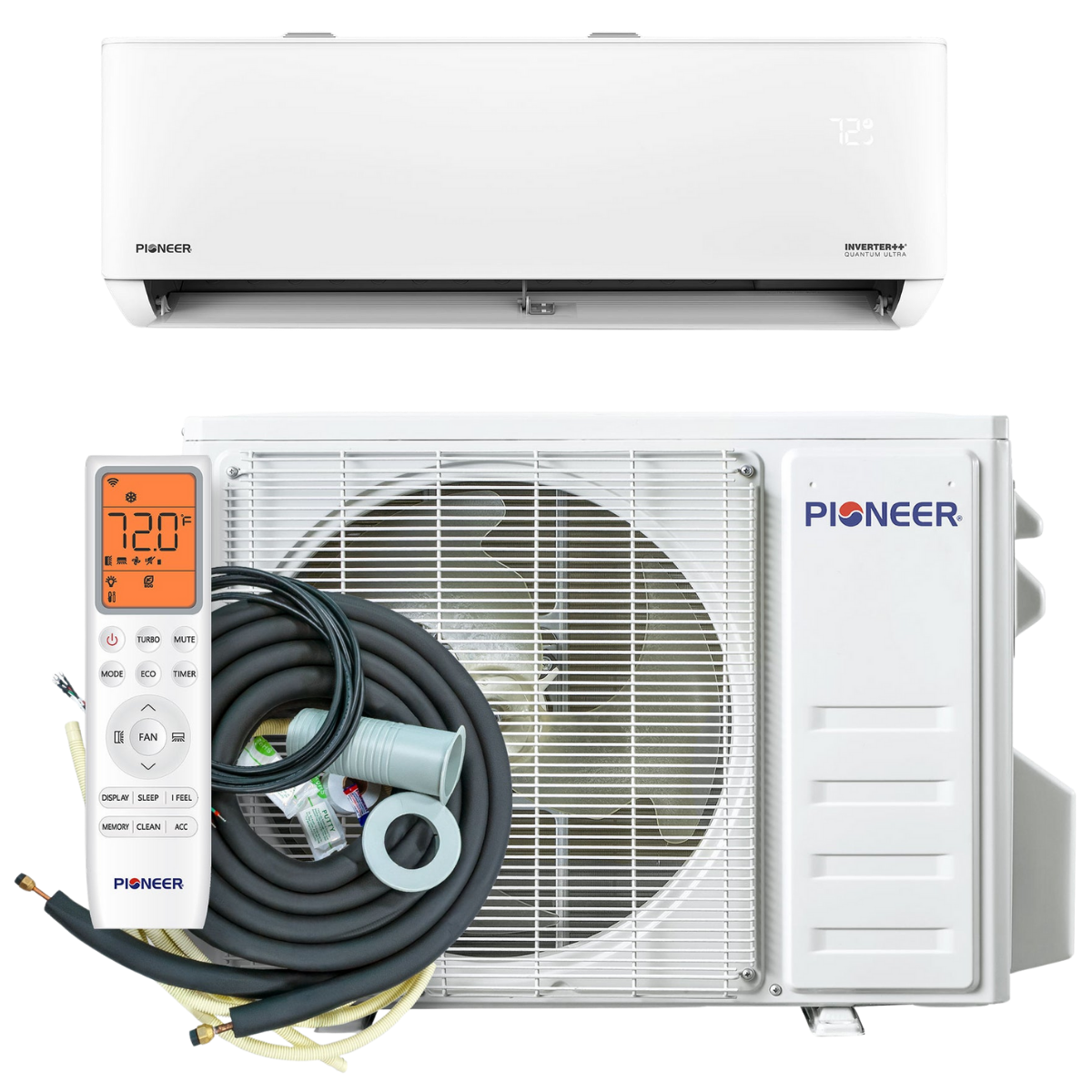

- Pioneer 12,000 BTU Quantum Ultra High-Wall Ductless Mini Split Indoor Unit WT012ALSI24HLG

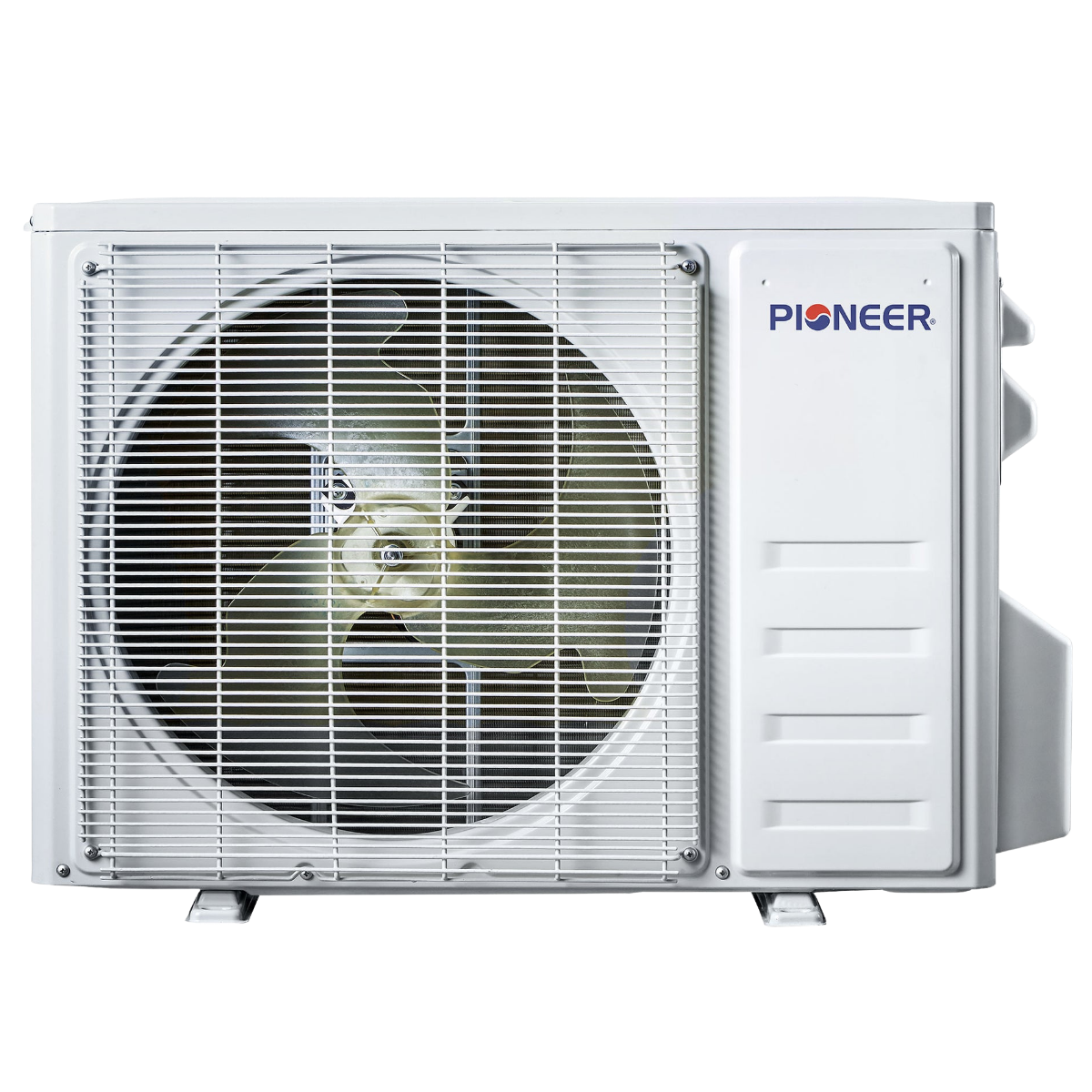

- Pioneer 12,000 BTU Quantum Ultra High-Wall Ductless Mini Split Outdoor Unit YN012ALSI24RPG

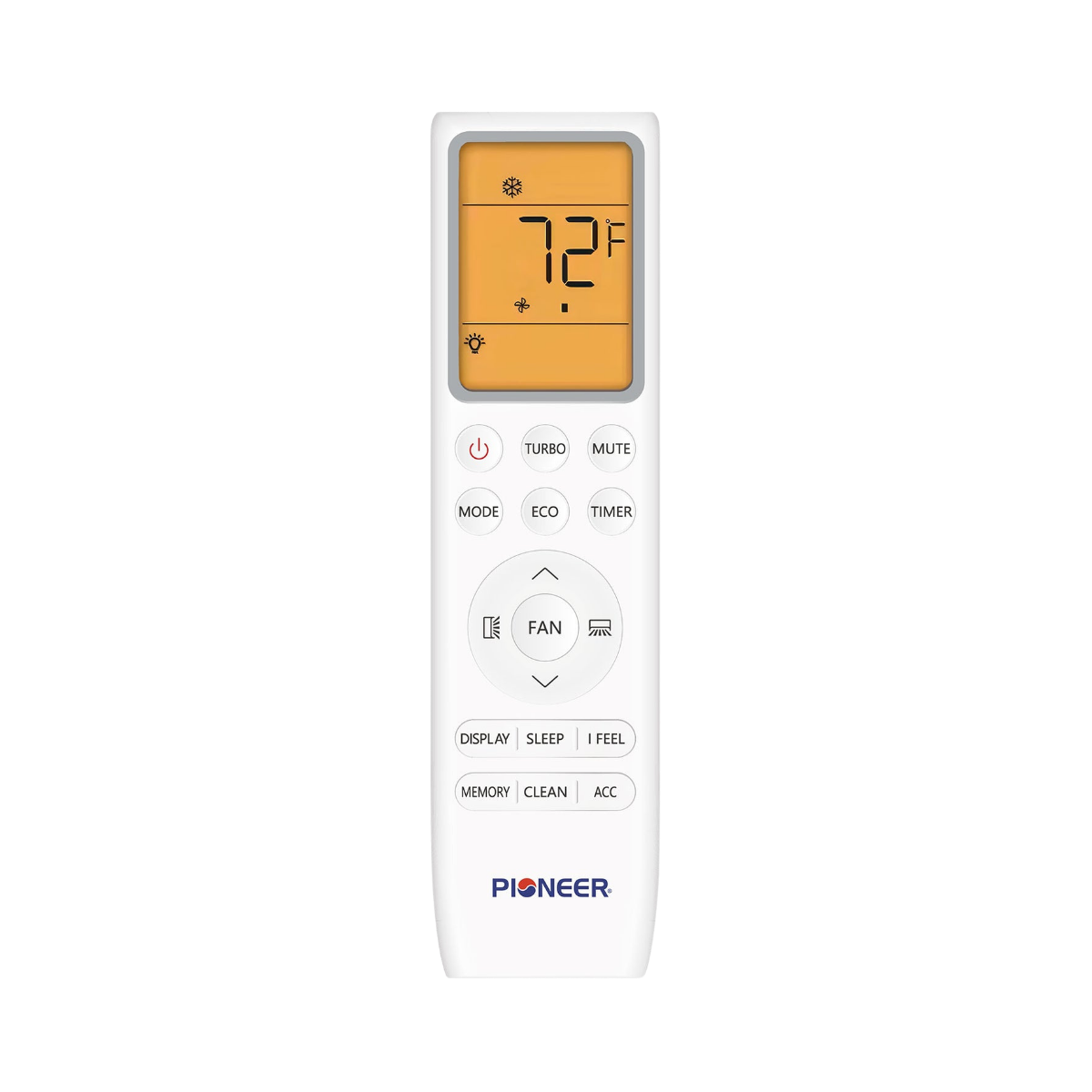

- Wireless Remote Control
- Remote Control Wall Holder
- Remote Control Batteries
- 10-foot Drain
- Wall Passage Sleeve
- Installation Hardware
- Owner’s Guide
Info & Guides
Info & Guides
Pioneer 12,000 BTU Quantum Ultra High-Wall Series Ductless Mini Spl...
Description
Description
Pioneer’s Quantum Ultra High-Wall Series 12,000 BTU ductless mini-split is engineered to provide steady heating and cooling for residential additions, small offices, and similar spaces. Its inverter-driven compressor and environmentally forward refrigerant work together to deliver precise temperature control while maintaining a compact, wall-mounted profile.
This single-zone system operates on standard 115-volt power and is designed for straightforward installation when conventional ductwork is impractical. Whether you are upgrading an older room or outfitting new construction, the indoor and outdoor components integrate seamlessly to create a balanced, efficient climate solution.
Key Features and Benefits of the Pioneer 12,000 BTU 115V Quantum Ultra Mini-Split
- High Efficiency: Lower your monthly energy costs by pairing advanced inverter technology with a 23 SEER2 rating and optimized airflow for both heating and cooling.

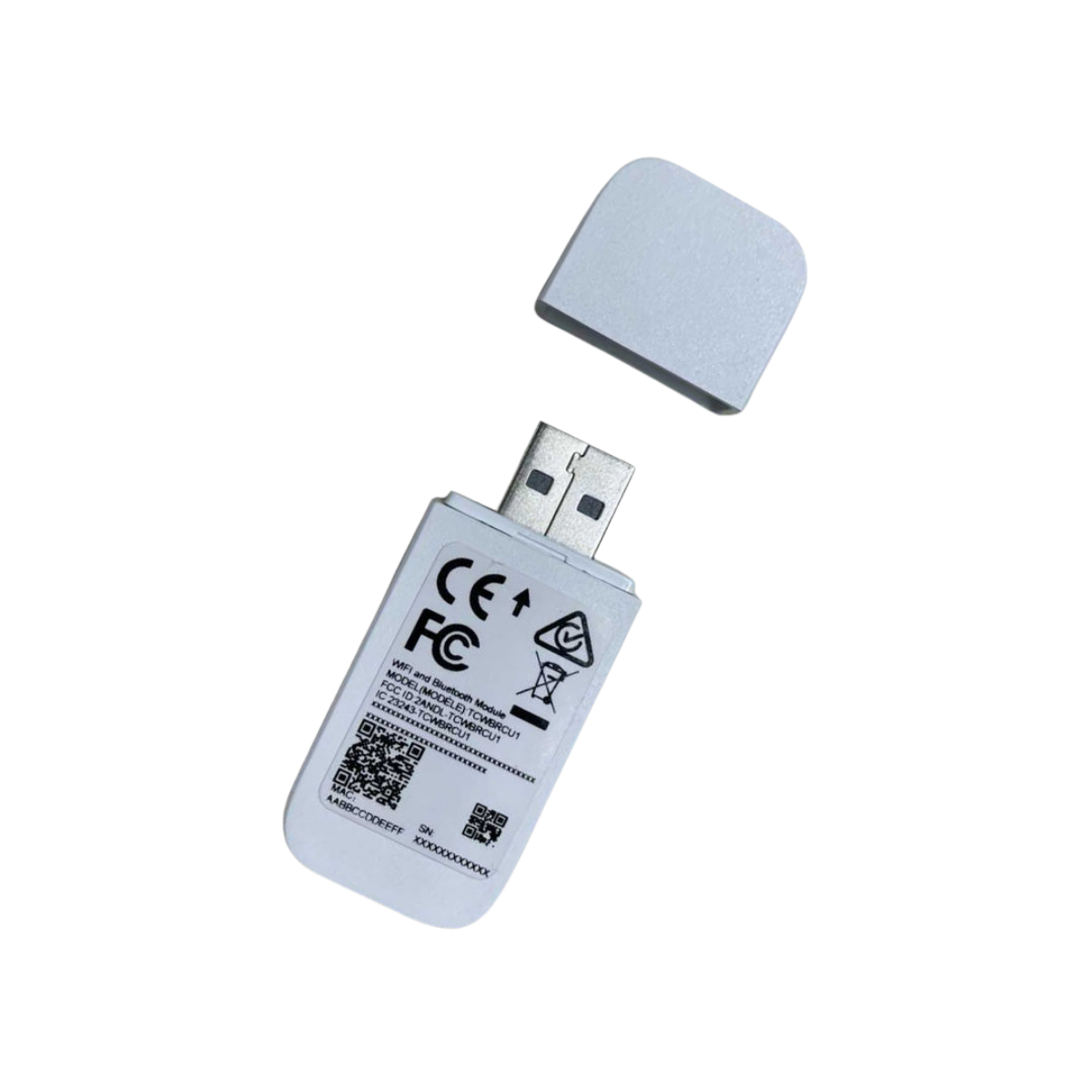

- Smartphone Wi-Fi Control: Adjust temperature, mode, or fan speed from anywhere using a secure mobile app, increasing convenience for homeowners and facility managers alike.
- TURBO Modes: Reach your target temperature rapidly using this mode, then return to normal operation to conserve energy.
- ECO and SLEEP Modes: Fine-tune output during low-demand periods to maintain comfort overnight or when spaces aren't in use.
- Dual-Axis Louvers: Direct conditioned air precisely across the room, improving occupant comfort and reducing hot or cold pockets.
- Self-Cleaning Coil: Minimize maintenance by reducing moisture and microbial buildup inside the evaporator, extending service life, and preserving air quality.
- Washable Filters: Keep operating costs down and protect indoor components with easy-access filters that you can clean and reinstall in minutes.
- MEMORY and IFEEL Functions: Store preferred settings and use the handheld remote sensor to achieve temperature readings at the occupant's level rather than at the wall unit.

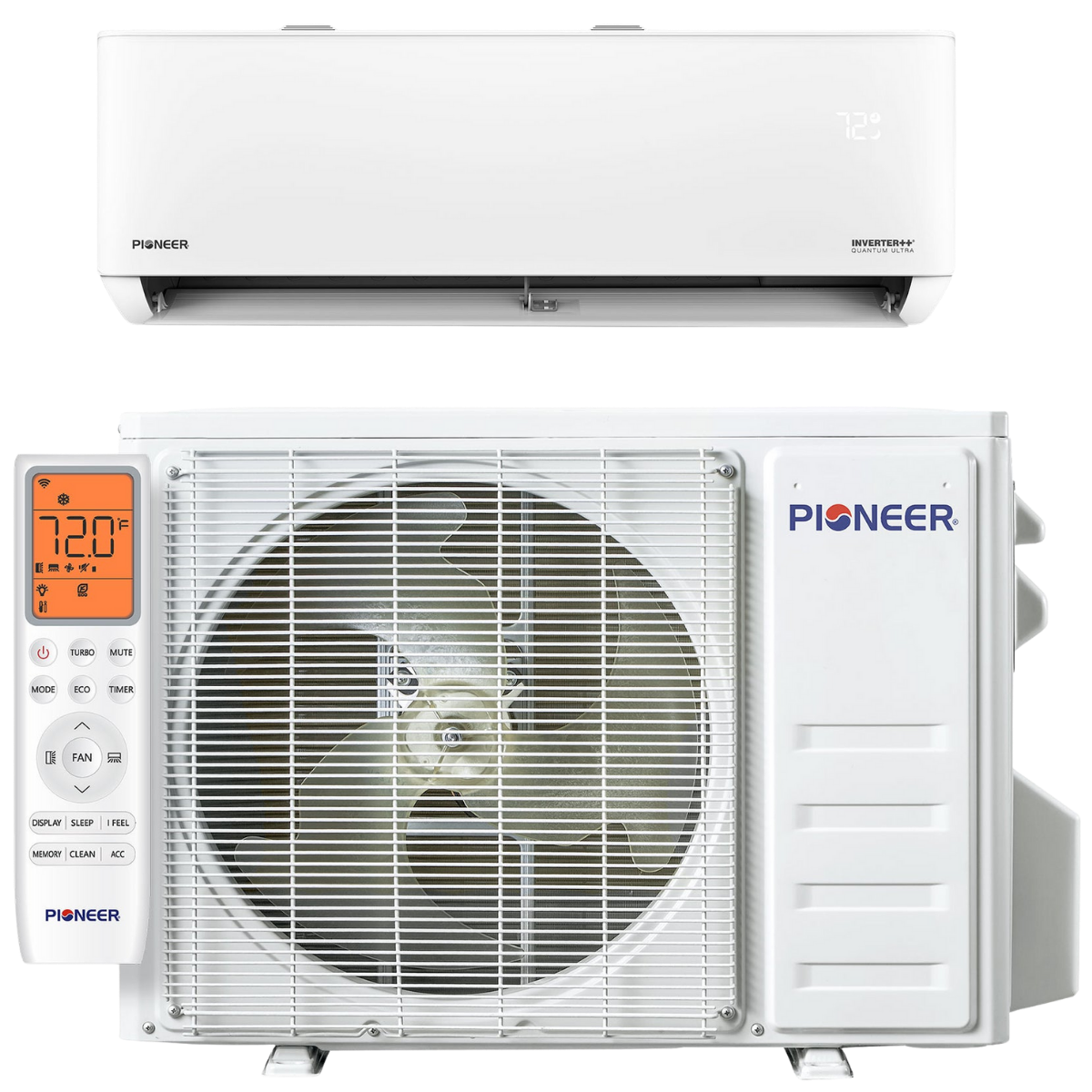

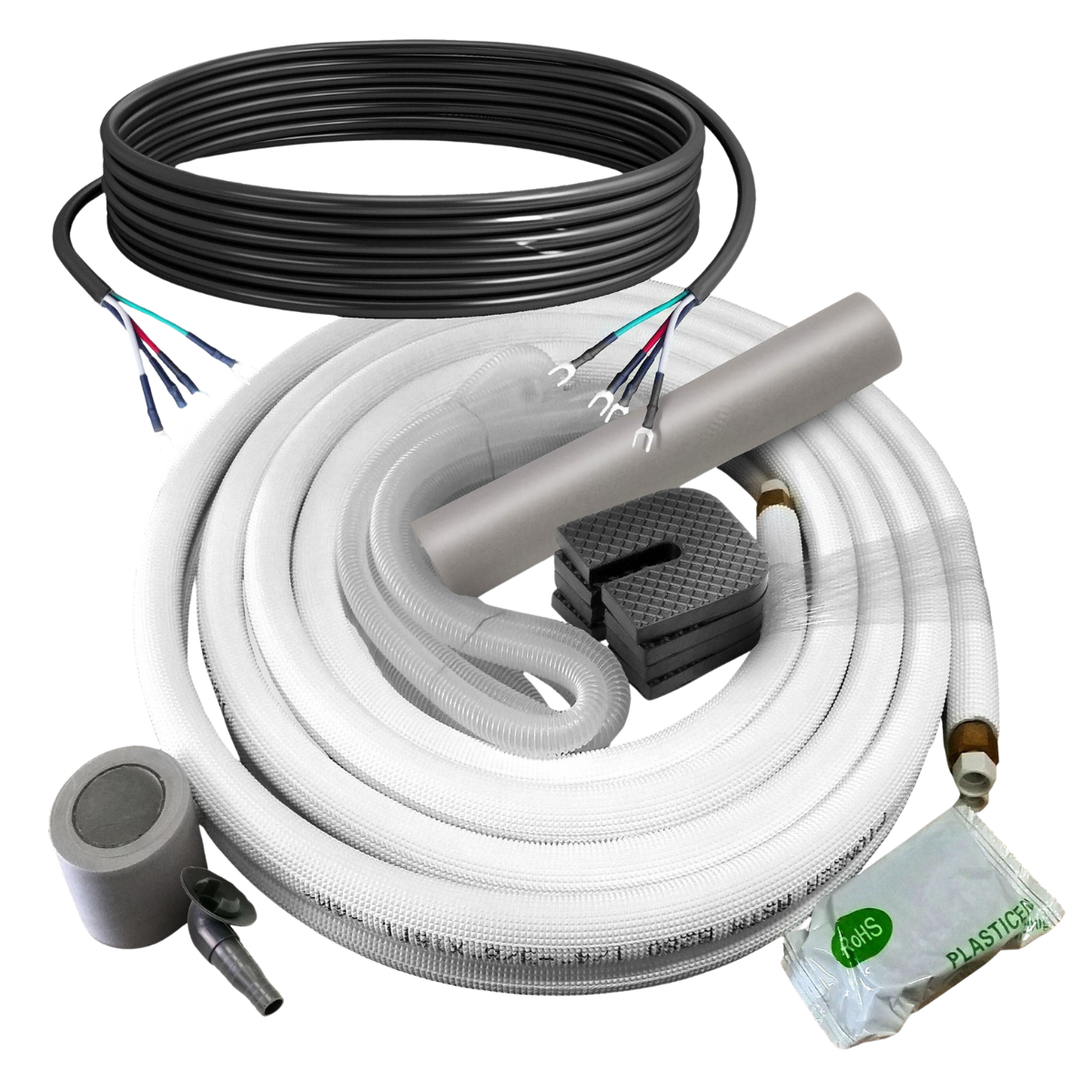

Note: A 1/4 x 3/8 Line Set is not included with this mini-split.
Extreme-Weather Ready
Not all climate control systems can maintain performance in extreme temperatures, but this mini-split is built for the challenge. Its optimized compressor cycle, electronic expansion valve, and cold-weather firmware allow full-capacity operation down to -13 degrees F without additional heaters. On the opposite end of the spectrum, efficient heat rejection keeps cooling output reliable up to 131 degrees F, protecting productivity and comfort during severe heat events. For property owners in regions with wide seasonal swings, this capability removes the need for separate backup systems, saving both installation space and long-term maintenance costs.
Sylvane’s Expert Take
If you need dependable, energy-efficient climate control for spaces up to 500 square feet, Pioneer’s Quantum Ultra delivers strong value. Its high SEER2 rating, broad operating range, and app-based control simplify daily management while trimming utility expenses. Features like self-cleaning and washable filters reduce upkeep, and the standard 115-volt power speeds installation. Overall, it is a practical choice for anyone seeking a compact, reliable mini-split that performs all year.
Specifications
Specifications
-
Energy Efficiency Ratio 2 (EER2)13
-
Mounting TypeWall
-
Number of SpeedsVariable
-
Seasonal Energy Efficiency Ratio 2 (SEER2)23
-
Total Cooling Capacity (BTUs)12000
-
Total Heating Capacity (BTUs)12400
-
CertificationsAHRI, cETLus
-
ColorWhite
-
Compressor TypeInverter Rotary
-
Heat ModeYes
-
Installation TypeProfessional Installation
-
Maximum Cubic Feet per Minute (CFM) (CFM)500.0
-
Maximum Indoor Noise Level (dB)52
-
Maximum Operating Temperature - Cooling (degrees F)131
-
Maximum Operating Temperature - Heating (degrees F)86
-
Minimum Operating Temperature - Cooling (degrees F)5
-
Minimum Operating Temperature - Heating (degrees F)-13
-
Number of Zones1
-
Recommended Coverage Area (sq. ft.)500
-
Refrigerant TypeR-454B
-
Zone Cooling Capacity (BTUs)12000
-
Zone Heating Capacity (BTUs)12400
-
Maximum Cooling Amperage (Amps)8.5
-
Maximum Cooling Wattage (W)960
-
Maximum Heating Amperage (Amps)8.4
-
Maximum Heating Wattage (W)945
-
Voltage (V)110-120
-
Indoor Unit Depth (in.)12
-
Indoor Unit Height (in.)7.63
-
Indoor Unit Weight (lbs.)23.1
-
Indoor Unit Width (in.)36.5
-
Maximum Line Length (ft.)25
-
Outdoor Unit Depth (in.)12
-
Outdoor Unit Height (in.)21.63
-
Outdoor Unit Weight (lbs.)58.4
-
Outdoor Unit Width (in.)31.88
-
Additional FeaturesRemote Control, Energy Star, Wi-Fi Capable, Applicable for Indoor Growing, Pre-charged Refrigerant
-
Manufacturer's Warranty5-Year Parts and Compressor Warranty Limited (with required warranty registration)
