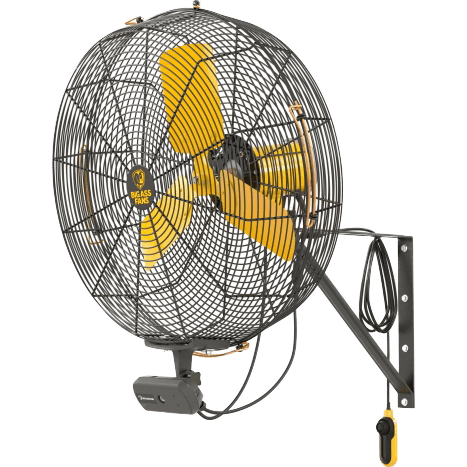

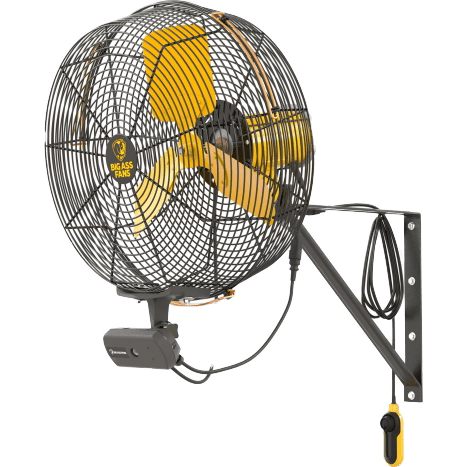

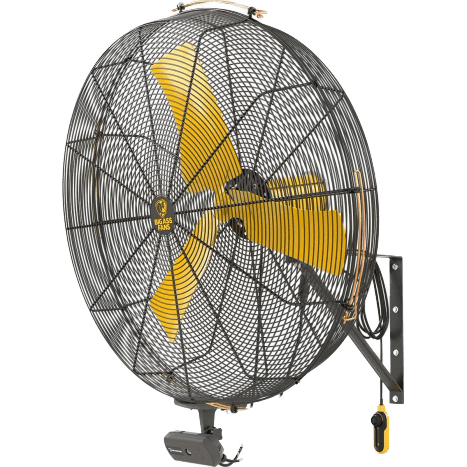

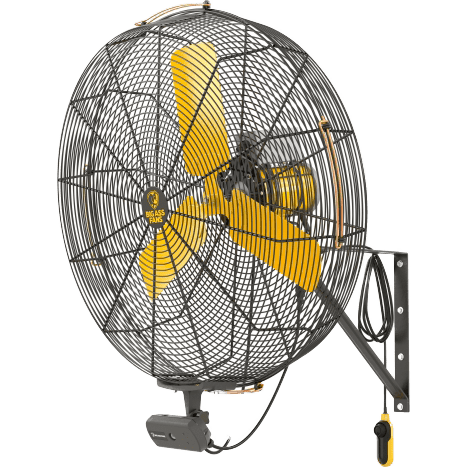

Big Ass Fans AirEye Wallmount Fan w/ AEOS Occupancy Sensor

SKU: bf12966  |  Model: F-AE1-3601L13S34V56
$1,489.00

FREE shipping on orders over $45!

In Stock Usually ships in 7 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Warranty

What's In The Box?

  • Big Ass Fans AirEye Wall Mount Fan w/ AEOS Occupancy Sensor
  • Owner's Manual

Description

The Big Ass Fans AirEye Wallmount Fan features an AEOS Occupancy Sensor which uses passive infrared detection to operate the AirEye only when it’s needed.

Available in four sizes for a wide range of industrial and commercial applications. 20-inch, 24-inch, 30-inch, and 36-inch.

Energy Efficient

With its electronically commutated (EC) motor, the AirEye industrial directional fan operates at low wattage and amperage draw, while producing 50% more CFM per watt for airflow up to 120 feet.

  • 20-inch: 1/3 HP motor - 386W & 5.1 amps
  • 24-inch: 1/3 HP motor - 396W & 5.2 amps
  • 30-inch: 1/3 HP motor - 384W & 5.0 amps
  • 36-inch: 2/3 HP motor - 711 W & 9.7 amps

Infrared Occupancy Sensor

In addition to a base low-energy operation, the AEOS occupancy sensor automatically turns on the fan to a pre-set speed when it detects infrared motion and shuts off five minutes after occupants leave the area. It covers a 90-degree area (45 degrees on each side of the center) up to 40 feet. This also helps lower operating costs by running the fan only when its needed.

The adjustable lock knob allows you to aim the sensor where airflow is needed most, as well as two status LED displays which indicate the power level and motion-detection activity.

Versatile Use

The BAF AirEye Wall Mounted Directional Fan can be integrated into building management systems and multiple fans can be grouped together. This makes them applicable for small warehouses, factory floors, auto shops, outdoor eating areas, event venues, and more.

The infinite variable speed control provides precise airflow settings to suit specific cooling and odor control needs.

Additional Features

  • Three Fan Blades: These fans all feature three blades which are precision-balanced for a smooth performance.
  • More CFM: For superior efficiency, the EC motor produces 50% more CFM per Watt than basic induction motors.
  • Maximum Safety: The AirEye wall mount fan carries an IP65 rating for the best protection from dust and water. Steel wire cage is OSHA-compliant.
  • Low-Noise: All models with the 1/3 HP motor operate at 69dB, and the 2/3 HP model at 72dB, running at maximum speed.
  • Longer Power Cord: The 18-foot power cord allows for easier placement and fits a standard 120V standard power outlet.

Summary

The Big Ass Fans AirEye Wall Mount Directional Fan features infrared occupancy sensor, with adjustable knob for directing it where airflow is most needed. Select from four fan diameter sizes to best suit a variety of commercial and industrial spaces.

What Customers Love

  • Occupancy Sensor: Infrared motion sensor detects when the space is occupied and turns on the fan to a pre-set speed, turning off 5 minutes after the occupants have left.
  • IP65 Rating: This rating ensures a high degree of protection from both dust and water.

Something to Consider

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Type
      Wall-Mountable

    General

    • California Residents
      ⚠ WARNING: Cancer - www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
    • Certifications
      ETL, CE
    • Color
      Black, Yellow
    • Controls
      Manual
    • Indoor/Outdoor
      Indoor/Outdoor
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      36-in: 10303.0
      30-in: 6803.0
      24-in: 5034.0
      20-in: 3575.0
    • Maximum Noise Level (dB)
      36-in: 72
      30-in: 69
      24-in: 69
      20-in: 69
    • Recommended Coverage Area (sq. ft.)
      4800

    Power

    • Maximum Amperage (Amps)
      36-in: 9.7
      30-in: 5.0
      24-in: 5.2
      20-in: 5.1
    • Maximum Wattage (W)
      36-in: 711
      30-in: 384
      24-in: 396
      20-in: 386
    • Power Cord Length (ft.)
      18
    • Power Supply
      Plug
    • Voltage (V)
      110-120

    Dimensions

    • Depth (in.)
      36-in: 21.5
      30-in: 19.5
      24-in: 19.5
      20-in: 19.5
    • Depth (with front cover) (in.)
      36-in: 21.5
      30-in: 19.5
      24-in: 19.5
      20-in: 19.5
    • Weight (lbs.)
      36-in: 67
      30-in: 45
      24-in: 38
      20-in: 32
    • Width (in.)
      36-in: 43.2
      30-in: 38.2
      24-in: 32.0
      20-in: 25.8
    • Width (with front cover) (in.)
      36-in: 43.2
      30-in: 38.2
      24-in: 32.0
      20-in: 25.8

    Additional Features

    • Additional Features
      Wall-Mountable

    Warranty

    • Manufacturer's Warranty
      5-Year Warranty
