Broan 744 70 CFM Recessed Ventilation Fan/Light
Broan 744 70 CFM Recessed Ventilation Fan/Light is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan 70 CFM Recessed Ventilation Fan/Light
- Installation Guide
- Owner's Manual
Info & Guides
Info & Guides
Broan 744 70 CFM Recessed Ventilation Fan/Light
Description
Description

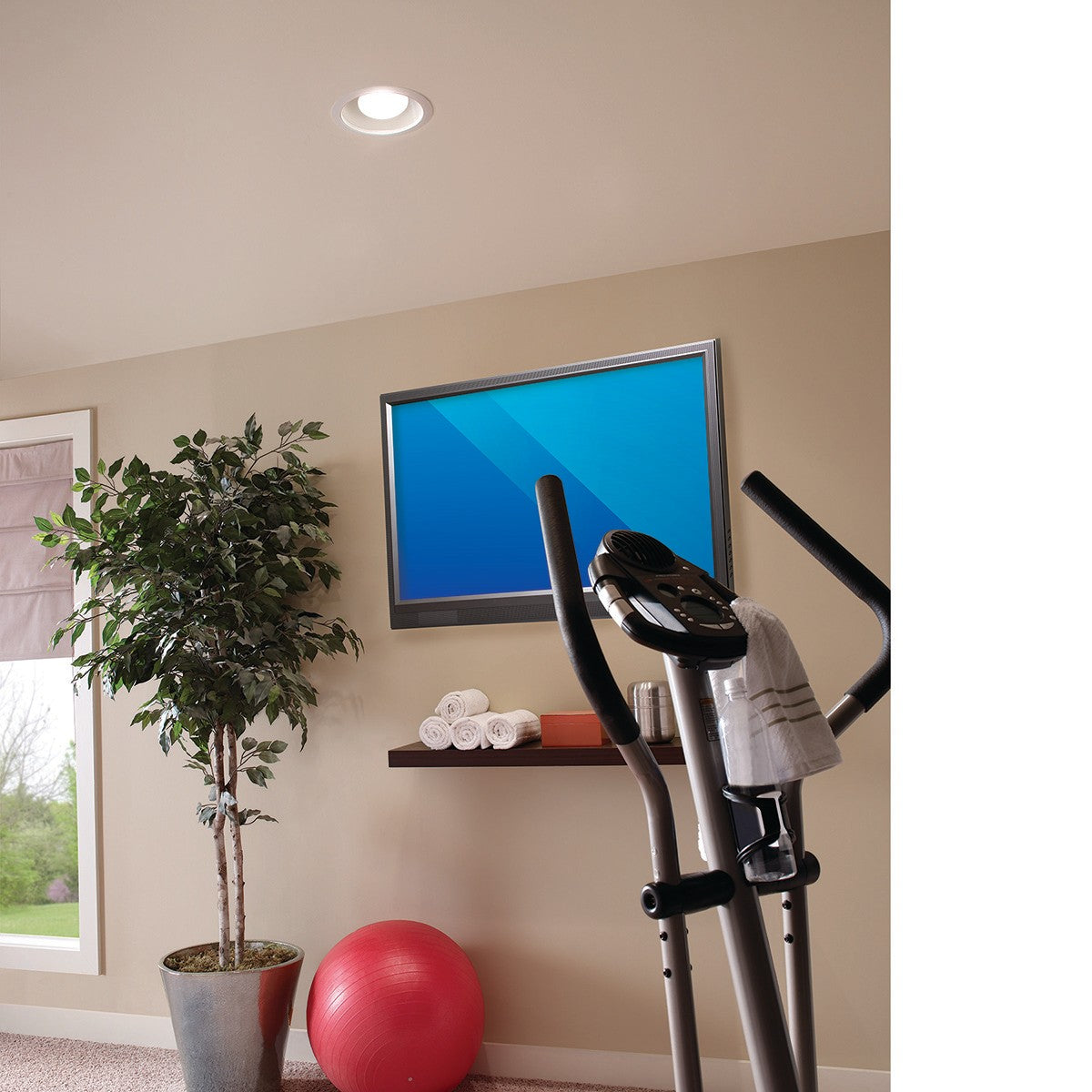

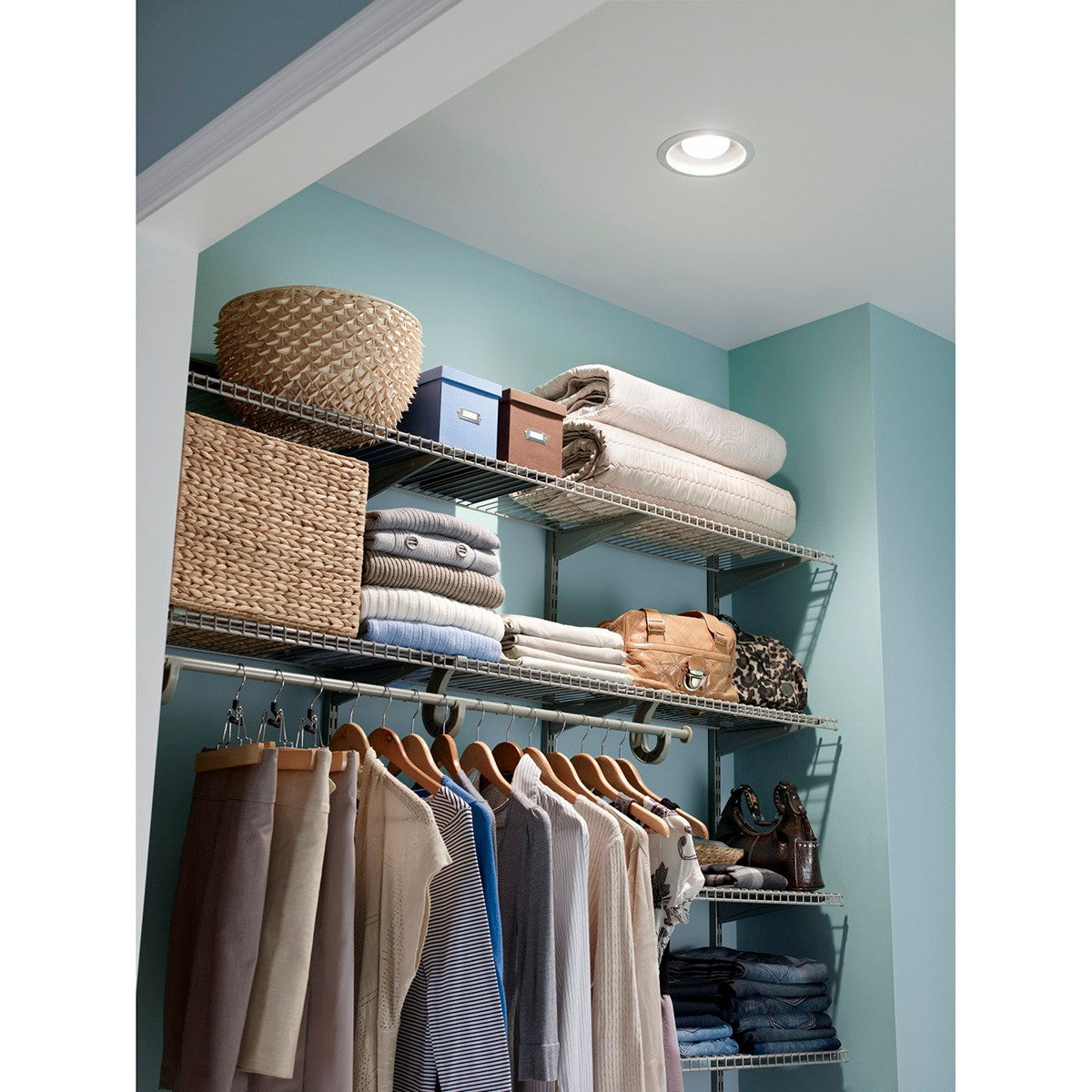

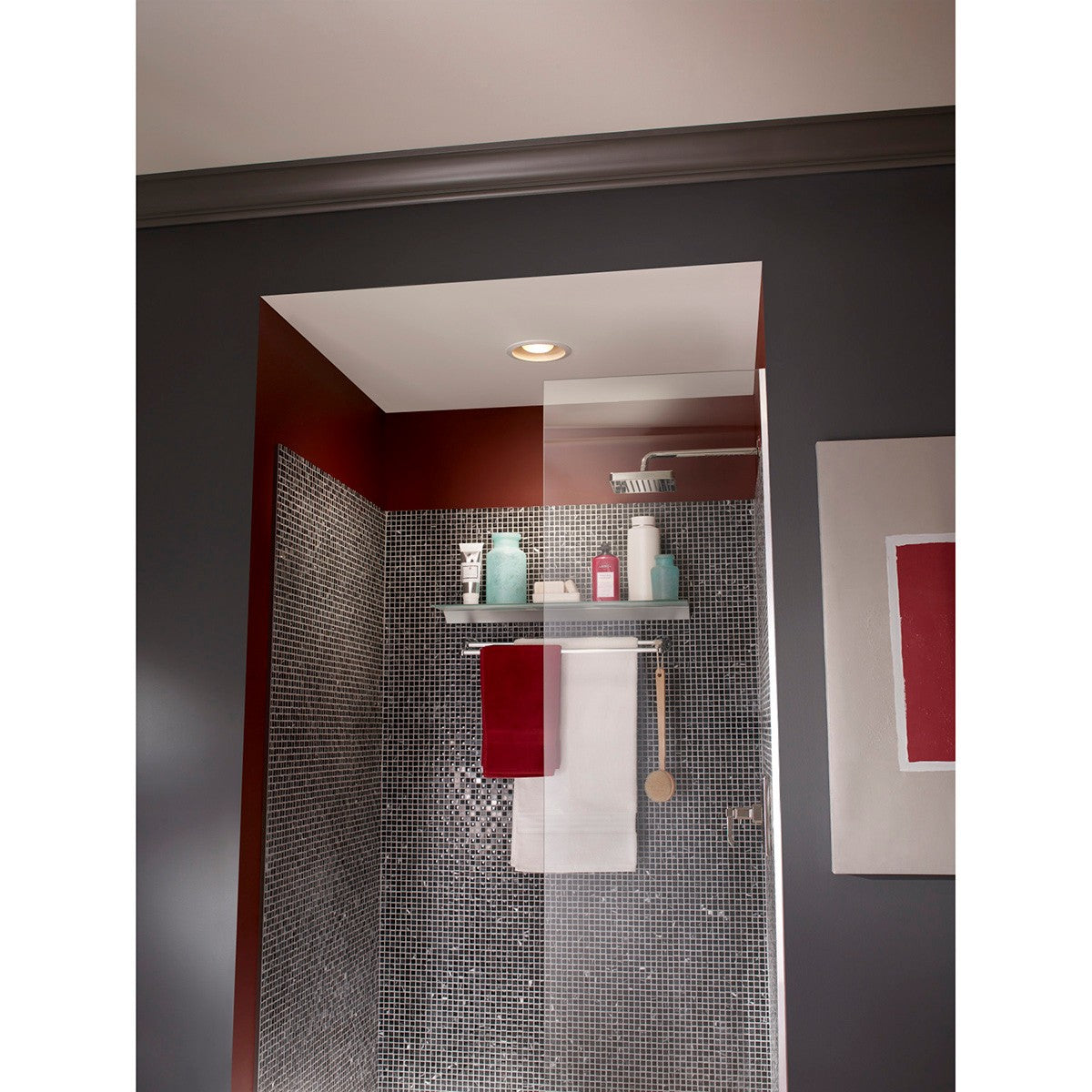

The Broan Recessed Ventilation Fan/Light is a great addition, not only for the bathroom, but for a closet, home work-out space, or other area where humidity can rise due to activity or lack of other ventilation. This attractive fan/light simply disappears into the ceiling with your other recessed lights. Matching trim is understated and blends into any décor.

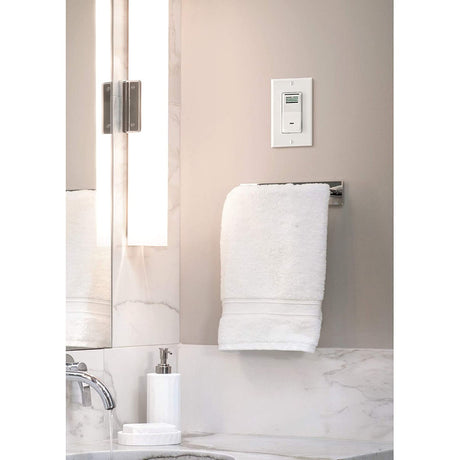

Powered with 70 CFM of airflow, this ventilation fan can be paired with the Broan Sensaire humidity sensing switch for automatic operation. Using this switch, your space will meet the ASHRAE 62.2-2016 standard for bathrooms.
Featured Specifications
- HVI Certified: This fixture complies with new testing technologies and procedures with static pressure of 0.1 in.
- UL Listed: Meets UL and cUL standards for safe use over bathtubs and showers with a GFCI circuit.

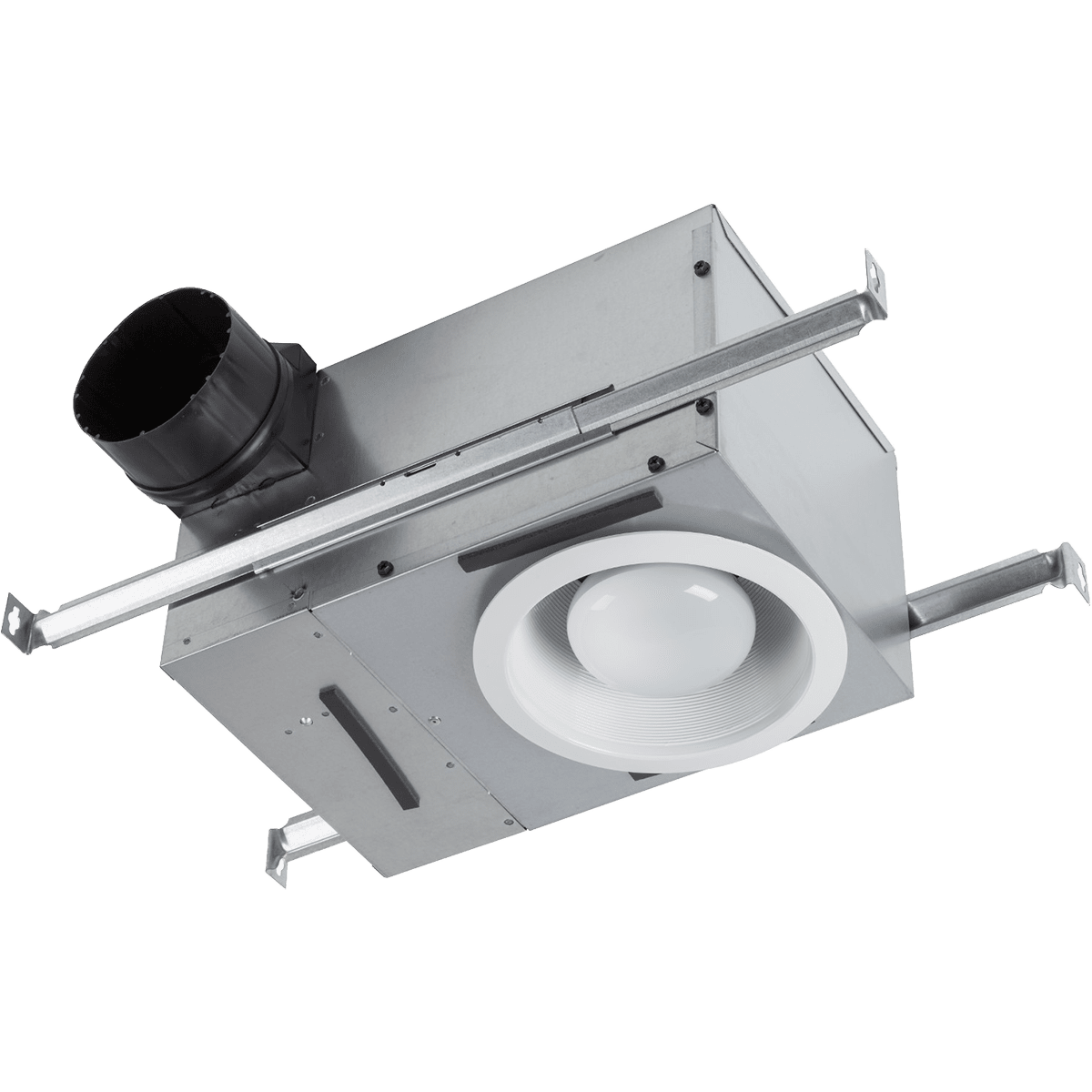

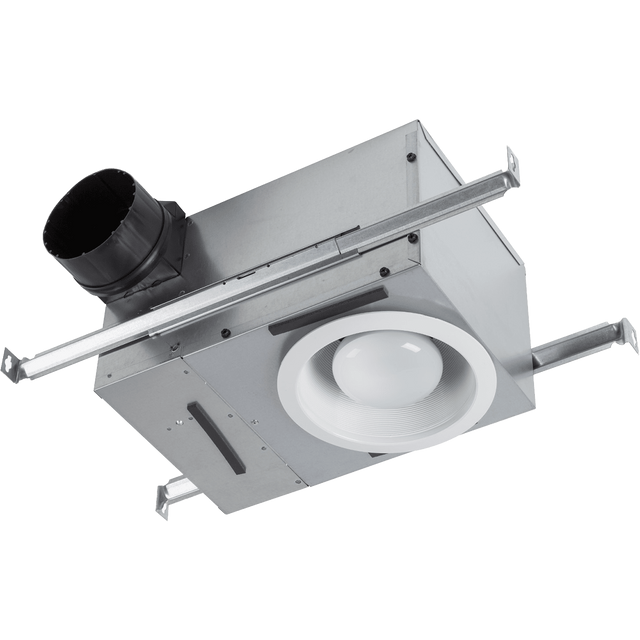

- Rugged Housing: Constructed from 26-gauge galvanized steel with 4-inch round polymeric duct connector with 2-inch tapered sleeve.
- Fan Blower: Permanently lubricated motor with balanced centrifugal blower wheel for quiet and efficient operation.
- Fan/Light Operation: You can wire the fan and light to be operated separately or together as desired.
Summary
Control humidity and add light with this recessed fan/light from Broan. Quietly operates at only 1.5 sones with 70 CFM of airflow.
Specifications
Specifications
-
Manufacturer-Suggested Room Size (sq. ft.)65
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)1.5
-
CertificationsUL
-
ColorWhite
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)70.0
-
Maximum Amperage (Amps)1.2
-
Maximum Wattage (W)125
-
Voltage (V)110-120
-

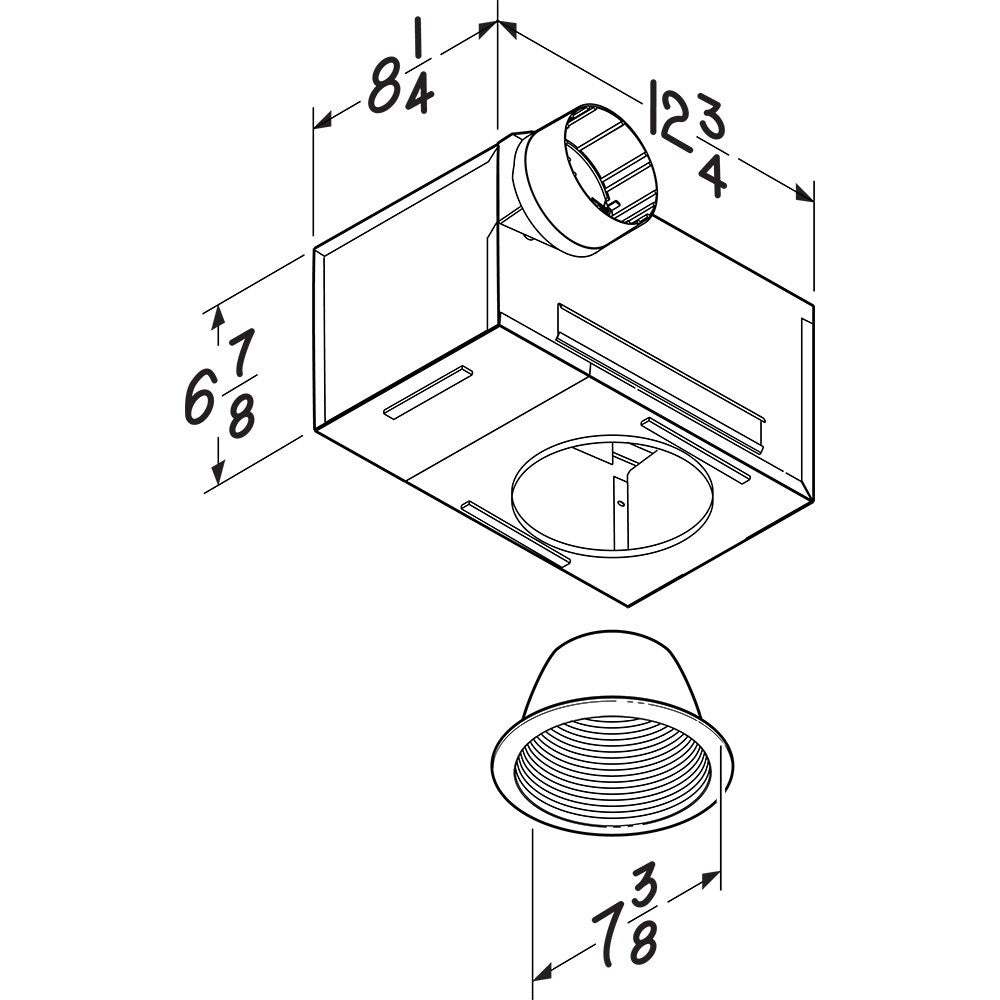

Depth (in.)8.2
-
Depth (with front cover) (in.)8.2
-
Duct Diameter (in.)4.0
-
Height (in.)6.8
-
Height (with front cover) (in.)6.8
-
Weight (lbs.)8.5
-
Width (in.)12.7
-
Width (with front cover) (in.)12.7
-
Additional FeaturesBuilt-In Light
-
Manufacturer's Warranty1-Year Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
