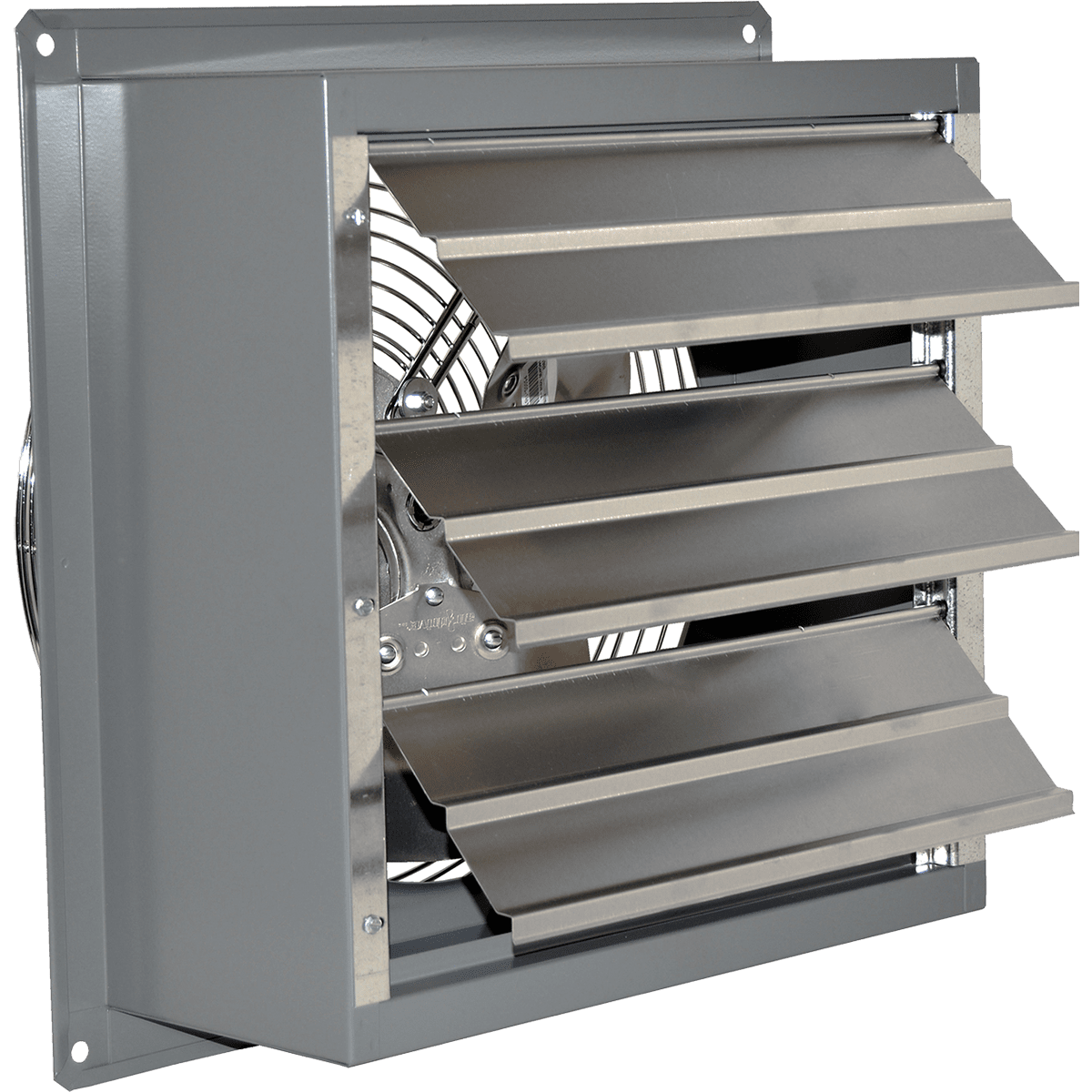

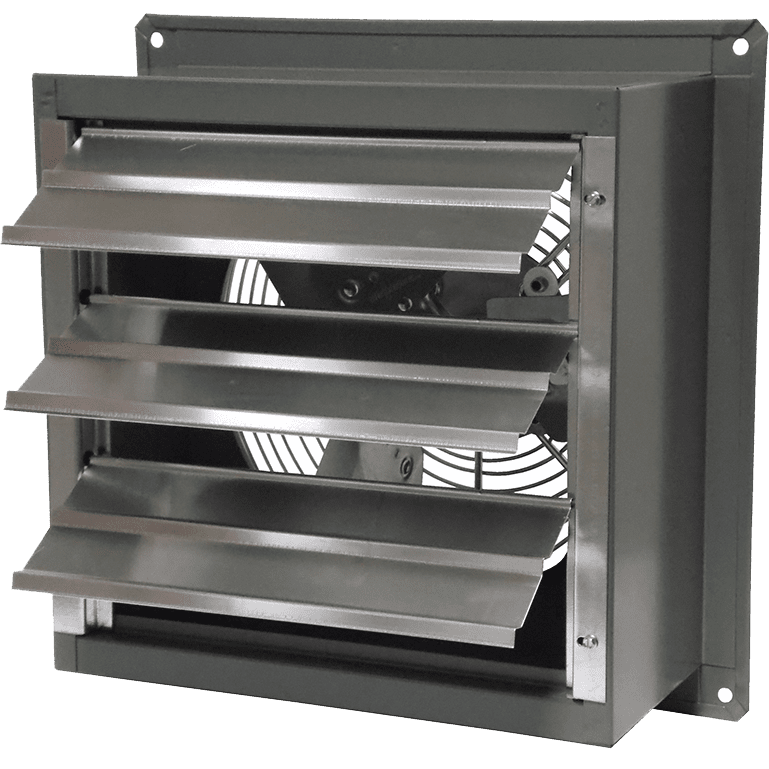

Canarm 12-in. Shutter Mounted Exhaust Fan

Name: Canarm 12-in. Shutter Mounted Exhaust Fan
Brand: Canarm
Price: 374.0 USD
Availability: InStock

SKU: ca10130 | Model: S12-EVD

$374.00

Number of Speeds

Variable 2 1

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Limited Warranty

What's In The Box?

Canarm 12-inch Shutter Mounted Exhaust Fan
Owner's Manual

Info & Guides

Canarm 12-inch Shutter Mounted Exhaust Fans are available in single-speed, two-speed, or variable speed models. All are equipped with a totally enclosed, thermally protected motor which is mounted on heavy-gauge steel rod motor mounts.

Durable

A rugged steel welded box housing is built to last and the aluminum shutters are supported by long-life nylon bushings. Louvers operate automatically when the fan is in use.

Quick Installation

Depending on which model you select, your motor will operate using the following voltage set-up. Full instructions are included to make installation fast and easy.

Single Speed Fans: 120-volt only & require a simple toggle switch.
Two Speed Fans: 120-volt only & require a 2-speed control or a 3-position toggle switch.
Variable Speed Fans: Dual voltage, pre-wired at 240-volt but can be rewired for 120-volt. Requires a variable-speed control.

Specification Highlights

Durable steel construction has a gray powder coat finish that resists rust and corrosion.
OSHA certified with a heavy wire chrome-plated guard.
Framing Dimensions: 15-in. x 15-in.
ETL Certified

Key Specifications

Number of Speeds

Variable: Variable

2: 2

1: 1
Sound Level (Sones) (sones)

4.0
Type

Shutter Exhaust Fan

General

Application

Variable: Attic, Basement, Garage/Workshop, Residential, Crawlspace, Commercial/Industrial

2: Basement, Garage/Workshop, Residential, Crawlspace, Commercial/Industrial, Attic

1: Basement, Garage/Workshop, Residential, Crawlspace, Commercial/Industrial, Attic
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
Certifications

ETL
Color

Gray
Controls

Manual
Housing Material

Powder-Coated Steel
Maximum Cubic Feet per Minute (CFM) (CFM)

Variable: 1650.0

2: 1650.0

1: 1640.0
Maximum RPM

Variable: 1625

2: 1725

1: 1625

Power

Maximum Amperage (Amps)

Variable: 5.0

2: 3.4

1: 2.7
Power Supply

Hardwired
Voltage (V)

Variable: 220-240, 110-120

2: 110-120

1: 110-120
Watts (W)

Variable: 206

2: 186

1: 186

Dimensions

Ceiling or Wall Cutout Length (in.)

14.75
Ceiling or Wall Cutout Width (in.)

14.75
Depth (in.)

6.0
Height (in.)

17.25
Shutter Fan Size (in.)

12
Weight (lbs.)

Variable: 32

2: 32

1: 28
Width (in.)

17.25

Additional Features

Additional Features

Variable: Meets OSHA Standards, Thermal Cutoff Protection, Applicable for Indoor Growing

2: Meets OSHA Standards, Thermal Cutoff Protection

1: Meets OSHA Standards, Thermal Cutoff Protection

Warranty

Manufacturer's Warranty

1-Year Limited Warranty
