Canarm Tri-Lite 3L EC Direct Drive 220V HVLS Commercial Fan
Canarm Tri-Lite 3L EC Direct Drive 220V HVLS Commercial Fan - 24 ft. is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Canarm Tri Lite Fan
- Owner's Manual
Info & Guides
Info & Guides

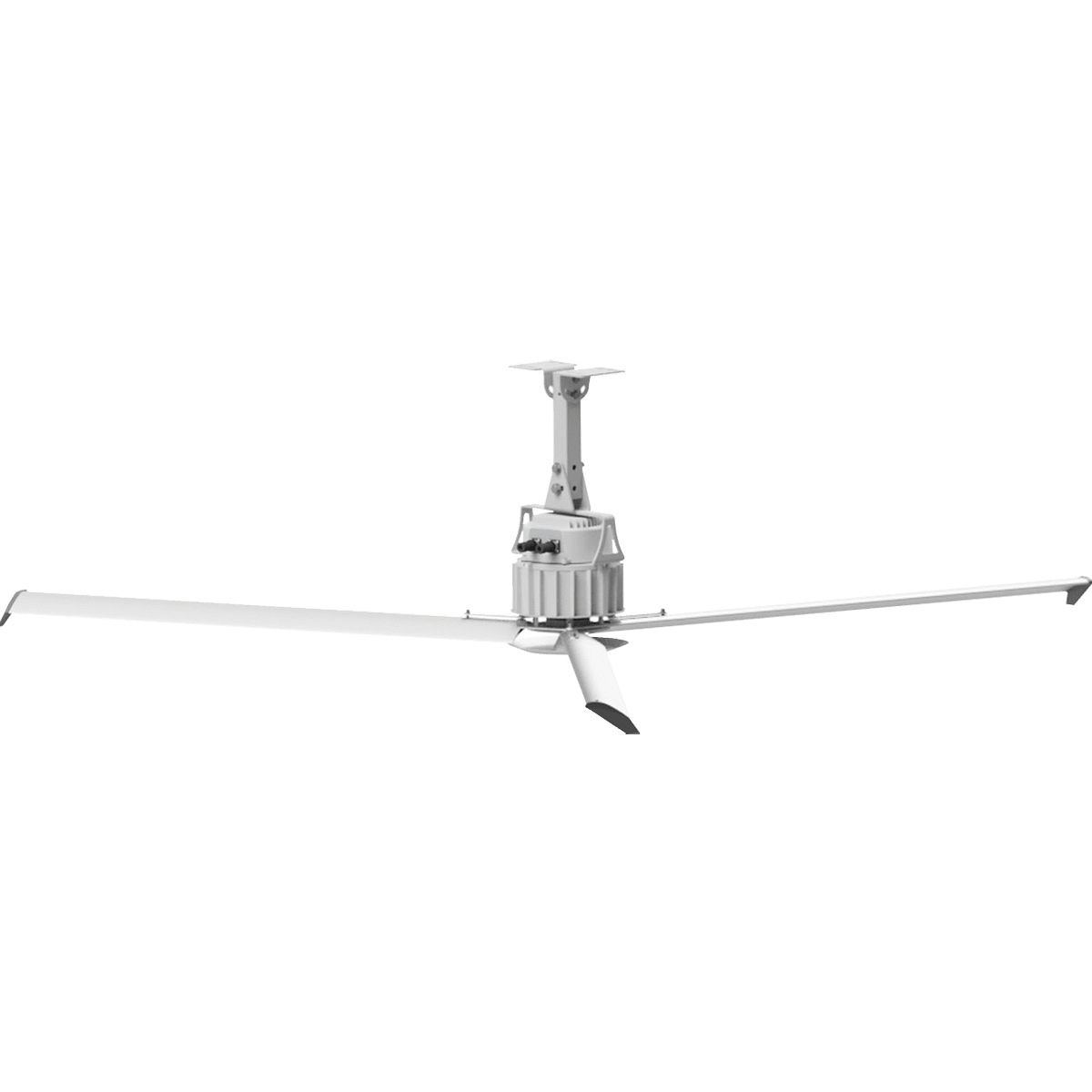

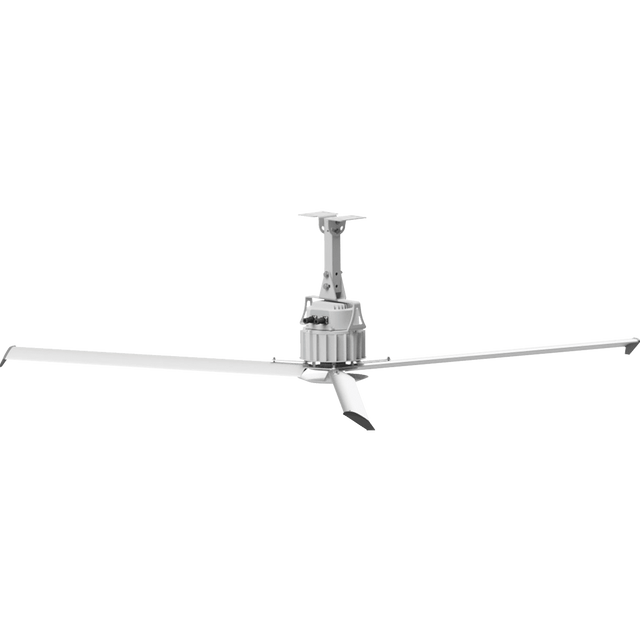

Canarm Tri-Lite 3L EC Direct Drive 220V HVLS Commercial Fan
Description
Description
Add powerful, quiet and money-saving comfort to large industrial spaces with the Canarm Tri-Lite Direct Drive Commercial Fan. Designed to move more air at slower speeds, this 3-blade adds immediate airflow to your guests or employees.
These Canarm Tri-Lite Fans are rated for 220-volts and available in multiple sizes to fit any industrial space.
Canarm HVLS Commercial Fan Benefits
- HVLS Design: The Tri-Lite HVLS fans blanket large areas by constantly moving air to create a large comfort zone. They reduce temperatures up to 4 degrees C throughout the facility - while also creating a gentle consistent breeze to improve comfort.
- Powerful Blade Technology: They’re equipped with three extruded anodized, high performance E420 blades that are contoured for maximum air movement. Wingtips are constructed of nylon 66 to improve airflow and direct air downwards faster - cooling large environments faster.
- Minimal Power Consumption: Operating on a 1.35 HP EC motor, this fan is an economic choice. Tri-Lite airfoils are engineered with Short Take Off & Landing technology to get more air movement at slower fan speeds, so a greater amount of air is pushed towards the floor.
Additional Features
- Year-Round Use: Uneven temperatures in the winter mean leaves warm air closer to the ceiling. Use the Canarm EC HVLS Commercial Fan to push warm air down and increase temperatures below by up to 15 degrees C. This allows the heating system to run less frequently.
- Built for Tough Environments: Powder coated and anodized aluminum chassis fights rusting and corrosion even in damp, cold or extremely warm conditions.
- Quiet Performance: Direct drive system and totally enclosed direct drive, IP65 rated ECM motor allow this fan to operate incredibly quietly.
- Efficient Start-Up/Stop: Its onboard VFD is factory assembled and programmed for easing start and stop torques.
- UL & CSA Standards: Conforms to CSA Standard 22.2# 133 and UL507.
Pick Your Canarm Tri-Lite Direct Drive Commercial Fan
All of these reliable fans are available in 220-volt wattages, 1.35 HP motor and rated at 35 dB sound level.
Select the size that best fits your needs:
| Model | Diameter | Maximum RPMs | Coverage Area |
| Canarm 3L16EC-230-3 |
16 Ft. |
73 |
160 Ft. |
| Canarm 3L18EC-230-3 |
18 Ft. |
55 |
180 Ft. |
| Canarm 3L20EC-230-3 |
20 Ft. |
50 |
200 Ft. |
| Canarm 3L24EC-230-3 |
24 Ft. |
43 |
240 Ft. |
Specifications
Specifications
-
Number of SpeedsVariable
-
TypeCeiling
-
CertificationsCSA, UL
-
ColorGray
-
ControlsManual
-
Indoor/OutdoorIndoor
-
Maximum Noise Level (dB)35
-
Recommended Coverage Area (sq. ft.)240200180160
-
Horsepower (hp)1.35
-
Horsepower (hp)1.35
-
Power SupplyHardwired
-
Voltage (V)220-240
-
Height (in.)49.045.043.040.0
-
Height (with front cover) (in.)49.045.043.040.0
-
Weight (lbs.)270265260255
-
Width (in.)288.0240.0216.0192.0
-
Width (with front cover) (in.)288.0240.0216.0192.0
-
Additional FeaturesGFCI Safety Plug, Applicable for Indoor Growing
-
Manufacturer's Warranty
- 1-Year Parts Warranty
- 5-Year Motor Warranty
