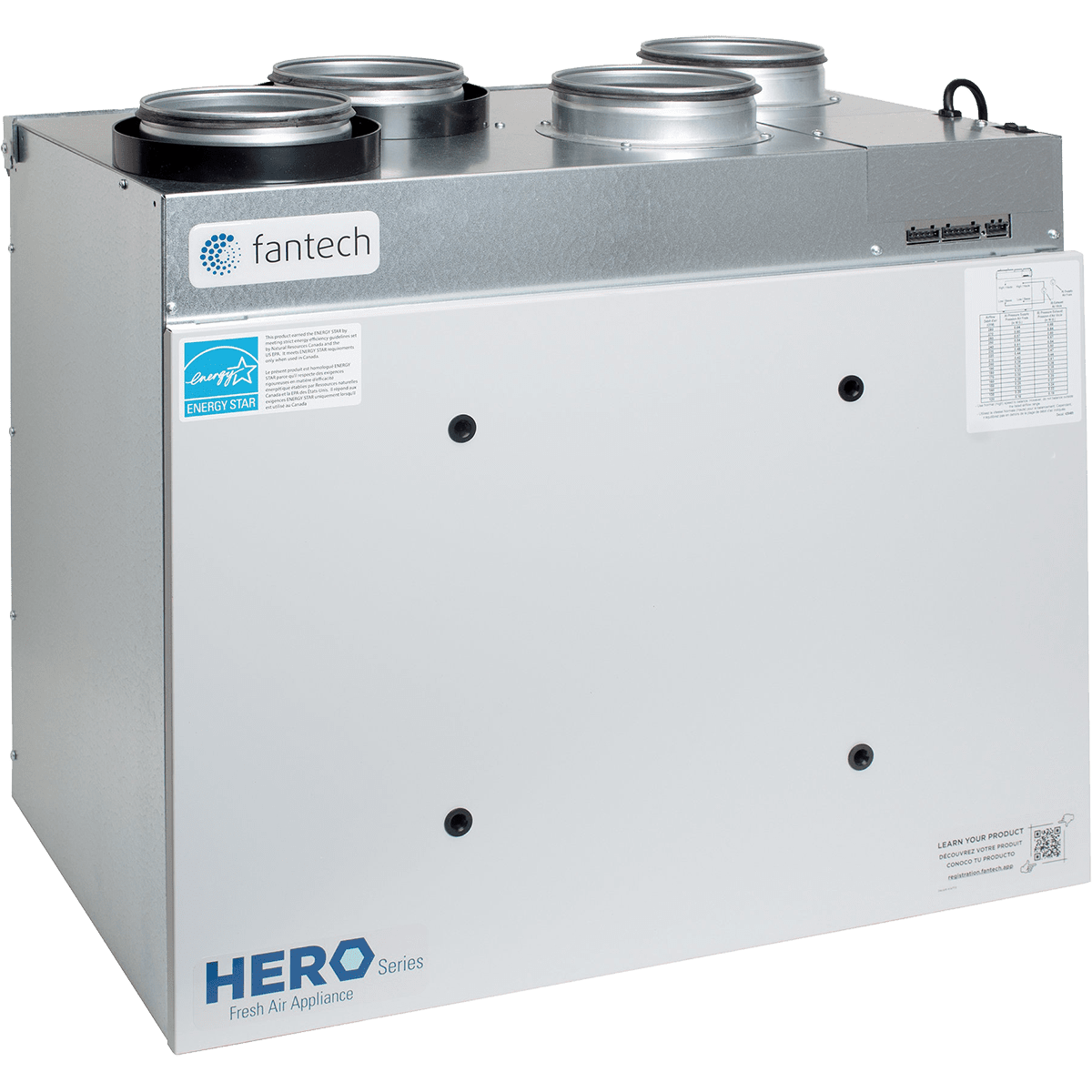

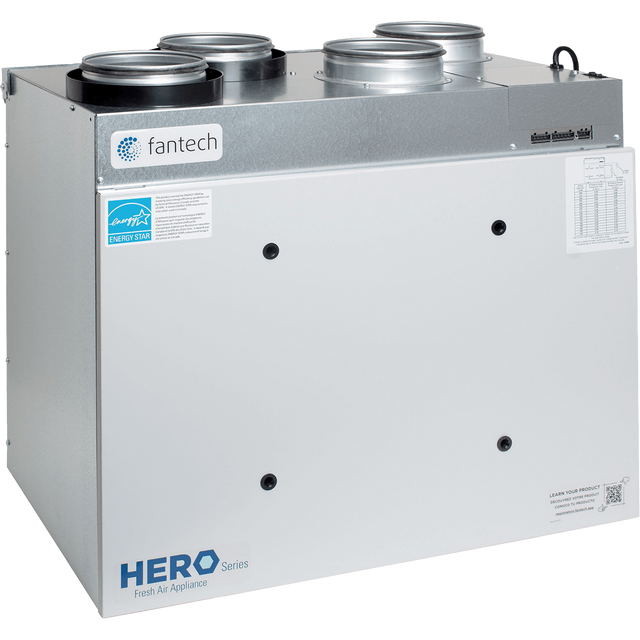

Fantech HERO 150H-EC 176 CFM Heat Recovery Ventilator w/EC Motor
Fantech HERO 150H-EC 176 CFM Heat Recovery Ventilator w/EC Motor is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech HERO 150H-EC Heat Recovery Ventilator (EC Motor and 6-Inch Top Ports)
- Owner's Manual

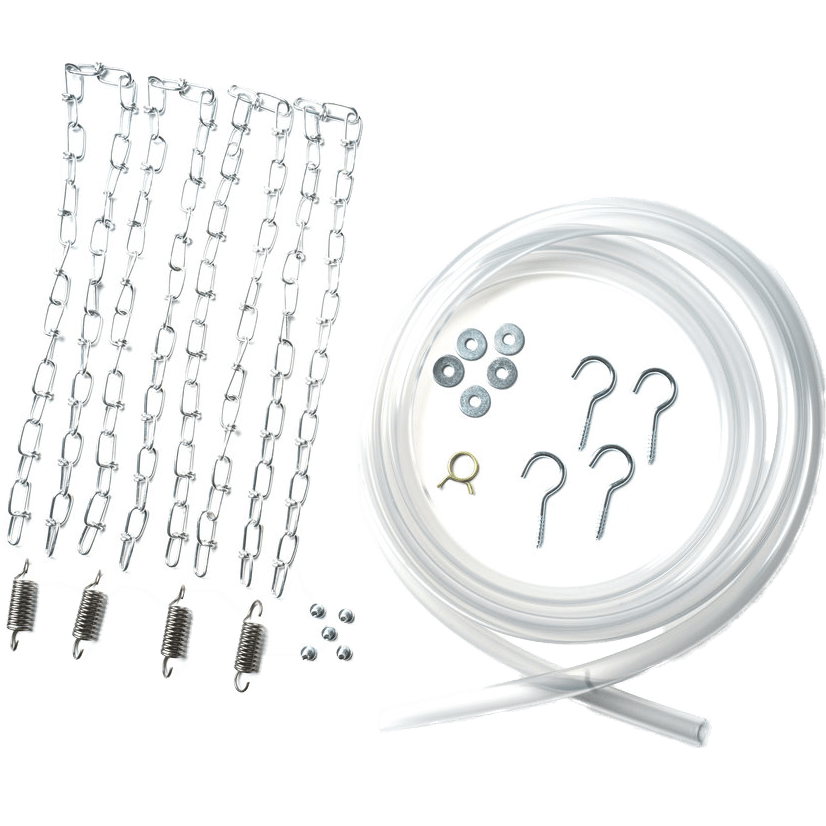

- Wall Mount
- External Electrical Box With Easy Connect Ports
- Integrated In-Door Manometer Ports
Info & Guides
Info & Guides
Fantech HERO 150H-EC 176 CFM Heat Recovery Ventilator w/EC Motor
Description
Description

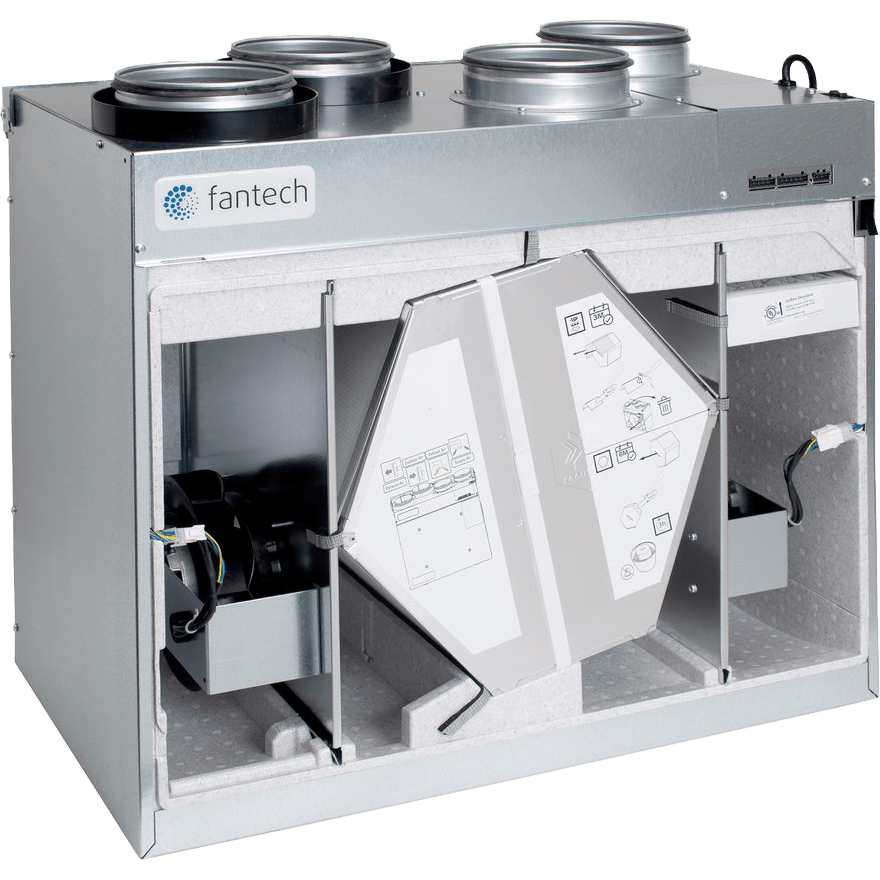

Powered by a workhorse EC motor, the Fantech HERO 150H-EC Heat Recovery Ventilator provides an efficient way to ventilate your home without heat loss. Recovering up to 80% of heat to temper incoming air, this Energy Star-rated ventilator delivers a performance that few others can match. Packed with user-friendly features, it's designed for user-friendly control.
More Efficient EC Motor
Providing a more efficient performance than other options, the 150H-EC from Fantech is designed with an EC motor. Its impressive design and performance have earned this HRV an Energy Star rating.
Top Features Of The HERO 150H-EC

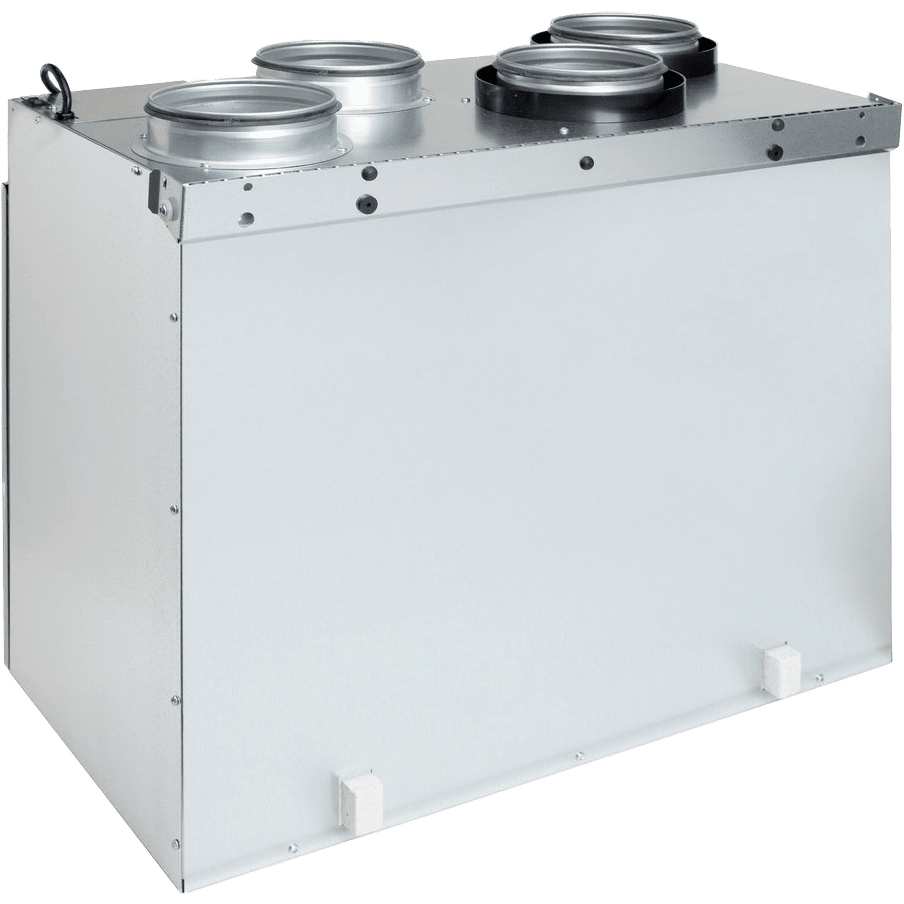

- Duct Connection: Features 6-inch oval top-mounted connections.
- Heat Recovery: Recovers up to 80% of heat to temper incoming air.

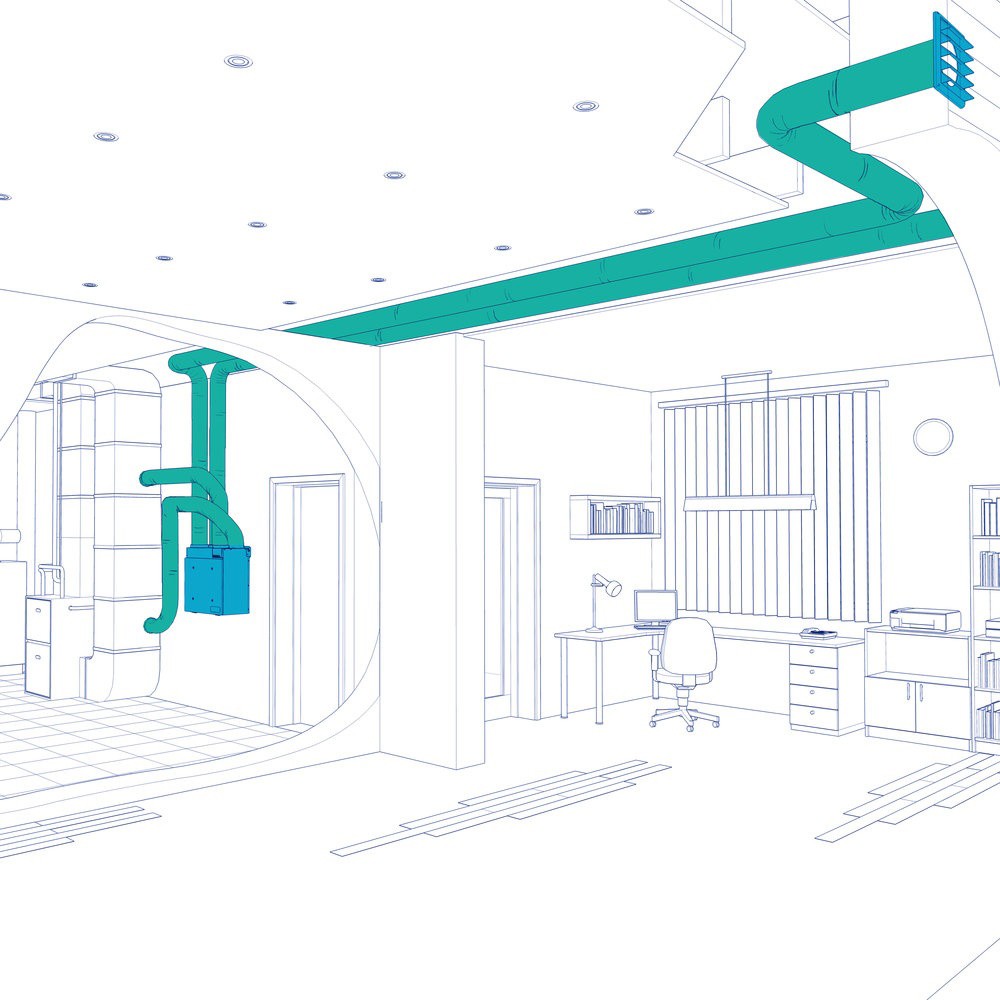

- Ideal For Multi-Room Homes: With an airflow of up to 176 CFM, the 150H-EC from Fantech is effective in 2 - 5 bedroom homes.
- TurboTouch Function: Boosts exhaust capacity for 20, 40, or 60 minutes.
- Multiple Speeds: Multi-speed operation to provide exact airflow.
- Easy to Maintain: Unobstructed front access for fast and easy maintenance.
- Use In High Static Pressure: This ventilator is designed to exhaust contaminated indoor air while replacing it with fresh air.
- Easy to Install: It features a removable screw terminal for easy connection.

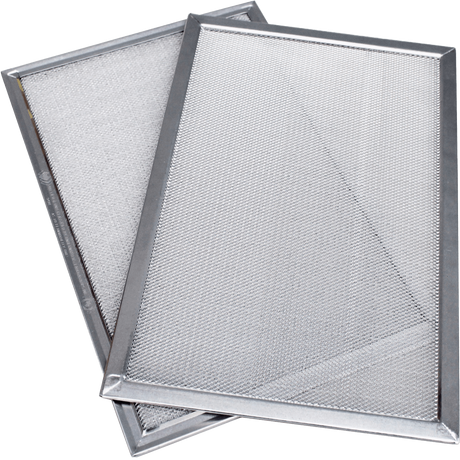

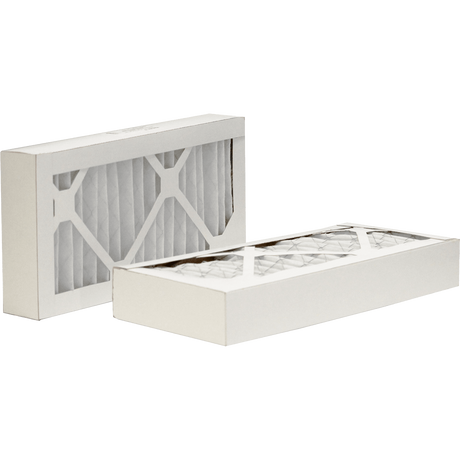

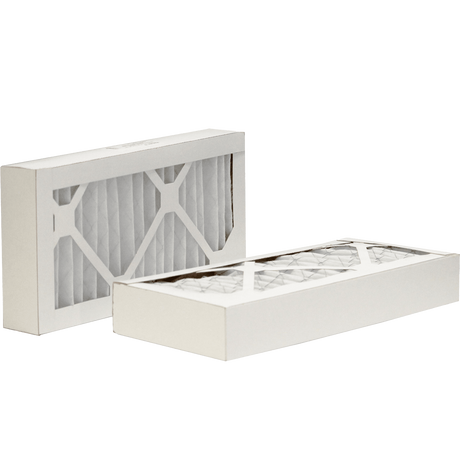

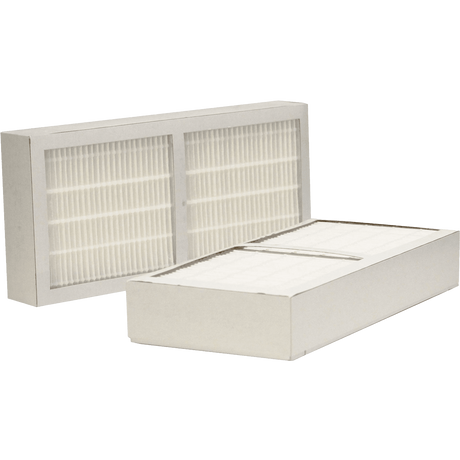

- MERV-3 Filtration: A MERV-3 filter captures airborne irritants as air passes through the ventilator. Optional MERV-8 and MERV-13 upgraded filters are available as an accessory.
Summary
Effectively ventilate your home without worrying about heat losses when you choose the Fantech HERO 150H-EC Heat Recovery Ventilator.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)28.0
-
Mounting TypeSuspended, Wall
-
Number of SpeedsVariable
-
Port LocationTop
-
TypeHRV-Air Supply Fan
-
ApplicationResidential
-
CertificationsCSA, HVI-Certified
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)176.0
-
Amperage (Amps)3
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)110
-
Depth (in.)27.9
-
Depth (with front cover) (in.)27.9
-
Duct Diameter (in.)6.0
-
Height (in.)24.9
-
Height (with front cover) (in.)24.9
-
Weight (lbs.)50.6
-
Width (in.)15.4
-
Width (with front cover) (in.)15.4
-
Additional FeaturesEnergy Star
-
Manufacturer's WarrantyLimited Lifetime Counterflow Core Warranty, 7-Year Limited Motor Warranty, 5-Year Limited Parts Warranty
