Honeywell Home Fresh Air Ventilation System with TrueZONE Damper
Honeywell Home Fresh Air Ventilation System with TrueZONE Damper is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?

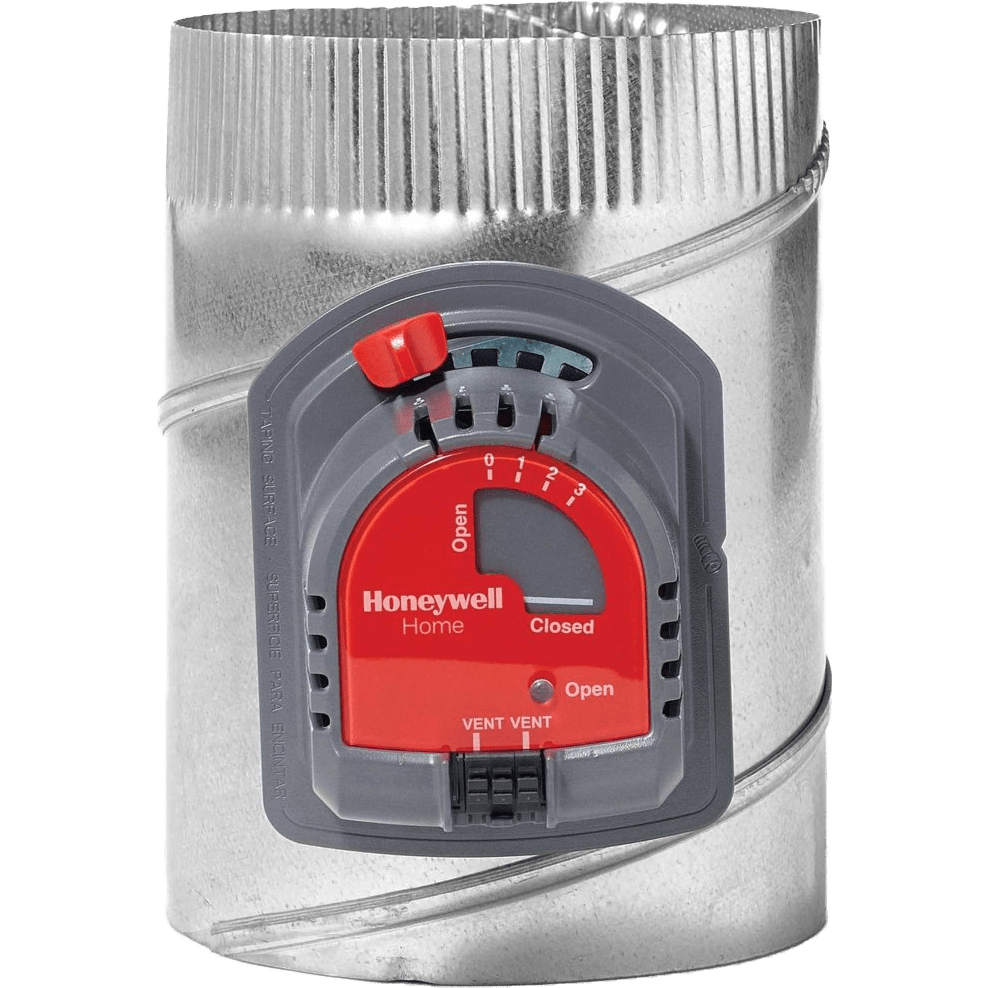

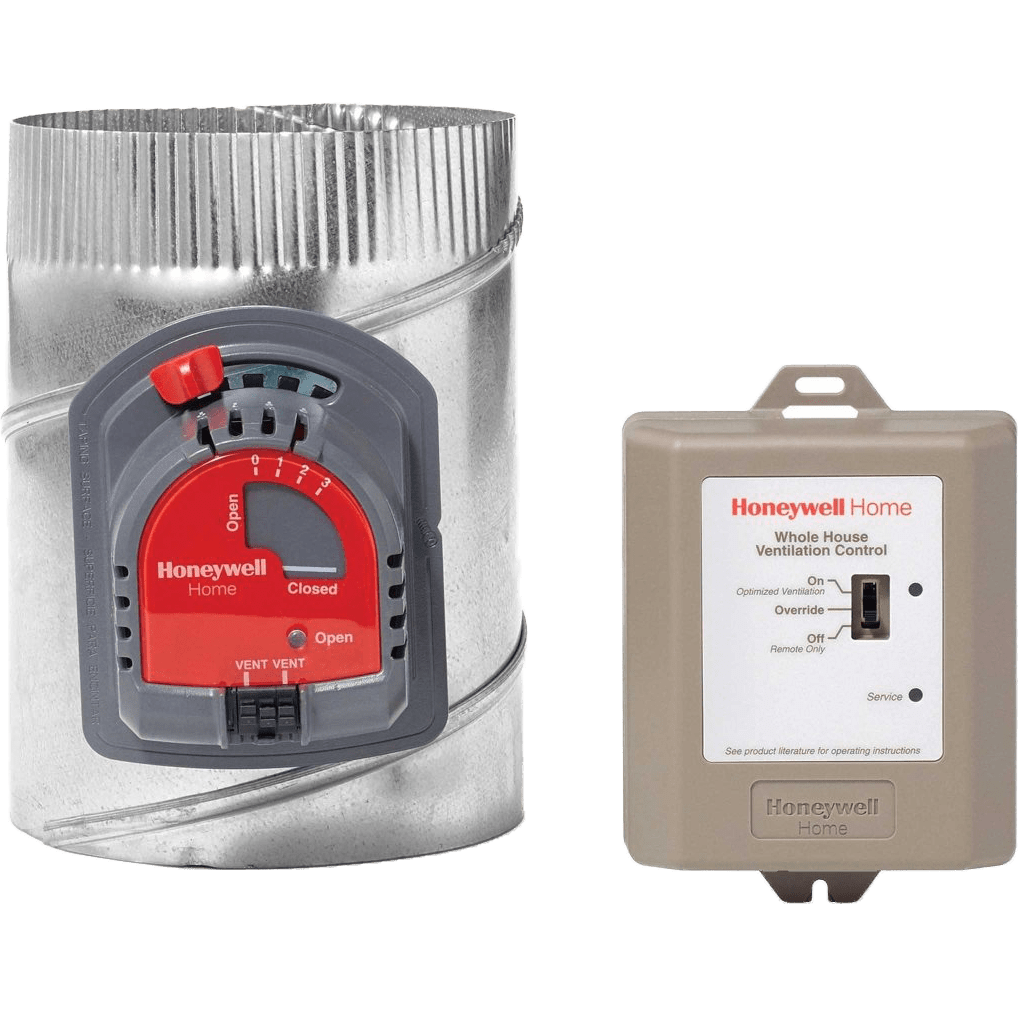

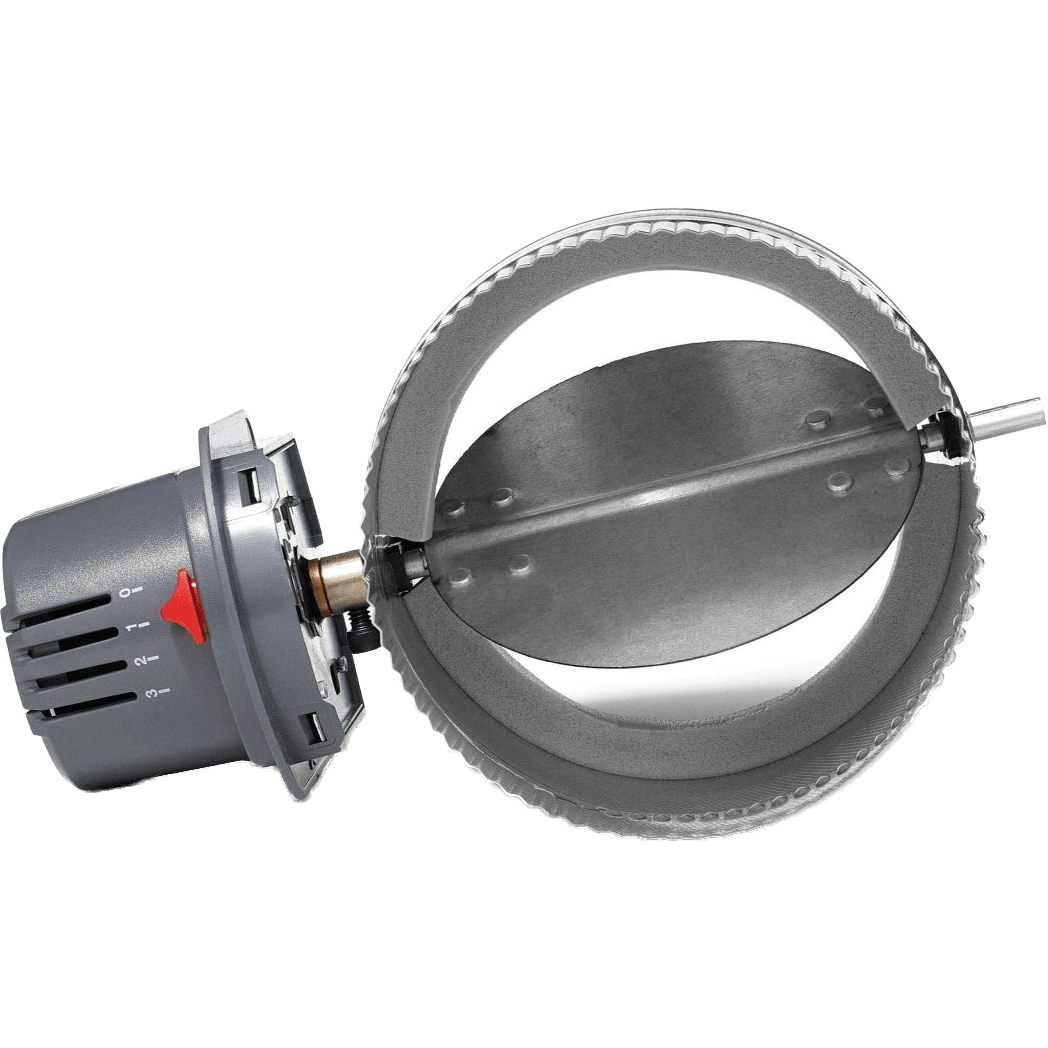

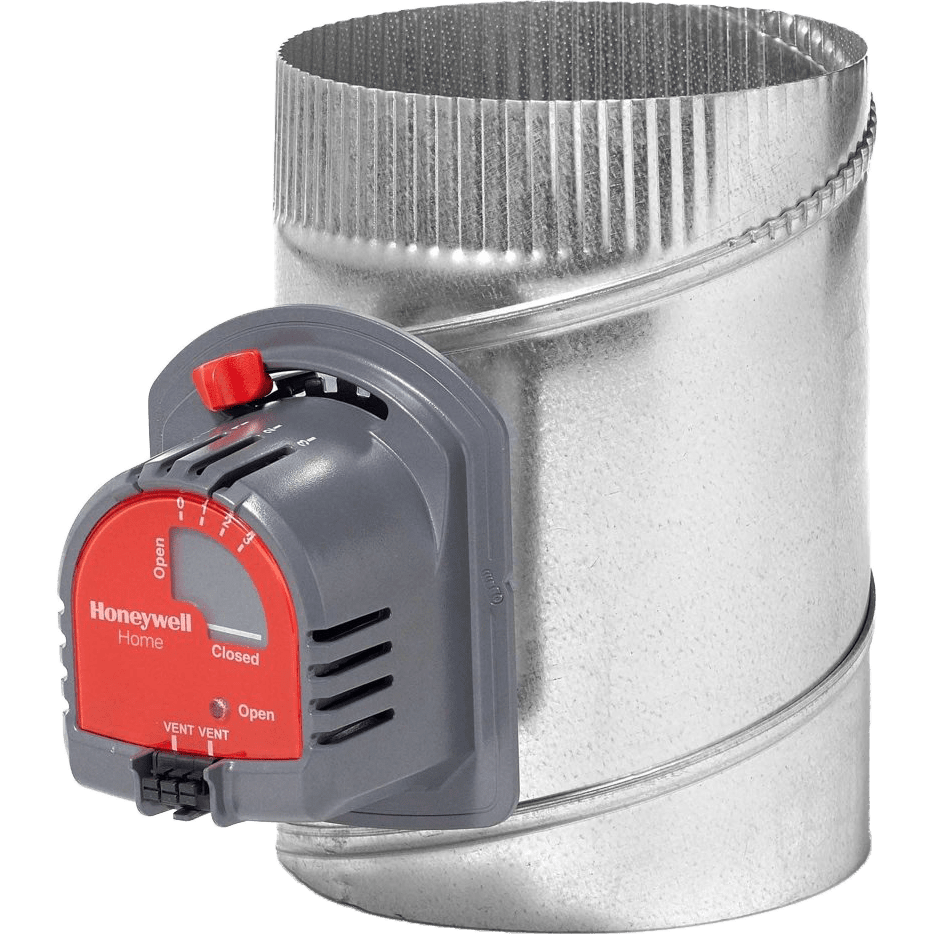

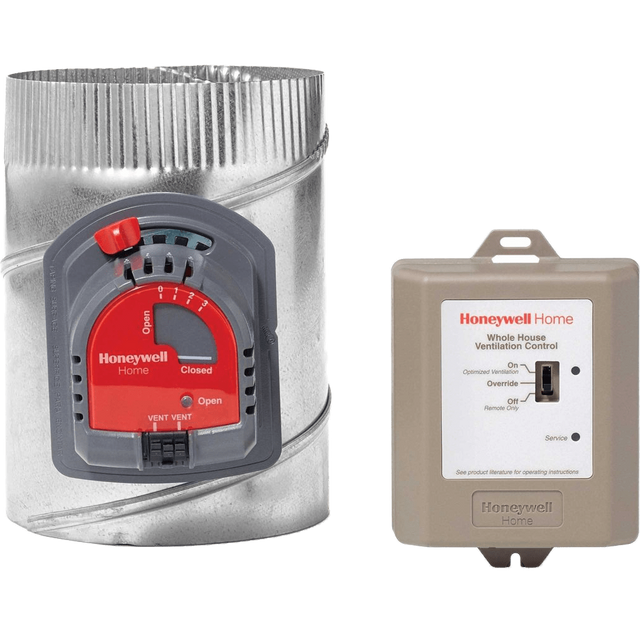

- Honeywell Home Y8150A1017 Fresh Air Ventilation System with TrueZone Damper

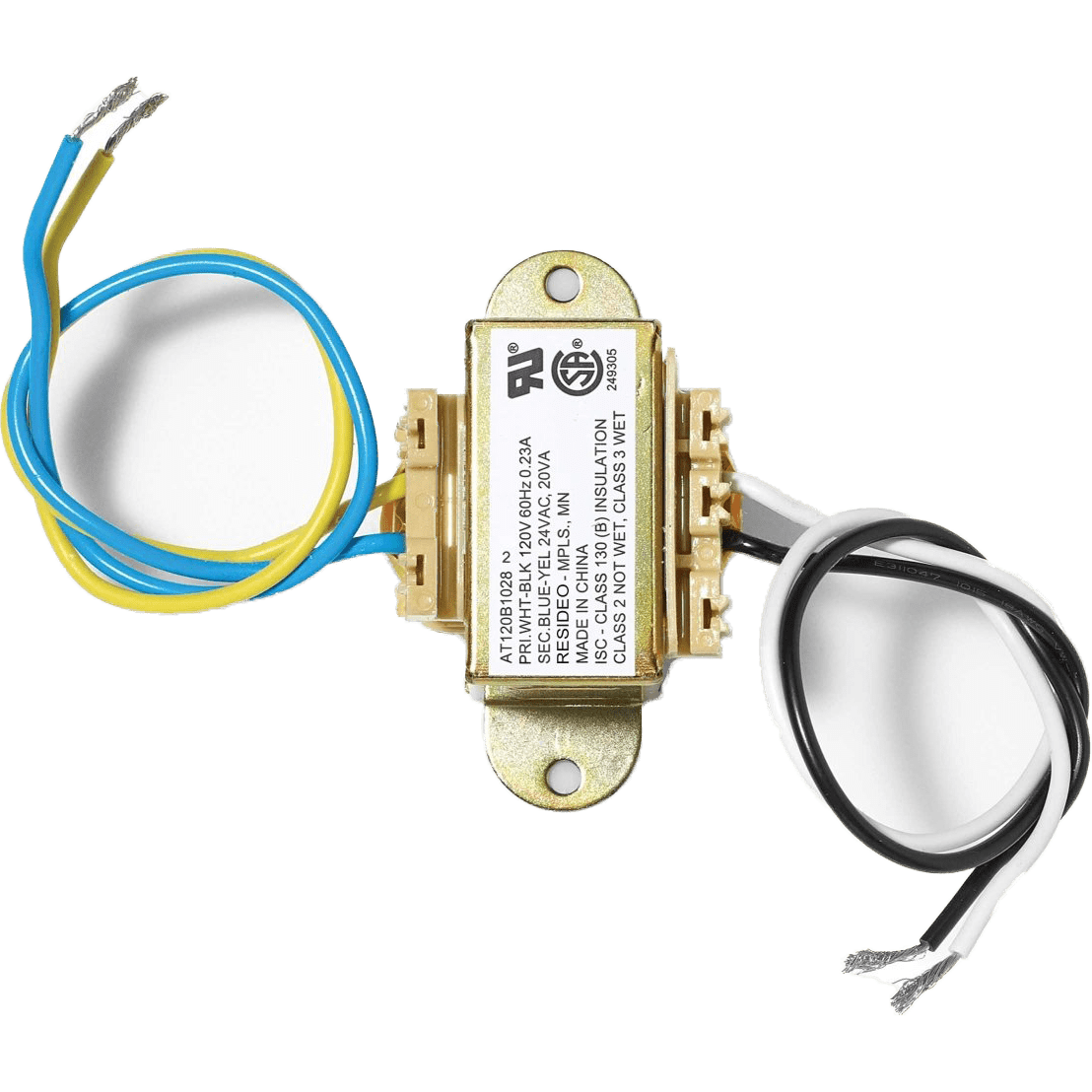

- AT120 Transformer

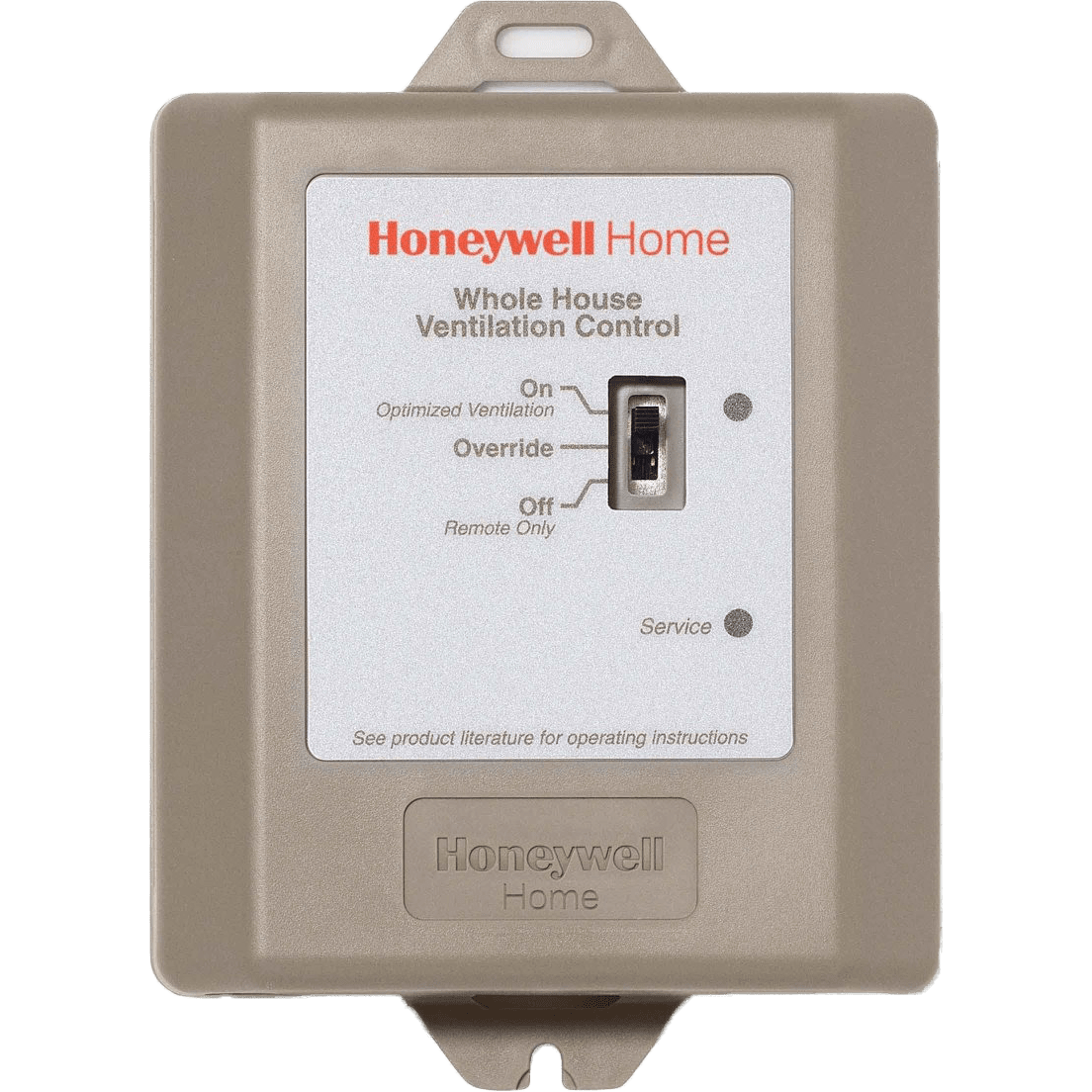

- Mounting Hardware for Control
- Owner’s Manual
Info & Guides
Info & Guides
Honeywell Home Fresh Air Ventilation System with TrueZONE Damper
Description
Description
The Honeywell Home Fresh Air Ventilation System with TrueZONE Damper provides excellent ventilation in your home. It is ideal for buildings up to 4,600 square feet and delivers up to 160 cubic feet per minute (CFM) airflow. This system operates the fresh air intake damper and the central HVAC blower as necessary, providing energy efficiency in an all-in-one unit.
Specifications: 0.6 A, 24 VAC, -20 to 160 deg F
Note: A licensed professional must install this Honeywell Home ERV system.
Easy-to-Use Ventilation
This Honeywell Home ventilation system is easy to install and works alongside your existing HVAC system to supply optimal ventilation for your home.
- Set and Forget: You can confidently program this system to run on custom settings without constant adjustments, as it automatically delivers efficient and optimal results.
- Easy Installation: This system works with your existing heating and cooling system to bring outside air into your home.
- Quiet Operation: Adding ventilation to your home won’t increase the noise level as it operates.
- Microcontoller: Optimizes the air delivery schedule to make efficient use of normal HVAC run times
Additional Features
- Amperage: This Honeywell Home ventilation system draws less than one amp of current.
- Test Mode: Includes immediate feedback to confirm that air delivery requirements of selected ventilation level are met.
- Warranty: A two-year warranty gives you peace of mind.
Summary
Add the Honeywell Home Fresh Air Ventilation System for innovative and optimal ventilation to improve the air quality in your home, up to 4,600 square feet.
Specifications
Specifications
-
Number of SpeedsVariable
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Maximum Cubic Feet per Minute (CFM) (CFM)160.0
-
Amperage (Amps)0.6
-
Power SupplyHardwired
-
Watts (W)3.5
-
Depth (in.)10.0
-
Depth (with front cover) (in.)10.0
-
Duct Diameter (in.)6.0
-
Height (in.)10.0
-
Height (with front cover) (in.)10.0
-
Weight (lbs.)4.8
-
Width (in.)10.0
-
Width (with front cover) (in.)10.0
-
Manufacturer's Warranty2-Year Limited Warranty
