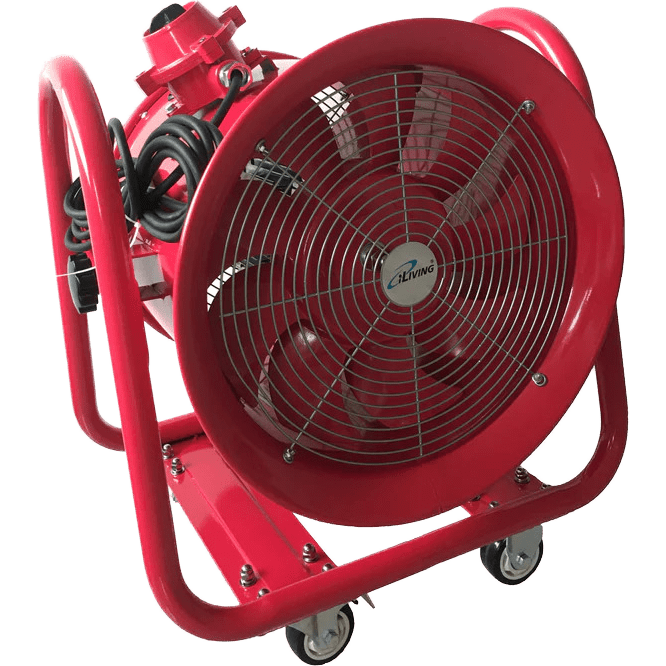

iLiving Explosion Proof High Velocity Portable Ventilation Fan

SKU: il15267  |  Model: ILG8EF10EX
$229.00

FREE shipping on orders over $45!

In Stock Usually ships in 1 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Limited Warranty

What's In The Box?

  • iLiving Explosion Proof Fan (10-in., 12-in., 16-in., 20-in.)

  • Owner’s Manual

Info & Guides

Description

Designed for long-term use in tough environments, the iLiving Explosion Proof Fans can improve air quality in harsh work areas. Offering many safety and construction features, these fans can be used in Zone 1 and Zone 2 areas using group IIA and IIB T1-T4 gasses, vapor, and air.

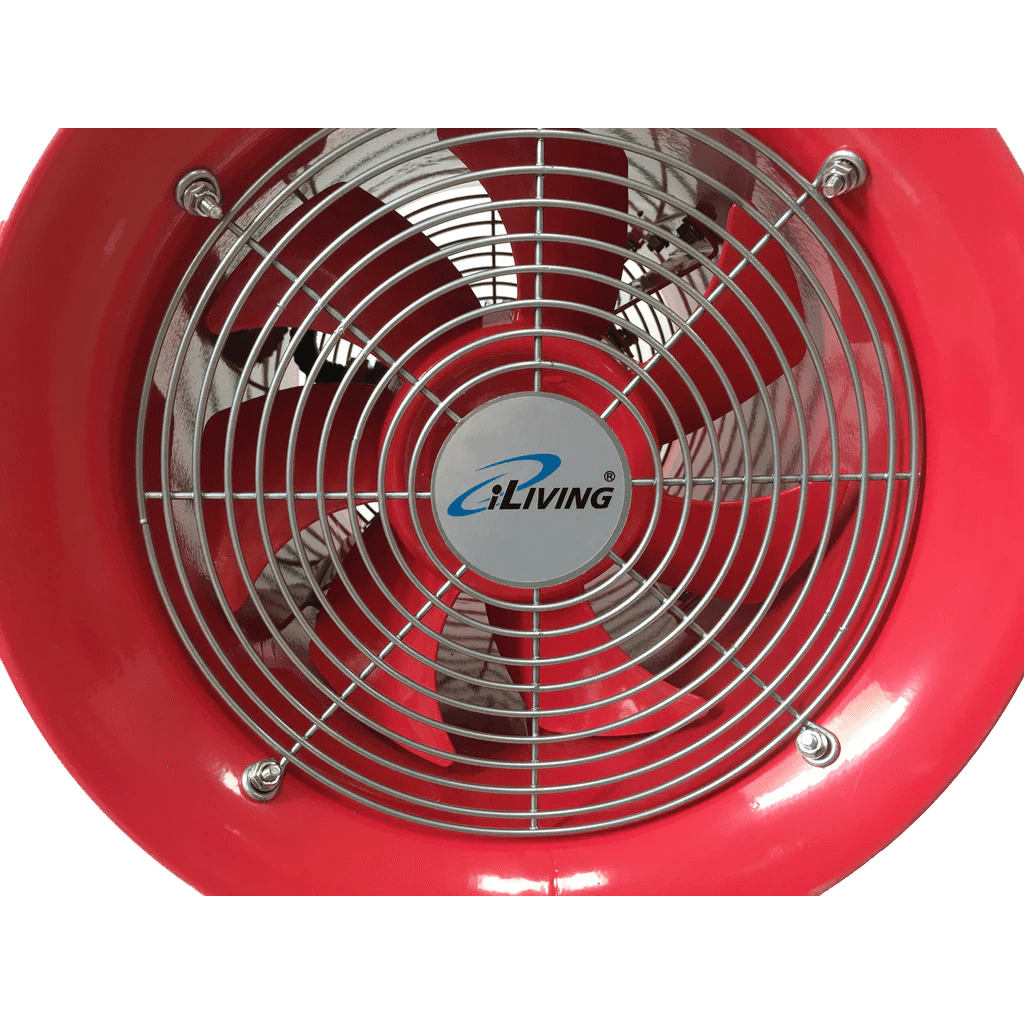

  • Interior: Cast aluminum alloy impeller and cast aluminum impeller shield.

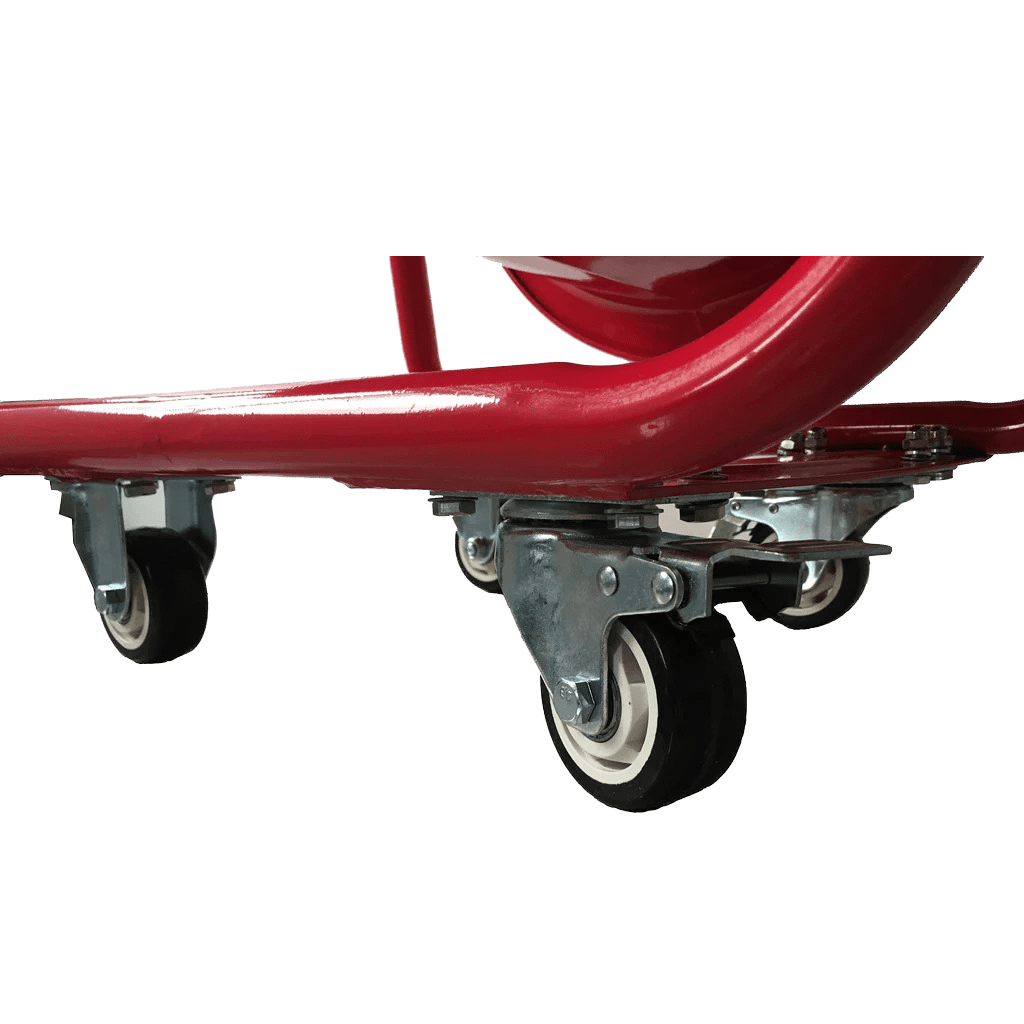

  • Frame: Roller steel framing with four rolling casters.

  • Motor: 100 percent pure copper enclosed motor is CE-Certified.

  • Auto Reset Thermal Protection: Built-in auto reset for optimal use in hot locations.

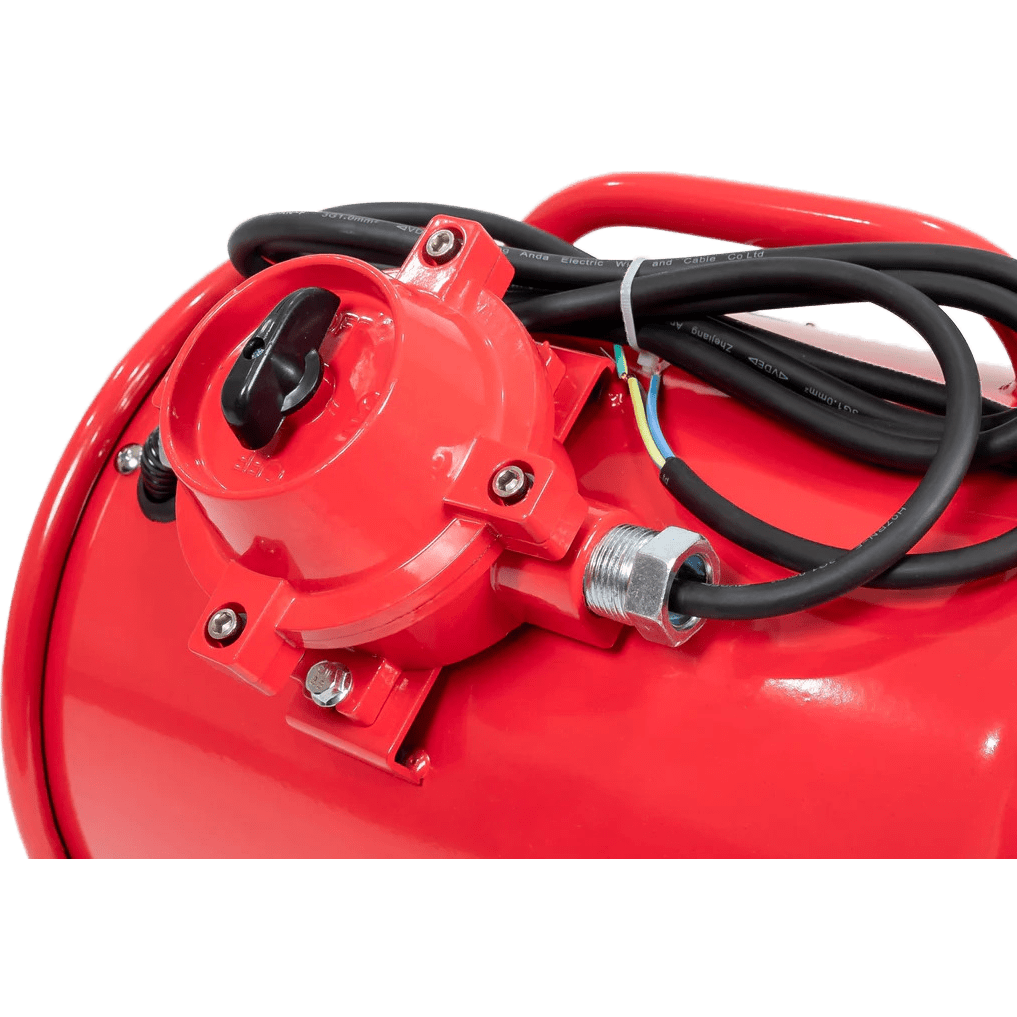

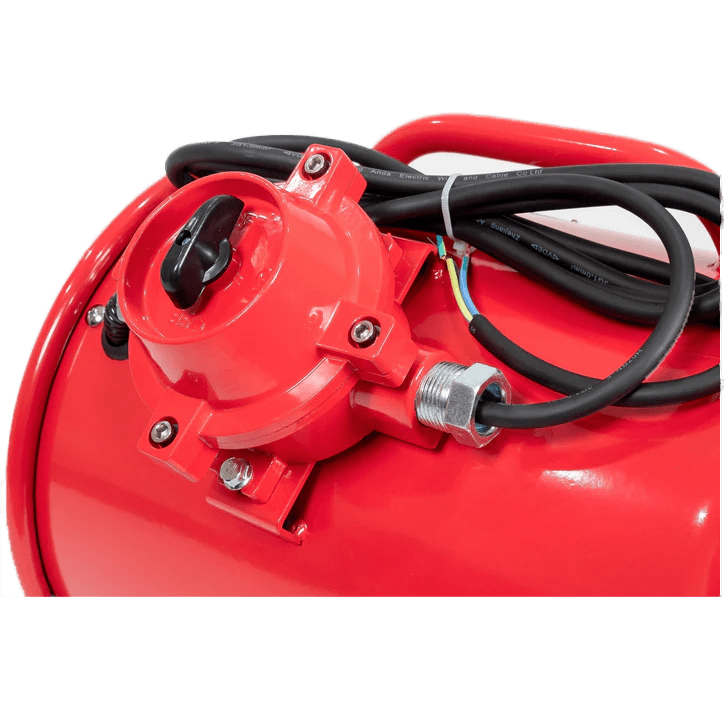

  • Flame-proof Switch: Won’t cause sparks, fires or explosions.

Available in Four Sizes

Select from the following fan sizes for the best use in your space. These fans should be hard-wired to a 20-amp source and do not include an electrical power cord.

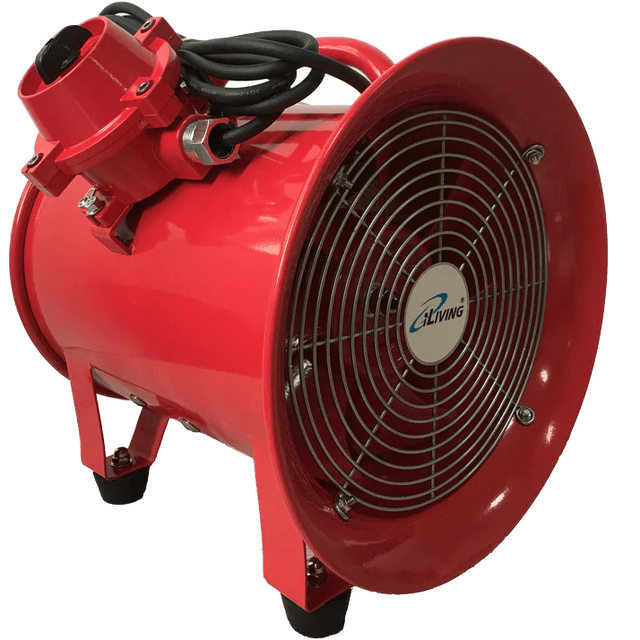

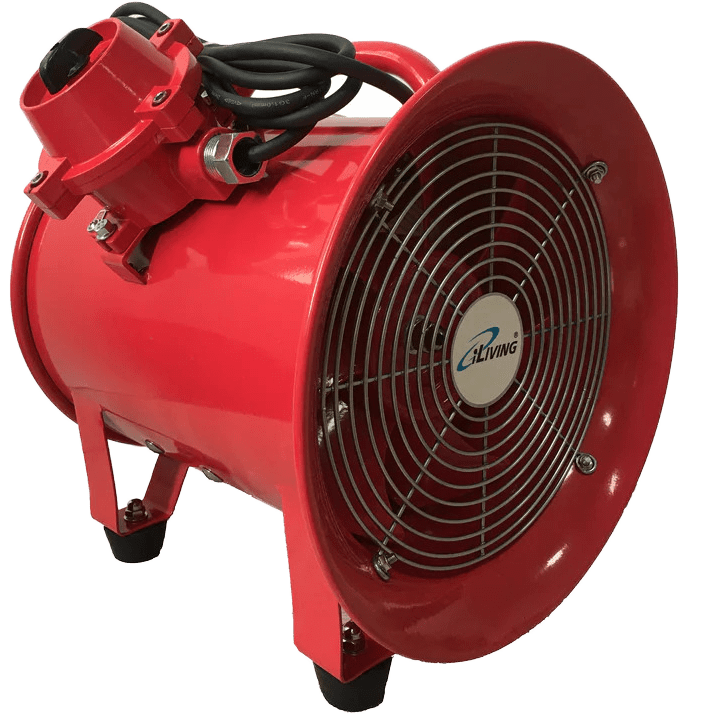

  • 10-inch Explosion Proof Fan
    • 350 Watts
    • 1,943 CFM
    • 350 Pa
    • 66 dB
    • 3300 RPM

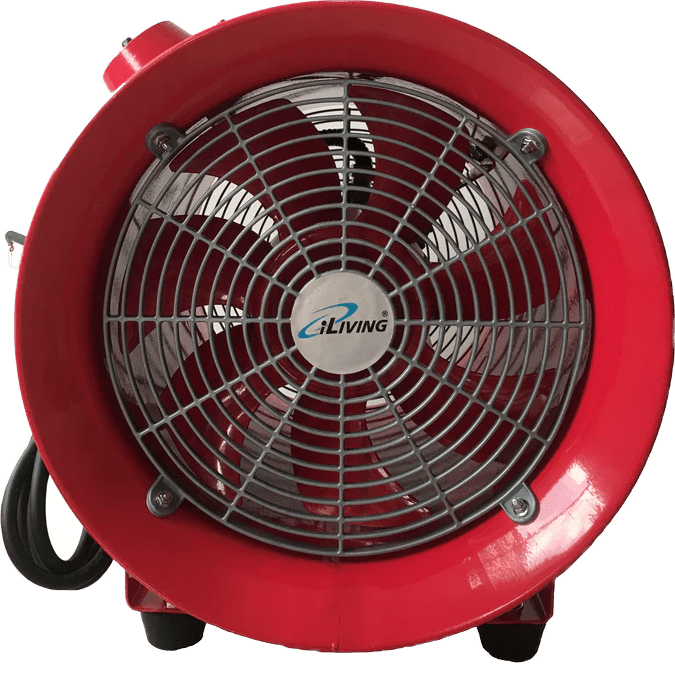

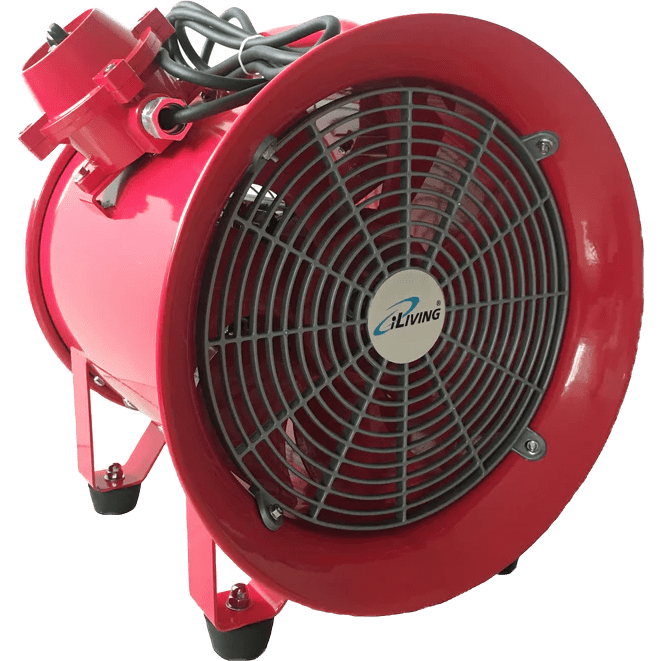

  • 12-inch Explosion Proof Fan
    • 550 Watts
    • 2,720 CFM
    • 450 Pa
    • 69 dB
    • 3300 RPM

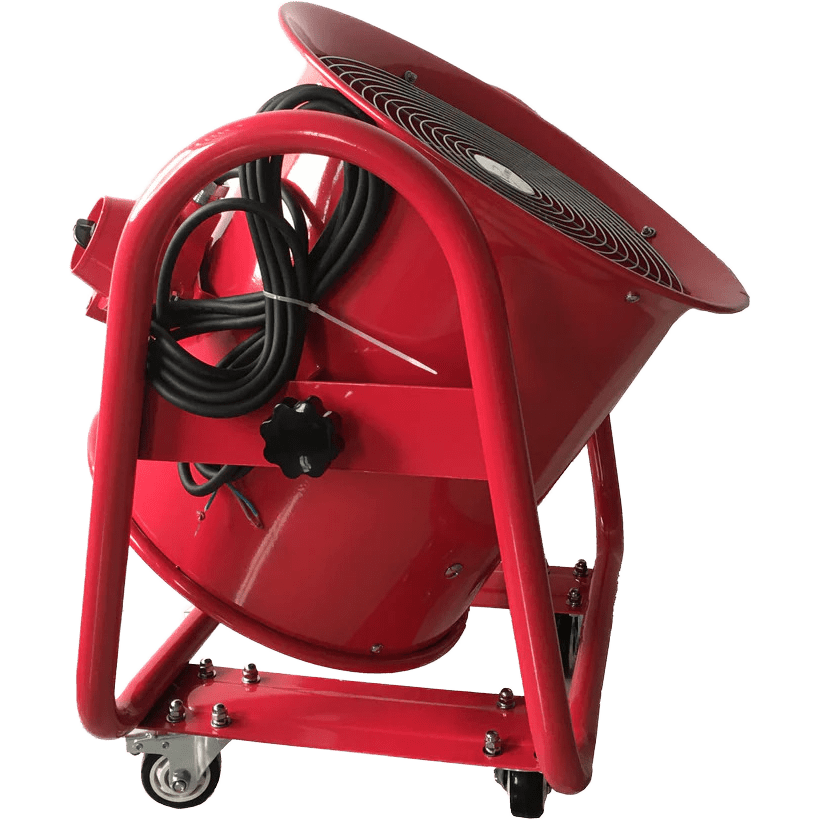

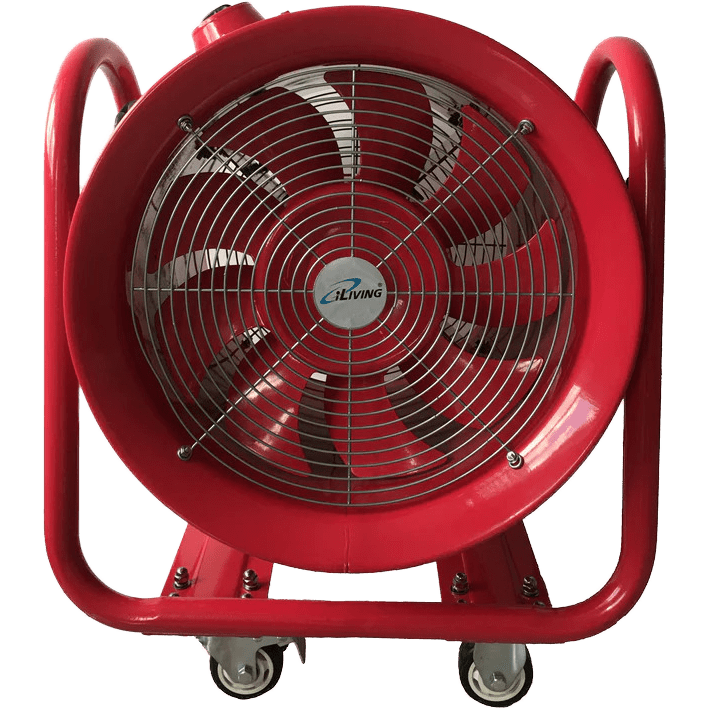

  • 16-inch Explosion Proof Fan
    • 1100 Watts
    • 4,240 CFM
    • 780 Pa
    • 79 Db
    • 3300 RPM

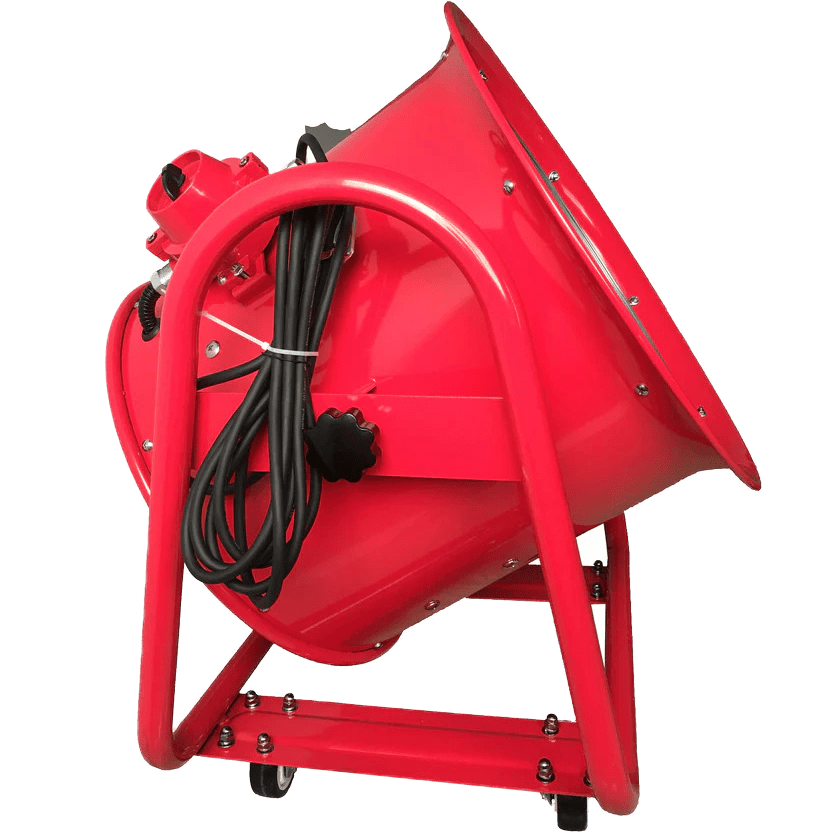

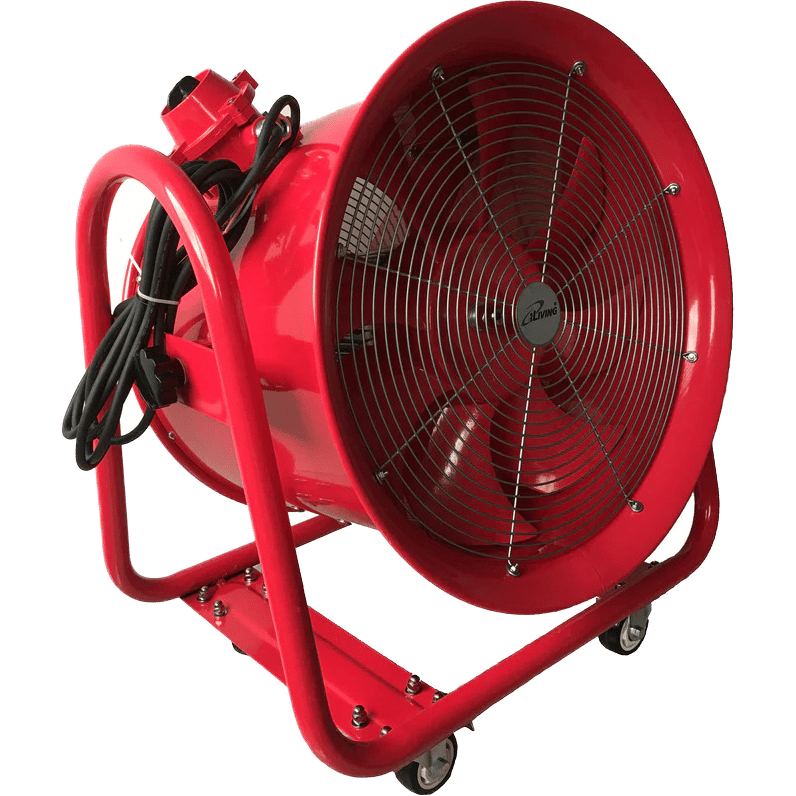

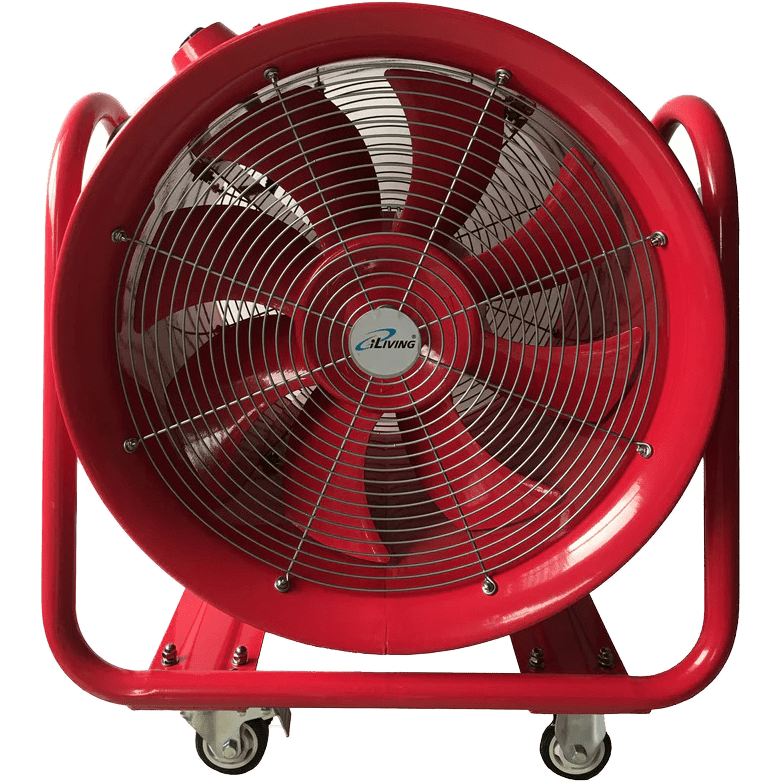

  • 20-inch Explosion Proof Fan
    • 900 Watts
    • 5,830 CFM
    • 460 Pa
    • 72 dB
    • 1720 RPM

Summary

The iLiving Explosion Proof Utility High Velocity Blower is a portable exhaust/ventilator fan for fume extraction. It can be used in Zone 1 and Zone 2 areas to remove vapors and gasses from work areas.

Specifications

    Key Specifications

    • Number of Speeds
      1
    • Type
      Floor

    General

    • Certifications
      CE
    • Color
      Red
    • Controls
      Manual
    • Indoor/Outdoor
      Indoor
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      16-In.: 4240.0
      12-In.: 2720.0
      10-In.: 1943.0
      20-In.: 5830.0

    Power

    • Maximum Wattage (W)
      16-In.: 1100
      12-In.: 550
      10-In.: 350
      20-In.: 900
    • Power Cord Length (ft.)
      6
    • Power Supply
      Plug or Hardwired
    • Voltage (V)
      110-120

    Dimensions

    • Depth (in.)
      16-In.: 20.0
      12-In.: 16.9
      10-In.: 13.0
      20-In.: 26.38
    • Depth (with front cover) (in.)
      16-In.: 20.0
      12-In.: 16.9
      10-In.: 13.0
      20-In.: 26.38
    • Height (in.)
      16-In.: 17.7
      12-In.: 15.0
      10-In.: 13.75
      20-In.: 18.9
    • Height (with front cover) (in.)
      16-In.: 17.7
      12-In.: 15.0
      10-In.: 13.75
      20-In.: 18.9
    • Weight (lbs.)
      16-In.: 64
      12-In.: 32
      10-In.: 24.3
      20-In.: 94.8
    • Width (in.)
      16-In.: 18.9
      12-In.: 14.75
      10-In.: 10.25
      20-In.: 22.8
    • Width (with front cover) (in.)
      16-In.: 18.9
      12-In.: 14.75
      10-In.: 10.25
      20-In.: 22.8

    Additional Features

    • Additional Features
      Adjustable Head

    Warranty

    • Manufacturer's Warranty
      1-Year Limited Warranty
