King Electric 240V Compact Garage Heater
King Electric 240V Compact Garage Heater - 5,000 Watt is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- King Electric GH2407TB

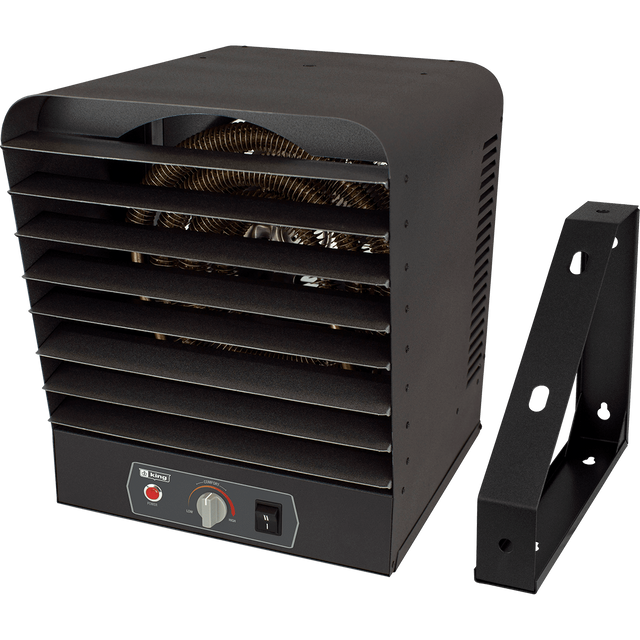

- Universal Mounting Bracket
- Owner's Manual
Info & Guides
Info & Guides
King Electric 240V Compact Garage Heater
Description
Description
The King Electric GH2405TB Garage Heater is a compact but heavy-duty industrial heater. You can use it as the primary heat source or supplemental heat in garages, workshops, barns, and commercial stores. Available in 5,000W or 7,500W models.
A universal mounting bracket makes installation simple. It also has a built-in thermostat, can push warm air up to 16 feet, and increases air temperature by up to 40 degrees.
This American-made heater is designed for long-term use in tough conditions.
Versatile Controls
You can adjust the heat level using manual controls on this 240-volt heater or with a wall thermostat.
Easily Mountable
The included universal bracket can be mounted on a ceiling or wall.
Dependable Heat
Depend on the King Electric GH2405TB for immediate and constant heat thanks to built-in features:
- All internal and external parts are made of galvanized steel with a baked enamel finish.
- Aluminum blade for long-lasting and consistent heat.
- Finned steel fan is permanently lubricated and allows for even heat.
- 400 CFM provide powerful heat to cut through extremely cold conditions.
- Built-in fan delay to help protect the motor.
Additional Features
- Adjustable Louvers: Direct warm air where you need it by adjusting the front louvers.
- Overheat Protection: An automatic cut-off feature turns off operation if the unit overheats during use.
- Steel Screen: A back screen catches foreign objects from touching the fan or other internal parts.
Summary
Add powerful heat to extreme conditions in industrial or commercial areas with this King Electric wired heater.
What Customers Love
- High-Quality Components: Long-lasting and durable construction allows for use in commercial areas, barns, and other tough places with little heat and insulation.
- Powerful Heat: With your choice of 5,000 or 7,500 watts, and up to 400 CFM of heat, you can keep up with projects all winter.
Things to Consider
- Professional Installation: The King Electric GH2405TB should be hardwired by a professional.
Specifications
Specifications
-
Number of Heat SettingsvariableVariable
-
TypeCeiling-Mountable, Wall-Mountable
-
CertificationsUL
-
ColorBlack
-
ControlsManual
-
Heating BTUs (BTUs)1710025600
-
Indoor/OutdoorIndoorIndoor/Outdoor
-
Maximum Amperage (Amps)20.831.2
-
Maximum Wattage (W)100007500
-
Power SupplyHardwired
-
Voltage (V)220-240
-

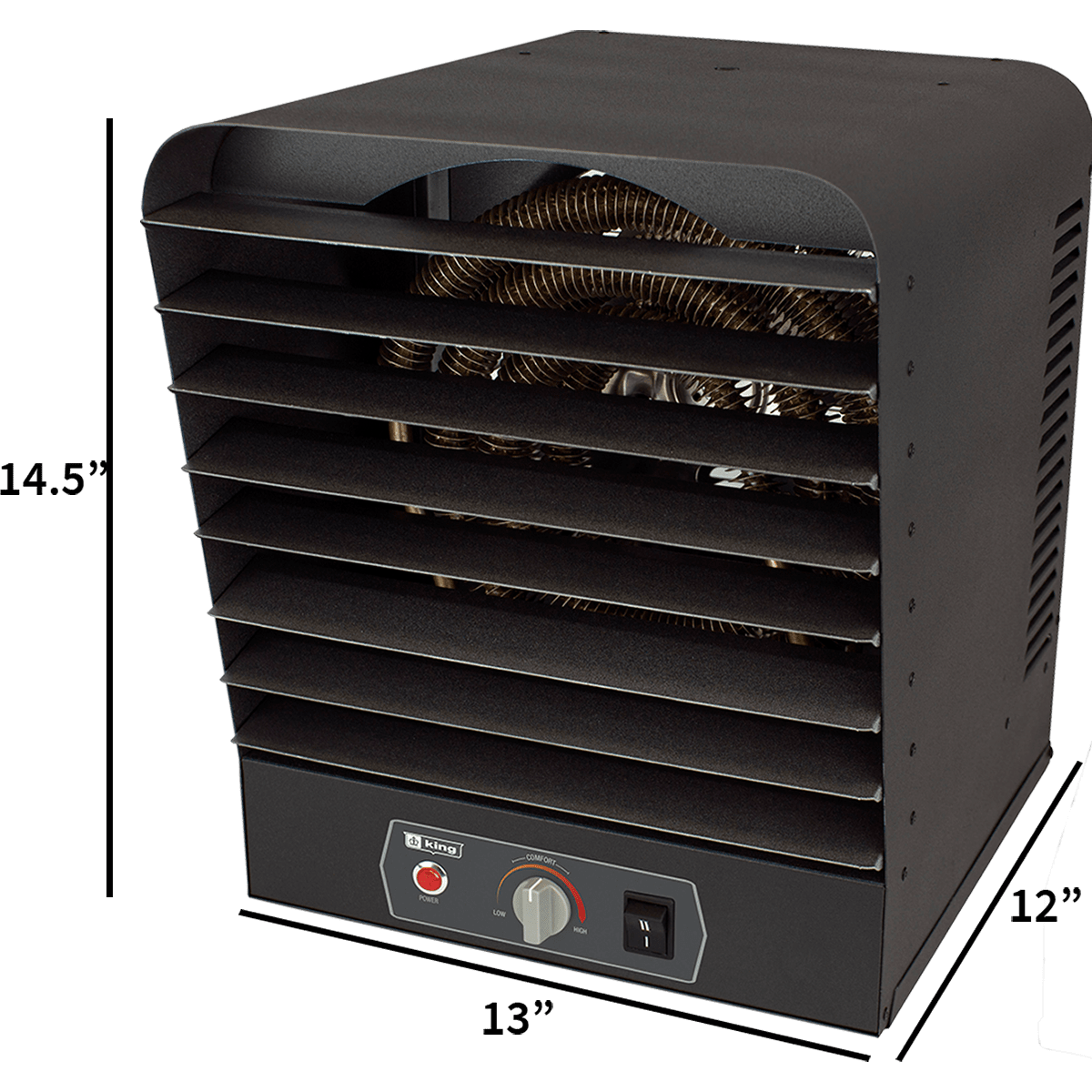

Depth (in.)12.0
-
Depth (with front cover) (in.)12.0
-
Height (in.)14.5
-
Height (with front cover) (in.)14.5
-
Weight (lbs.)30.518
-
Width (in.)13.0
-
Width (with front cover) (in.)13.0
-
Additional FeaturesTip-Over Protection, Automatic Overheat Protection, Has ThermostatWall-Mountable, Automatic Overheat Protection, Has Thermostat
-
Manufacturer's Warranty3-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
- BBenjaminVerified BuyerReviewingKing Electric 240V Compact Garage HeaterRated 3 out of 5 stars1 year agoGood product but wasn't properly inspected for resale.
The product appears to be good but this was a used item and it had not been put in proper working order. The heating elements had loosened from the internal base plate and as a result the contacts came in contact with the base plate and it shorted out. Once I discovered the problem and tightened the mounting nuts for the heating elements it seemed to be fine. Pretty bad mistake though.
- HHeidiVerified BuyerReviewingKing Electric 240V Compact Garage HeaterI recommend this productRated 5 out of 5 stars4 years agoYes I would buy this again.
Like the looks and function - wish it had a remote.
- TthomasVerified BuyerReviewingKing Electric 240V Compact Garage HeaterI recommend this productRated 4 out of 5 stars4 years agowould but again but,bigger.
works really well in my garage.
- DdavidVerified BuyerReviewingKing Electric 240V Compact Garage HeaterI recommend this productRated 5 out of 5 stars4 years agoI would recommend this product
Slyvane had best price on the King heater. Delivery was fast. I installed it in an 800 sqft garage on a remote thermostat. It heats thebgarage fast and makes it warm in the work shop area.
- OWOld W.ReviewingKing Electric 240V Compact Garage HeaterI recommend this productRated 4 out of 5 stars4 years agoI would consider this product again.
Heater is utilised to heat 24x24 garage attached with just buffalo board sheeting. No insulation between studs. Garage door is insulated double. Located in Minnesota we do have cold temps and winds. 20 to 40 below not unusual. Researched heaters, was not interested in a infared electricity gulper. Found the King units with the radiant copper tubing. Read the negative comments, weighed what was said. Inspected a 7500 and a 5000 watt unit at a selling store. Purchased a 7500 watt unit, brought it home installed unit on 30 amp breaker. Utilised unit last winter 5 months and almost 3 months this winter, no problems. Relay switches are loud when cycling, bracket for hanging unit could be stouter. Adjusting front air deflectors on the crude side, bend deflectors to desired angle. Unit has been trouble free, fan moves air thru the summer. Operation cost has been very reasonable, credit this to purchasing a larger size than needed. Garage holds 60 degrees thru the day in the winter easy. Hi/Lo relays noise when opening gets tiresome, very firm snapping sound.
