KwiKool 120,000 BTU 10-Ton Portable Air Conditioners
KwiKool 120,000 BTU 10-Ton Portable Air Conditioners - 440-480 is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- KwiKool KIB12023 or KwiKool KIB12043
- External Condensate Tank
- Internal Condensate Pump
- Owner's Manual
Info & Guides
Info & Guides

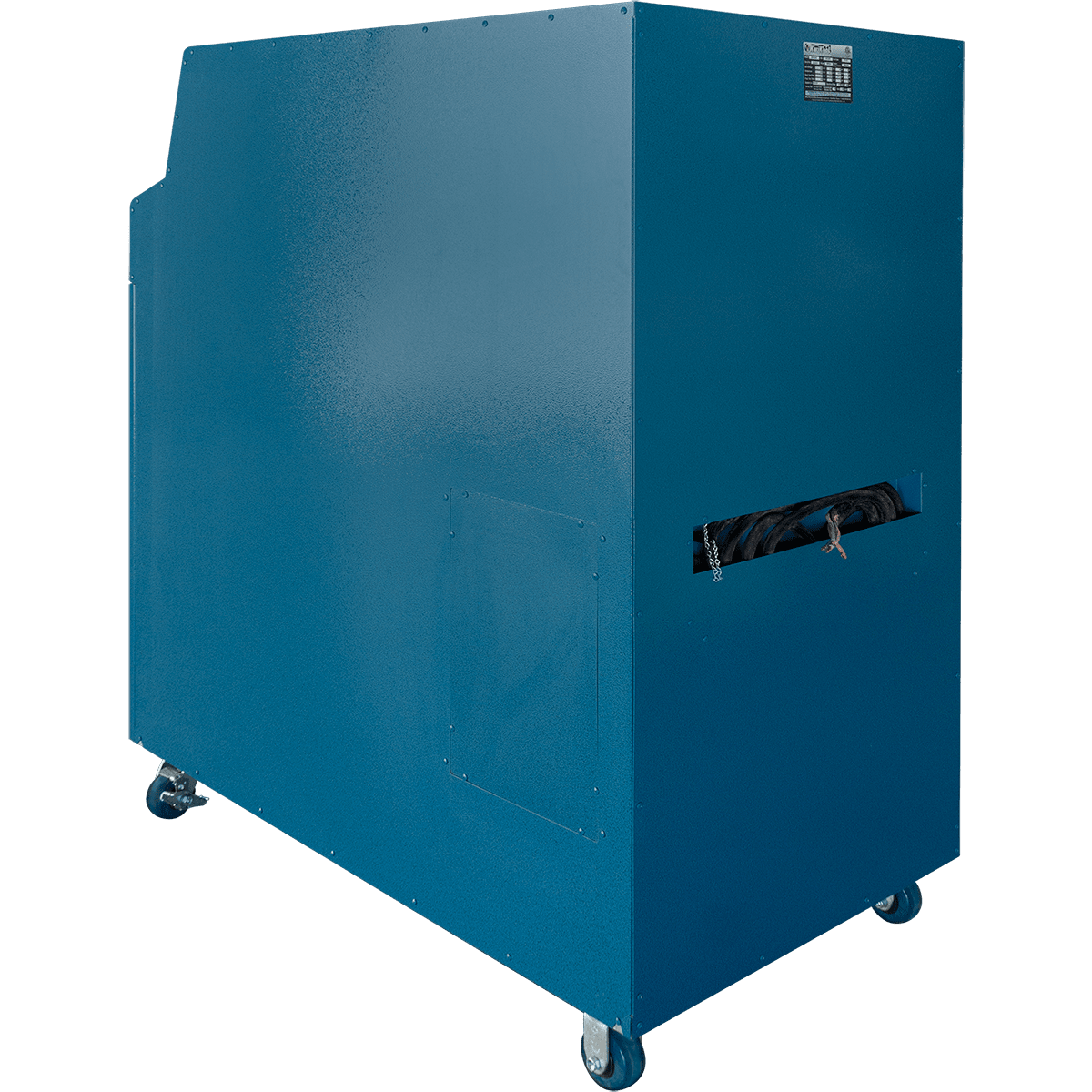

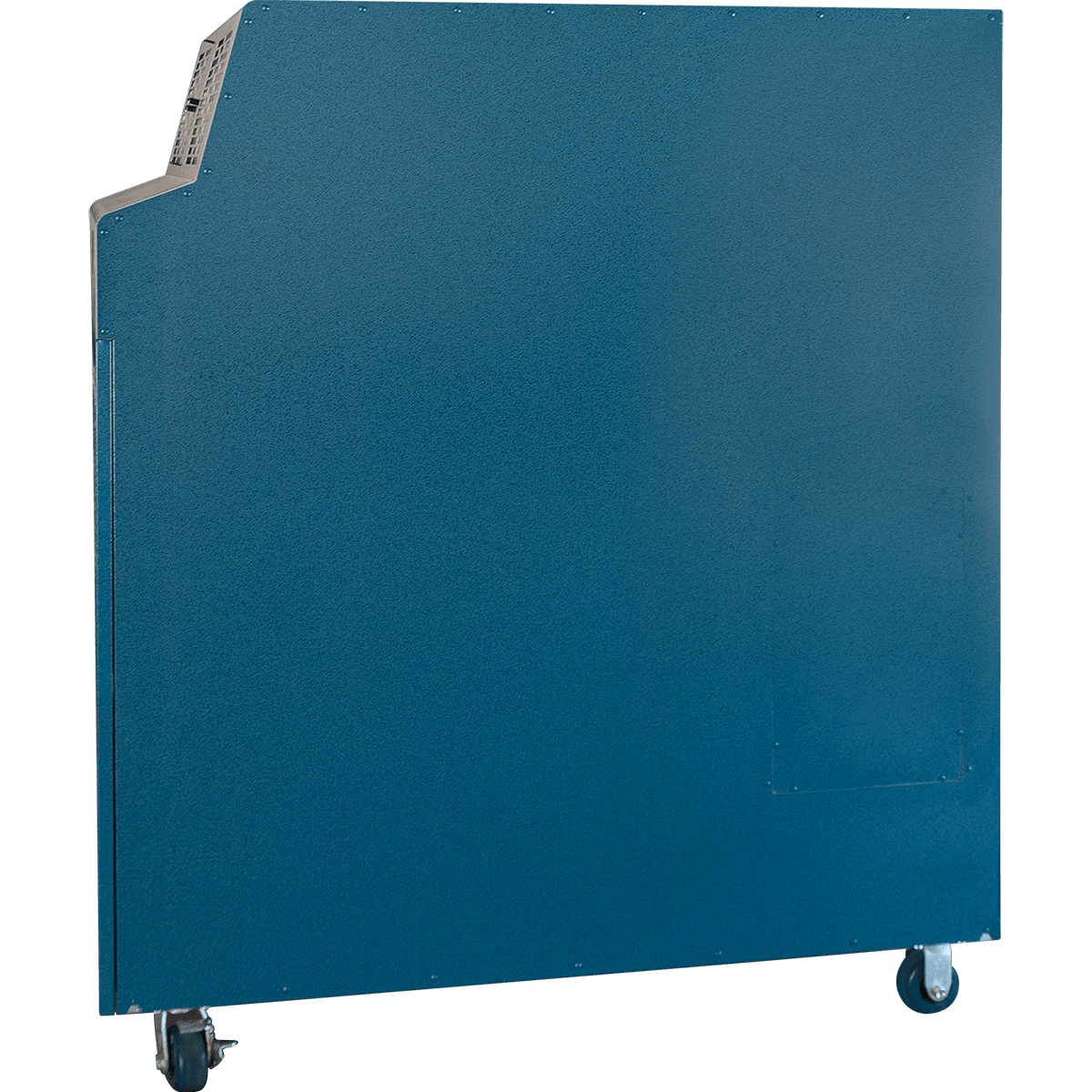

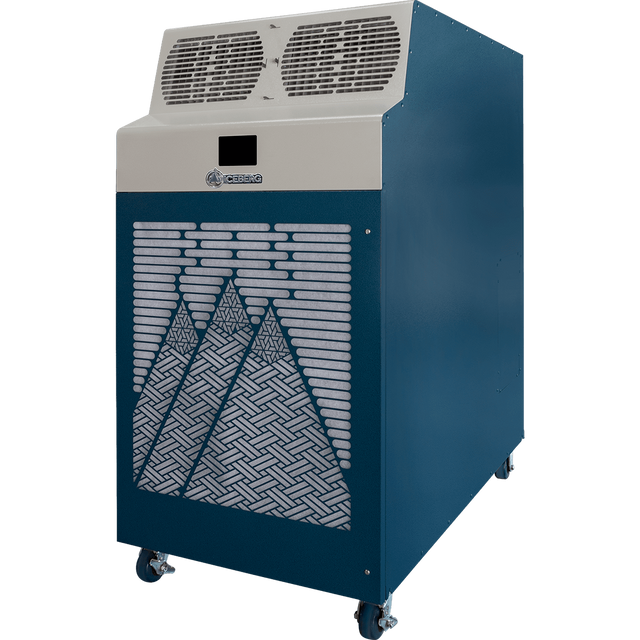

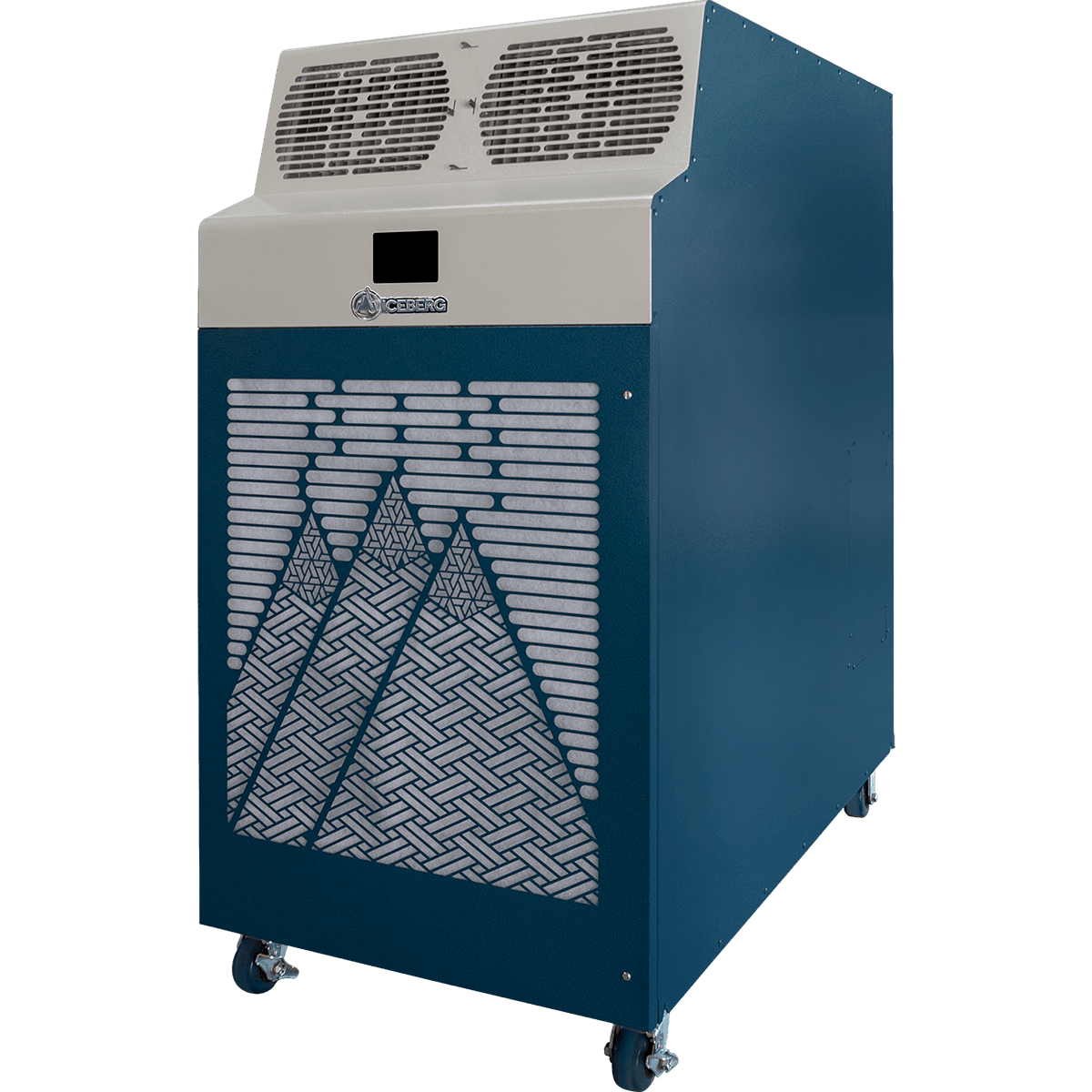

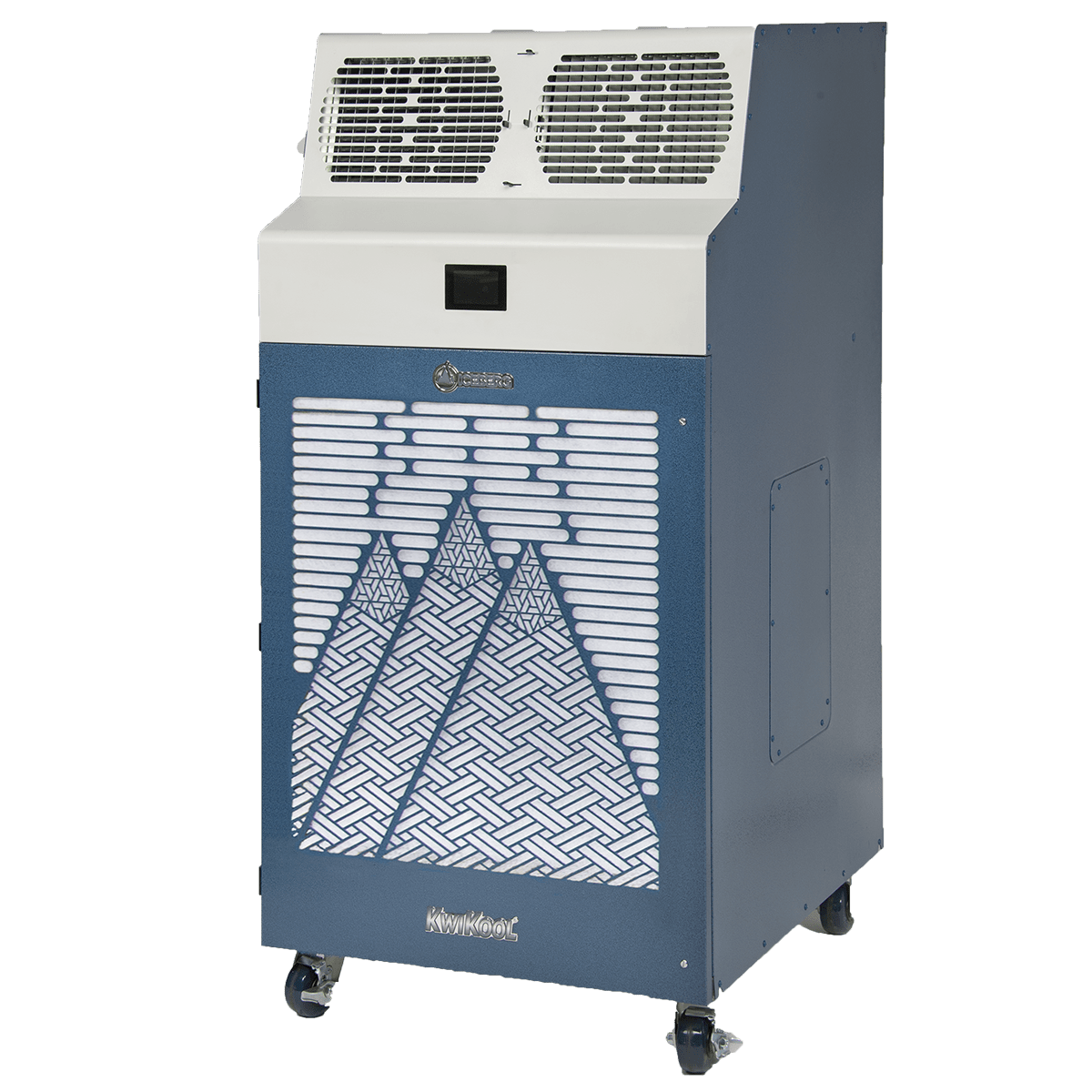

KwiKool 120,000 BTU 10-Ton Portable Air Conditioners
Description
Description
The most powerful models in the KwiKool line, the 120,000 BTU portable air conditioners cool industrial spaces up to 4,000 square feet. They're commonly used in industrial plants, server rooms, hospitals, and offices.
Designed to be vented through a drop ceiling, they offer efficient 3-stage motors, direct drive fans, and an internal condensate pump for continuous use.
Note: This KwiKool portable AC is designed for commercial use only.
Electrical Requirements
There are 2 electrical/power options for these 10-ton portable air conditioners. Both use 3-phase motors that efficiently maintain high cooling power for industrial spaces. Make sure your space can handle these 3-phase motors. The other electrical requirements are as follows:
- KwiKool KIB12023: 230-volts
- KwiKool KIB12043: 460-volts
Powerful Airflow
A direct drive fan forces air directly out and into your space with efficient power:
- Max. Evaporator Airflow: 3800 CFM
- Max. Condenser Airflow: 5000 CFM
Two Operating Options
These portable ACs can be run continuously for 24-hour use. An included internal pump lifts water up and out of your space and to a nearby drain up to 150 feet away. Operation will cut off if there's a problem with this while you use it. An alarm will also sound to notify you.
If you only need for temporary operation, use its large external tank. This tank holds up to 5 gallons of water. When the tank is full, an alarm will sound and operation will cut off.
Automatic Shut-Off Measures
Don't worry about using these durable portable ACs for long periods of time, because they are packed with safety features to avoid overheating and other issues. These include:
- An internal fan is used to cool down the motor to avoid overheating.
- High pressure switch turns off the unit if its ambient temperatures reach higher than it can handle (110 degrees F) or if the condenser ducting is longer than the recommended length.
- Low pressure switch protects the compressor from low-pressure damage in case the condenser air pressure drops below the recommended level.
- If there's a block in airflow from the ducts, an alarm will also sound and the unit will shut down.
American-Made Durability
These industrial portable air conditioners are built for long-lasting use:
- Hammercoat finish and galvanized cabinet protect the exterior
- Insulated motor for efficient operation
- Hinged filter panel is built to stand the test of time and make accessing the filter a breeze
Digital Thermostat and Controls
- Set your ideal room temperature
- Choose between cool and fan-only modes
- Choose to display the temperature in C or F
Additional Features
- Auto-Restart: If you were to lose power, it will turn back on to the previously programmed settings once power is restored.
- Safety Certifications: These 10-ton portable air conditioners are ETL-, CSA-, and UL-listed for efficient and safe operation.
- Large Operating Temperature Range: You can use it in rugged conditions from 60-110 degrees F.
- Adjustable Air Vent: Adjust this to tilt air the direction you want.
Summary
If you're looking for the most powerful KwiKool model we offer, these are efficient, powerful, and durable options for any large industrial cooling need.
What Customers Love
- Powerful Commercial Cooling: This is one of the most powerful cooling systems available and is perfect for large server rooms and other commercial or industrial locations.
- Two Operation Options: Choose between continuous or short-term operation thanks to an included condensate pump and external tank.
Required Accessories

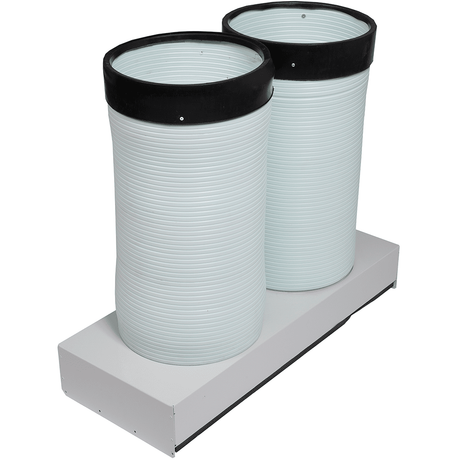

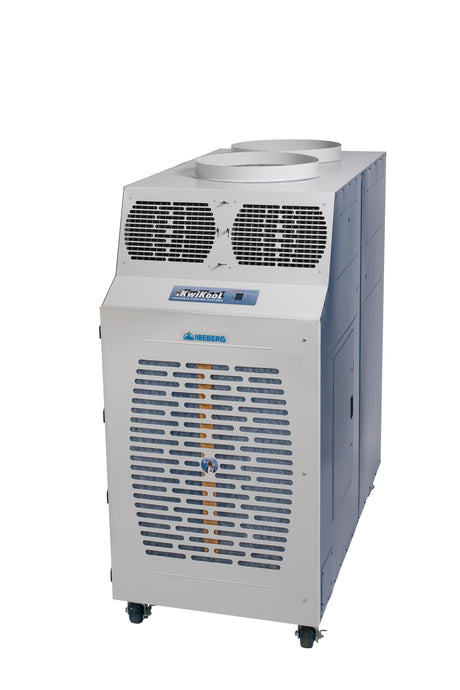

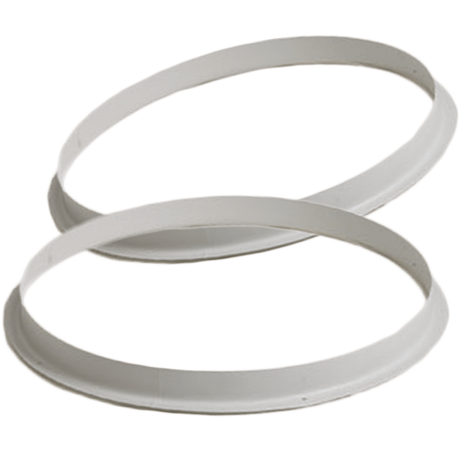

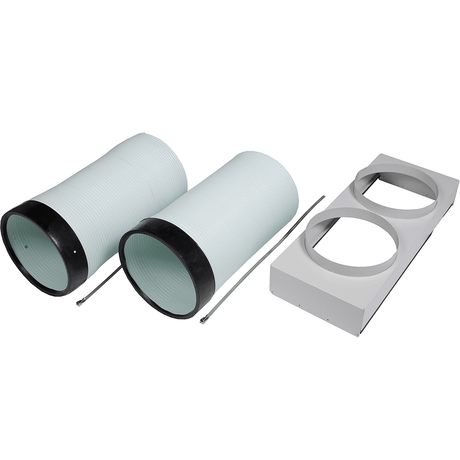

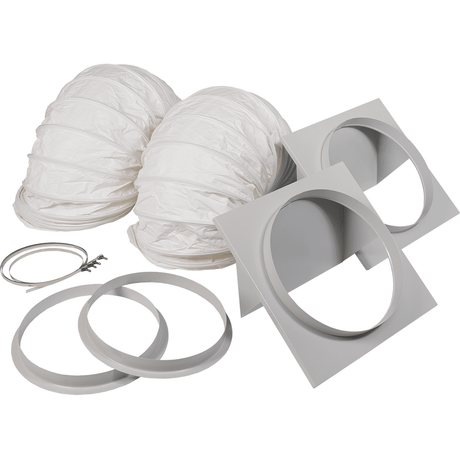

Ducting and flanges aren’t included with this KwiKool portable AC. Depending on whether you’re replacing an existing unit and already have the parts or not, based on your needs you will need to purchase either a set of condenser flanges, a ceiling duct kit, or an air chute kit.
Things to Consider
- Not for Residential Use: This portable AC from KwiKool is designed for commercial/industrial settings and not intended for residential use.
Specifications
Specifications
-
Internal Condensate PumpYes
-
ApplicationCommercial
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
-
CertificationsETL
-
ColorBlue
-
ControlsElectronic
-
Heat ModeNo
-
Hose TypeDual Hose
-
Maximum Cubic Feet per Minute (CFM) (CFM)3800.0
-
Maximum Noise Level (dB)125
-
Maximum Operating Temperature (degrees F)110
-
Maximum Thermostat Setting (degrees F)99
-
Minimum Operating Temperature (degrees F)60
-
Minimum Thermostat Setting (degrees F)60
-
Moisture Removal per Hour (pints)0
-
Recommended Coverage Area (sq. ft.)4000
-
Recommended ForServer Room & Precise Indoor Applications
-
Refrigerant TypeR-454B
-
Self-EvaporationPartial
-
Maximum Amperage (Amps)26.252.9
-
Maximum Wattage (W)15
-
Plug Face TypeHardwired
-
Power Cord Length (ft.)10
-
Recommended Breaker Size (Amps)4080
-
Voltage (V)440-480208-230
-
Depth (in.)57.8
-
Depth (with front cover) (in.)57.8
-
Height (in.)683.068.3
-
Height (with front cover) (in.)683.068.3
-
Vent Hose Diameter (in.)20
-
Vent Hose Length (ft.)Up to 65
-
Weight (lbs.)1000986
-
Width (in.)32.7
-
Width (with front cover) (in.)32.7
-
Additional FeaturesFull Bucket Indicator/Auto Shutoff, Adjustable Louvers, Drain Hose Capable, Fan-Only Mode, Auto-Restart, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
- DDavidVerified BuyerReviewingKwiKool 120,000 BTU 10-Ton Portable Air ConditionersI recommend this productRated 4 out of 5 stars8 years agoHeavy duty cooling
Good unit, blows a lot of cold air! Works at full speed 24/7.
- DDaleVerified BuyerReviewingKwiKool 120,000 BTU 10-Ton Portable Air ConditionersI recommend this productRated 5 out of 5 stars5 years agoExcellent Commercial Quality A/C
This is a beast! I have a warehouse with no windows and cutting an opening in the metal wall was not an option. So I opted for a portable. Purchased the Kwikool Iceberg 10-Ton unit. It easily cools the facility within 20 minutes. I opted for 3 phase electric and it really keeps the demand charges low which saves me money.
