Experience year-round comfort with the MRCOOL 36,000 BTU 5th Gen DIY Mini-Split. This user-friendly ductless system is designed for spaces up to 1,550 square feet, offering efficient heating, cooling, and dehumidification that you can install yourself.
As part of MRCOOL's expanding DIY mini-split line, this model upholds their commitment to easy-to-install climate control, providing professional-level comfort in less time.
Ideal for retrofitting areas like bonus rooms or garages and open living spaces, this DIY mini-split delivers adaptable and intelligent climate control wherever you need it.
Key Features and Benefits of the MRCOOL 36,000 BTU 5th Gen DIY Mini-Split
- High Efficiency: While not Energy Star-rated, this model runs efficiently with up to 18 SEER2 (Seasonal Energy Efficiency Ratio) performance, helping you trim energy costs in both summer and winter. It heats with a 6.5 HSPF2-5 (Heating Seasonal Performance Factor) rating.
- R-454B Refrigerant: This unit uses a cutting-edge refrigerant with a reduced global warming potential, providing a more environmentally responsible and eco-friendly approach to indoor climate control.
- Smartphone Control and Voice Commands: Control your unit remotely, set schedules, and adjust modes by linking it to the MRCOOL app. You can also use convenient voice commands with Google Assistant or Amazon Alexa.

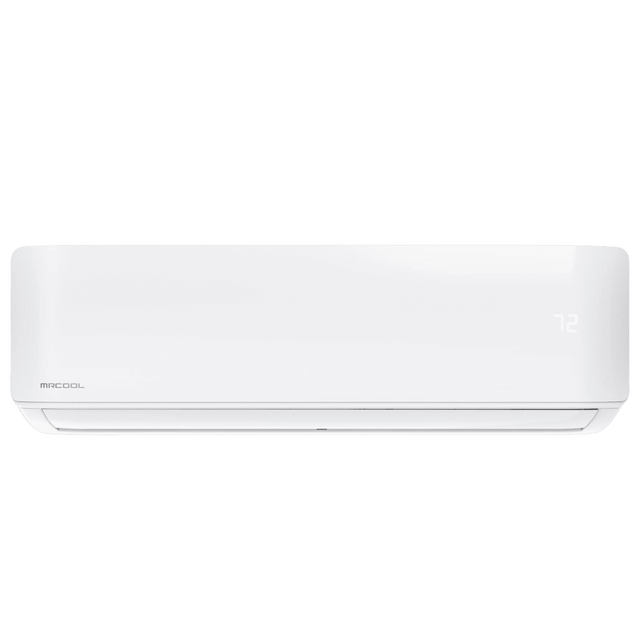

- Quiet, Comfortable Operation: The indoor air handler operates with whisper-quiet noise levels between 27 to 55.5 dB.

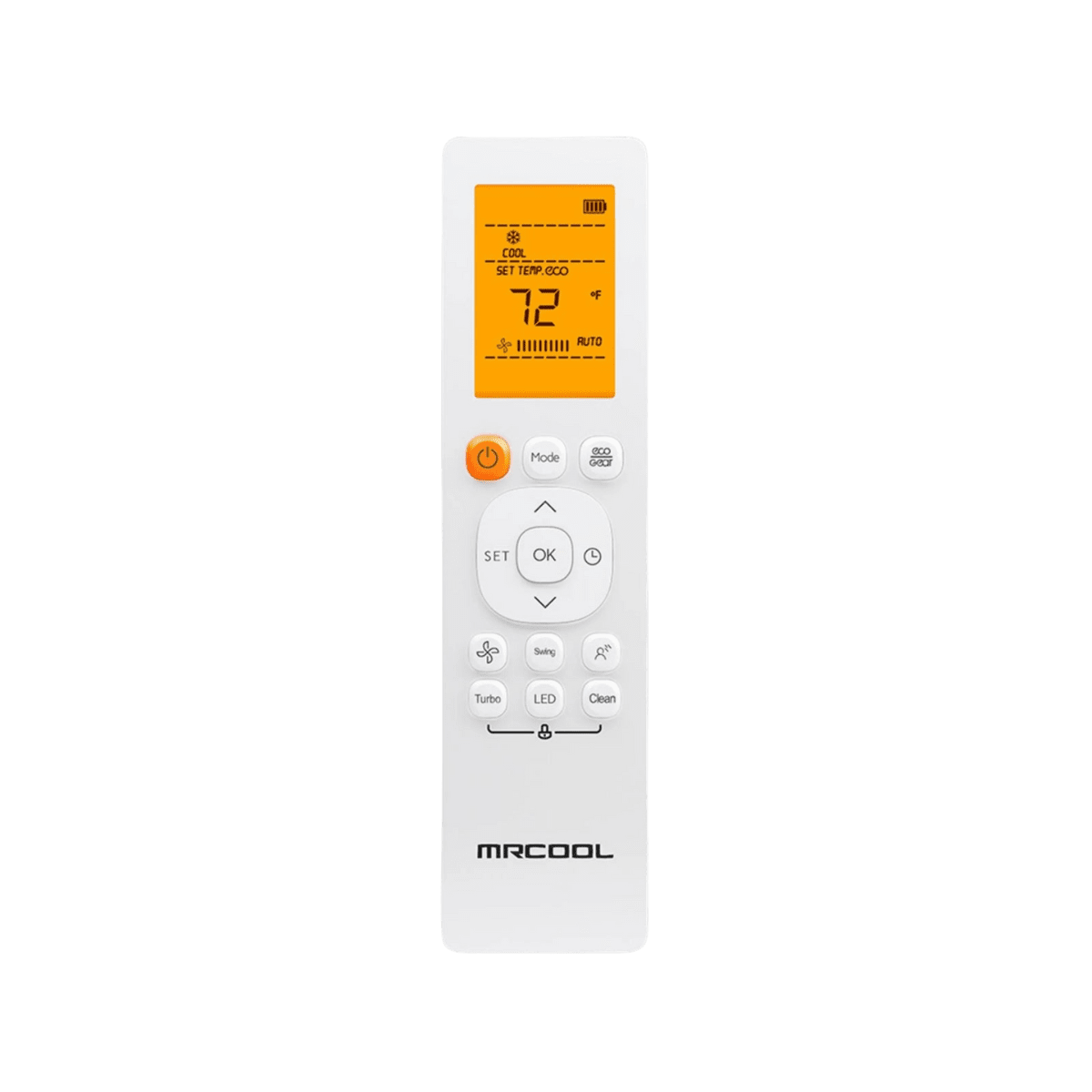

- Follow Me Temperature Sensor: For personalized comfort, activate the remote control's sensing feature to monitor the temperature in your immediate vicinity, providing real-time adjustments.
Smart Installation and Maintenance

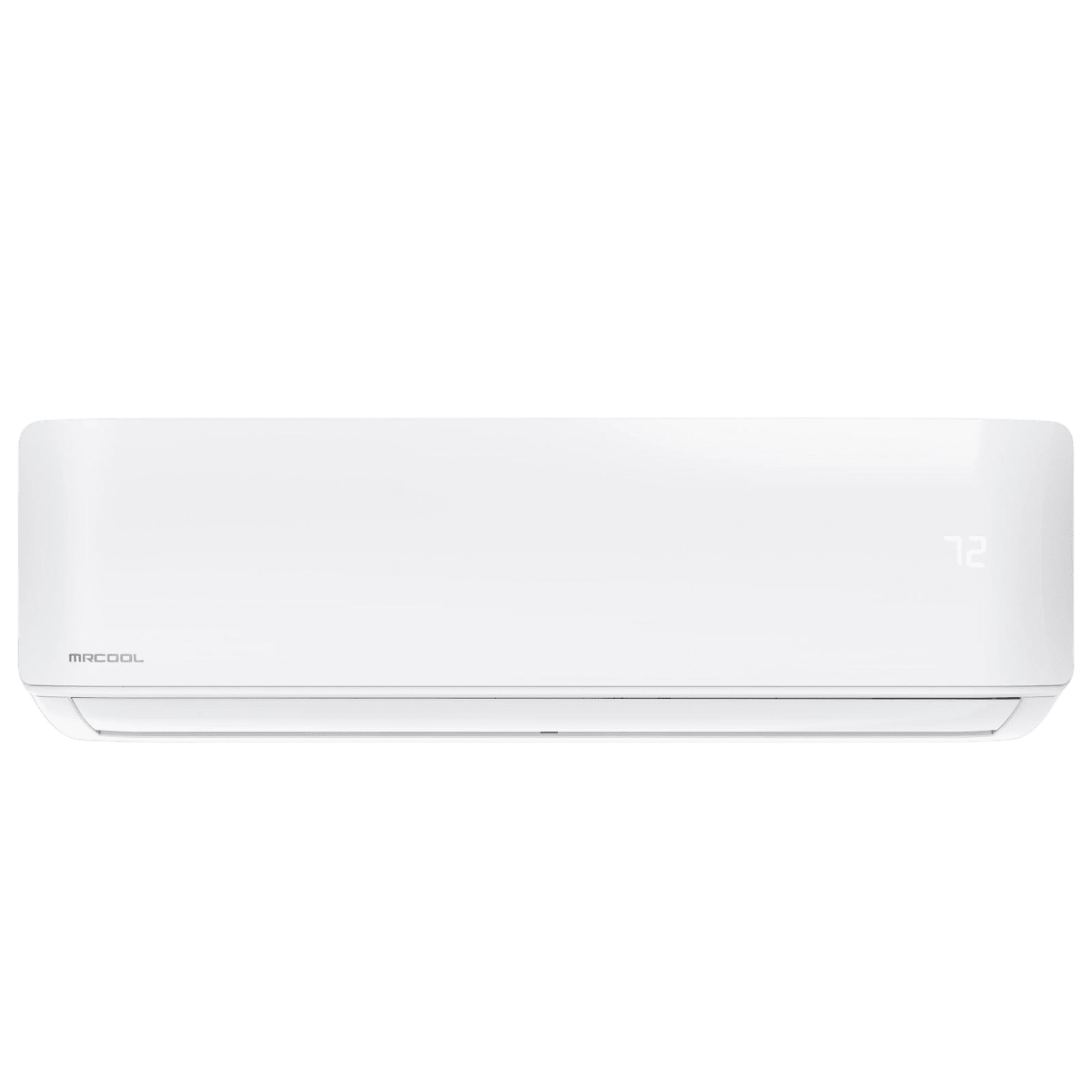

The MRCOOL 5th Generation DIY series is a user-friendly mini-split system, emphasizing straightforward installation without sacrificing dependability. After setup, the Active Clean self-cleaning indoor coil helps maintain a fresh air handler. Simple routine filter checks are sufficient for optimal efficiency, making upkeep as uncomplicated as the initial installation.

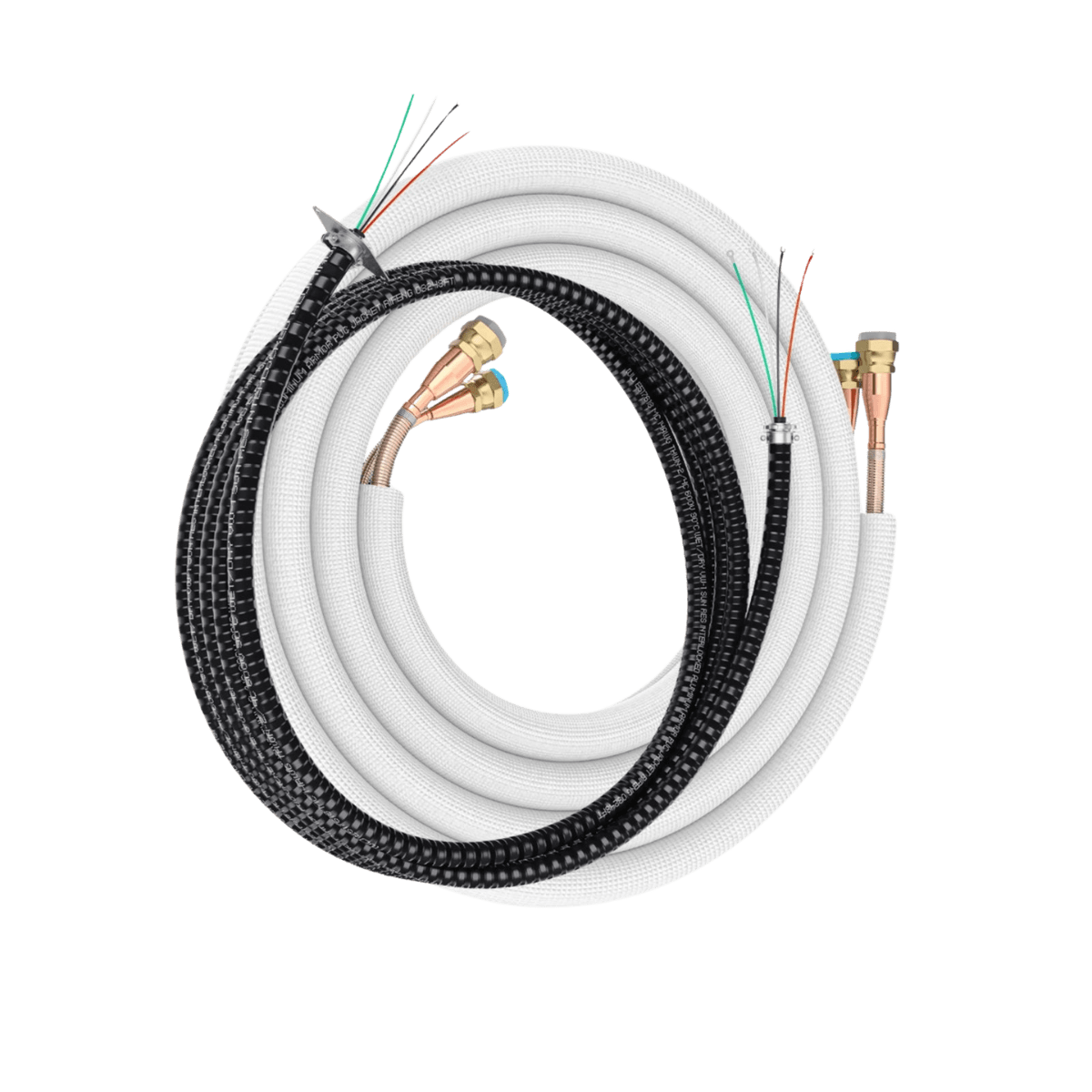

- Quick Connect Line Set: Install your MRCOOL Mini-Split easily thanks to the patented Quick Connect 3/8 x 5/8" line set, eliminating the need for specialized tools or professional HVAC expertise. Perfect for do-it-yourselfers.

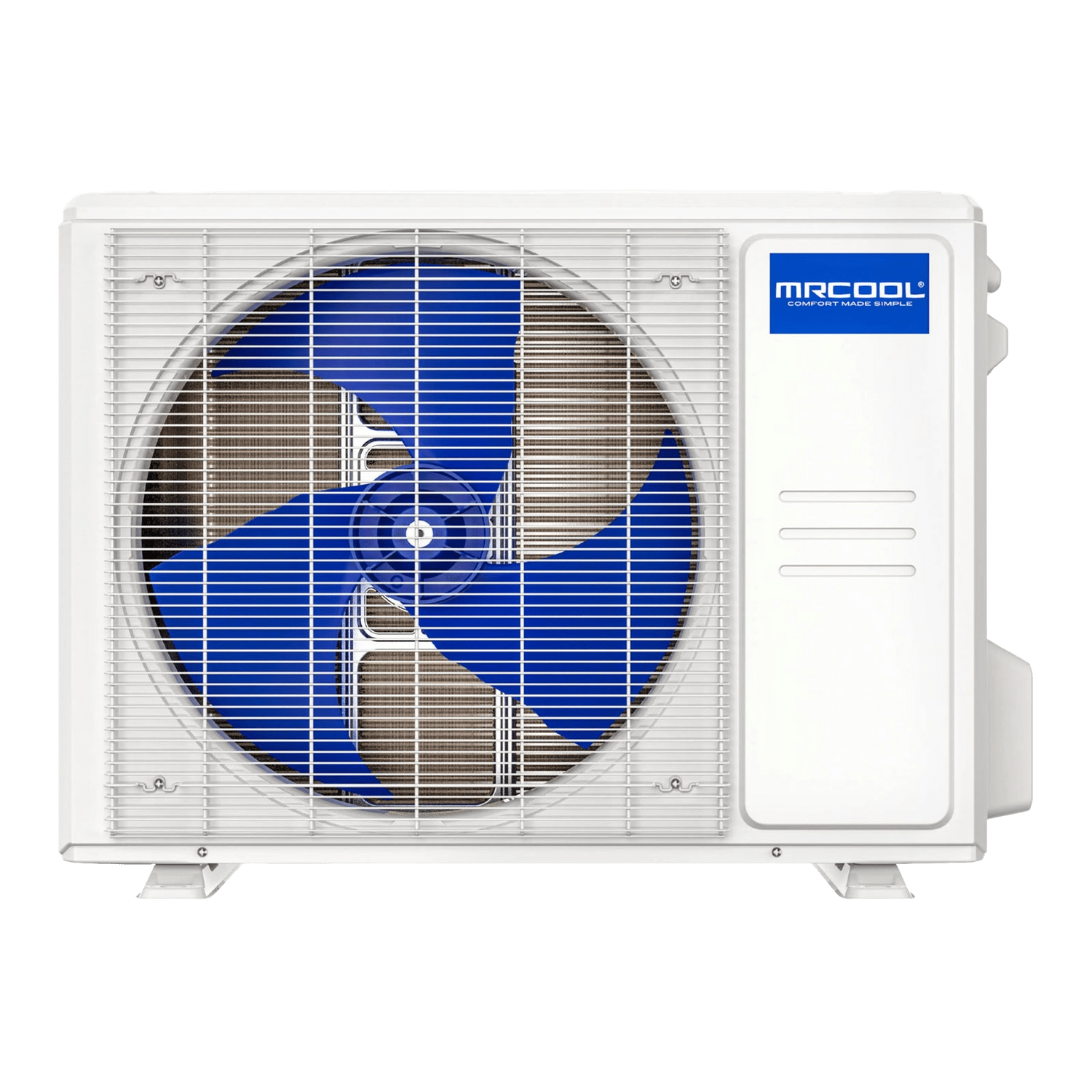

- Durable Condenser: Built for lasting performance, this model incorporates a Gold Fin Condenser, offering enhanced corrosion resistance, which is particularly beneficial for homes located in coastal environments.
- Impressive Warranty: This DIY mini-split unit stands out with its impressive limited lifetime warranty and a 7-year compressor warranty, providing significant peace of mind.
- Complete Installation Kit: This model includes all necessary installation components, such as hardware, pads, seals, caps, sleeves, cables, and tubing.
Note: Some areas may require professional testing or installation for this model’s warranty to be valid. Check local regulations and MRCOOL’s warranty information for more details.
Sylvane's Expert Take
The MRCOOL DIY 5th Gen is highly recommended for any homeowner who needs efficient and straightforward climate control. This mini-split stands out for its simple DIY installation, Wi-Fi capabilities, and efficiency ratings.
It is suitable for large spaces and offers dependable heating and cooling with smart controls from any location. For those prioritizing convenience, reliability, and energy savings, this MRCOOL Mini-Split is an attractive option.
-
Energy Efficiency Ratio 2 (EER2)8.5
-
Mounting TypeWall
-
Number of Speeds5
-
Seasonal Energy Efficiency Ratio 2 (SEER2)18.0
-
Total Cooling Capacity (BTUs)36000
-
Total Heating Capacity (BTUs)36000
-
CertificationsAHRI, cETLus
-
ColorWhite
-
Compressor TypeRotary
-
Heat ModeYes
-
Installation TypeDo-It-Yourself (DIY)
-
Line Length Option25 ft
-
Maximum Cubic Feet per Minute (CFM) (CFM)588.0
-
Maximum Indoor Noise Level (dB)55.5
-
Maximum Operating Temperature - Cooling (degrees F)122
-
Maximum Operating Temperature - Heating (degrees F)75.2
-
Minimum Operating Temperature - Cooling (degrees F)5
-
Minimum Operating Temperature - Heating (degrees F)-13
-
Number of Zones1
-
Recommended Coverage Area (sq. ft.)2600
-
Refrigerant TypeR-454B
-
Zone Cooling Capacity (BTUs)36000
-
Zone Heating Capacity (BTUs)36000
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
-
Voltage (V)208-230
-
Included Line Length (ft.)25
-
Indoor Unit Depth (in.)11.10
-
Indoor Unit Height (in.)14.25
-
Indoor Unit Weight (lbs.)48.72
-
Indoor Unit Width (in.)49.57
-
Maximum Line Length (ft.)213.2
-
Outdoor Unit Depth (in.)16.14
-
Outdoor Unit Height (in.)31.89
-
Outdoor Unit Weight (lbs.)152.12
-
Outdoor Unit Width (in.)37.24
-
Additional FeaturesRemote Control, Wi-Fi Capable, Line Set Included, Applicable for Indoor Growing, Pre-charged Refrigerant
-
Manufacturer's WarrantyEligible for MRCOOL Care Program; 7-Year Compressor Warranty; 5-Year Limited Parts Warranty
