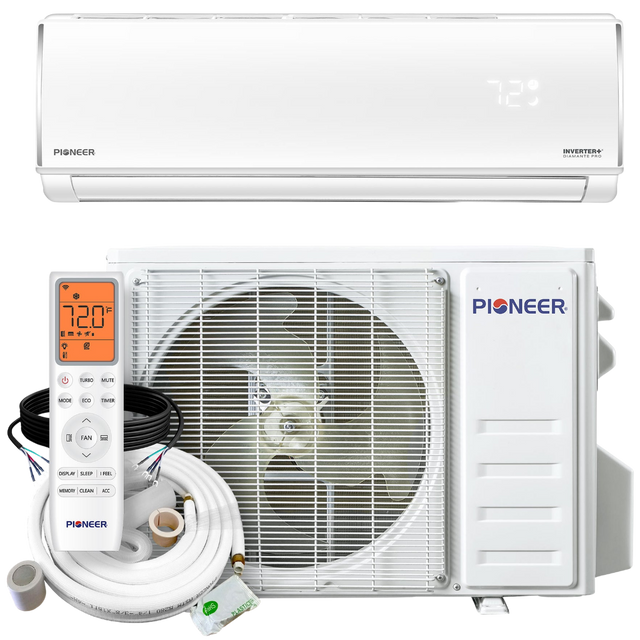

Pioneer 24,000 BTU Diamante Pro High-Wall Series Ductless Mini Split

Name: Pioneer 24,000 BTU Diamante Pro High-Wall Series Ductless Mini Split
Brand: Pioneer
Price: 1438.0 USD
Availability: InStock

SKU: pi17056k | Model: WYT024GLSI20RL

$1,438.00 ~~$1,599.00~~

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

Pioneer 24,000 BTU Diamante Pro High-Wall Outdoor Unit YN024GLSI20RPF
Pioneer 24,000 BTU Diamante Pro High-Wall Indoor Unit WT024GLSI20HLF
16-Foot Line Set
Remote Control
Remote Control Holder
Indoor Unit Mounting Plate
Wall Sleeve
Hardware
Owner’s Manual

Info & Guides

Description

Delivering reliable heating and cooling for medium to large rooms up to 1,000 square feet, the Pioneer 24,000 BTU Diamante Pro High-Wall Series Ductless Mini Split brings efficient, inverter-driven climate control to spaces where traditional ductwork is impractical or unavailable. Its ductless design streamlines installation, while the high-efficiency compressor helps you maintain steady indoor temperatures year-round.

Whether you're outfitting a new addition, a converted garage, or a small commercial office, this mini-split system pairs advanced variable-speed technology with a compact indoor air handler that mounts high on the wall, keeping valuable floor space clear.

Key Features and Benefits of Pioneer 24,000 BTU Diamante Pro Mini Split

Inverter Technology: The variable-speed compressor automatically adapts output, minimizing temperature swings and lowering energy consumption during part-load operation.
High Efficiency Ratings: With a 21 SEER2 cooling and 9.5 HSPF2 rated heating performance rating, you spend less on electricity while meeting local energy code requirements.
Four Operating Modes: Switch between Cooling, Heating, Dry, and Ventilation to match seasonal demands and improve comfort without purchasing separate equipment.
Ultra-Quiet Operation: Indoor sound levels start at 28 dB, so the system runs unobtrusively in bedrooms, offices, or study areas.
Dual-Axis Airflow: Motorized horizontal and vertical louvers distribute conditioned air evenly, reducing hot and cold spots across the room.
ECO and SLEEP Modes: Automated modes trim energy use during quiet hours, helping you meet efficiency goals without manual adjustments.
Washable Filters: Reusable intake filters capture dust and are easy to clean, cutting replacement costs and keeping airflow strong.
Line Set Included: This model includes a 16-foot 1/4 x 1/2 Line Set.

Note: This mini-split air conditioner must be installed by a qualified professional.

Built for Extremes

The Diamante Pro is engineered to handle harsh weather without compromising indoor comfort. Its compressor and electronic controls are rated for continuous heating down to -4 degrees F, making it a practical option for colder regions that still want the simplicity of a single-zone ductless system. On the opposite end of the spectrum, cooling operation remains stable up to 122 degrees F, safeguarding productivity in workshops, server rooms, and sun-facing offices.

In addition to robust performance, the system uses R-454B, a next-generation refrigerant with a lower global warming potential than many legacy options. By selecting equipment already optimized for future regulatory standards, you reduce environmental impact and position your facility for upcoming refrigerant transitions.

Sylvane’s Expert Take

For contractors and facility managers seeking a dependable, single-zone solution, the Pioneer Diamante Pro combines impressive efficiency, broad operating limits, and straightforward installation in one package. The included line set, inverter drive, and low-ambient capability shorten project timelines and cut ongoing costs. Quiet operation and dual-axis airflow further enhance occupant comfort, making this mini-split a smart choice for both residential and light commercial applications.

Specifications

Key Specifications

Energy Efficiency Ratio 2 (EER2)

11
Mounting Type

Wall
Number of Speeds

Variable
Seasonal Energy Efficiency Ratio 2 (SEER2)

21
Total Cooling Capacity (BTUs)

24000
Total Heating Capacity (BTUs)

24600

General

California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
Certifications

AHRI, cETLus
Color

White
Compressor Type

Inverter
Heat Mode

Yes
Installation Type

Professional Installation
Line Length Option

16 ft
Maximum Cubic Feet per Minute (CFM) (CFM)

847.0
Maximum Indoor Noise Level (dB)

58
Maximum Operating Temperature - Cooling (degrees F)

122
Maximum Operating Temperature - Heating (degrees F)

86
Minimum Operating Temperature - Cooling (degrees F)

5
Minimum Operating Temperature - Heating (degrees F)

-4
Number of Zones

1
Recommended Coverage Area (sq. ft.)

1000
Refrigerant Type

R-454B
Zone Cooling Capacity (BTUs)

24000
Zone Heating Capacity (BTUs)

24600
