Pioneer Quantum Ultra 30,000 BTU Quad-Zone Mini Split Heat Pump 12k+9k+9k+9k

Name: Pioneer Quantum Ultra 30,000 BTU Quad-Zone Mini Split Heat Pump 12k+9k+9k+9k
Brand: Pioneer
Price: 4121.0 USD
Availability: InStock

SKU: pi17332k | Model: WYT040GLSI24M4-12W-9W-9W-9W

$4,121.00 $4,399.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Parts and Compressor Limited Warranty

What's In The Box?

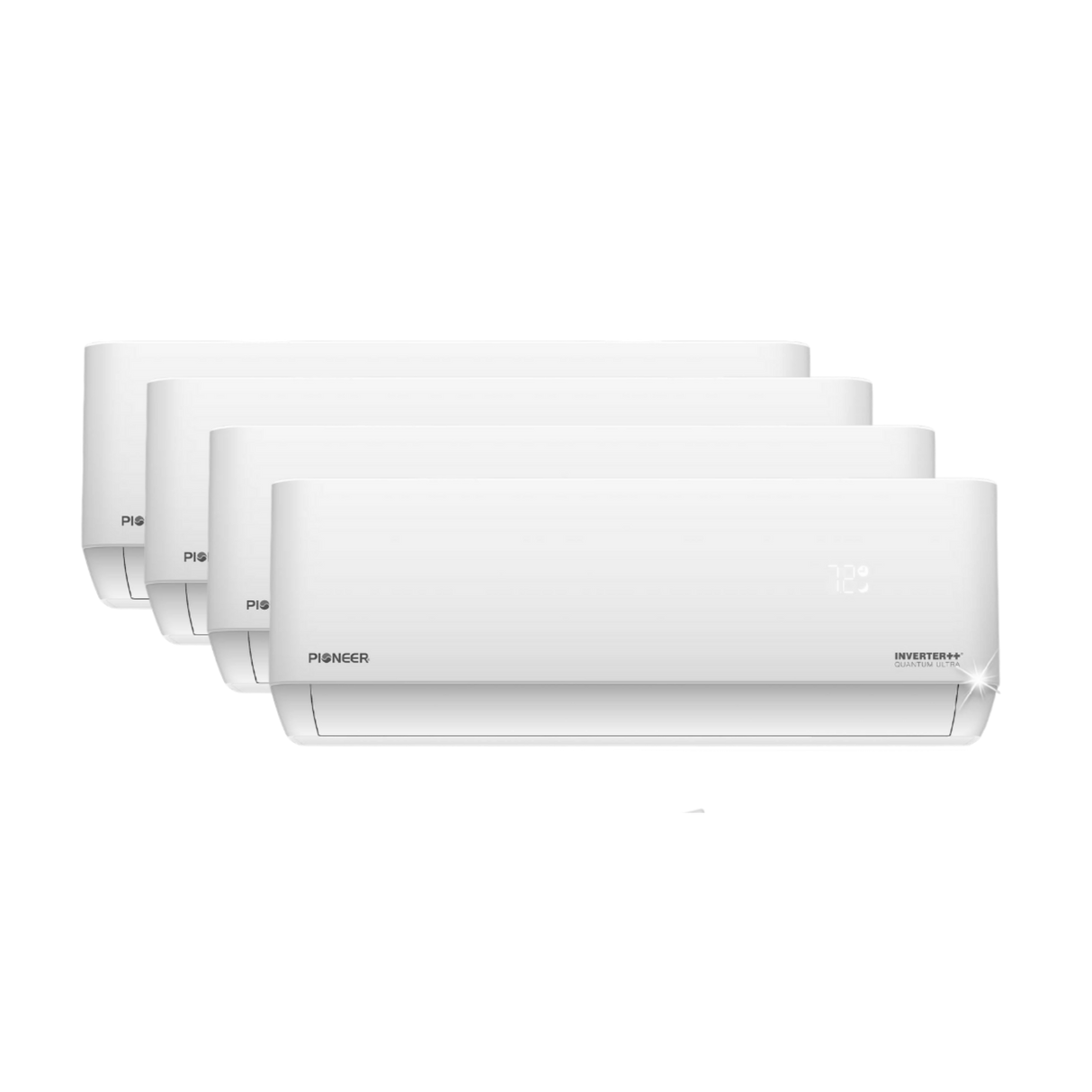

Pioneer Quantum Ultra 12,000 BTU Air Handler WT012GLSI24HLG
Pioneer Quantum Ultra 9,000 BTU Air Handler WT009GLSI24HLG (3)

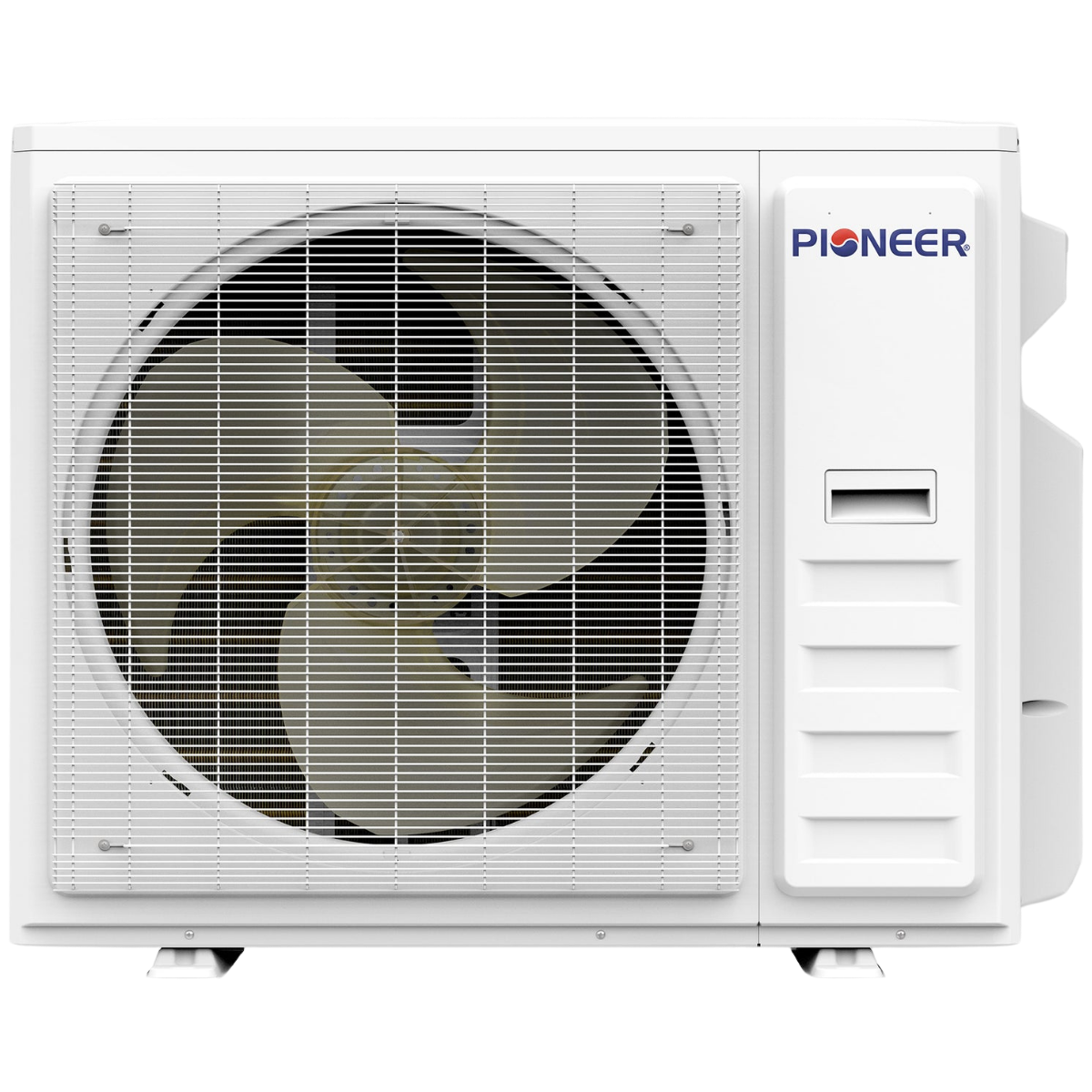

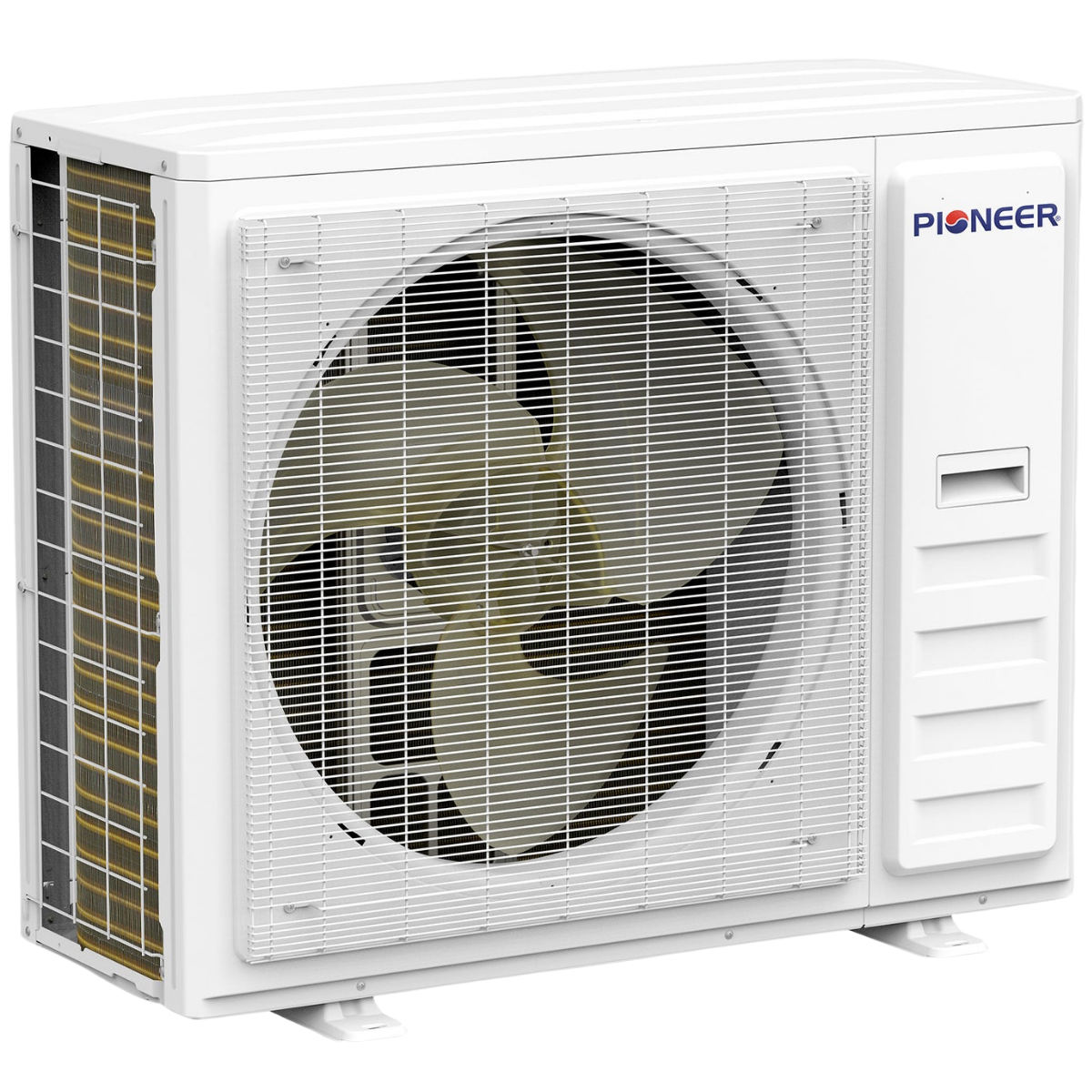

Pioneer Quantum Ultra 35,000 BTU Outdoor Condenser YN040GLSI24M4G
Remote Control (4)
Owner's Manual, Guides, and Other Documents

Info & Guides

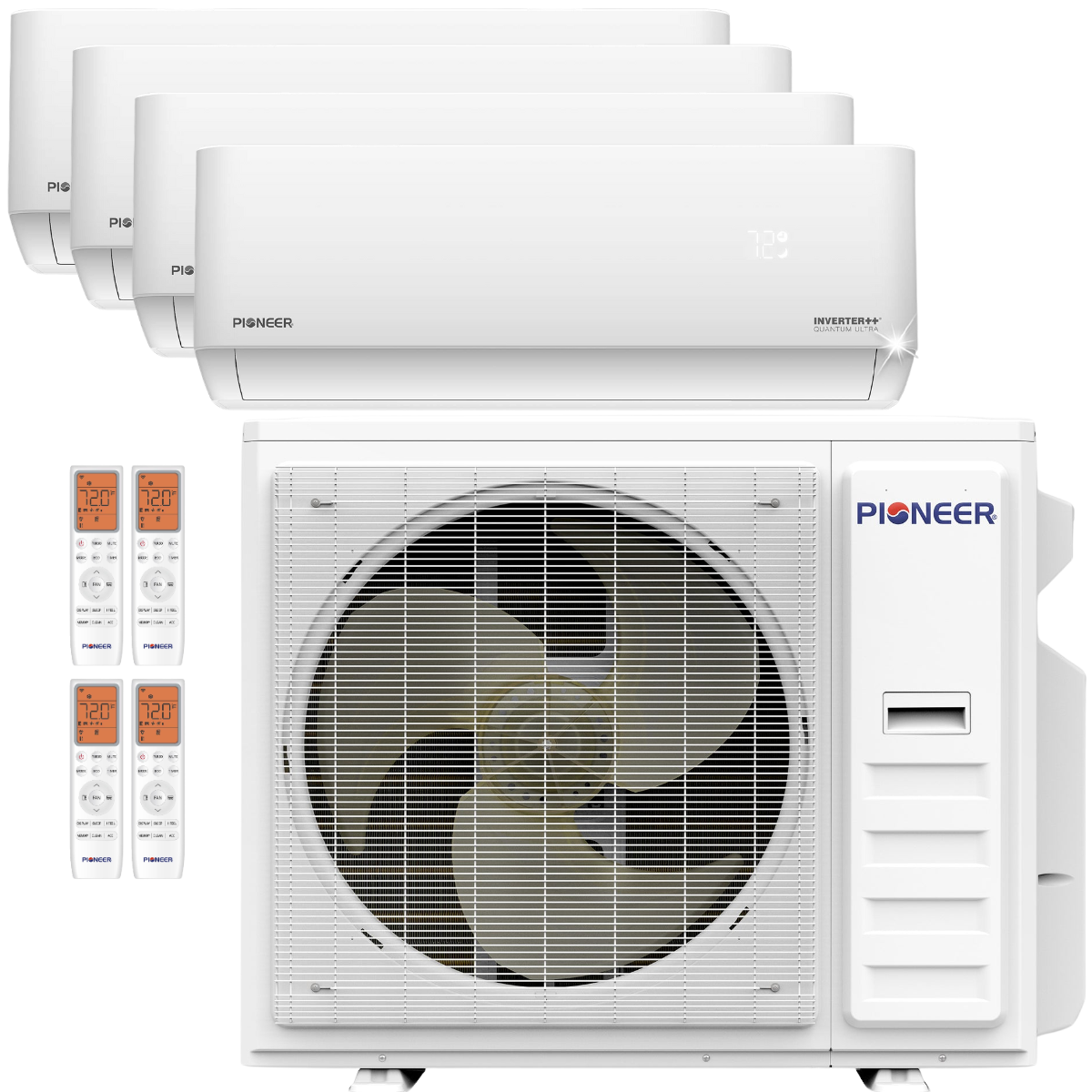

The Pioneer 30,000 BTU Quad-Zone Quantum Ultra Mini-Split Heat Pump delivers year-round heating and cooling with a compact, ductless design. Built with inverter compressor technology and a multi-zone outdoor compressor unit, this HVAC solution synchronizes performance across four indoor air handlers to match the exact load in each space.

One 30,000 BTU outdoor compressor unit pairs with three 9,000 BTU air handlers and one 12,000 BTU air handler, giving you balanced capacity for rooms of different sizes while maintaining high energy efficiency. Integrated Wi-Fi controls for each zone allow quick adjustments from a smartphone with the Pioneer Free Airlink App or third-party voice assistant apps, streamlining comfort management in residential and light-commercial settings.

Key Features and Benefits of the Pioneer 30,000 BTU Quad-Zone Quantum Ultra Mini-Split

Four-Zone Flexibility: Heat and cool four separate 350-square-foot spaces with individual 9,000 BTU air handlers and a 30,000 BTU outdoor compressor, giving you room-by-room temperature control and helping reduce energy waste in unused spaces.
High Efficiency Operation: This system's 22.5 SEER2 cooling rating and 9.5 HSPF2 heating performance lower operating costs compared with traditional split systems, helping you keep operating costs under budget.
Pioneer Inverter++ Compressor: This compressor's patented Pioneer Inverter++ technology automatically scales the output from 30 to 100 percent of capacity as needed, alleviating temperature swings and eliminating the hard start cycles that shorten equipment life.
Eco-Friendly Refrigerant: This model uses R-454B refrigerant, which has a lower global warming potential compared to legacy blends, supporting sustainability goals and regulatory requirements.
Quiet Operation: A 65 dB outdoor and 46 dB indoor max noise level minimizes disturbance in living spaces, offices, and patios.
Wi-Fi Ready Air Handlers: Pair the indoor air handlers with the Pioneer Free Airlink App, Google Assistant, Amazon Alexa, and other third-party voice control apps for remote scheduling, temperature adjustments, and zone monitoring from any smartphone. It also comes with a remote control for each air handler.

Note: This mini-split requires professional installation and does not include the 1/4 x 3/8" line sets required for proper installation.

Temperature Swing Ready

Traditional mini-splits can struggle when outdoor temperatures swing between extremes, but the Quantum Ultra Series is designed to provide a consistent output whenever necessary. This system ensures indoor comfort even when temperatures dip to -13 degrees F or rise to 131 degrees F, making it a great choice for mountain homes, northern rentals, and light commercial spaces.

The outdoor compressor features a durable powder coating to prevent corrosion, and the sophisticated defrost cycle minimizes downtime during icy rain or snow. This model's ability to control each zone independently also allows you to reduce temperatures in less frequently used areas, directing energy where it’s most needed and helping to lower utility costs throughout the season.

Sylvane’s Expert Take

If you need a flexible, high-efficiency mini-split heat pump system for a mix of room sizes, the Pioneer Quantum Ultra Quad-Zone is a strong option. The variable speed inverter, R-454B refrigerant, and Energy Star rating align with modern efficiency goals. Overall, this model is a practical choice when you want reliable, zoned comfort without the need for ductwork.
