Pioneer Quantum Ultra 33,000 BTU Tri-Zone Mini Split Heat Pump 12k+12K+9k

Name: Pioneer Quantum Ultra 33,000 BTU Tri-Zone Mini Split Heat Pump 12k+12K+9k
Brand: Pioneer
Price: 2954.0 USD
Availability: OutOfStock

SKU: pi17329k | Model: WYT040GLSI24M4-12W-12W-9W

$2,954.00 $3,499.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Parts and Compressor Limited Warranty

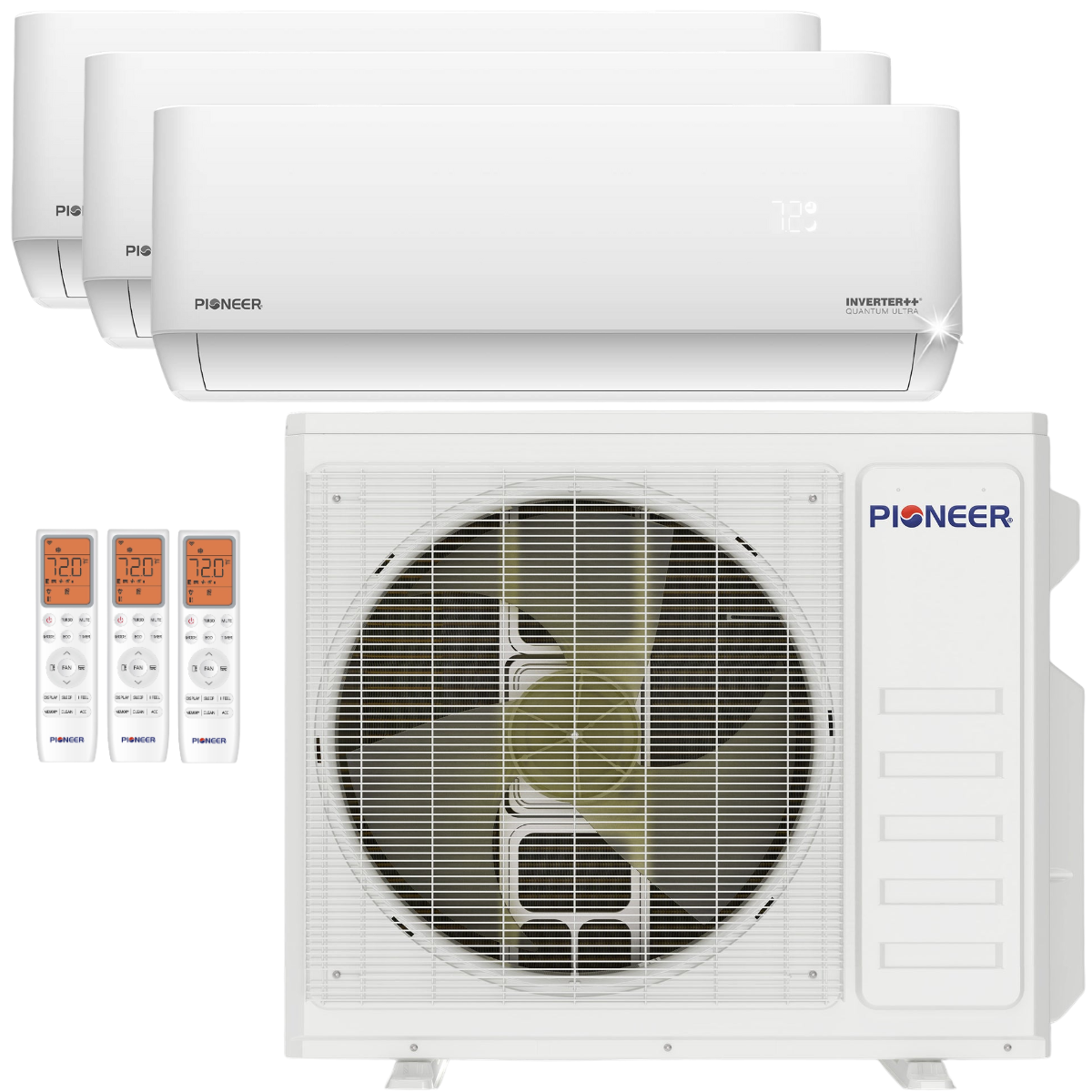

What's In The Box?

Pioneer Quantum Ultra12,000 BTU Air Handler WT012GLSI24HLG (2)
Pioneer Quantum Ultra 9,000 BTU Air Handler WT009GLSI24HLG
Pioneer Quantum Ultra 30,000 BTU Outdoor Condenser YN030GLSI24M3G
Remote Control (3)
Owner's Manual, Guides, and Other Documents

Info & Guides

The Pioneer 33,000 BTU Tri-Zone Quantum Ultra Mini-Split Heat Pump is a ductless heating and cooling solution engineered to balance comfort in three separate spaces. It features variable-speed inverter technology that adjusts the output in real time, delivering reliable performance while keeping energy use in check.

This three-zone system pairs a 30,000 BTU outdoor compressor with two 12,000 BTU air handlers and one 9,000 BTU air handler, giving you the flexibility to heat and cool multiple rooms independently. Whether you're retrofitting an existing home or building out a new property, the Quantum Ultra provides a streamlined approach to year-round climate control.

Key Features and Benefits of the Pioneer 33,000 BTU Tri-Zone Quantum Ultra Mini-Split

Three-Zone Flexibility: Heat and cool three separate 450-square-foot spaces with two 12,000 BTU air handlers, a 9,000 BTU air handler, and a 30,000 BTU outdoor compressor, giving you room-by-room temperature control and helping reduce energy waste in unused spaces.
High Efficiency Operation: This system's 24 SEER2 cooling rating and 10.0 HSPF2 heating performance lowers operating costs compared with traditional split systems, helping you keep operating costs under budget.
Pioneer Inverter++ Compressor: The compressor's patented Pioneer Inverter++ technology automatically scales the output from 30 to 100 percent of capacity as needed, alleviating temperature swings and eliminating the hard start cycles that shorten equipment life.
Eco-Friendly Refrigerant: This model uses R-454B refrigerant, which has a lower global warming potential compared to legacy blends, supporting sustainability goals and regulatory requirements.
Quiet Operation: A 62 dB outdoor and 46 dB indoor max noise level minimizes disturbance in living spaces, offices, and patios.
Wi-Fi Ready Air Handlers: Pair the indoor air handlers with the Pioneer Free Airlink App, Google Assistant, Amazon Alexa, and other third-party voice control apps for remote scheduling, temperature adjustments, and zone monitoring from any smartphone. It also comes with a remote control for each air handler.

Note: This mini-split requires professional installation and does not include the three 1/4 x 3/8" line sets required for installation.

All Weather Ready

Traditional heat pumps often face challenges during extreme temperature swings, but the Quantum Ultra Series is designed to deliver reliable performance when it’s most needed. This system maintains indoor comfort even in temperatures that fall below -13 degrees F or soar up to 131 degrees F. It’s an ideal solution for mountain homes, cold-climate rentals, and light commercial spaces that aim to balance energy efficiency with comfort.

The outdoor compressor housing has a durable powder coating for enhanced corrosion resistance, and the intelligent defrost cycle helps minimize downtime in icy conditions.

Sylvane’s Expert Take

If you need targeted comfort across multiple zones, this Pioneer Ductless Mini-Split is a practical, cost-effective answer. This model's inverter core, Energy Star rating, and eco-friendly R-454B refrigerant check the efficiency boxes professionals care about, while the three air handlers deliver heating and cooling wherever it's needed most.
