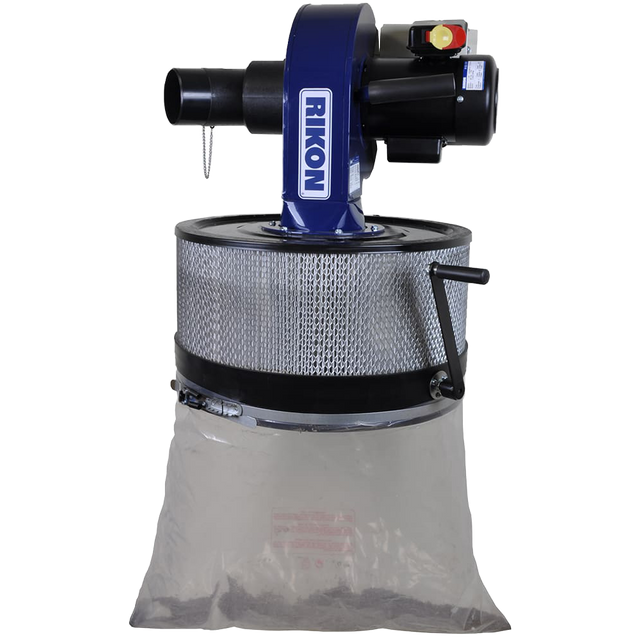

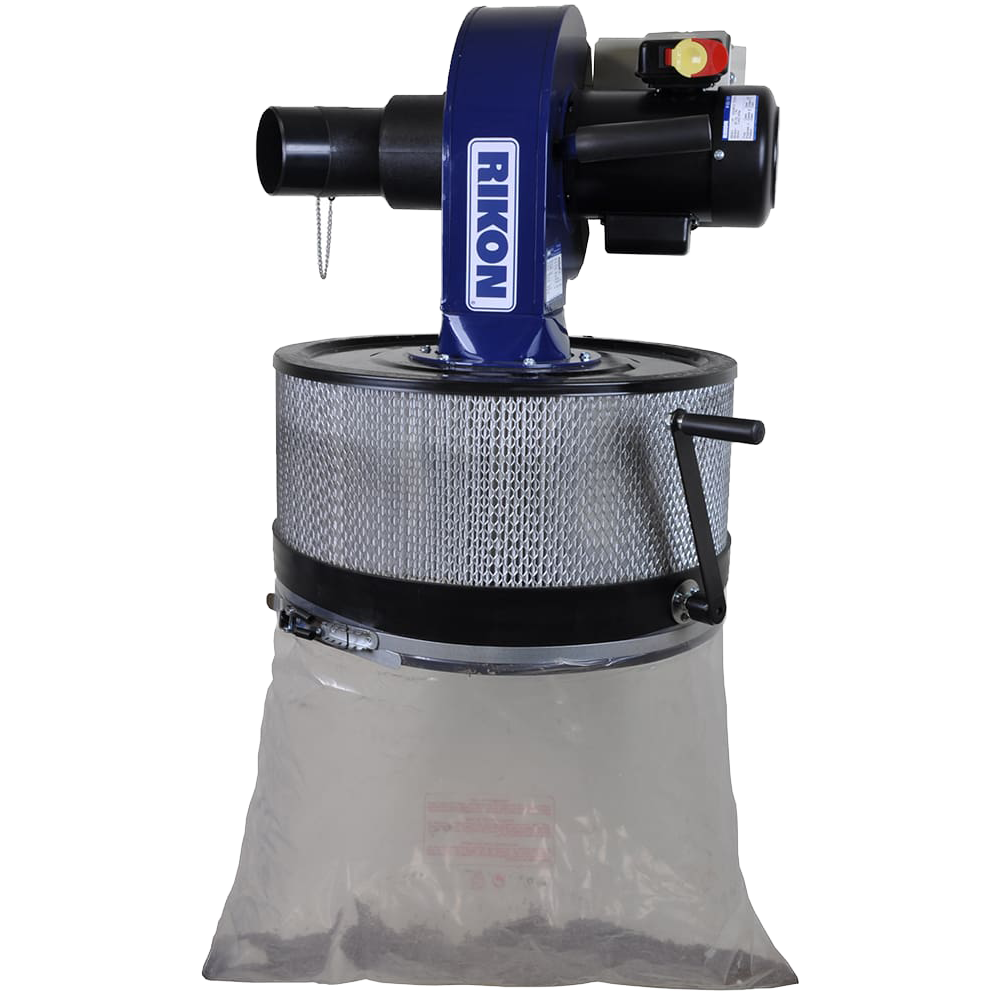

Rikon 60-101 Wall Mounted 1HP Dust Collector
Rikon 60-101 Wall Mounted 1HP Dust Collector is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Rikon 60-101 Wall Mount Dust Collector
- Box 1: Motor and Fan Assembly
- Box 2: Filter Canister and Hardware
- Owner's Manual
Info & Guides
Info & Guides
Rikon 60-101 Wall Mounted 1HP Dust Collector
Description
Description
This Rikon wall-mounted dust collector is ideal for smaller workshops with limited floor space. Its powerful 1-horsepower motor can create an airflow of up to 800 cfm for effective dust collection.
-
Multi-Machine Use: Equipped with a 4-inch “Y” dust fitting and cap, the Rikon 60-101 dust collector can be mounted near the two machines producing the most dust in your woodworking shop.
-
Canister Filter: Captures wood dust down to 1 micron and features hand crank cleaning.
-
Powerful Motor: 1 horsepower totally enclosed, fa-cooled 120V motor produces an airflow of up to 800 CFM.
-

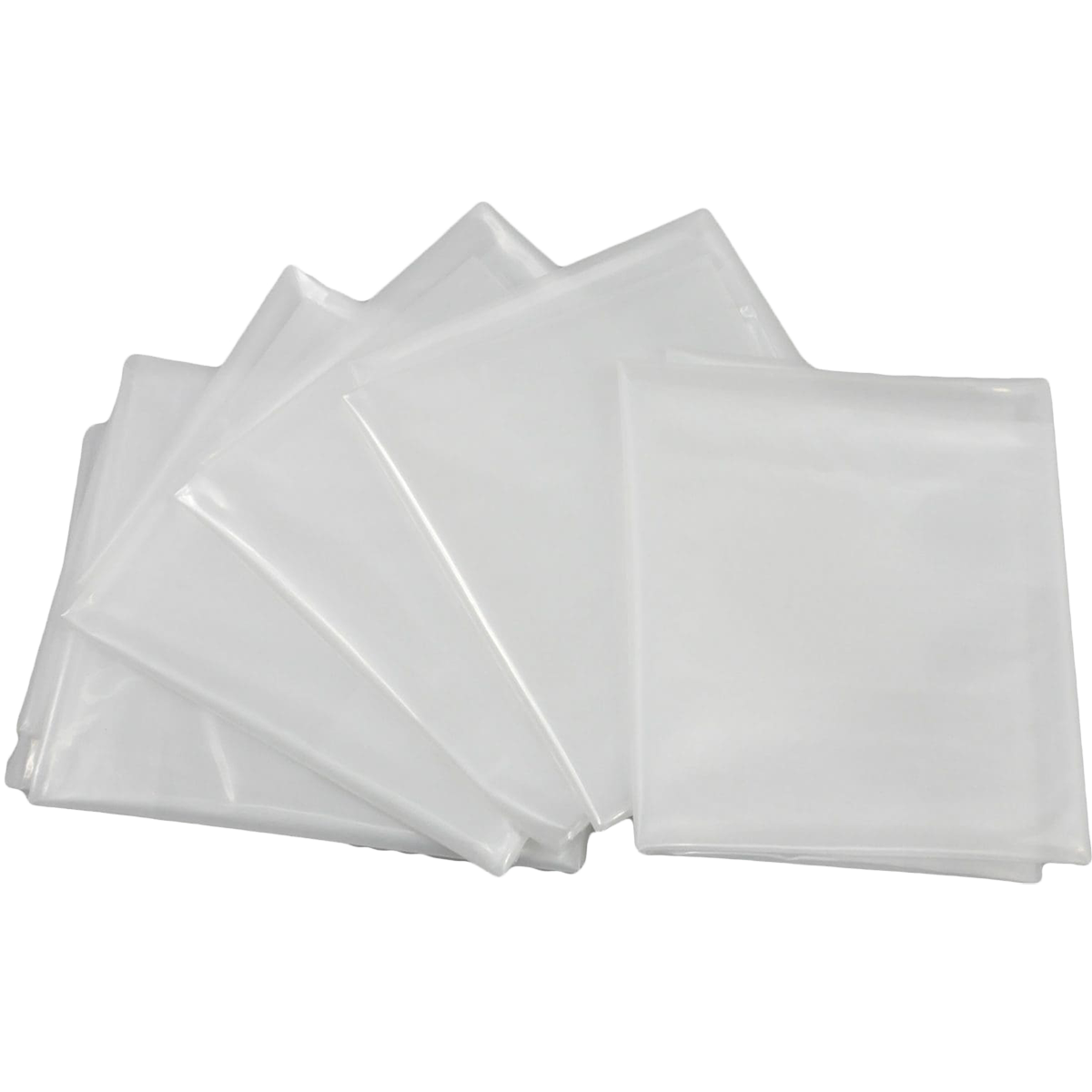

Dust Collection: Plastic debris bag holds 1.5 cubic feet of chips and debris.
Space Saving Dust Collection
The Rikon 60-101 dust collector is wall-mountable and can be placed near machines in your workshop that produce the most dust and debris, like bandsaws, planers, jointers, and sanders.
-
Dual Use: The “Y” fitting has dual 4-inch inlets, which can be used for two machines. The attached cap can be fitted over the unused inlet, while the other is attached to a hose connected to the machine’s dust port.
-
Single Use: Use without the "Y" fitting for the straight 5-inch inlet.
-
Massive Suction: A spiral 10-inch impeller creates huge suction of 800 CFM (4-inch inlet) or 1,100 CFM (5-inch inlet) to effectively suck dust and chips into the plastic collection bag.
Note: Dust hoses and clamps are not included with the dust collector.
Locking Safety Switch
This dependable dust collector has a toggle-locking power switch. The center safety key prevents unauthorized use and must be inserted before the machine can be powered on.
Grounding the ductwork with a copper wire is essential for safe operation, and the manual includes specific instructions for accomplishing this.
Additional Specifications
-
Motor: 1 horsepower
-
Power: 7 A, 120 V, 3,450 rpm
-
Blower Wheel: 10 in. and made of aluminum
-
Capacity: 1.5 cubic feet in a disposable plastic collection bag
-
Sound: <86.375 dB at 6 ft.
Summary
The Rikon wall-mount dust collector can be used for a single machine or with the included "Y" fitting for dual machines. It features a powerful 1 horsepower motor for maximum airflow, a 1-micron canister dust filter, and a 1.5 cubic foot collection capacity.
Specifications
Specifications
-
Filtration SystemPre-Filter
-
Number of Speeds1
-
TypeAir Scrubber, Portable
-
California Residents⚠ WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles. For more information go to www.P65Warnings.ca.gov/wood.www.p65warnings.ca.gov.
-
ColorBlue
-
ControlsToggle Switch
-
Maximum Cubic Feet per Minute (CFM) (CFM)1100.0
-
Maximum Noise Level (dB)86
-
Number of Filters to Change1
-
Ozone EmissionNone
-
Pre-Filter Type1 Micron Bag
-
Recommended ForWoodworking, Commercial/Industrial, Garage/Workshop
-
Amperage (Amps)7
-
Voltage (V)110-120
-
Depth (in.)23.5
-
Depth (with front cover) (in.)23.5
-
Height (in.)46.0
-
Height (with front cover) (in.)46.0
-
Weight (lbs.)61
-
Width (in.)21.0
-
Width (with front cover) (in.)21.0
-
Manufacturer's Warranty5-Year Manufacturer's Warranty
Key Specifications
General
Power
Dimensions
Warranty
Recommended Accessories
-
Rikon

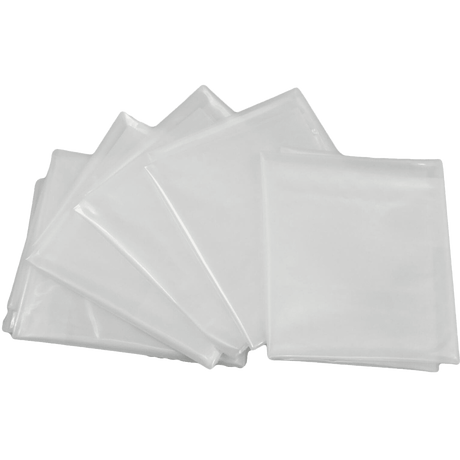

60-904 Plastic Dust Bag for 60-101 Wall Mount 1HP Dust Collector
