Senville 36,000 BTU 3 Ton Central Split Ducted System w/ Inverter & Heat Pump

SKU: sv15048  |  Model: SENDC-36HF-15K-50
$3,449.99

FREE shipping on orders over $45!

In Stock Usually ships in 2 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

10-Year Compressor Warranty
5-Year Parts Warranty

What's In The Box?

  • Senville Indoor Air Handler
  • Senville Outdoor Unit
  • Owner’s Manual
  • Installation Kit
  • Line set
  • Remote Control
  • Wired Controller

Info & Guides

Description

The Senville 36,000 BTU Central Split Ducted System is a powerful, Energy Star-rated climate control solution that is easy to install and maintain. It offers optional auxiliary heat and leading comfort technology.

  • Central AC Efficiency: This system offers the power and comfort of a ducted central air system with the Energy Star-rated efficiency of a mini-split design. It has a rating of 17.2 SEER2 (Seasonal Energy Efficiency Ratio 2) and 10.3 HSPF2 (Heating Seasonal Performance Factor 2).

  • Powerful Heat and Cold: Heat or cool spaces as large as 2,000 square feet with 36,000 BTUs.

  • Seamless Integration: The system integrates seamlessly with existing home ducting and controls.

  • Refrigerant: R-454B

  • Inverter Technology: A state-of-the-art variable-speed compressor with “Arctic Inverter Heat Pump” technology performs flawlessly even when outdoor temperatures drop to -22 degrees F.

  • Certifications: UL, AHRI (Air-Conditioning, Heating, and Refrigeration Institute), NEEP (Northeast Energy Efficiency Partnerships), and Energy Star.

Note: Professional Installation is required for this unit.

Available Models

The Senville 36,000 BTU Central Air Conditioner is available with a 10KW or 15KW auxiliary heater or without auxiliary heat. All models can be selected with a 16-foot or 50-foot installation kit.

Flexible Installation

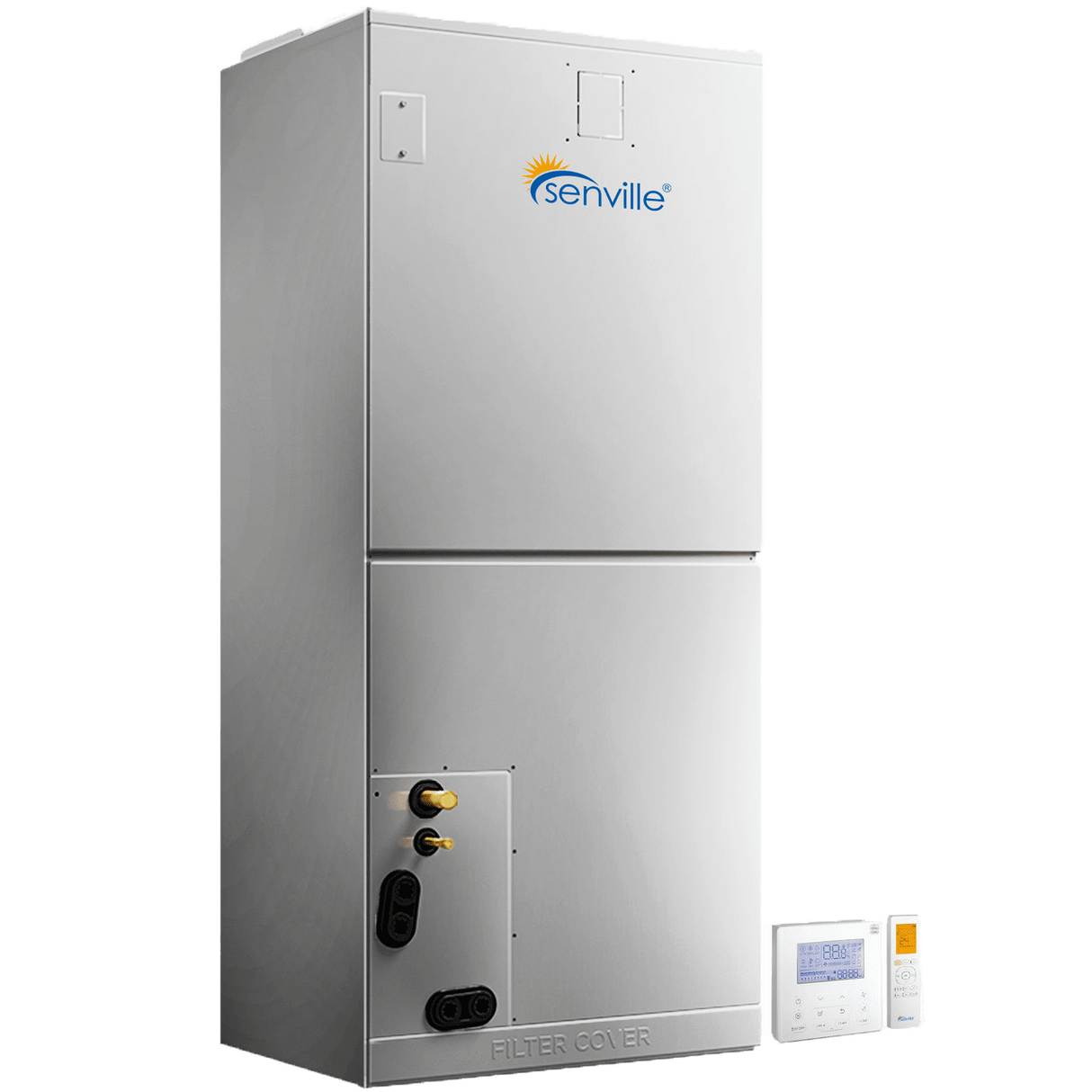

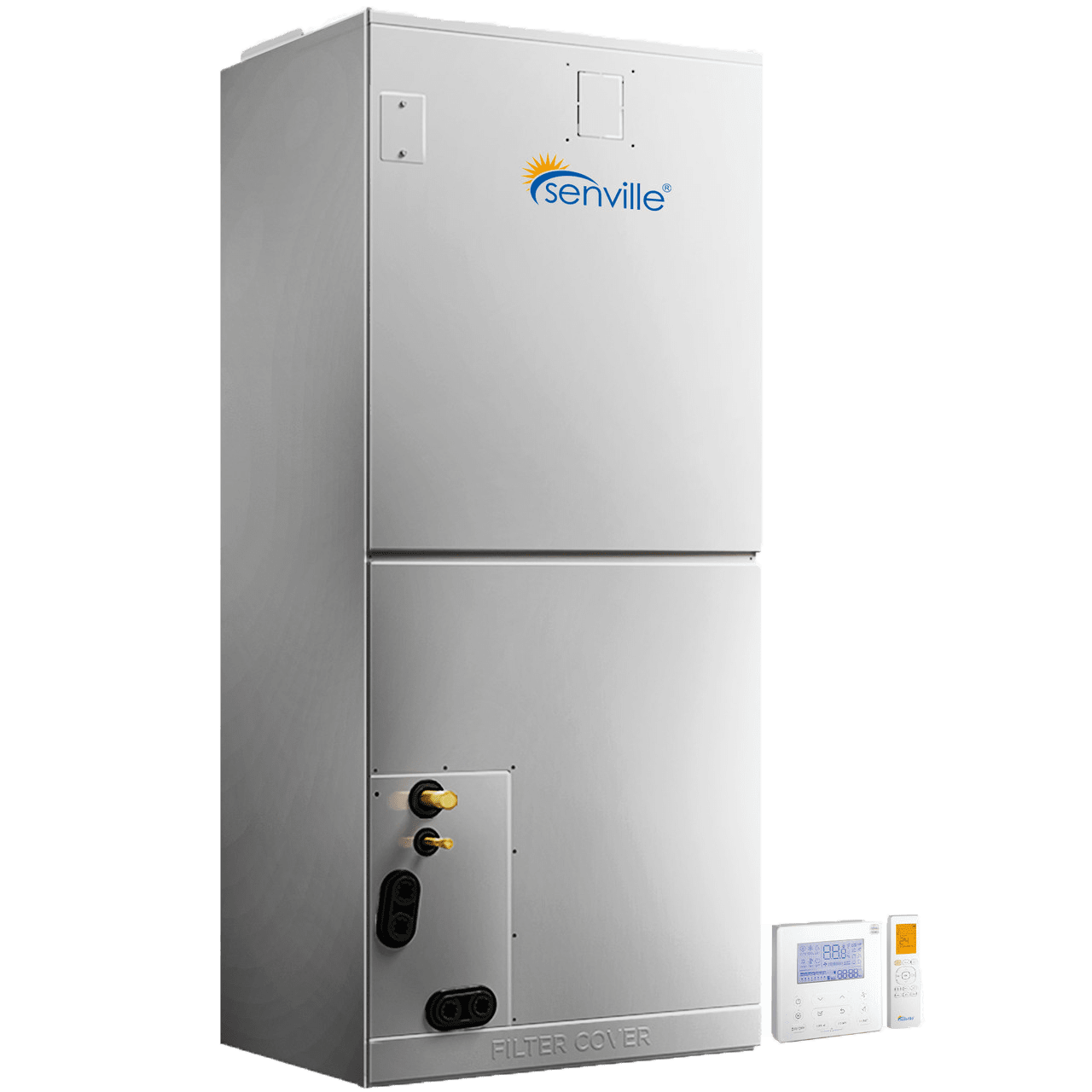

Connect this Senville system directly to existing or new home ducting with the compact indoor air handler that can be installed vertically or horizontally, making it great for attic and basement installs.

This system also includes an outdoor unit designed to have a much smaller footprint (16.3 inches) compared to other traditional HVAC units.

Optimized Home Comfort

Enjoy a stable temperature in all ducted rooms thanks to Senville’s home comfort algorithm and onboard technology, which optimizes airflow delivery and maintains a stable temperature. The system also features lightning-fast cooling and heating, with nearly silent operation.

Easy Maintenance

Senville designed this system not only to make installation painless but also to facilitate regularly scheduled maintenance. The indoor unit is constructed of easily separated pieces, making error detection and maintenance a breeze. The outdoor unit’s side airflow discharge design reduces cleaning issues commonly caused by snow, debris, and dust.

Sylvane's Expert Take

The Senville 36,000 BTU Central Split Ducted System is a powerful climate control solution for homes and commercial spaces up to 2,000 square feet.

Specifications

    Key Specifications

    • Energy Efficiency Ratio 2 (EER2)
      11.7
    • Number of Speeds
      3
    • Seasonal Energy Efficiency Ratio 2 (SEER2)
      17.4
    • Total Cooling Capacity (BTUs)
      47400
    • Total Heating Capacity (BTUs)
      57200
    • Type
      Central Split

    General

    • Auxiliary Heat
      15 kW / 50: 15 kW
      15 kW / 16: 15 kW
      10 kW / 50: 10 kW
      10 kW / 16: 10 kW
      None / 16: None
      None / 50: None
    • California Residents
      ⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
    • Certifications
      UL, AHRI
    • Color
      Gray
    • Compressor Type
      Inverter
    • Heat Mode
      Yes
    • Heating Seasonal Performance Factor 2 (HSPF2)
      9.5
    • Installation Type
      Professional Installation
    • Line Length Option
      None / 16: 16 ft
      None / 50: 50 ft
    • Max Noise Level (dB)
      45
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      1188.0
    • Maximum Indoor Noise Level (dB)
      45
    • Maximum Operating Temperature - Cooling (degrees F)
      122
    • Maximum Operating Temperature - Heating (degrees F)
      86
    • Minimum Operating Temperature - Cooling (degrees F)
      5
    • Minimum Operating Temperature - Heating (degrees F)
      -22
    • Number of Tons
      3
    • Refrigerant Type
      R-454B

    Power

    • Voltage (V)
      208-230

    Dimensions

    • Included Line Length (ft.)
      15 kW / 50: 50
      15 kW / 16: 16
      10 kW / 50: 50
      10 kW / 16: 16
      None / 16: 16
      None / 50: 50
    • Indoor Unit Depth (in.)
      21
    • Indoor Unit Height (in.)
      49
    • Indoor Unit Weight (lbs.)
      129
    • Indoor Unit Width (in.)
      21
    • Maximum Line Length (ft.)
      213
    • Outdoor Unit Depth (in.)
      16
    • Outdoor Unit Height (in.)
      15 kW / 50: 52
      15 kW / 16: 52
      10 kW / 50: 52
      10 kW / 16: 52
      None / 16: 38.4
      None / 50: 52
    • Outdoor Unit Weight (lbs.)
      227
    • Outdoor Unit Width (in.)
      37.5

    Additional Features

    • Additional Features
      Remote Control, Energy Star, Line Set Included

    Warranty

    • Manufacturer's Warranty
      10-Year Compressor Warranty 5-Year Parts Warranty
