Senville Leto 9,000 BTU Mini Split Heat Pump 115V

SKU: sv14939k | Model: SENL-09CD-25

$799.00 $899.99

Line Set Length:

16 ' 25 ' 50 '

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

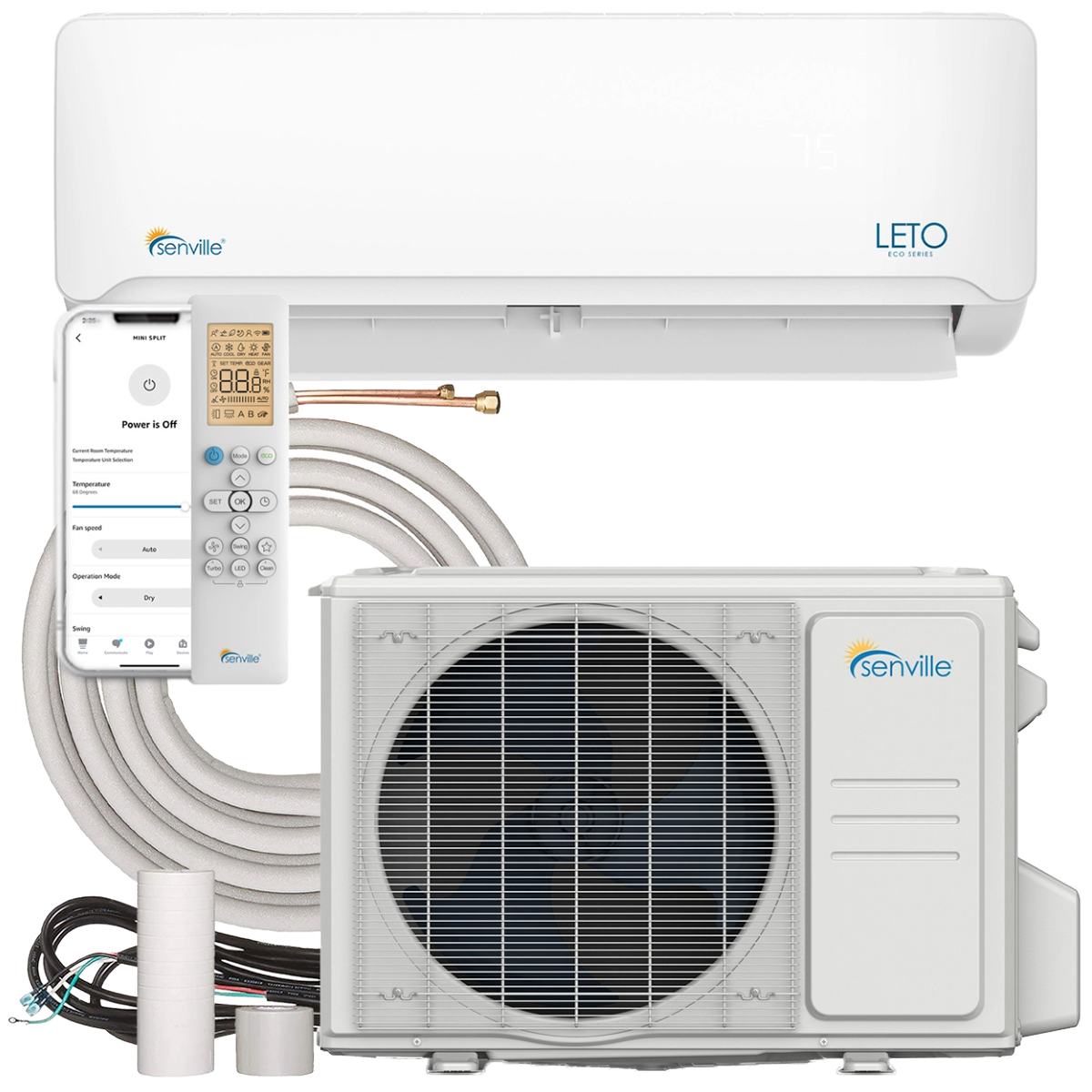

What's In The Box?

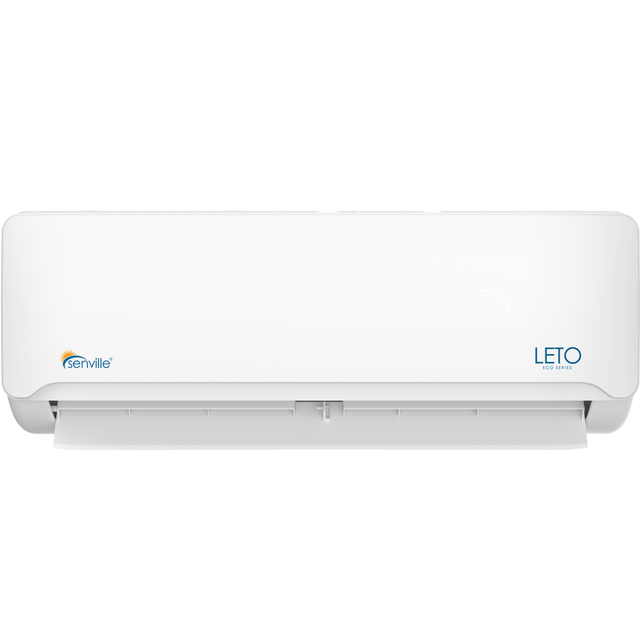

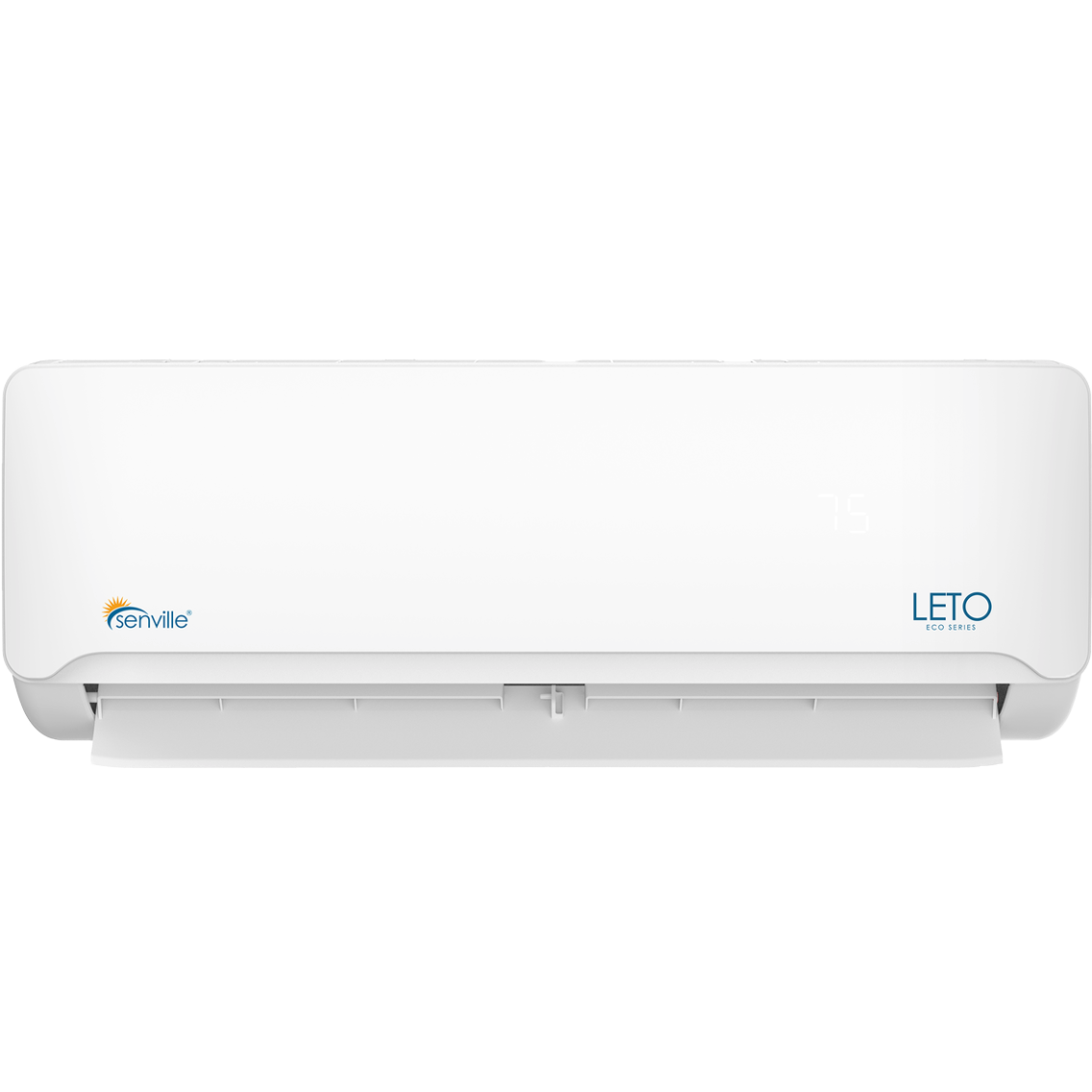

Senville 9,000 BTU Wall-Mounted Air Handler SENL-09CD-IX

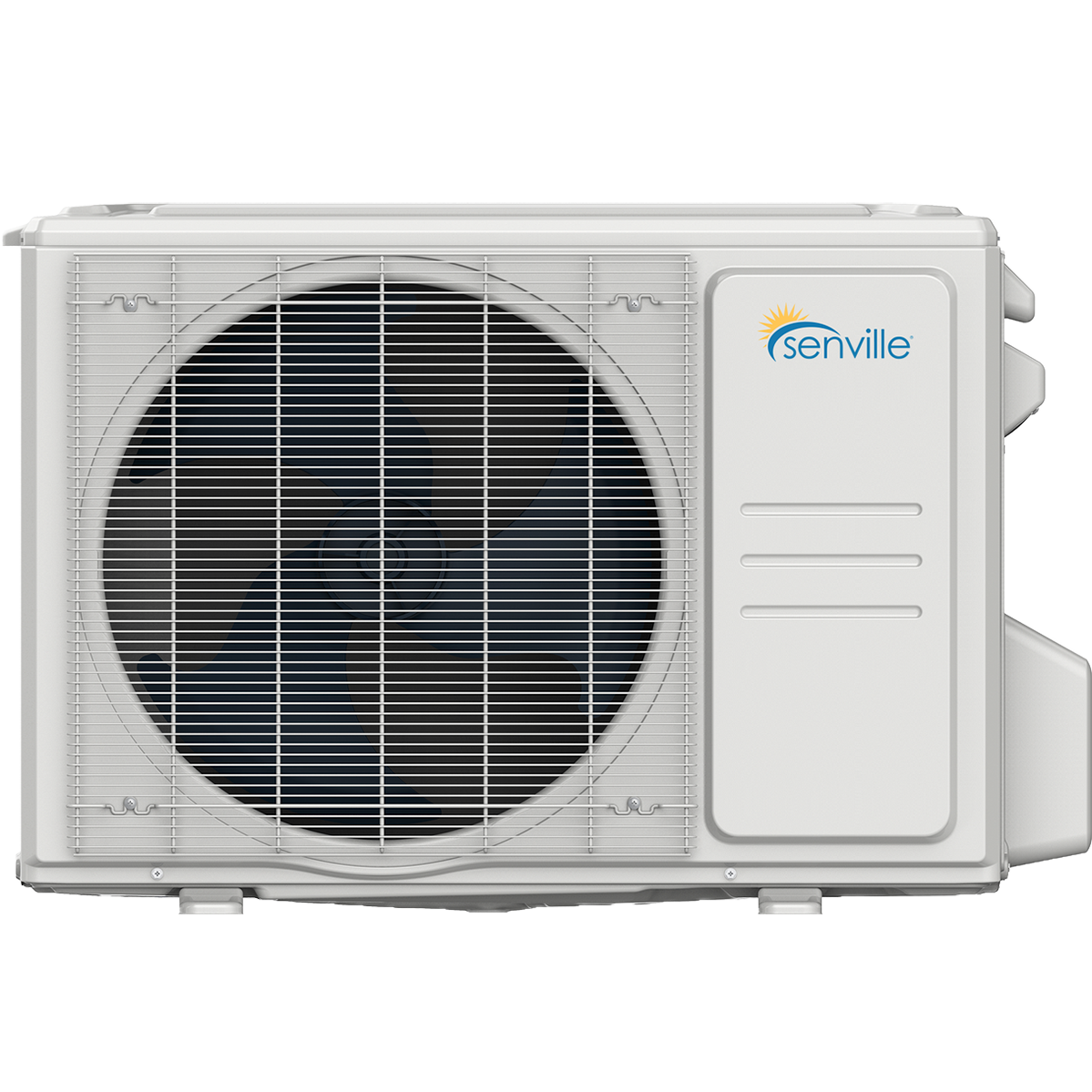

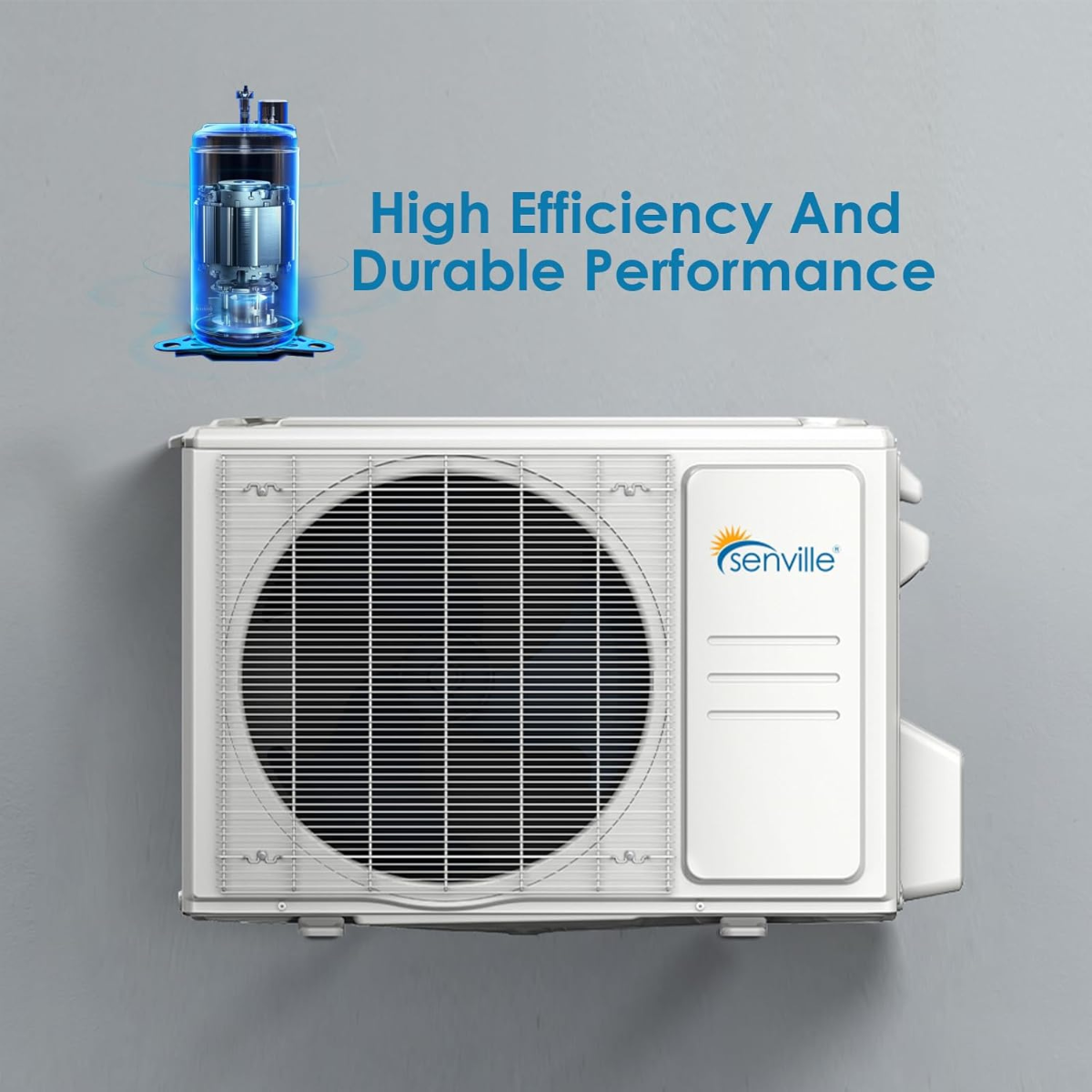

Senville 9,000 BTU Outdoor Condenser SENL-09CD-OY
16, 25, or 50-Foot Line Set
Remote Control
Indoor to Outdoor Wiring Harness
Alexa USB Kit
Installation Hardware
Owner's Manual, Guides, and Other Documents

Info & Guides

Perfect for small residential spaces like home offices, bedrooms, dens, and more, the Senville Leto 9,000 BTU Mini-Split Heat Pump with Wi-Fi provides comfort every day of the year to rooms as large as 400 square feet. Delivering more than cooling and heating, this unit has multiple operating modes and can be controlled from anywhere with a smartphone. An energy-saving comfort solution, it features impressive energy efficiency ratings.

Multiple Operating Modes

When it comes to keeping single rooms comfortable all year long, use the multiple functions offered by the Senville LETO Series.

Cooling: Packing an impressive 9,000 BTUs of cooling power, you’ll keep bedrooms, offices, and more comfortable all summer long. The SEER2 rating for this mini-split is 21.5.
Heating: When winter temperatures strike, stay warm indoors by setting the temperature between 62 and 86 degrees Fahrenheit. This mini-split has an HSPF4 rating of 10.
Dehumidifies Too: If your space starts to feel a little muggy, turn to dry mode and remove excess moisture from your space.
Auto Mode: Choose your desired temperature and let this mini-split choose the best operating mode to achieve it.

Operate From Anywhere

Wi-Fi enabled, this system can be operated and monitored from a smartphone or tablet with the Alexa app or voice control using an Alexa-enabled device.

115V for Residential Applications

The Leto 9,000 BTU 115V mini-split is designed to be hardwired to a residential standard 115V power system. With its maximum Cooling Amperage of 6.26 A and maximum heating Amperage of 8.7 A, it easily cools and heats your space without using a significant amount of power, saving electricity and money every month.

Installation Kit Included

These units come pre-charged with R454B refrigerant and include a 16-foot 1/4 x 3/8" line set and the necessary piping for installation and hook-up. Senville models come equipped and ready for installation from the moment you arrive at your door, with minimal additional cost.

Note: Installation by a licensed professional is required.

Additional Features

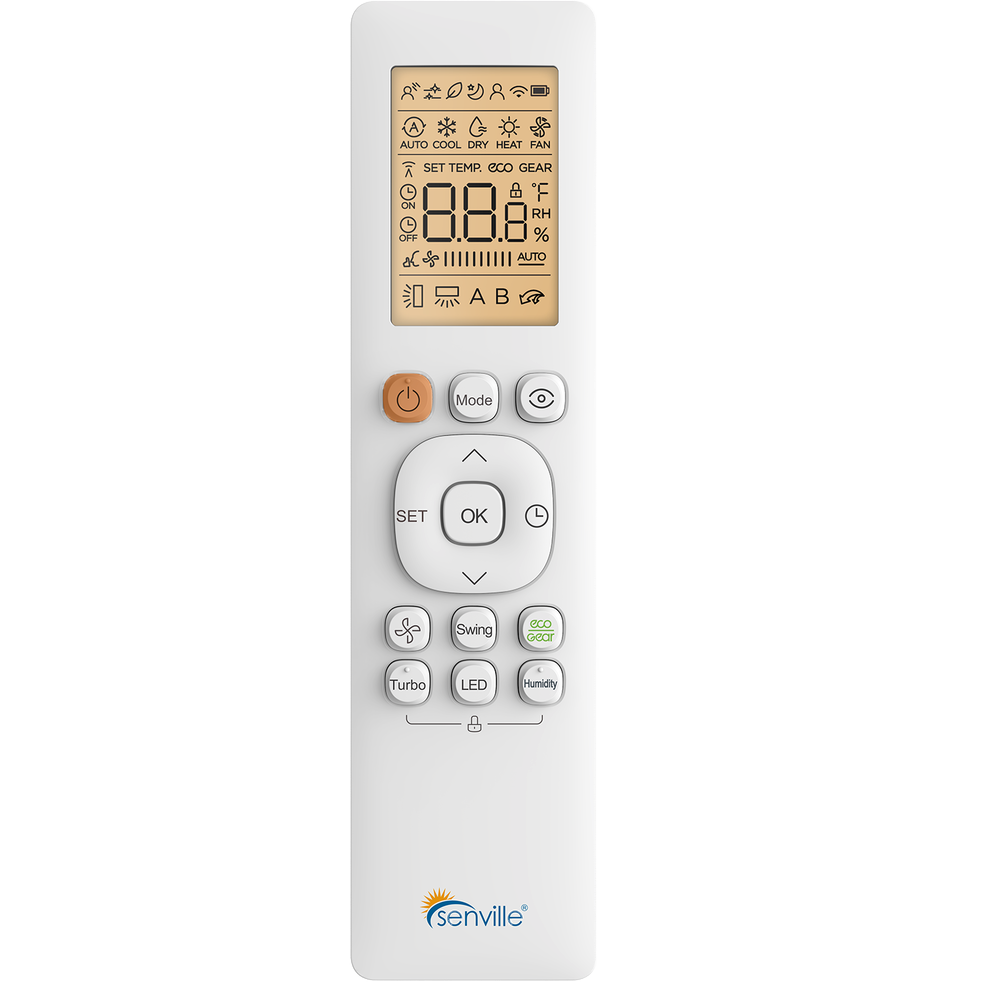

Remote Control: Operating this mini split from Senville is simple thanks to an included remote control.
Sleep Function: Reduce energy usage without interrupting your rest by allowing the unit to automatically adjust the temperature while you sleep.
ECO Mode: Select this setting for conserving energy, and the air conditioner will set the unit to achieve an efficient temperature of 75 degrees Fahrenheit.
Turbo Button: Allows the mini-split to achieve your set temperature in the fastest time possible.
Multi-Speed Fan: You can manually select from multiple fan speeds, including low, medium, high, and automatic.
Automatic Restart: If the air conditioner loses power, it will automatically restart with the prior settings once power has been restored.
Angled Air Flow: You can manually set the horizontal angle of the flow on the indoor unit and use the remote control to adjust the vertical airflow.

Summary

Quickly cool, heat, dehumidify, and more in small single rooms with this powerful yet efficient 9,000 BTU smart mini-split from Senville.

Key Specifications

Energy Efficiency Ratio (EER)

12.5
Energy Efficiency Ratio 2 (EER2)

12.5
Mounting Type

Wall
Number of Speeds

3
Seasonal Energy Efficiency Ratio 2 (SEER2)

21.2
Total Cooling Capacity (BTUs)

9000
Total Heating Capacity (BTUs)

10000

General

Certifications

ETL
Color

White
Compressor Type

Inverter
Heat Mode

Yes
Installation Type

Professional Installation
Line Length Option

25 ft
Maximum Cubic Feet per Minute (CFM) (CFM)

247.0
Maximum Indoor Noise Level (dB)

38
Maximum Operating Temperature - Cooling (degrees F)

122
Maximum Operating Temperature - Heating (degrees F)

86
Minimum Operating Temperature - Cooling (degrees F)

5
Minimum Operating Temperature - Heating (degrees F)

5
Number of Zones

1
Recommended Coverage Area (sq. ft.)

400
Refrigerant Type

R-454B
Zone Cooling Capacity (BTUs)

9000
Zone Heating Capacity (BTUs)

10000
California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.

Power

Maximum Cooling Amperage (Amps)

6.26
Maximum Cooling Wattage (W)

720
Maximum Heating Amperage (Amps)

8.7
Maximum Heating Wattage (W)

1000
Voltage (V)

110-120

Dimensions

Indoor Unit Depth (in.)

7.36
Indoor Unit Height (in.)

11.42
Indoor Unit Weight (lbs.)

16.98
Indoor Unit Width (in.)

28.43
Maximum Line Length (ft.)

50
Outdoor Unit Depth (in.)

11.93
Outdoor Unit Height (in.)

21.85
Outdoor Unit Weight (lbs.)

55
Outdoor Unit Width (in.)

30.12

Additional Features

Additional Features

16 ': Remote Control, Wi-Fi Capable, Applicable for Indoor Growing, Pre-charged Refrigerant

25 ': Remote Control, Wi-Fi Capable, Line Set Included, Applicable for Indoor Growing, Pre-charged Refrigerant
