S&P PV-125X Powervent 5-in Inline Centrifugal Duct Fan

Name: S&P PV-125X Powervent 5-in Inline Centrifugal Duct Fan
Brand: S&P
Price: 214.0 USD
Availability: InStock

SKU: sp15695 | Model: PV-125X

$214.00

Add extended protection plan. (Select one)

1-Year Replacement Extended Warranty - $24.99

learn more

A 1-year replacement warranty plan for commercial or residential use items under $250.

2-Year Replacement Extended Warranty - $29.99

learn more

A 2-year replacement warranty plan for commercial or residential use items under $250.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

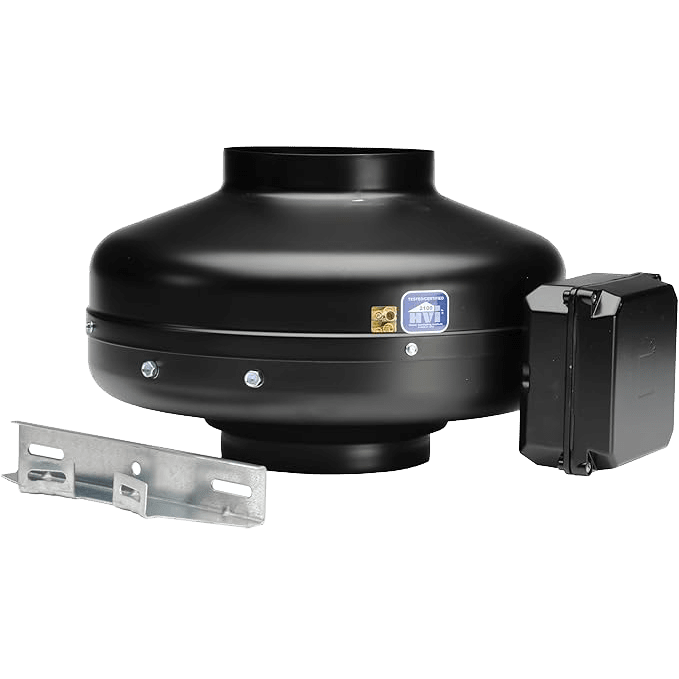

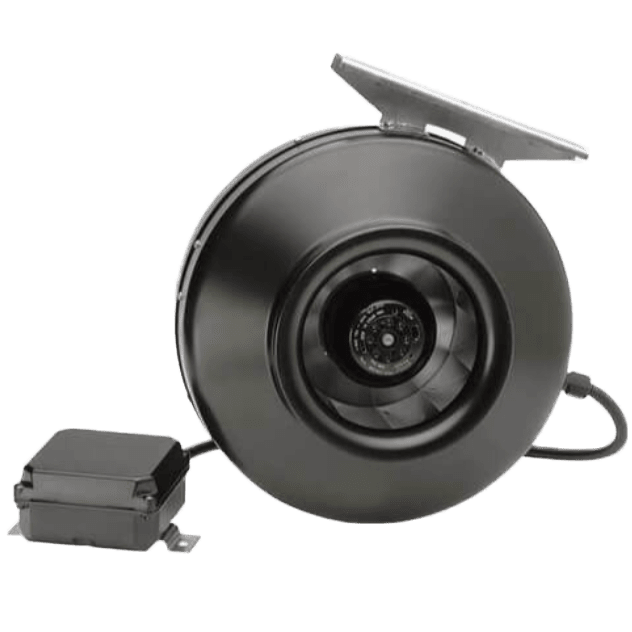

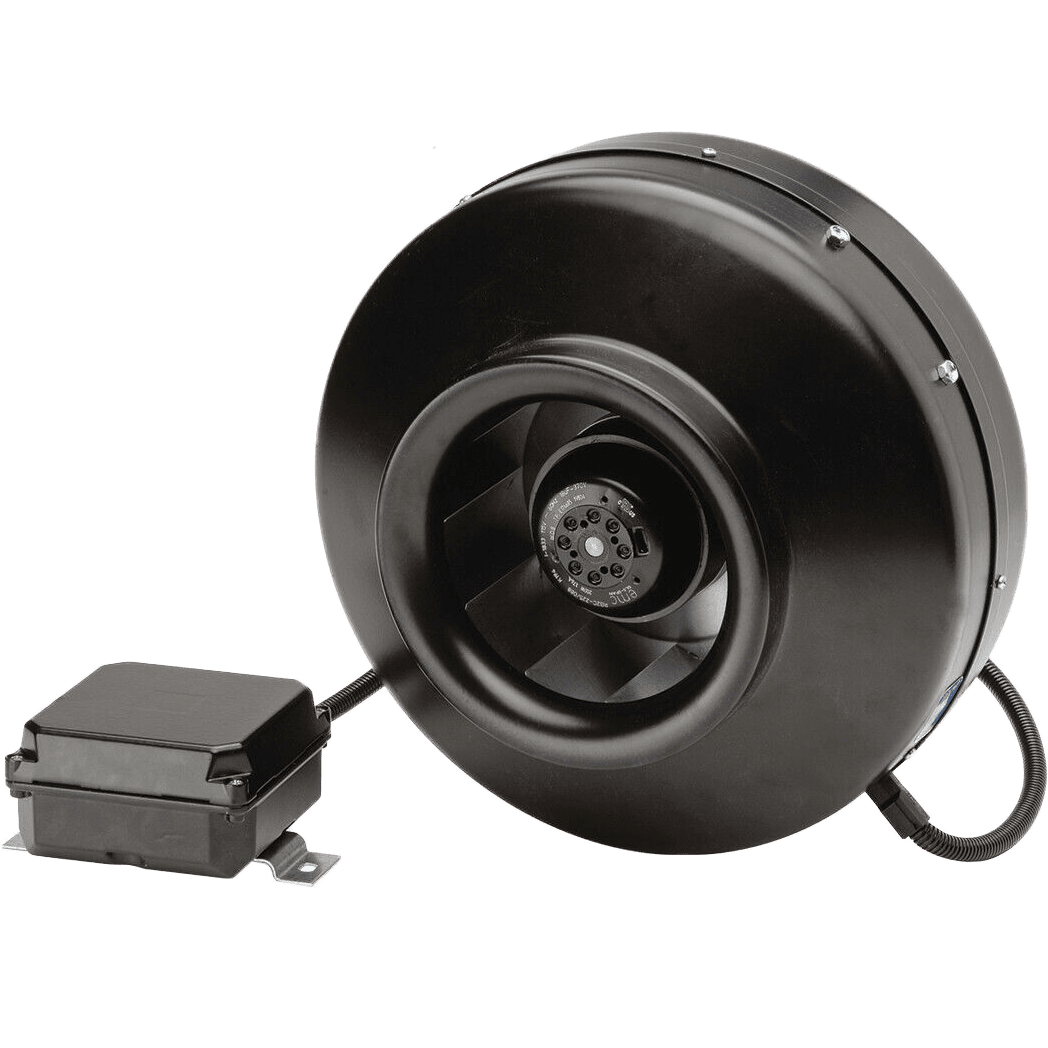

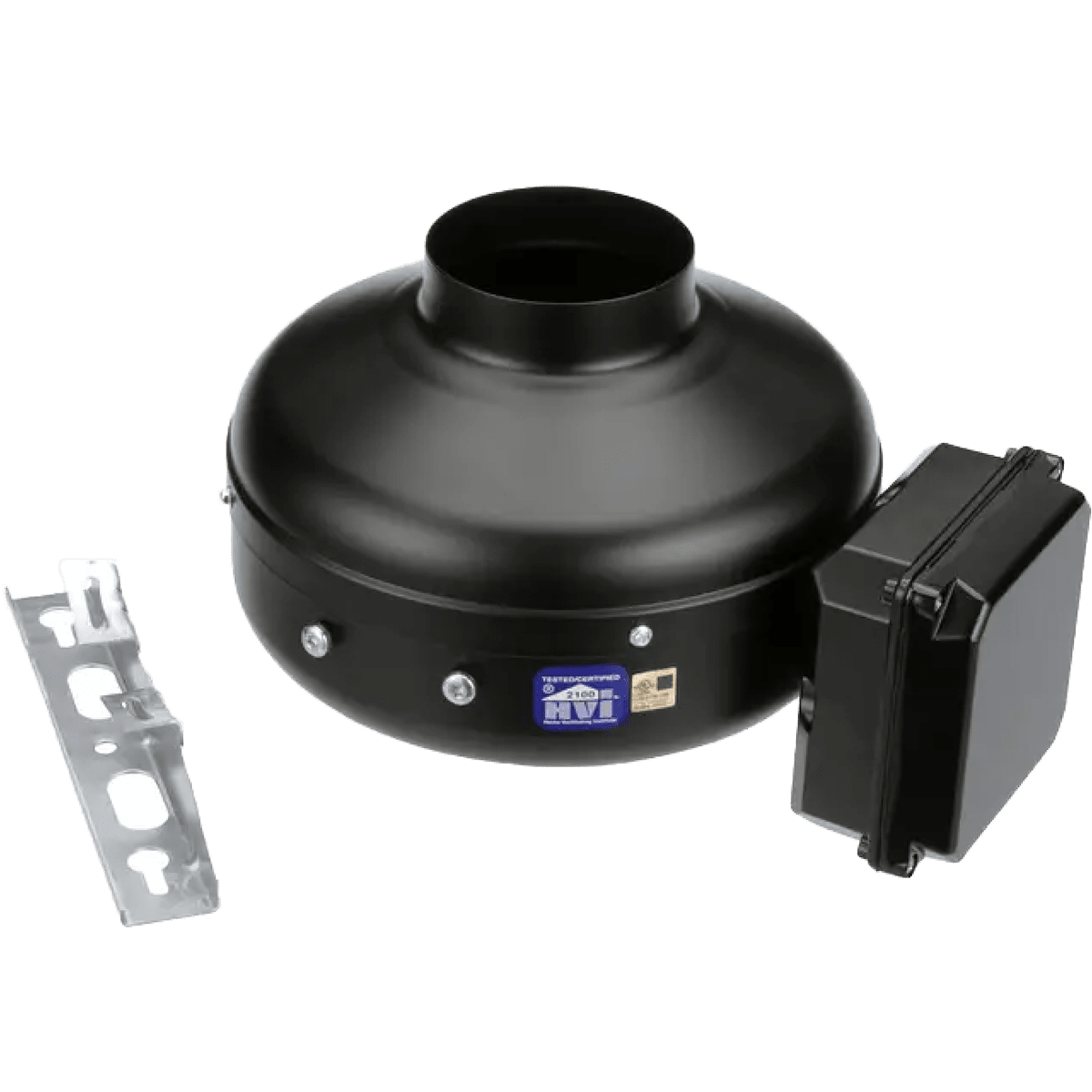

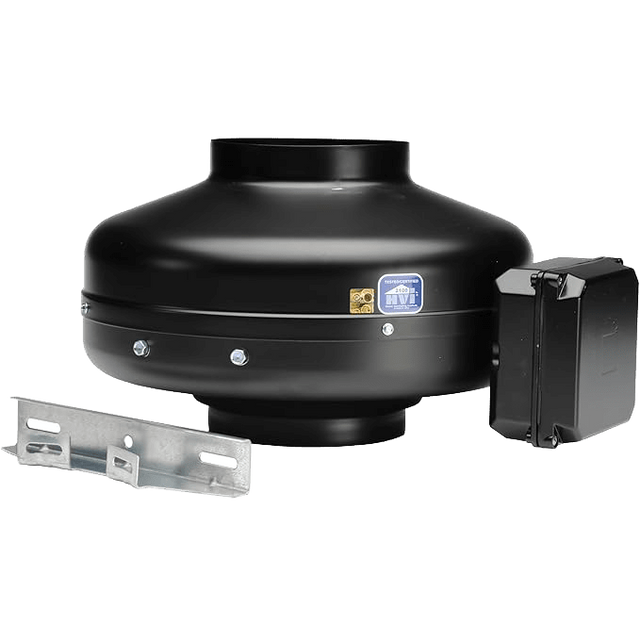

S&P PV 125X Powervent 5-in. Inline Centrifugal Duct Fan
Pre-wired Junction Box
Mounting Bracket
Owner’s Manual

Info & Guides

Description

The S&P PV-125X Powervent 5-inch Inline Centrifugal Duct Fan helps cool spaces passively and can also be used with more complex ventilation systems. Designed for use with standard 5-inch diameter round ducting, this inline duct fan provides up to 206 CFM of airflow.

Durability: The galvanized steel casing with a baked enamel coating is designed to last.
Versatile: The PV-125X can be mounted at any angle and at any point along the duct.
Simple Installation: Pre-wired junction box and the extra-long inlet and discharge collars make installing this duct fan easy. A steel mounting bracket is included.

Exceptional Airflow

The powerful external rotor motor has been factory-matched to a non-overloading backward curved centrifugal fan wheel to deliver better airflow. The dynamically balanced motor eliminates vibration and features safety thermal overload protection with automatic cut-out.

This completely enclosed permanent split capacitor start and run external rotor motor combination provides several benefits.

Airflow: Designed for excellent performance against the typically high static pressure found in ducted ventilation systems.
Durable for Long Life: With sealed-for-life bearings, the Powervent inline duct fan will never require lubrication and is designed for continuous operation for up to 40,000 hours.
Protection: The fully enclosed motor is also protected from moisture, lint, and high-particulate air.
Full Speed Control: Control fan speed using voltage or frequency control regulators.

Additional Features

Fast Installation: A strong galvanized steel mounting bracket and pre-wired junction box are included for fast installation.
Working Temperature: The S&P inline duct fan can operate up to 158 degrees F in working airstreams.
Standard Electrical: Inline duct fan operates on a 115 volt/60Hz single phase standard electrical connection.
Safety Listed: UL and cUL listed, ETL listed.
Airflow Tested: Bears the AMCA seal and is certified by the HVI (Home Ventilating Institute) for air performance.

Sylvane’s Expert Take

Customer’s will appreciate the motor design of this S&P inline duct fan, which features a permanently sealed rotor motor and backward curved centrifugal fan wheel. It can withstand high static pressure and delivers outstanding airflow for cooling or ventilation in 5-inch ducting applications.

High Performance: S&P’s durable motor design creates impressive airflow and provides versatile placement/mounting options. Pre-wired junction box and mounting bracket make this duct fan fast and simple to install.
Dependable and Maintenance Free: Totally enclosed motor with permanent ball bearings never needs lubrication and is protected from external damage.
