S&P reFresh RF10 Full Size Air Supply Fan w/ EC Motor
S&P reFresh RF10 Full Size Air Supply Fan w/ EC Motor - Hardwired with ES24V is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- S&P RF10 reFresh Full Size Filtered Air Supply Fan w/ EC Motor
- Envirosense ES24V Controller (optional)
- Power Cord (optional)
- Mounting Brackets (2)
- Owner’s Manual with Installation Instructions
S&P reFresh RF10 Full Size Air Supply Fan w/ EC Motor
Description
Description
The S&P RF10 reFresh Full-Size Air Supply Fan with EC Motor revives your space with fresh outside air and removes stale indoor air. The reFresh series features an integral backdraft damper and mounting tabs that allow mounting in any orientation, making installation easy while fitting 6-inch round ducts. The centrifugal fan within is a backward inclined wheel for an angle to improve efficiency. This 10-inch, all-in-one unit is available with or without a power cord or controller.
- EC Motor: The high-quality EC impeller motor is a 4-pole, permanently lubricated, thermally protected motor protected by an inlet guard.
- Speed Controllable: An internally mounted speed control sets the required intake at low (40 CFM), medium (100 CFM), and high (170 CFM). A built-in test port is easy to access for quick airflow measurement.
- Solid Construction: This fresh air supply fan is made with galvanized 26-gauge steel. It has an insulated housing and sealed-for-life bearings.
- Optional Air Filter: A 2-inch-wide air filter slot fits a MERV 8 or MERV 13 air filter, which reduces allergens and fine dust as fresh air flows through the building. Both filters are available for purchase separately.
Available Models
Choose the best model to fit your installation requirements:

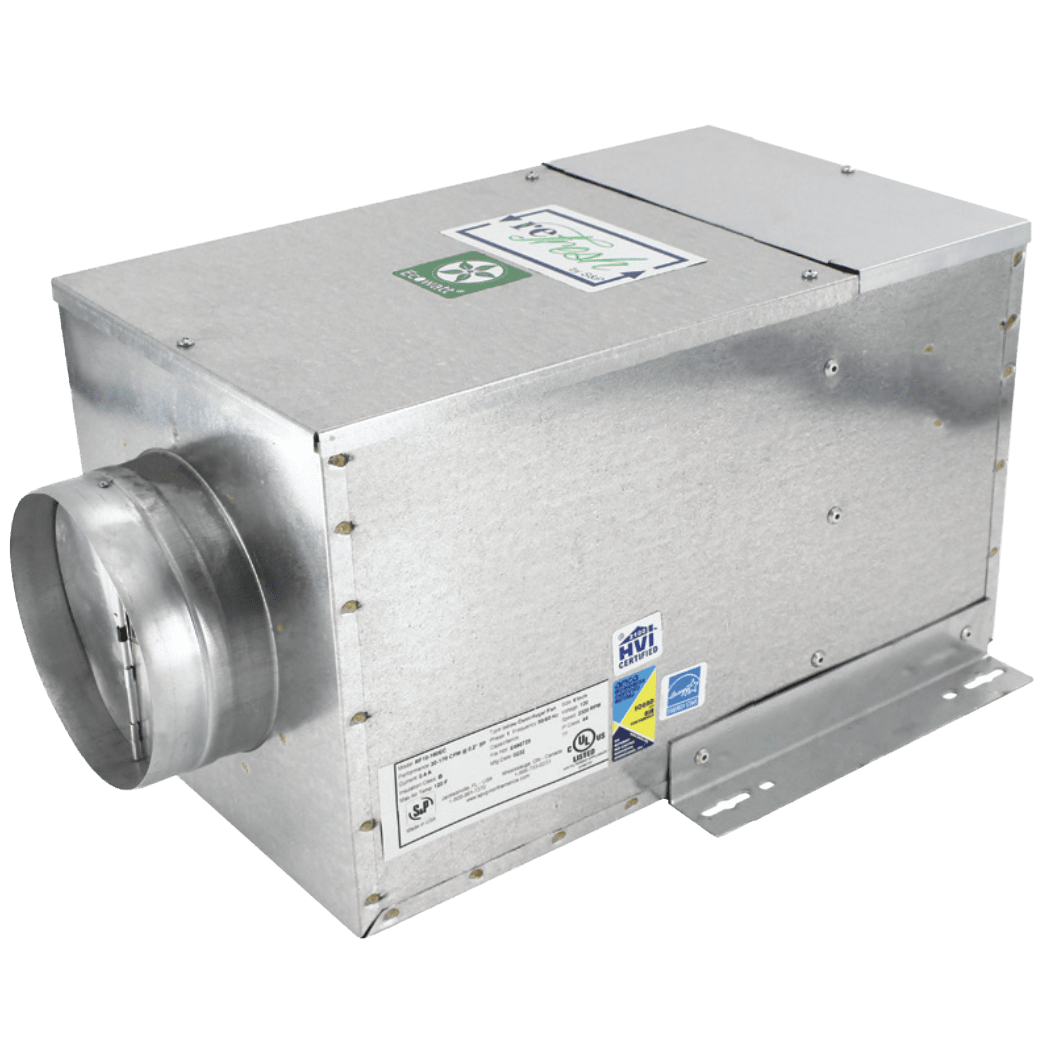

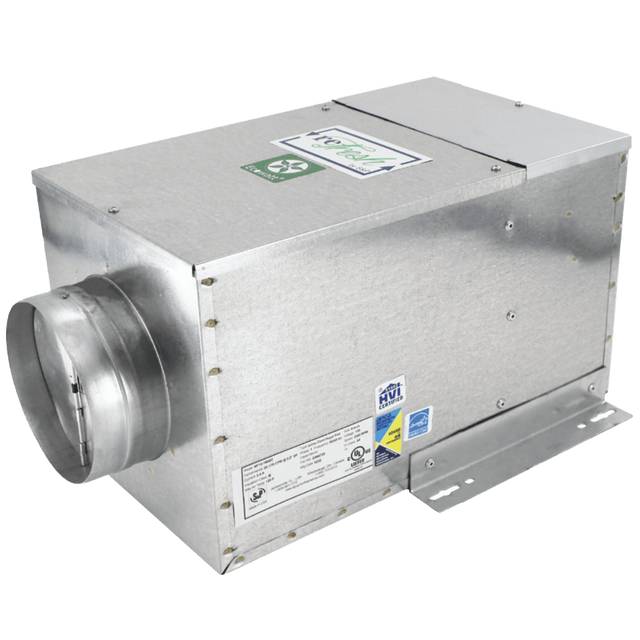

- Power Cord (RF10-160EC): This supply fan includes a 6-foot-long power cord.
- Power Cord with ES24V (RF10-160EC-ES24V): This fan includes the Envirosense ES24V controller and a 6-foot power cord.
- Hardwired (RF10-160EC-P): This supply fan is powered by a hardwired connection.

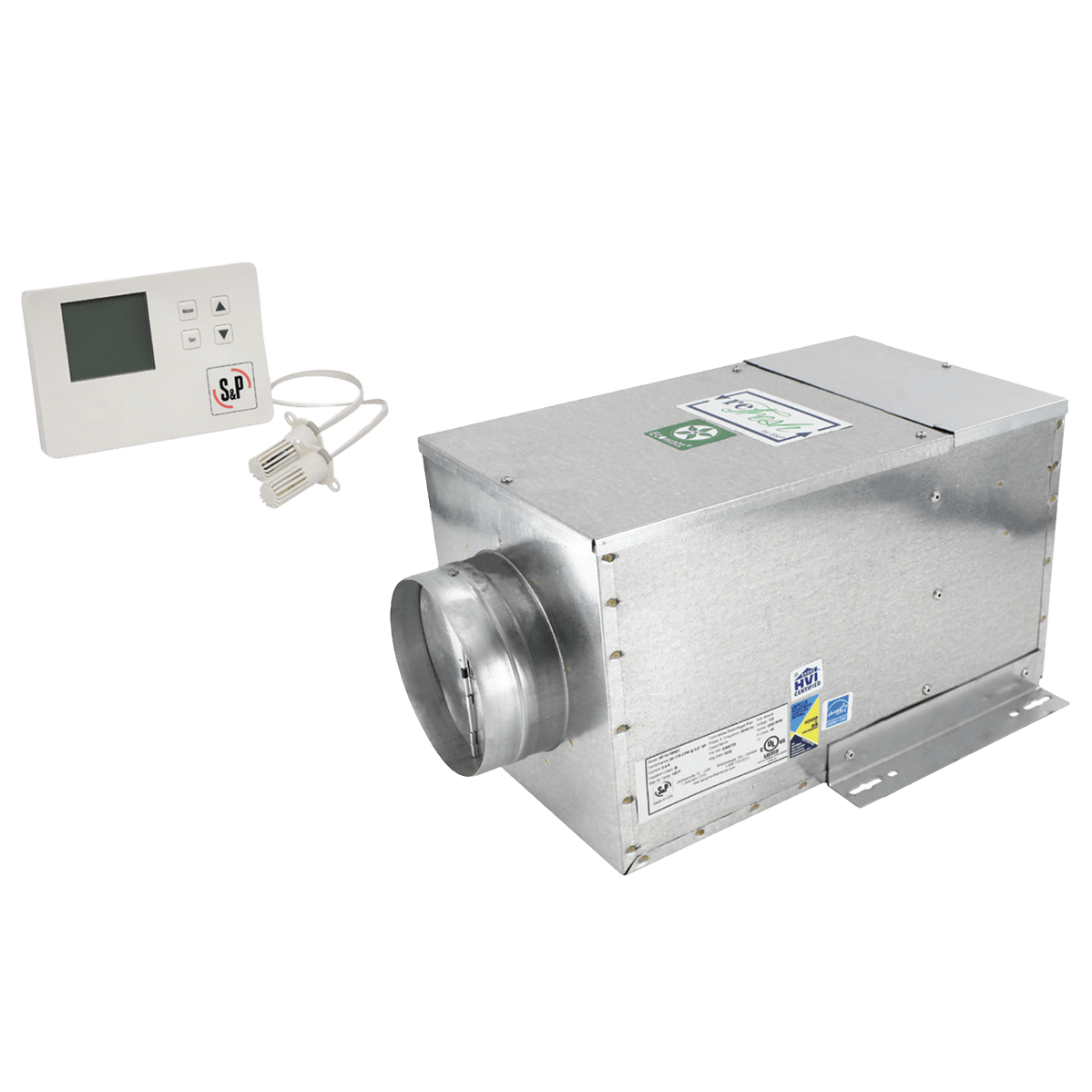

- Hardwired with ES24V (RF10-160EC-P-ES24V): This fan has a hardwired connection and includes the Envirosense ES24V controller.
Two of the available models include S&P’s exclusive Envirosense ES24V controller mounted on the outside of the unit. The ES24V features an easy-to-read back-lit LCD screen, temperature and humidity sensors, and an Eco mode for efficient operation.
Certifications and Licenses
The reFresh series complies with ASHRAE 62.2 CFM requirements for building and energy codes, including:
- Energy Star Certified and Ecowatt registered
- AMCA Air and Sound Licensed
- HVI Certified performance
- cULus 507 Listed
- Buy American (2009) and Build America, Buy America (BABA), as part of IIJA (2022)
Sylvane’s Expert Take
Homeowners will appreciate the steady exchange of stale air for fresh air with this S&P air supply fan, which provides an airflow of up to 170 CFM. These durable machines meet building and energy codes for ASHRAE 62.2 CFM requirements, and the EC motors are Energy Star certified.
- AC Motor Option: If your space requires an AC motor, consider the reFresh full-size appliances equipped with one.
- Power Options: This supply fan is available with or without a power cord to fit job-specific installation requirements.
Specifications
Specifications
-
Number of Speeds3
-
California Residents⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationscULus, HVI, ULcULus, HVI, ULcULus, HVI, ULcULus, HVI
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)170.0
-
Amperage (Amps)0.54
-
Power SupplyHardwiredHardwiredPlugPlug
-
Voltage (V)110-120
-
Watts (W)34
-
Depth (in.)22.08
-
Depth (with front cover) (in.)22.08
-
Duct Diameter (in.)6.0
-
Height (in.)10.2910.2910.2710.29
-
Height (with front cover) (in.)10.2910.2910.2710.29
-
Weight (lbs.)24232423
-
Width (in.)13.0
-
Width (with front cover) (in.)13.0
-
Additional FeaturesEnergy Star, Thermal Cutoff Protection
-
Manufacturer's Warranty5-Year Limited Warranty
