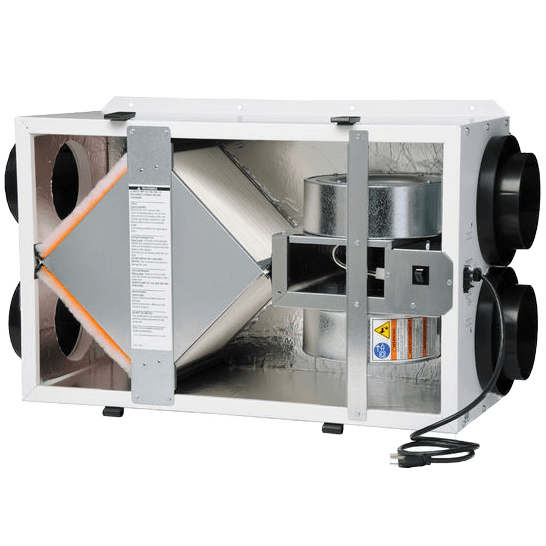

S&P TR130 140 CFM Energy Recovery Ventilator
S&P TR130 140 CFM Energy Recovery Ventilator is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- S&P TR130 50-140 CFM Energy Recovery Ventilator
- 6-inch Duct Collars
- MERV 8 filter (2) - 10 1/2 x 10 1/2 x 1 inches
- Installation Manual
Info & Guides
Info & Guides
S&P TR130 140 CFM Energy Recovery Ventilator
Description
Description
The S&P TR130 Series 50-140 CFM Energy Recovery Ventilators effectively improve the indoor air quality of residential spaces by replacing stale room air with fresh outdoor air.
This model is rated to provide up to 75 percent energy recovery at 104 CFM and 0.5 inches w.g. (69 percent in winter and 54 percent in summer temperatures). They feature flexible installation orientation options to fit any space and a highly effective “air-to-air” energy exchange core that eliminates condensation and frost build-up in most applications
Flexible Installation Options
The TR130 was designed for ease of installation, with mounting options for any orientation in both heated or unheated spaces. It features an integral mounting flange and hanging bracket system.
This model's case door has removable slide-off hinges. These units have 6-inch ports and include plastic double collars for 6-in. or 8-in. direct duct connection.
High-Efficiency Core
The energy recovery core of this ERV crossflows the indoor and outdoor airflows with S&P’s “air-to-air” technology, which provides the highest energy recovery possible while keeping airflows separated. The energy recovery efficiency of these models ranges from 78 percent at 79 CFM to 67 percent at 165 CFM.
Additional Features
- Low Power Consumption: Draws less than 1 watt of power in standby mode.
- Control Voltage: Simple on/off control is provided by the 24 VAC transformer / relay package.
- Powerful Motor: The TR130 features a 0.1 horsepower double-shaft motor.
- Insulated Case: This ERV is fully insulated to increase efficiency and effectiveness.
- Anti-Condensation and Frost: The engineered resin recovery core with unique moisture transfer capability eliminates moisture and frost build-up. These models also require no condensate pan or draining options.
- Certified Performance and Safety: This model is HVI Certified and cULus Listed and meets the requirements of the Buy American Act for American-made products and parts.
Sylvane’s Expert Take
The S&P TR130 effectively and efficiently provides fresh air exchanges and provides a comfortable indoor environment for residential spaces.
- Dual Filtration: Cleanable MERV 8 filters made of spun polyester media filter both exhaust and fresh air streams so homeowners get only the cleanest air entering their space.
- Sizing Options: For smaller and larger spaces or spaces with different energy requirements, check out the TR90, TRe90, TR200, TRe200, TRe300, or TRLPe110.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)50.0
-
Mounting TypeSuspended, Wall
-
Port LocationSide
-
TypeERV-Air Supply Fan
-
ApplicationResidential
-
California Residents⚠ WARNING: This product can expose you to chemicals including formaldehyde, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationsHVI, cULus
-
ColorWhite
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)140.0
-
Amperage (Amps)1.3
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)102
-
Depth (in.)21.75
-
Depth (with front cover) (in.)21.75
-
Duct Diameter (in.)6.0
-
Height (in.)13.5
-
Height (with front cover) (in.)13.5
-
Weight (lbs.)48
-
Width (in.)33.25
-
Width (with front cover) (in.)33.25
-
Manufacturer's Warranty10-Year Core Warranty, 5-Year Unit Warranty
Key Specifications
General
Power
Dimensions
Warranty
Recommended Accessories
Shop All S&P ERV Systems AccessoriesParts & Accessories
Genuine S&P TR130 140 CFM Energy Recovery Ventilator replacement parts & accessories.
Look for opportunities to stock up and save!
-
-
-
-
-
-
-
-
S&P

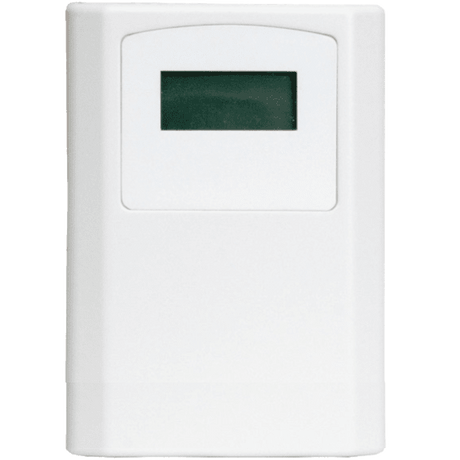

SCO2-W Wall Mounted Carbon Dioxide Control for TR, TRC, TRCe, TRLPe, TRe Series
$832.00Unit price /Unavailable -
S&P

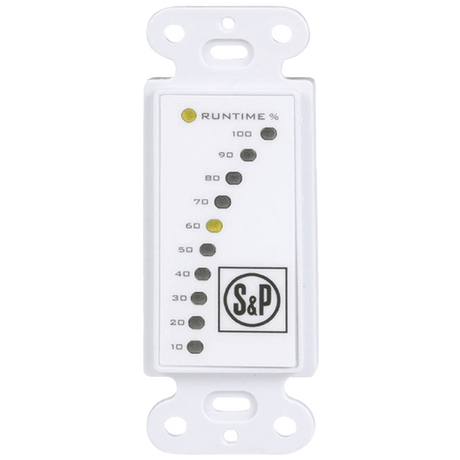

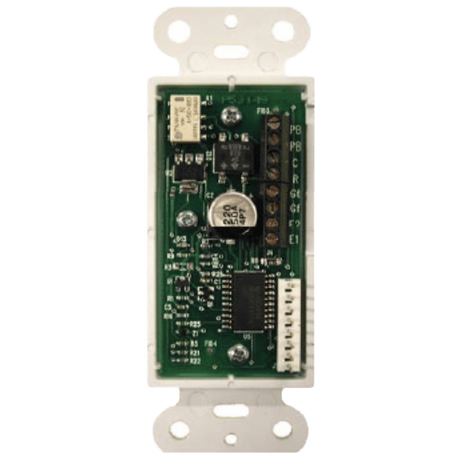

SFM Percentage Timer Control w/ Furnace Interlock for the TR Series
