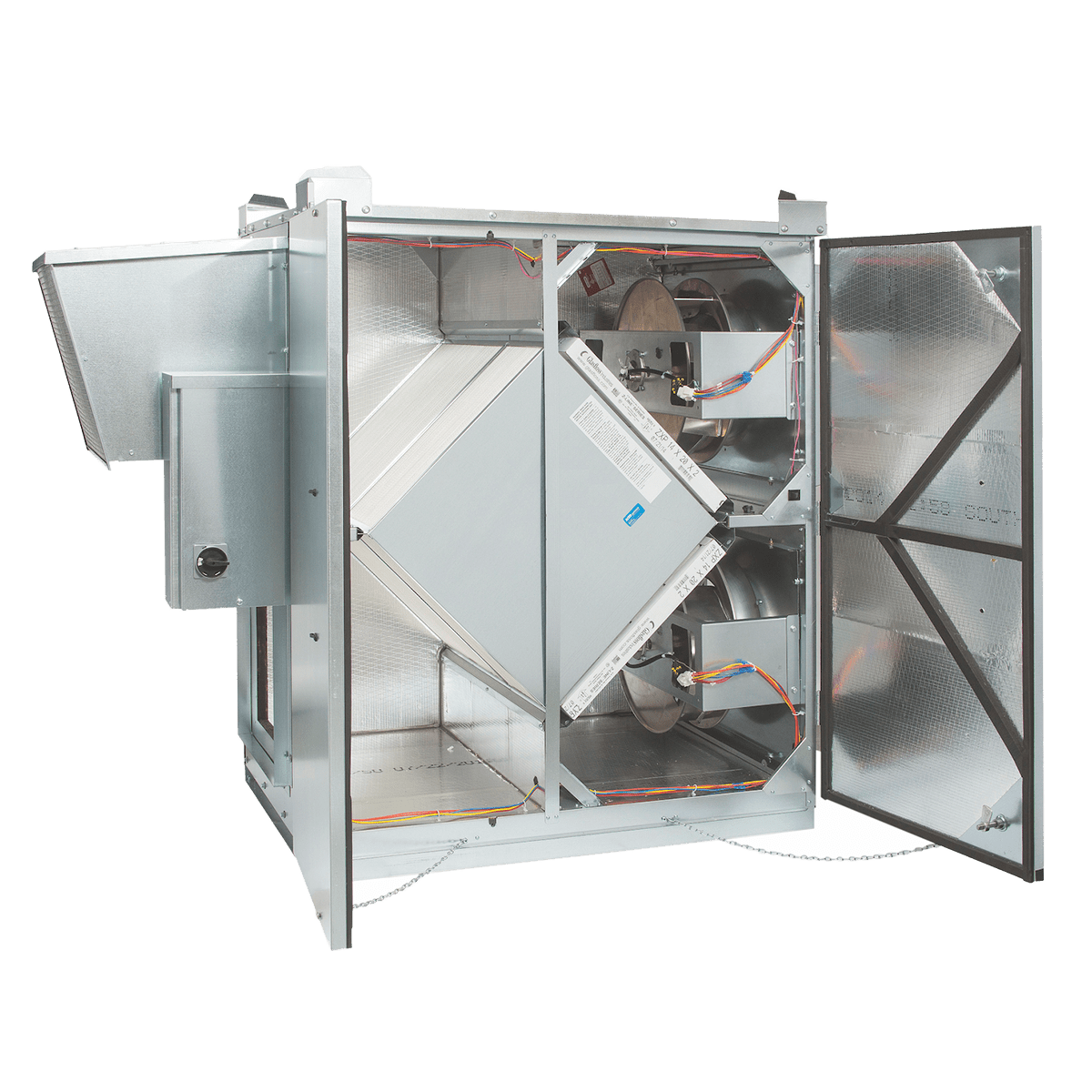

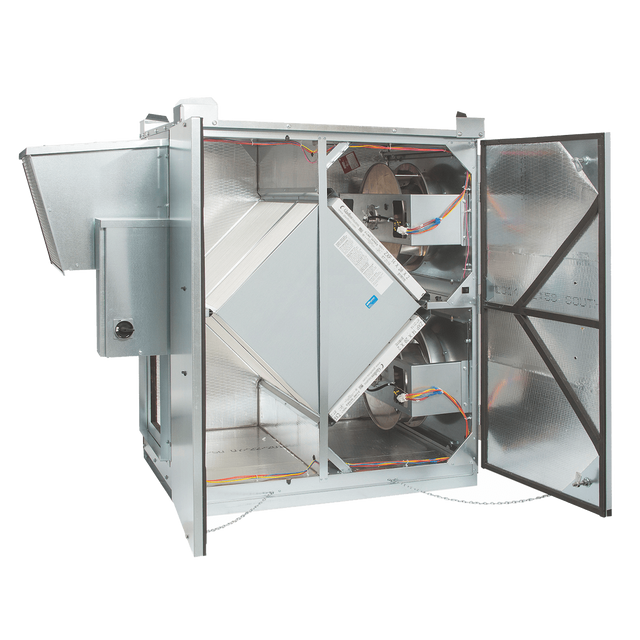

S&P TRC1200RT-230 3 PH 1630 CFM Rooftop Commercial Energy Recovery Ventilator

Name: S&P TRC1200RT-230 3 PH 1630 CFM Rooftop Commercial Energy Recovery Ventilator
Brand: S&P
Price: 13268.0 USD
Availability: InStock

SKU: sp16280 | Model: TRC1200RTV-230-3P

$13,268.00

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

2-Year Warranty, 10-Year Core Warranty

What's In The Box?

S&P TRC1200RT-230 3 PH Rooftop Commercial ERV (Horizontal or Vertical)
MERV 8 Filters - 14 x 20 x 2 inches (2) and 16 x 20 x 2 inches (2)
Installation Kit
Owner’s Manual

Info & Guides

Description

The commercial rooftop ventilator S&P TRC1200RT-230 ERV has powerful airflow and high CFM output due to its dual 1 HP direct-drive 3-Phase motorized impellers. It also has a premium energy recovery core.

The weather-resistant design and galvanized steel cabinet ensure this unit will remain durable outdoors. The energy recovery core maintains indoor air quality and promotes comfort and sustainability by exchanging stale indoor air for fresh outdoor air while transferring heat and humidity.

Horizontal or Vertical Models

This model comes in horizontal (TRC1200RTH) or vertical (TRC1200RTV) airflow configuration. Each configuration includes attached hoods for exhaust and supply airstreams.

AHRI Cores

The TRC1200RT-230 utilizes a large and small AHRI 1060-certified recovery core for effective heat and humidity transfer and dual 1.0 HP direct-drive motors for precise airflow control and ventilation.

Airflow Output: This model can provide an airflow output from 375 to 1,630 CFM for varying static pressure conditions and applications.
Filtration: Four MERV 8 filters (two 14 x 20 x 2 inches and two 16 x 20 x 2 inches) scrub incoming air before it reaches your space.

Designed for Any Space

This ERV was designed for rooftop installation, with a relatively compact design and fully insulated case, withstanding even the harshest weather conditions.

Rugged Construction: The 20-gauge galvanized steel cabinet has high-density insulation for thermal and acoustic efficiency.
Transformer Package: Includes a 24VAC transformer and relay package for seamless building management system integration.
Federal Procurement Certified: Meets the requirements of Buy American (2009) and Build American, Buy America (BABA) as part of the IIJA (2022).
Easy Installation: Includes lifting lugs, hinged doors, and a non-fused disconnect for quick setup and maintenance.

Sylvane's Expert Take

This high-capacity rooftop energy recovery ventilator delivers up to 1,630 CFM of fresh, humidity-controlled air while minimizing energy loss through its AHRI-certified cores. The rugged, weather-resistant construction ensures reliable, year-round performance in demanding commercial environments.

Quiet Ventilation: This ventilator operates more quietly than standard ones, thanks to a fully insulated cabinet.
Easy Access: Reduces maintenance downtime with hinged access panels and straightforward component layout, keeping installation and servicing efficient.

Specifications

Key Specifications

Minimum Cubic Feet per Minute (CFM) (CFM)

375.0
Mounting Type

Rooftop
Number of Speeds

Variable
Port Location

Side
Type

ERV-Air Supply Fan

General

Application

Commercial/Industrial
California Residents

⚠ WARNING: This product can expose you to chemicals including formaldehyde, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
Certifications

cETLus
Color

Gray
Controls

Electronic
Maximum Cubic Feet per Minute (CFM) (CFM)

1630.0

Power

Amperage (Amps)

4.4
Power Supply

Hardwired
Voltage (V)

208-230
Watts (W)

1440

Dimensions

Depth (in.)

86.0
Depth (with front cover) (in.)

86.0
Duct Diameter (in.)

18.0
Height (in.)

56.25
Height (with front cover) (in.)

56.25
Weight (lbs.)

387
Width (in.)

33.25
Width (with front cover) (in.)

33.25
