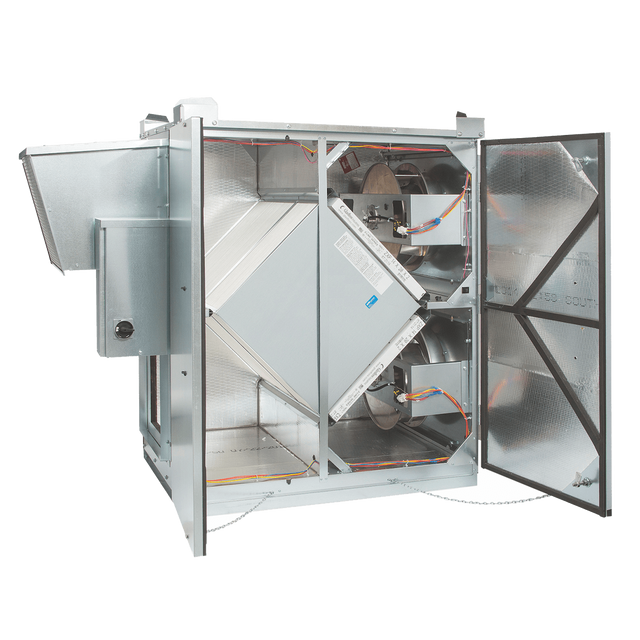

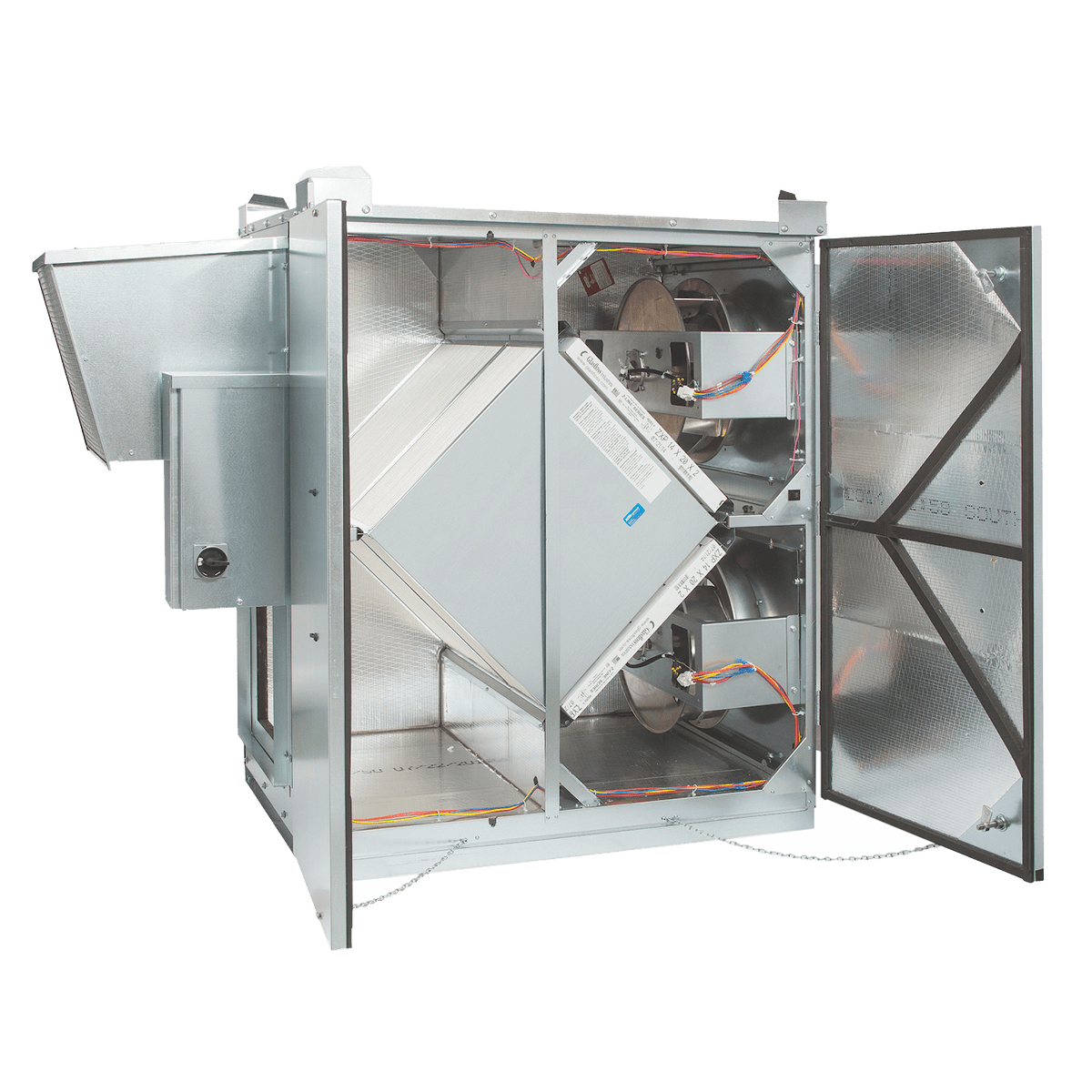

S&P TRCe1200RT-230 1 PH 1378 CFM Rooftop Commercial Energy Recovery Ventilator w/ EC Motor
S&P TRCe1200RT-230 1 PH 1378 CFM Rooftop Commercial Energy Recovery Ventilator w/ EC Motor - Vertical is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- S&P TRCe1200RT-230 1 PH Rooftop Commercial ERV (Horizontal or Vertical)
- MERV 8 Filters - (2) 14 x 20 x 2 inches and (2) 16 x 20 x 2 inches
- Installation Kit
- Owner’s Manual
Info & Guides
Info & Guides
S&P TRCe1200RT-230 1 PH 1378 CFM Rooftop Commercial Energy Reco...
Description
Description
The S&P TRCe1200RT-230 ERV is a commercial rooftop ventilator with a high CFM (cubic feet per minute) output. Its premium energy recovery core maintains indoor air quality by exchanging stale indoor air for fresh outdoor air while transferring heat and humidity.
This process minimizes energy loss, promoting both comfort and sustainability. The unit's electronically commutated motors allow for precise, energy-efficient airflow control, while the galvanized steel cabinet and weather-resistant design ensure durability in outdoor settings.
Horizontal or Vertical Positioning
This model comes as either a horizontal (TRCe1200RTH) or vertical (TRCe1200RTV) airflow configuration. Each configuration includes attached hoods for exhaust and supply airstreams.
Ventilation Core
The TRCe1200RT-230 utilizes dual 480W direct-drive motors for precise, energy-efficient airflow control and ventilation. It also features an AHRI 1060-certified static plate core, allowing efficient heat and humidity transfer.
- Airflow Output: This ERV operates with a wide airflow range of 375 to 1,378 CFM for varying static pressure conditions and applications.
- MERV 8 Filters: It uses four MERV 8 filters (two 14 x 20 x 2 inches and two 16 x 20 x 2) to scrub the air before it reaches your space.
Fits Any Space
The relatively compact, fully insulated case of this ERV was designed for rooftop installation and can withstand even the harshest weather conditions.
- Rugged Construction: The 20-gauge galvanized steel cabinet has high-density insulation for thermal and acoustic efficiency.
- Transformer Package: Includes a 24VAC transformer and relay package for seamless building management system integration.
- Federal Procurement Certified: Meets the requirements of the Buy American (2009) and Build American, Buy America (BABA) as part of the IIJA (2022).
- Easy Installation: Includes lifting lugs, hinged doors, and a non-fused disconnect for quick setup and maintenance.
Sylvane's Expert Take
Through its AHRI-certified core, this rooftop energy recovery ventilator optimizes indoor air quality while reducing energy loss. Equipped with advanced EC motors, it offers precise airflow control for consistent comfort in demanding commercial environments.
- Wide Airflow Range: The adaptable airflow range allows operation across various room sizes and changing ventilation requirements, maximizing efficiency and comfort.
- Durable Construction: The rugged, weather-resistant construction minimizes long-term maintenance and downtime, providing a dependable solution for high-traffic facilities.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)375.0
-
Mounting TypeRooftop
-
Number of SpeedsVariable
-
Port LocationSide
-
TypeERV-Air Supply Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product can expose you to chemicals including formaldehyde, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
-
CertificationscETLus
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)1378.0
-
Amperage (Amps)6.8
-
Power SupplyHardwired
-
Voltage (V)208-230
-
Watts (W)480
-
Depth (in.)86.0
-
Depth (with front cover) (in.)86.0
-
Duct Diameter (in.)18.0
-
Height (in.)56.25
-
Height (with front cover) (in.)56.25
-
Weight (lbs.)387
-
Width (in.)33.25
-
Width (with front cover) (in.)33.25
-
Additional FeaturesThermal Cutoff Protection
-
Manufacturer's Warranty2-Year Warranty, 10-Year Core Warranty
