S&P TRC1600RT-230 1853 CFM Rooftop Commercial Energy Recovery Ventilator

Name: S&P TRC1600RT-230 1853 CFM Rooftop Commercial Energy Recovery Ventilator
Brand: S&P
Price: 17864.0 USD
Availability: InStock

SKU: sp16284 | Model: TRC1600RTV-230-3P

$17,864.00

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

2-Year Warranty, 10-Year Core Warranty

What's In The Box?

S&P TRC1200RT-230 1 PH or 3 PH Rooftop Commercial ERV (Horizontal or Vertical)
MERV 8 Filters - 20 x 20 x 2 inches (4)
Installation Kit
Owner’s Manual

Info & Guides

Description

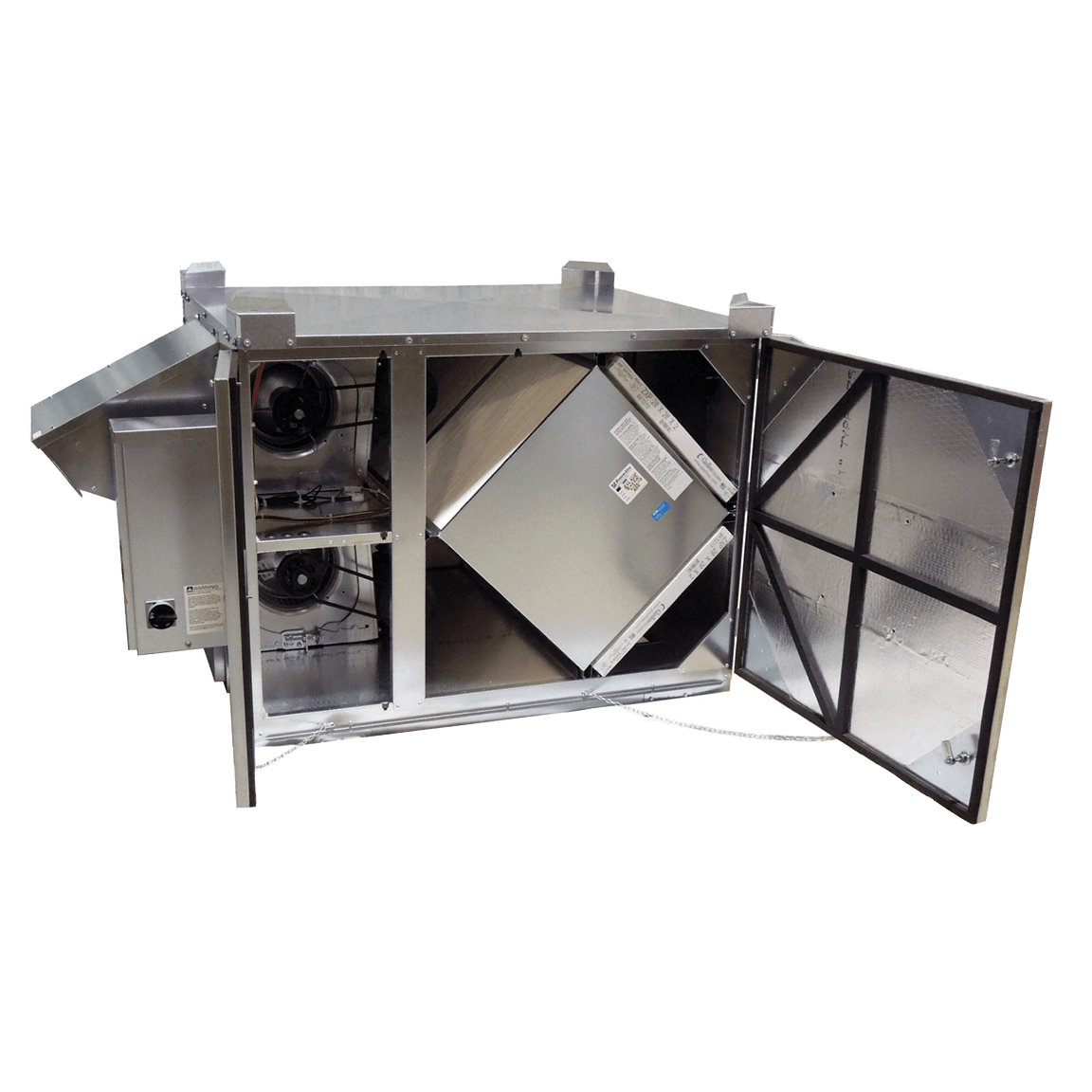

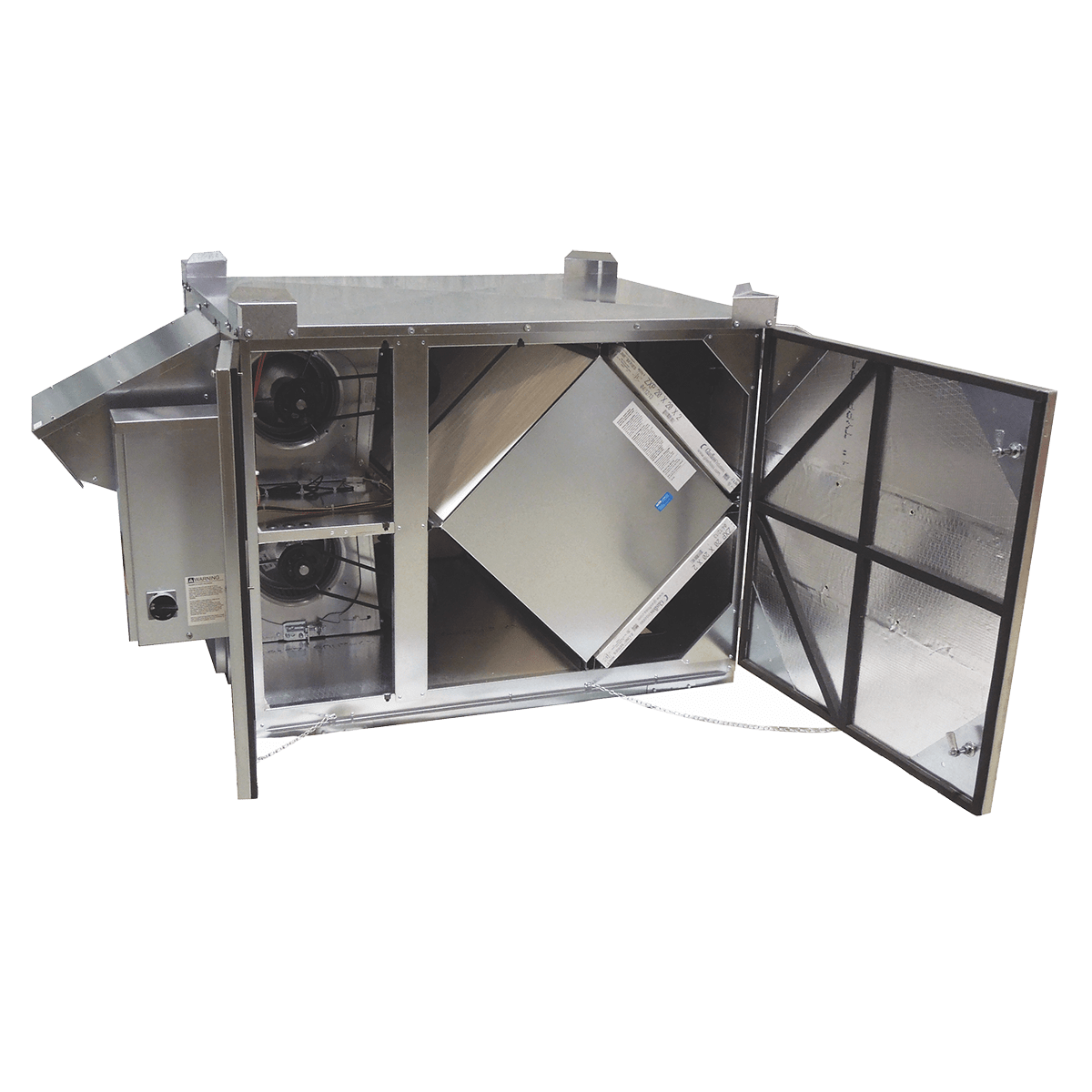

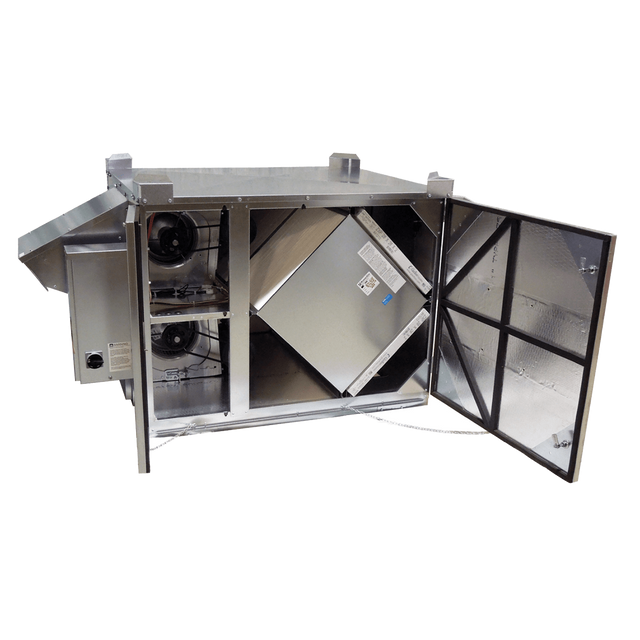

The S&P TRC1600RT-230 ERV commercial rooftop ventilator has two 1.5 HP belt-drive motor packages for powerful airflow and up to 1,853 CFM output. Its weather-resistant galvanized steel cabinet and premium energy recovery core ensure durability and promote sustainability.

The energy recovery core maintains indoor air quality and comfort by exchanging stale indoor air for fresh outdoor air while transferring heat and humidity.

Optional Models

This model comes in horizontal (TRC1600RTH) or vertical (TRC1600RTV) airflow configuration and single or three-phase power. Each configuration includes attached hoods for exhaust and supply airstreams.

AHRI Certified Cores

The TRC1600RT uses two large AHRI 1060-certified recovery cores, which effectively transfer heat and humidity. It also uses dual 1.5 HP belt-drive motor packages to deliver precise airflow control and ventilation.

Airflow Output: This model provides various airflow outputs from 500 to 1,853 CFM for varying static pressure conditions and applications.
MERV 8 Filtration: It uses four MERV 8 filters (20 x 20 x 2 inches) to scrub incoming air before it reaches your space.

Designed for Any Space

Explicitly designed for rooftop installation, this ERV has a compact, fully insulated case that can withstand harsh weather.

Rugged Construction: The 20-gauge galvanized steel cabinet has high-density insulation to increase thermal and acoustic efficiency.
Transformer Package: Building management system integration is made possible by the inclusion of a 24VAC transformer and relay package.
Federal Procurement Certified: Meets the requirements of Buy American (2009) and Build American, Buy America (BABA) as part of the IIJA (2022).
Easy Installation: Setup and maintenance are quick and easy, with features including lifting lugs, hinged doors, and a non-fused disconnect.

Sylvane's Expert Take

This rooftop ERV features two AHRI-certified energy recovery cores that deliver up to 1,853 CFM of fresh, climate-controlled airflow. Its durable galvanized steel construction ensures consistent performance while efficiently managing heat and humidity exchange.

Two Layouts: Choose either horizontal or vertical configurations to match existing HVAC layouts and maximize efficiency.
Easy Access: Reduces maintenance downtime with hinged access panels and straightforward component layout, keeping installation and servicing efficient.

Specifications

Key Specifications

Minimum Cubic Feet per Minute (CFM) (CFM)

500.0
Mounting Type

Rooftop
Number of Speeds

Variable
Port Location

Side
Type

ERV-Air Supply Fan

General

Application

Commercial/Industrial
California Residents

⚠ WARNING: This product can expose you to chemicals including formaldehyde, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
Certifications

cETLus
Color

Gray
Controls

Electronic
Maximum Cubic Feet per Minute (CFM) (CFM)

1853.0

Power

Amperage (Amps)

3 PH Vertical: 9

3 PH Horizontal: 9

1 PH Vertical: 16.4

1 PH Horizontal: 16.4
Power Supply

Hardwired
Voltage (V)

208-230
Watts (W)

2595

Dimensions

Depth (in.)

87.5
Depth (with front cover) (in.)

87.5
Height (in.)

44.0
Height (with front cover) (in.)

44.0
Weight (lbs.)

498
Width (in.)

42.25
Width (with front cover) (in.)

42.25
