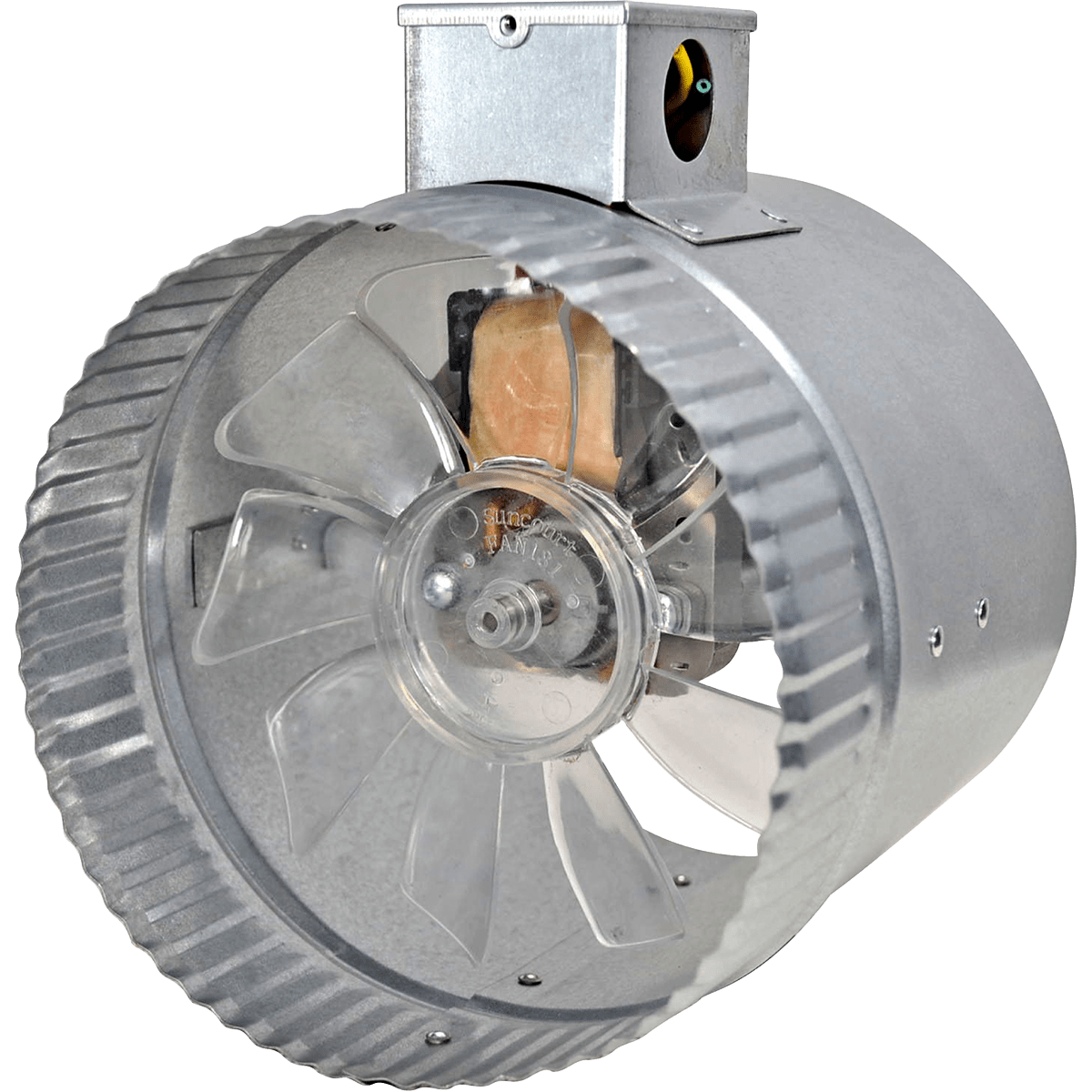

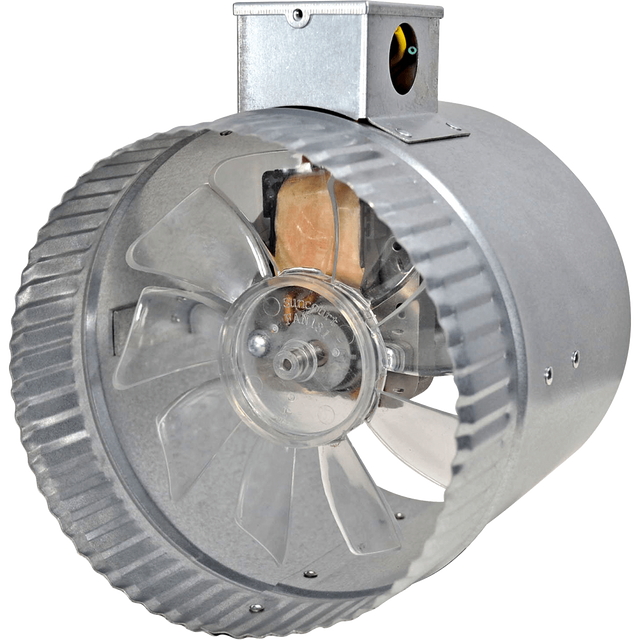

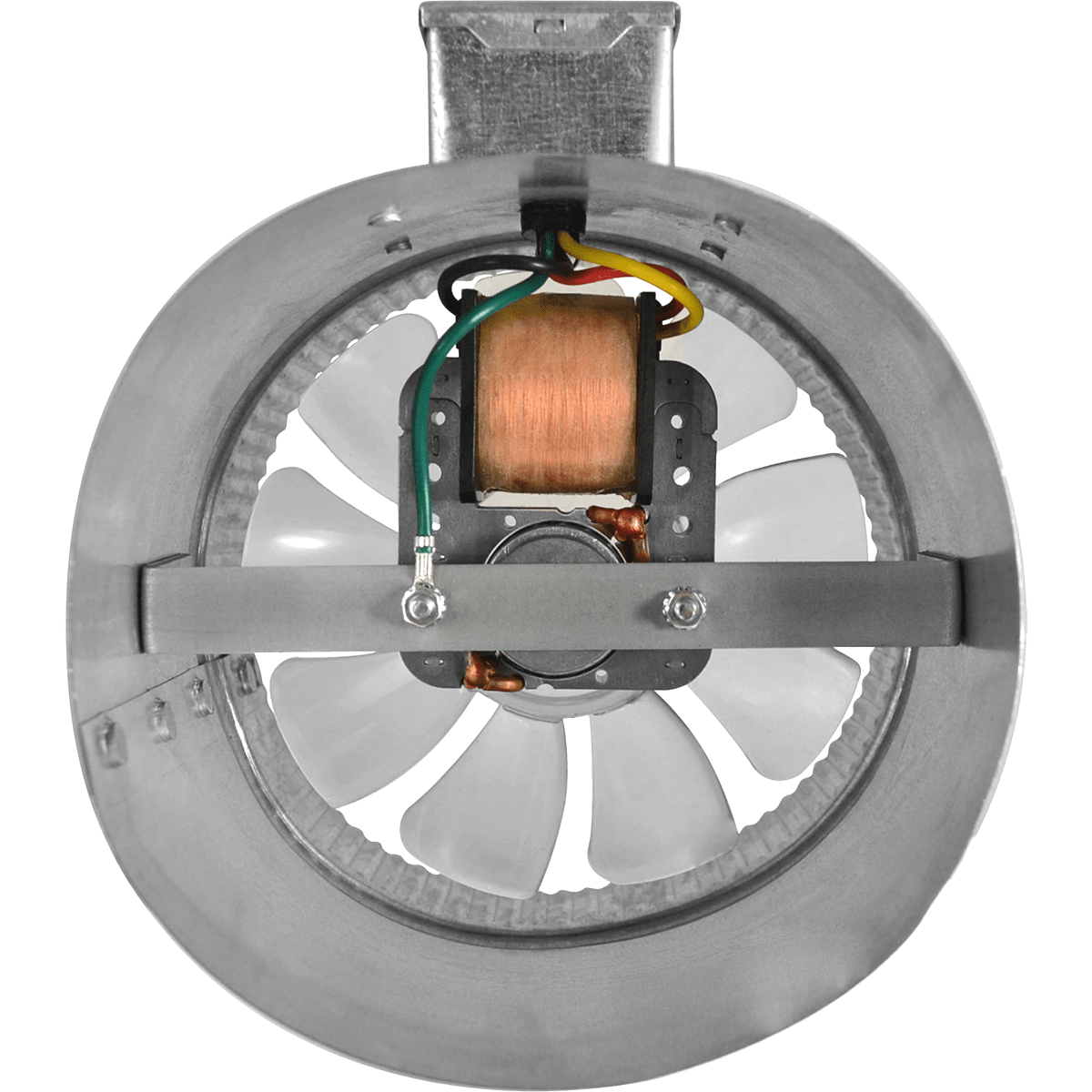

Suncourt 6-in 2-Speed Inductor In-Line Duct Fan
Suncourt 6-in 2-Speed Inductor In-Line Duct Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Suncourt 2-Speed Inductor In-Line Duct Fan
- Sheet Metal Screws (x 4)
- Owner’s Manual
Suncourt 6-in 2-Speed Inductor In-Line Duct Fan
Description
Description
Move cooled or heated air throughout single living areas with the Suncourt Duct Fan. Made in the USA, use the booster fans to push air to supply or return ducts and registers. Perfect for use in bathroom exhausts, these two-speed fans move between 160 – 250 cubic feet per minute of air (CFM).
High-resistant polycarbonate blades, low-energy usage, and galvanized steel frames provide longevity and efficient use.
How Do They Work?
Move air-conditioned or warmed air adequately through registers in difficult to cool or heat living areas. These two-speed fans hardwire for either a high or low speed, helping to move air through underperforming registers, exhaust fans, or back through return ducts.
Inline duct fans install into any existing flex or metal ductwork and feature two wiring options to best suit your needs.
Duct Sizing + CFM
Find the duct size that works best for you, and wire for either low or high fan speeds for your desired airflow.
- Six-Inch Duct Fan: 160/180 CFM (Low/High)
- Eight-Inch Duct Fan: 210/250 CFM (Low/High)
- Ten-Inch Duct Fan: 300/460 CFM (Low/High)
Versatile Installation
Start cooling and heating rooms sufficiently, as the Suncourt in-line booster fans are installed into any existing flex or metal ductwork. Install at any angle at least six to ten-feet from the register for improved airflow.
Continuous + Manual Operation
Wire your inline duct fan for operations that works best for you with two wiring options.
- Continuous Operation: Wire to your furnace for continuous fan operation on either low or high speed.
- ON/OFF Switch: Power the fan to operate with a standard low, off, or high fan speed switch to change fan speed or power off.
**When hardwiring to the furnace blower, wire for either high or the low fan speed. Never wire the low and high-speed wires together. Professional installation is recommended.
Additional Features
- UL-Listed: Safety is assured with the UL-safety rating and certification.
- ETL Certification: The Suncourt in-line fans also feature the ETL-Intertek safety rating.
- Energy-Efficiency: Low wattage operation make these fans an energy-efficient option.
- Overheat Protection: The thermally protected motor will shut down if unsafe operating temperatures are detected.
- Quiet Operation: Designed for quiet operation, the in-line booster fans feature a decibel level of 50 – 55 dB.
Summary
Quickly cool or heat rooms with old HVAC systems with the Suncourt 2-Speed Inductor In-Line Duct Fan.
What Customers Love
- Fan Speeds: Wire for the required airflow needed. Smaller rooms can benefit from low fan speeds, while larger living areas are perfect for the higher fan speed.
Things to Consider
- Furnace Hardwiring: If you’re hardwiring to your furnace blower, hire a certified electrician or HVAC professional.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)2.5
-
TypeClassic Inline Duct Booster Fan
-
ApplicationDucting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)180.0
-
Amperage (Amps)0.35
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)30
-
Depth (in.)8.0
-
Depth (with front cover) (in.)8.0
-
Duct Diameter (in.)6.0
-
Height (in.)6.0
-
Height (with front cover) (in.)6.0
-
Weight (lbs.)2.5
-
Width (in.)6.0
-
Width (with front cover) (in.)6.0
-
Additional FeaturesThermal Cutoff Protection, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Warranty
