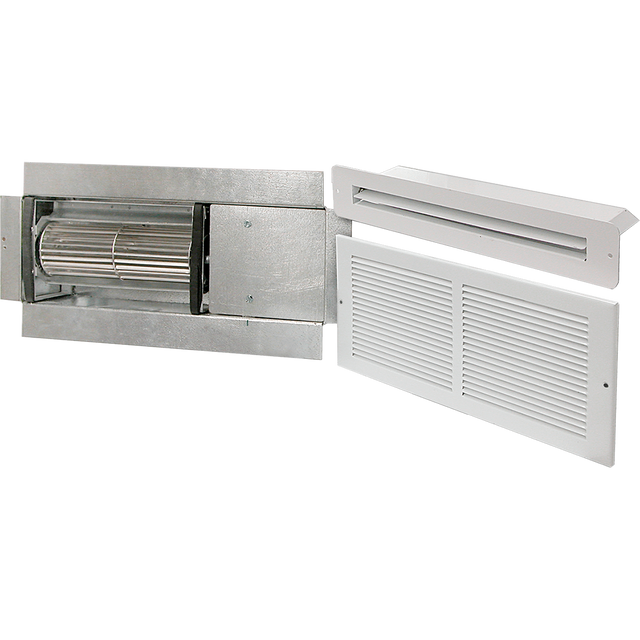

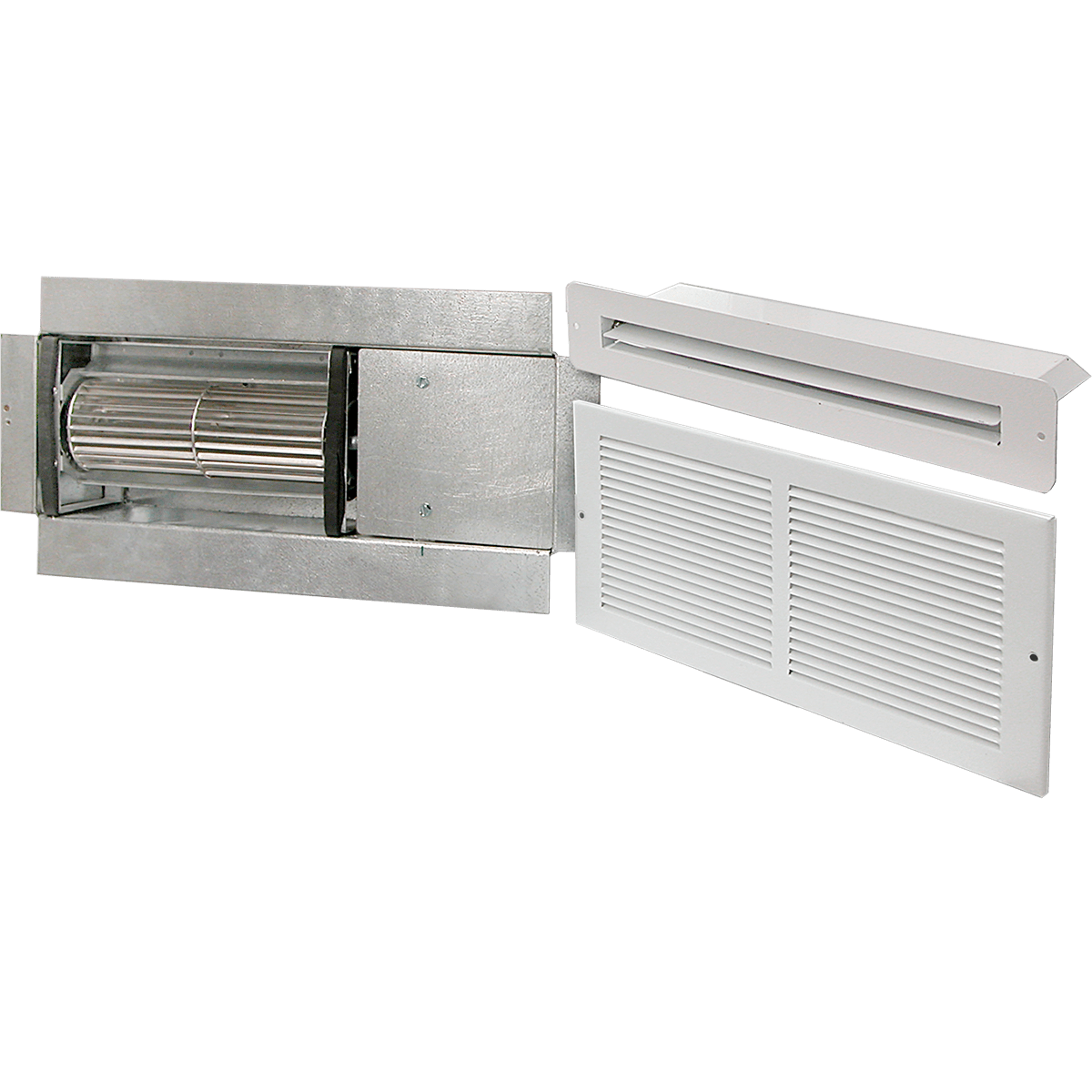

Tjernlund AireShare Room to Room Transfer Fan
Tjernlund AireShare Room to Room Transfer Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Air Inlet
- Air Outlet
- Built-in Fan
- Owner's Manual
- Installation Instructions
Info & Guides
Info & Guides
Description
Description
The Tjernlund AireShare Fan is changing how people think about single room cooling, heating and air purifying. Usually, if a door is closed or there isn’t adequate airflow, window air conditioners and other appliances only help with one room. The Tjernlund Room to Room Fan changes that.
How it Works
This cross-flow fan is installed in a wall with an intake in one room and blower on the other side of the wall to push air into a second room. The AireShare is designed to make rooms adjacent to ductless cooling and heating receive air even with doors closed or no other access to it. By moving air from one room to another, it saves you money by eliminating the need of another room appliance.
Adding this 75 CFM can change your room’s temperature by up to 3 degrees F per hour.
Room Size
One Tjernlund AS1 Room to Room Fan is perfect for transferring air between rooms approximately 150 square feet.
Compatible Appliances
Customers often times use the Tjernlund AireShare Room to Room Transfer Fan with the following single-room products:
- Window air conditioners
- Portable air conditioners
- Mini-split air conditioners and heat pumps
- Single-room heaters
Installation
Professional installation is required for this model. Its dimensions are 15.75 x 7.75 x .25 inches (L x H x D). It must be installed between wall studs that are at least 16 inches wide.
Note: You need to add a 120-volt wall switch or thermostat to turn this model on or off.
Intake Wall Opening Dimensions: 13.625 in x 1.25 in
Blower Wall Opening Dimensions: 13.865 in x 4.875 in
Additional Features
- ETL-Listed: This listing means it passes North American tests for safety and efficiency.
- American-Made: Proudly made in America, this model carries a 1-year warranty.
- Unique Design: The fins are designed to cover any indoor parts that may display.
Summary
No longer let doors or walls interfere from airflow from one room up to 150 square feet to another.
What Customers Love
- Energy and Money Savers: Don’t spend money on extra room appliances since this one fan can help you save energy and utilize it in multiple rooms.
- American-Made: A long warranty is backed with trusted with its American-made design.
Things to Consider
- Installation Directions: Professional installation is required. Don’t install in an exhaust ductwork where the equivalent duct length is less than 25 feet. Also, don’t install less than 5 linear feet from dryer exhaust outlet or when exhaust air exceeds 167 degrees F. You also need to add a 120-volt switch to turn it on or off (typically customers purchase one at a local convenience store).
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)1.5
-
ApplicationResidential
-
California Residents⚠ WARNING: This product can expose you to some chemicals, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL, CSA
-
ColorWhite
-
ControlsManual
-
Maximum Cubic Feet per Minute (CFM) (CFM)75.0
-
Recommended Coverage Area (sq. ft.)150
-
Amperage (Amps).5
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)20
-
Depth (in.)16.0
-
Depth (with front cover) (in.)16.0
-
Height (in.)4.0
-
Height (with front cover) (in.)4.0
-
Weight (lbs.)11.55
-
Width (in.)3.0
-
Width (with front cover) (in.)3.0
-
Manufacturer's Warranty1-Year Warranty
Key Specifications
General
Power
Dimensions
Warranty
- LLewisVerified BuyerReviewingTjernlund AireShare Room to Room Transfer FanI recommend this productRated 4 out of 5 stars5 years agoI would buy the product again
I really like the quality of the parts. My one complaint is that the installation instructions do not say which way the air moves through the unit. I guess I should known that ""diffuser"" was on the exhaust, however I installed the diffuser on the wall where I wanted the suction to come from. Later I had to recut the holes and swap fan and diffuser.
- JJoelVerified BuyerReviewingTjernlund AireShare Room to Room Transfer FanI recommend this productRated 5 out of 5 stars3 years agogreat solution
Quiet, moves air as expected. A great solution to my storage room ventilation problem. #sweepstakes
- MMatthewVerified BuyerReviewingTjernlund AireShare Room to Room Transfer FanI recommend this productRated 5 out of 5 stars5 years agoReally added value to our split air system!
Used to help move air from split air in main room to an adjacent bedroom. This product really works as advertised and helps balance the temperature. It's much quieter than other styles on market and fits neatly in the wall cavity. We went ahead and purchased an optional 24 volt conversion kit to allow us to run a standard thermostat to control it. Much easier to sleep on hot summer nights!
- RRichardVerified BuyerReviewingTjernlund AireShare Room to Room Transfer FanI recommend this productRated 4 out of 5 stars6 years agonot told happy
not as strong of flow some bit of noise a little over price
- SSusanVerified BuyerReviewingTjernlund AireShare Room to Room Transfer FanI recommend this productRated 5 out of 5 stars5 years agoWorking as advertised
We mounted it in a mechanical room, in the wall common with the house. It is working well to move the heated air out of the mechanical blowing it into the laundry room . Functions very well, is quiet.
