TrolMaster Aqua-X Water Content Sensor
TrolMaster Aqua-X Water Content Sensor - Water Content is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
What's In The Box?
What's In The Box?
- TrolMaster WCS-1 Water Content Sensor or WCS-2 3-in-1 Water Content Sensor
- 16-ft. RJ12 Cable
- RJ12 T- Splitter
- Owner's Manual
Info & Guides
Info & Guides
TrolMaster Aqua-X Water Content Sensor
Description
Description
TrolMaster’s WCS-1 Water Content Sensor and WCS-2 3-in-1 Water Content Sensor are specifically designed to measure the water content data (percentage) of the grow media in the Aqua-X Control System.
Monitors the Grow Media

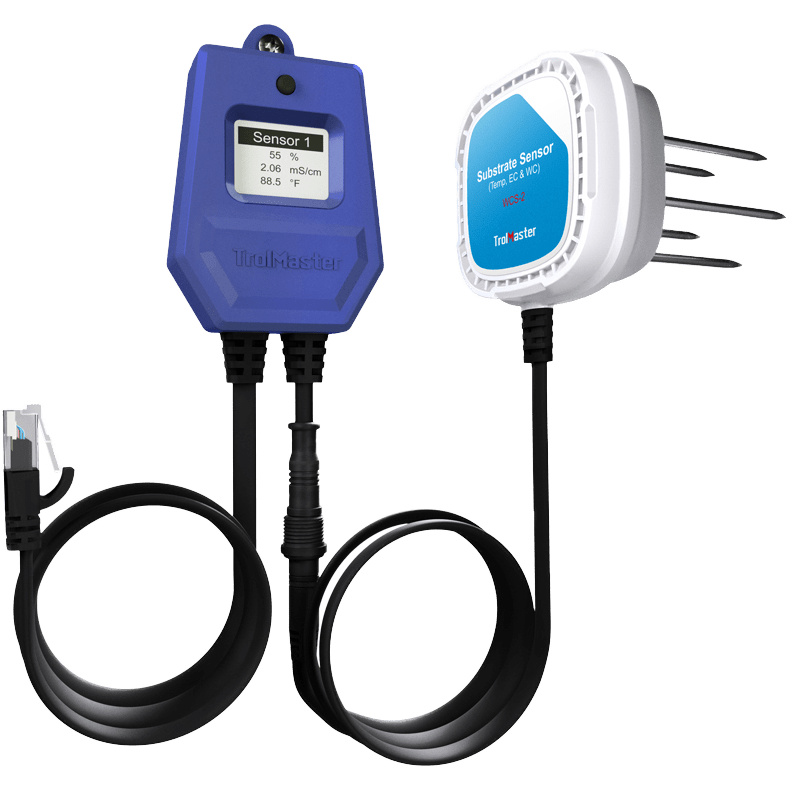

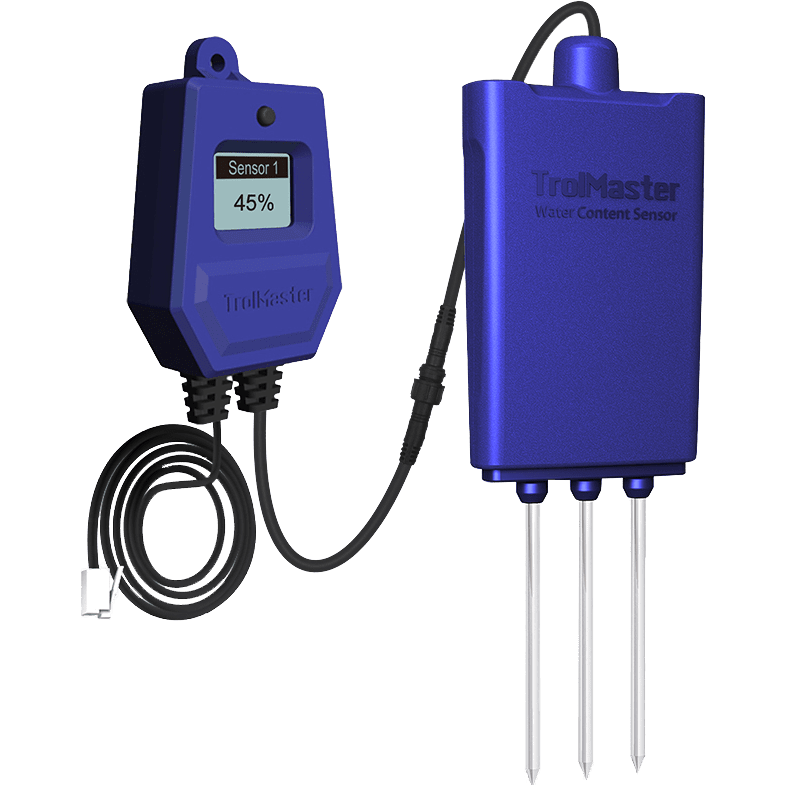

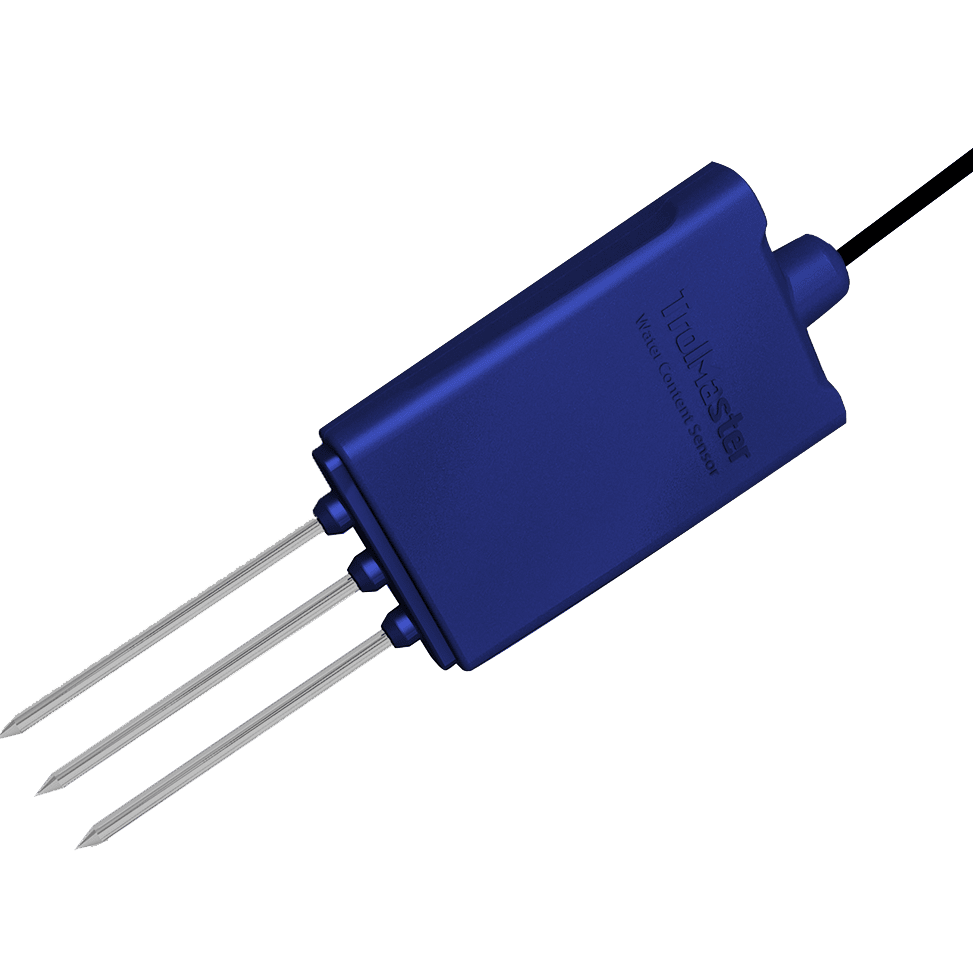

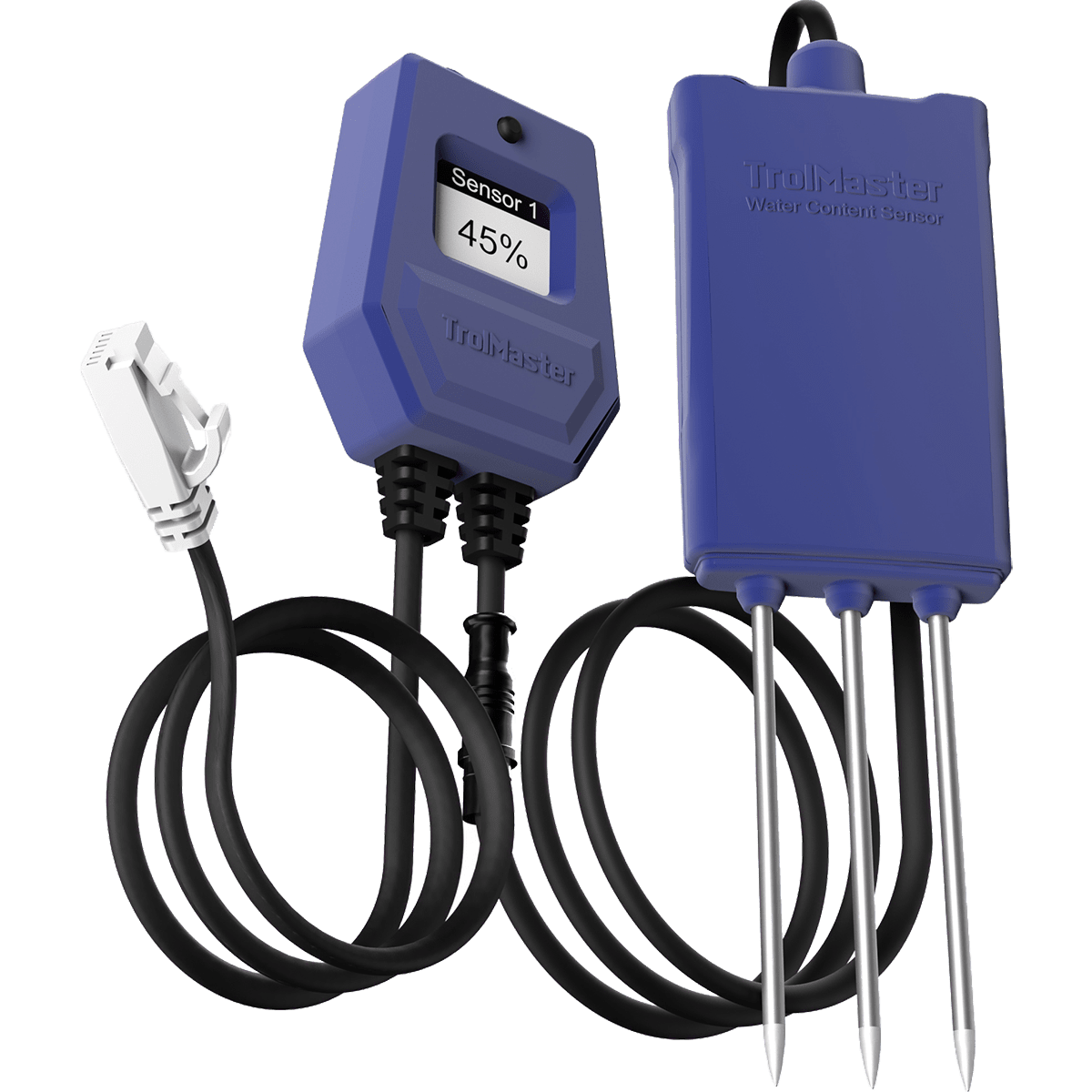

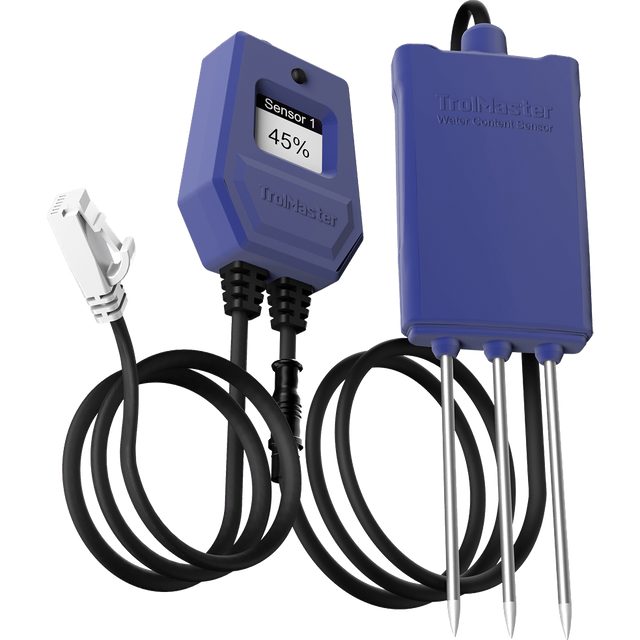

Each set of sensors includes a transfer module (Display Screen & Button) and a pronged sensor: a three-prong for the WCS-1 or a five-prong for the WCS-2. When measuring, the pronged sensor of a Water Content Sensor is inserted into the grow media such as soil or rock wool to be measured.

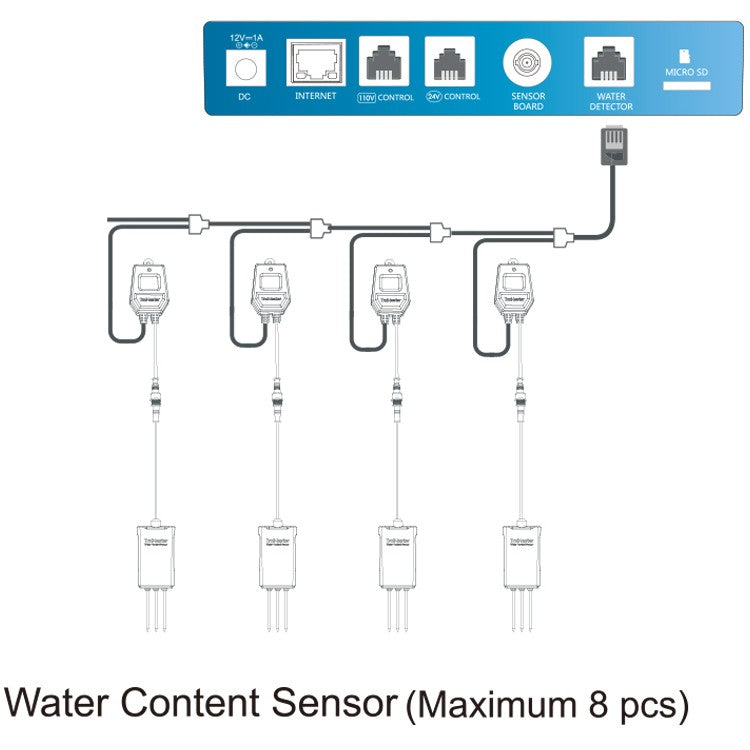

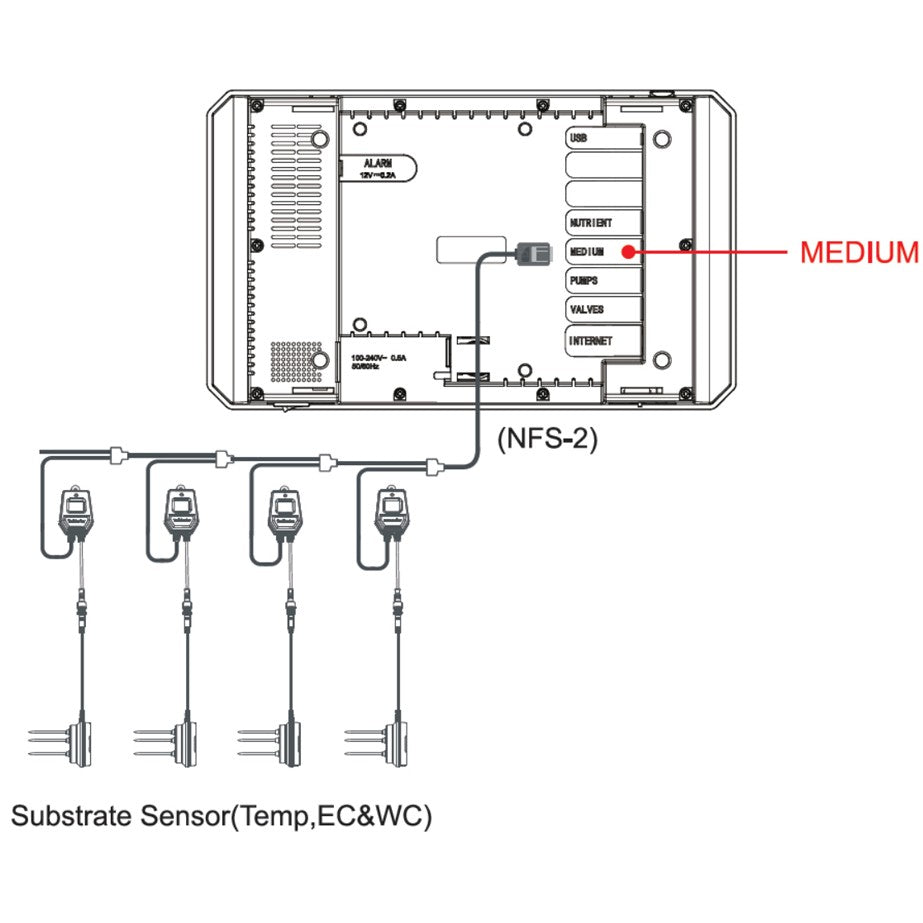

The main interface of the WCS-1 NFS-1 screen will display the measured water content data. If there are multiple Water Content Sensors (up to 8pcs) to be connected to the NFS-1 Controller, the NFS-1 screen will display the average value.

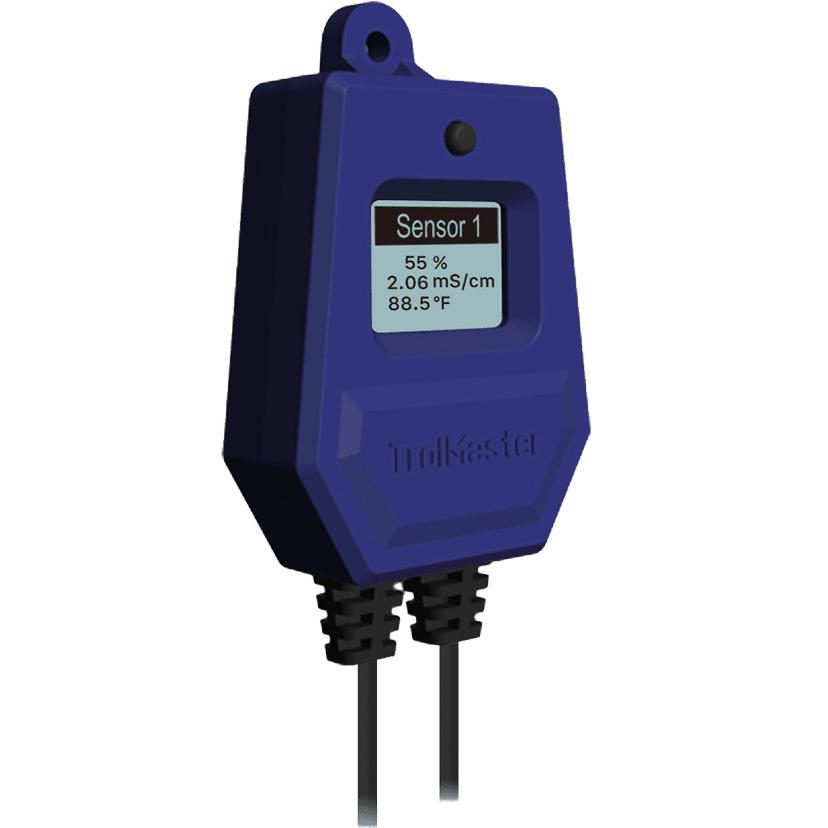

The screen on the WCS-2 sensor will display three readings: the water content, the temperature of the grow medium, and the EC within the grow medium.
Smartphone Alerts
The Aqua-X Controller will send an alarm message to your Smartphone if the current value of water content exceeds the highest setpoint or the lowest setpoint. You can also check the alarm messages in the Alarm Message page of the Aqua-X Controller.
Additional Features
- LCD Display, Easy Operation
- Addressing Button
- Water Content Real-time Measuring
- Water Content Alarm When Setpoint Exceeded
Specifications
Specifications
-
Growing Product TypeSensor
-
System ControlsIrrigation
-
Environment Temperature (degrees F)32-122
-
Maximum Operating Temperature (degrees F)122
-
Minimum Operating Temperature (degrees F)32
-
Maximum Amperage (Amps)0.1
-
Depth (in.)10.83
-
Depth (with front cover) (in.)10.83
-
Height (in.)2.44
-
Height (with front cover) (in.)2.44
-
Weight (lbs.)1.41
-
Width (in.)6.46
-
Width (with front cover) (in.)6.46
-
Additional FeaturesApplicable for Indoor Growing
