TrolMaster Hydro-X Basic Compact Driver
TrolMaster Hydro-X Basic Compact Driver is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
What's In The Box?
What's In The Box?
- TrolMaster Delta-1 Basic Compact Driver for AC Motors Speed Controls
- RJ45 Cable
Info & Guides
Info & Guides
TrolMaster Hydro-X Basic Compact Driver
Description
Description

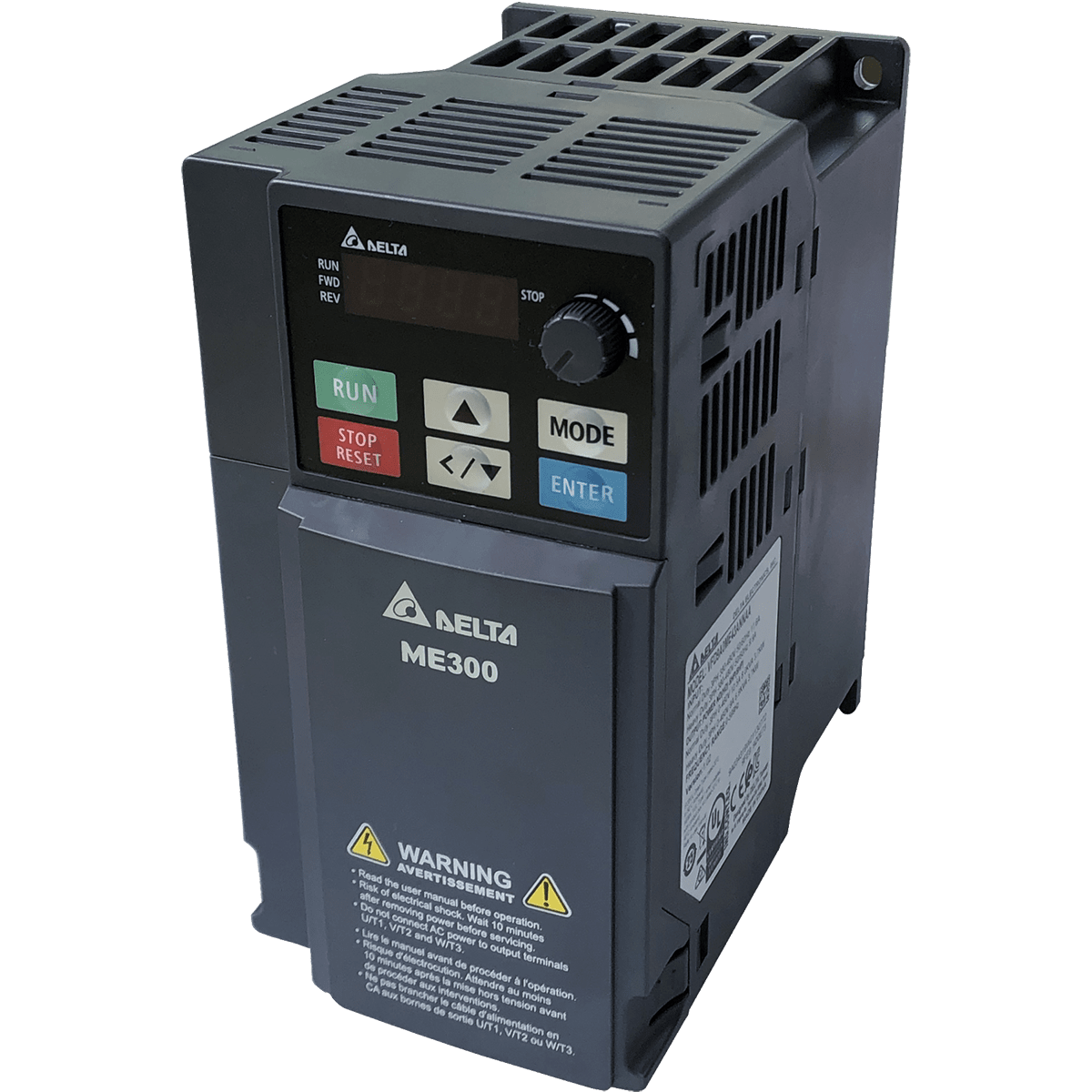

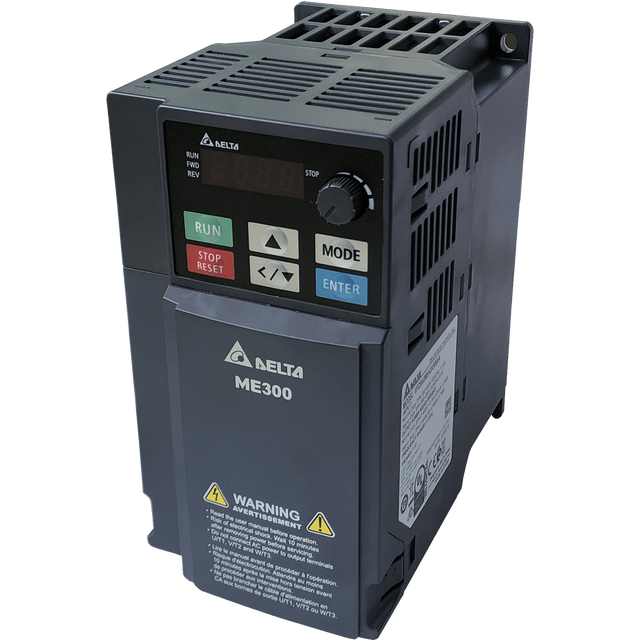

The TrolMaster Delta-1 is a variable-frequency drive (VFD) that can be used with Trolmaster's VFD-1 module. The Delta-1 and the VFD-1 can be used with the TrolMaster Hydro-X Pro system to control the speed of 3-phase AC motors like those in industrial fans.
This customized version has all the required parameters preset and ready to be operated with VFD-1 module straight out of the box. An RJ45 cable is included for connecting the Delta-1 with the TrolMaster VFD-1 module.
Note: VFD drives can only operate 3 phase fans / motors. Single phase motors cannot be used with the VFD-1 or the Delta-1 VFD drive.
Specifications
Specifications
-
Growing Product TypeDevice Station
-
System ControlsVentilation
-
Environment Temperature (degrees F)32-122
-
Maximum Operating Temperature (degrees F)122
-
Minimum Operating Temperature (degrees F)32
-
Maximum Amperage (Amps)10.5
-
Voltage (V)440-460
-
Depth (in.)10.24
-
Depth (with front cover) (in.)10.24
-
Height (in.)9.06
-
Height (with front cover) (in.)9.06
-
Weight (lbs.)3.7
-
Width (in.)6.3
-
Width (with front cover) (in.)6.3
-
Additional FeaturesAlert, Wi-Fi Capable, CO2 Integration Statistics, Light Integration Statistics, Growth Stage Schedules, Applicable for Indoor Growing
