Whynter 12,000 BTU Dual Hose Portable Air Conditioner
Whynter 12,000 BTU Dual Hose Portable Air Conditioner - ARC-12SDH (Cooling With Heat) is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Whynter ARC-12SD or ARC-12SDH Portable AC
- Window Exhaust Kit
- Remote Control
- Owner's Manual
Info & Guides
Info & Guides
Whynter 12,000 BTU Dual Hose Portable Air Conditioner
Description
Description
Cool your space the environmentally friendly way with the Whynter 12,000 BTU (ASHRAE)/7,500 BTU (DOE Standard) Dual-Hose Portable Air Conditioner. This eco-friendly portable AC—available in a cooling-only and a cooling plus heat model—effectively cools areas sized up to 400 square feet and boasts numerous features for convenient operation. They help reduce your impact on the environment while keeping you comfortably cool and refreshed.
Other top features include intuitive electronic controls, patented auto-draining technology, and a window kit that provides everything you need for installation in a snap.
Both the ARC-12SH and ARC-12SDH are effective, efficient, and eco-friendly solutions for cooling bedrooms, offices, classrooms, garages, workshops, and computer rooms. These units can also be used as supplementary cooling sources to help offset the often costly operation of a central air conditioning system.
Dual-Hose Cooling, Auto-Draining Technology

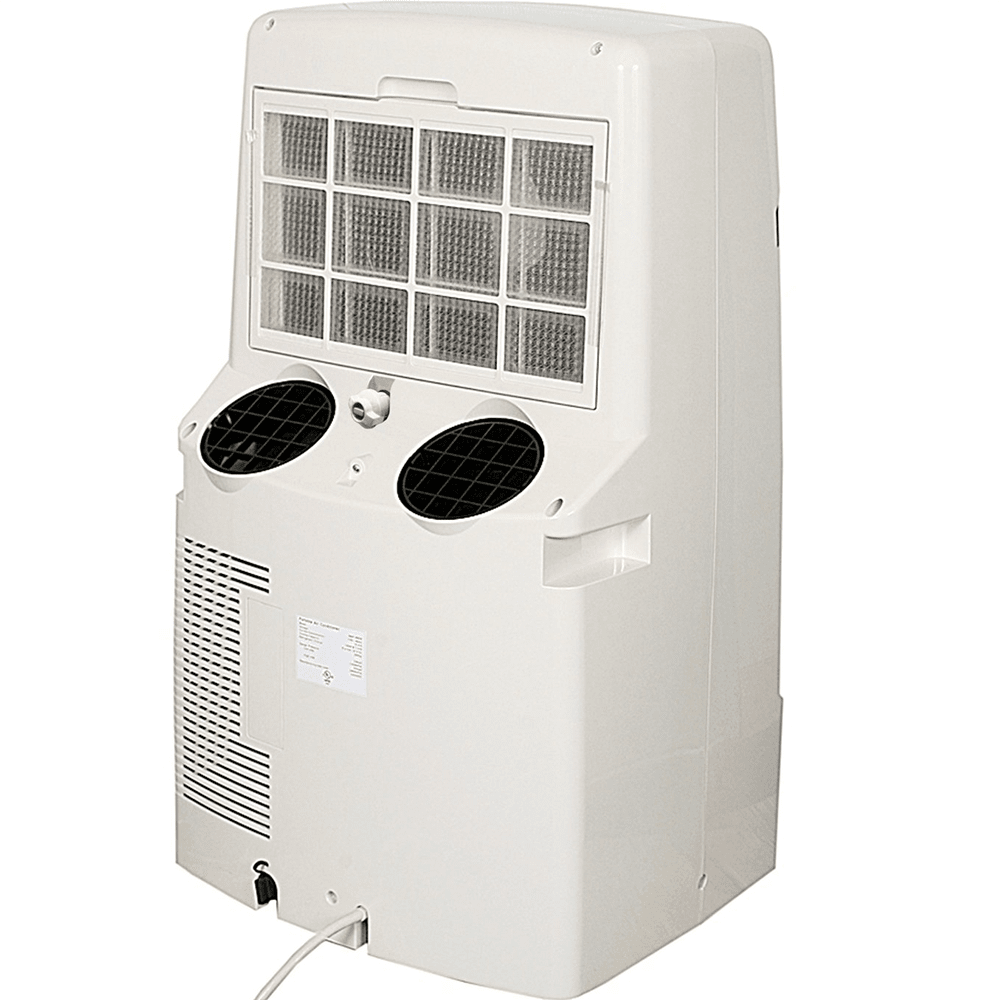

These Whynter portable air conditioners are equipped with double exhaust hoses, which help increase cooling efficiency within your room. During operation, one exhaust hose draws air in from the outside and uses the air to cool the portable ACs' internal components. The second exhaust hose then expels warm air outside, ensuring that only cool air is returned to your space. Because there is less of a chance that warm air exhaust will counteract the cooling process, dual-hose portable air conditioners may be slightly more efficient than their single-hose counterparts.
For the ultimate in convenience, the Whynter ARC-12SD and ARC12SDH Portable Air Conditioners also feature Whynter's patented auto-draining condensate technology. This system automatically exhausts all collected condensate outdoors in most environments. In certain environments, the ambient humidity level may result in some moisture collecting in the unit's condensate tank. To protect your environment in the event of a condensate overflow, these Whynter portable air conditioner systems feature tank full indicators that automatically stop AC operation until you can manually empty the tank.
Convenient and Flexible Operation
The Whynter Eco-Friendly Dual-Hose Portable Air Conditioner offers you both convenience and flexibility during operation through multiple operating modes:
- Air Conditioner Mode – Cool your space with your choice of three fan speeds – high, medium, and low.
- Dehumidifier Mode – Use the portable AC as a dehumidifier on especially humid days to remove 96 pints of excess moisture from your environment.
- Fan Mode – On days when air circulation is enough to stay cool, use the ARC-12SD/H as a comfort-boosting fan.
- Heat Mode – A feature on the Whynter ARC-12SDH model only, the heater mode gently warms your space during the colder months using 11,000 BTUs.
The Whynter 12,000-BTU Dual-Hose Portable Air Conditioner is also known for its exceptionally quiet operation when compared to similar-size portable ACs. At their highest fan speeds, the ARC-12SD and ARC-12SDH emit 56 decibels of sound, which is equivalent to the sound of normal conversation.
Environmentally Conscious Operation
As part of a new generation of green cooling alternatives, the Whynter ARC-12SD and ARC-12SDH are constructed with numerous eco-conscious features, including:
- RoHS-Compliant – These Whynter portable air conditioners comply with the Restriction of Hazardous Substances (RoHS) directive. Often called the lead-free directive, this directive restricts the use of six toxic substances known to harm the environment in the construction of electrical and electronic equipment.
- High Energy Efficiency –Both portable ACs carry a high Energy Efficiency Ratio (EER) of 10.9. A portable AC's EER is the ratio of cooling capacity (BTUs) to total energy usage (watts). Typically, portable air conditioners with EERs over 10 are considered the most energy efficient and cost-effective cooling options.
- R-410A Refrigerant – This CFC-free (chlorofluorocarbon-free) refrigerant is a non-ozone-depleting refrigerant that will not harm ozone should a leak occur. As an added plus, portable ACs that use R-410A refrigerant provide more efficient cooling and experience less wear and tear on internal components over their lifespan.
With these eco-friendly features, both the Whynter ARC-12SD Portable AC and the Whynter ARC-12SDH Portable Air Conditioner and Heater help decrease your carbon footprint and maximize your energy savings while cooling. For more information about conserving your energy dollars with a portable air conditioner, read our article Lower Your Energy Bill with a Portable AC.
Other Highlighted Features

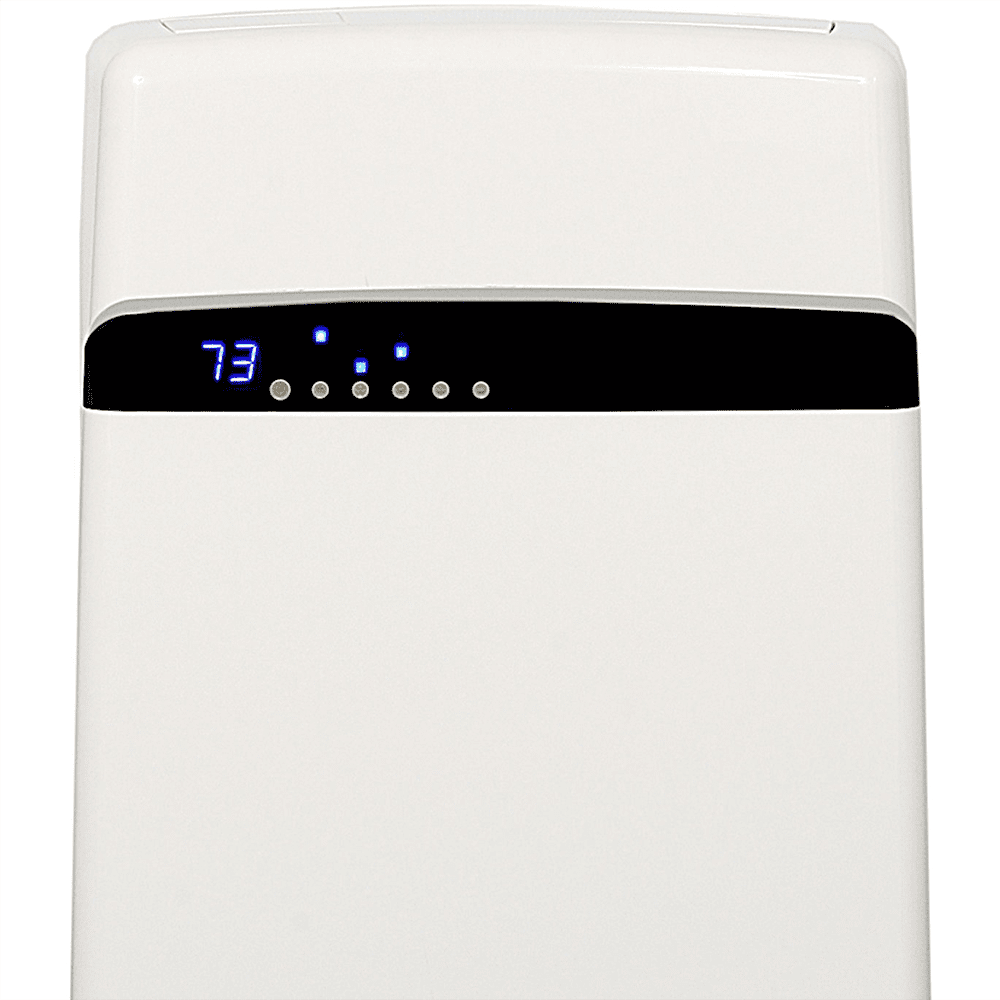

- Thermostatic Control – Use the electronic pushbutton controls to adjust unit cooling from 61 to 89 degrees Fahrenheit.
- 24-Hour Programmable Timer – Program timed operation up to 24 hours using the onboard programmable timer.

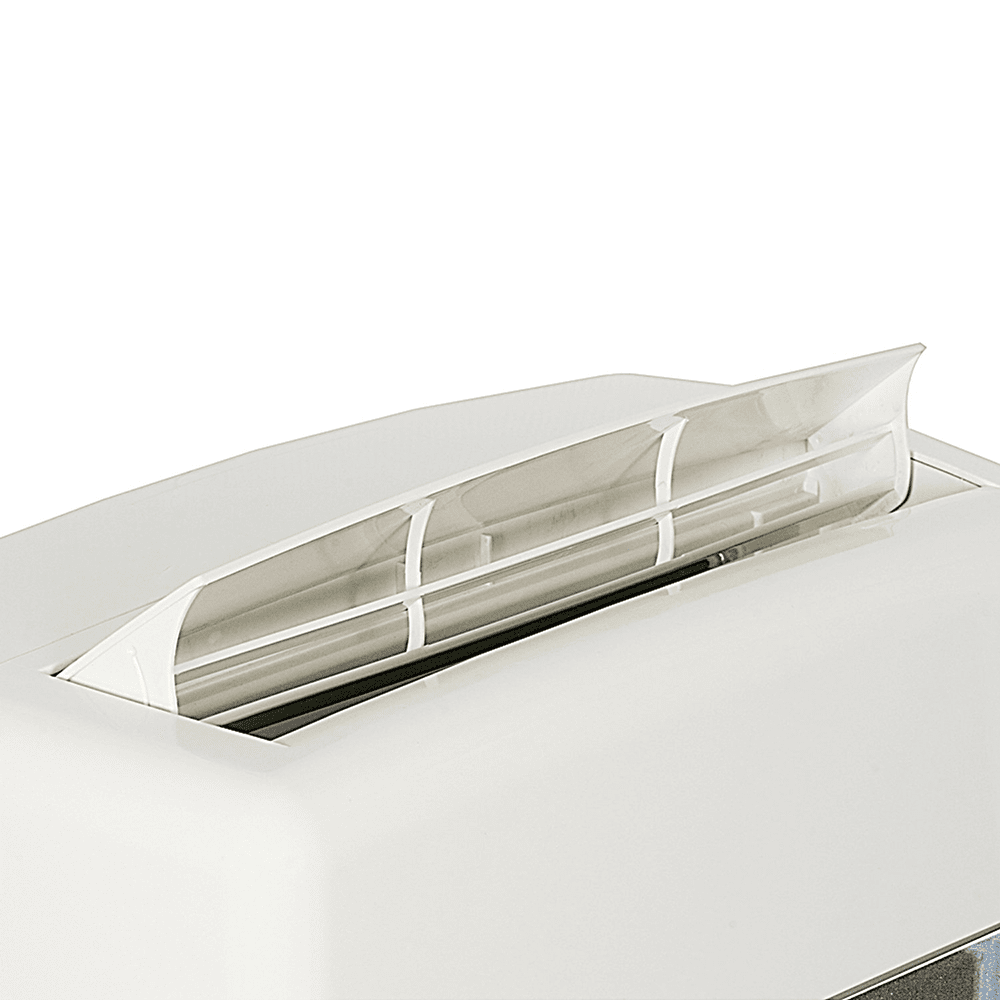

- Manual Oscillation Control – Easily adjust airflow from left to right using manually adjusting louvers.
- Washable Pre-Filter – A washable filter helps remove particles and allergens from your room's air. To keep the filter working at its best, clean it after every 100 hours of use.
- Carbon Filter – The carbon filter helps absorb odors and keep them from returning.
- LCDI Plug – These portable ACs are equipped with Leakage-Current Detection and Interruption (LCDI) plugs to protect against fire hazards.
- Auto Restart – In the event of a power failure, this eco-friendly portable air conditioner will restart automatically.
- Compressor Time Delay – After switching the portable air conditioner off, the compressor will not turn back on until 3 minutes have passed. This helps protect the quality of the compressor and its operation.

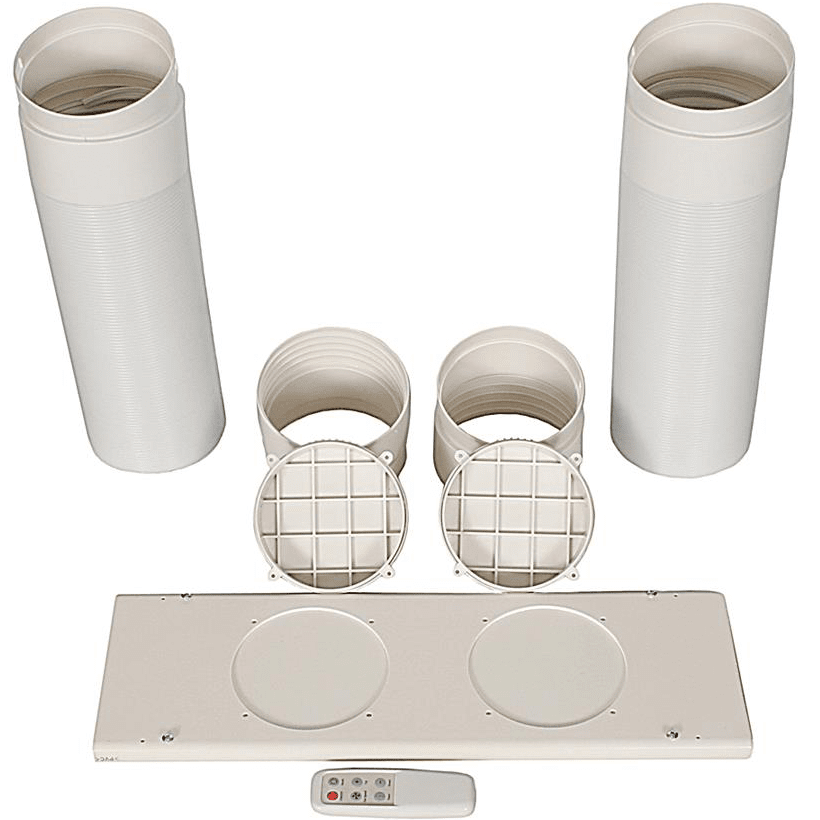

- Window Kit Included – An upgraded plastic window kit is included for easy installation. The kit includes a window slider panel that is extendable up to 36 inches, two exhaust hoses that extend up to 4 feet, and all necessary installation hardware.
- Carrying Handle – Use the built-in side carrying handles to help you safely move the unit.
- Remote Control – Control portable AC operation from a comfortable distance with the full-featured remote control.
- Casters – Easy-roll casters make it easy to move the Whynter portable AC from space to space.
Specifications
Specifications
-
Energy Efficiency Ratio (EER)10.9
-
Internal Condensate PumpNo
-
ApplicationResidential
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
-
CertificationsUL
-
ColorWhite
-
ControlsElectronic
-
DOE SACC Cooling Power (BTUs)7500
-
Heat ModeYesNo
-
Heating BTUs (BTUs)11000
-
Hose TypeDual Hose
-
Maximum Cubic Feet per Minute (CFM) (CFM)188.0320.0
-
Maximum Noise Level (dB)56
-
Maximum Operating Temperature (degrees F)95
-
Maximum Thermostat Setting (degrees F)89
-
Minimum Operating Temperature (degrees F)64
-
Minimum Thermostat Setting (degrees F)61
-
Moisture Removal per Hour (pints)4
-
Recommended Coverage Area (sq. ft.)400
-
Recommended ForHome
-
Refrigerant TypeR-410A
-
Self-EvaporationFull
-
Maximum Amperage (Amps)9.510.5
-
Maximum Wattage (W)10201100
-
Plug Face Type5-15P
-
Power Cord Length (ft.)6.4
-
Recommended Breaker Size (Amps)15
-
Voltage (V)110-120
-
Depth (in.)16.5
-
Depth (with front cover) (in.)16.5
-
Height (in.)34.0
-
Height (with front cover) (in.)34.0
-
Maximum Window Opening (in.)46
-
Minimum Window Opening (in.)20
-
Vent Hose Diameter (in.)5
-
Vent Hose Length (ft.)4
-
Weight (lbs.)71
-
Width (in.)20.0
-
Width (with front cover) (in.)20.0
-
Additional FeaturesProgrammable Timer, Remote Control, Full Bucket Indicator/Auto Shutoff, Adjustable Louvers, Window Kit Included, Sliding Window Capable, Drain Hose Capable, Fan-Only Mode, Dehumidifier Mode, Auto-Restart, Garage UseProgrammable Timer, Remote Control, Full Bucket Indicator/Auto Shutoff, Adjustable Louvers, Window Kit Included, Sliding Window Capable, Drain Hose Capable, Dehumidifier Mode, Auto-Restart, Garage Use, Applicable for Indoor Growing
-
Manufacturer's Warranty1 Year Limited; 3 Years on Compressor
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
