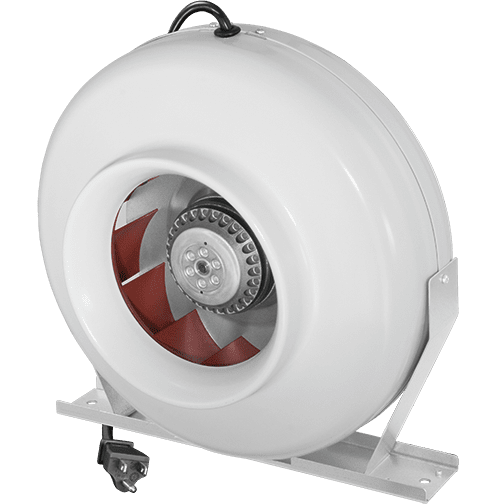

Ruck Air Movement 10-In. Classic Series Inline Centrifugal Duct Fan

SKU: ru14506 | Model: 147896

$148⁰⁰

Option

Classic HO Classic

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

3-Year Limited

What's In The Box?

Ruck Air Movement 8-in Classic Series Inline Centrifugal Duct Fan
Owner’s Manual

Info & Guides

Owner's Manual

Description

Long duct runs and extra elbows slow airflow down, and the Ruck Air Movement 10-In. Classic Series Inline Centrifugal Duct Fan is made to get it moving again. It installs directly in line with 10-inch ducting and pushes air along the run, so the room at the far end gets the ventilation it was missing. You can choose between the standard Classic and the high-output Classic HO.

Key Features and Benefits of the Ruck Air Movement 10-In. Classic Series Inline Centrifugal Duct Fan

Backward-Curved Impeller: Backward-curved impeller blades keep the fan running efficiently, so you get strong airflow through 10-inch ducting without having to choose a bigger fan.
Variable-Speed Control: Manual variable-speed control on both the Classic and Classic HO lets you turn airflow up or down to suit the ventilation your space needs.
Plug-In Power: A 110-120 volt plug-in design with a power cord 5.5 feet long lets you run the fan from a nearby outlet without hardwiring.
Built-In Brackets: Mounting brackets are built into the powder-coated metal casing, so you can secure the fan in line with 10-inch ductwork without extra hardware.
Cold-Weather Operation: Both models run at temperatures as low as -13 degrees F, so you can install the fan in ductwork that passes through unheated spaces.
Safety Certifications: UL and CSA certifications show the fan meets recognized electrical safety standards, which gives you confidence when it runs inside your home's duct system.
Compact Housing: The fan measures 15.75 x 13.78 x 9.84-Inches (L x W x H), so you can check clearance in tight ceiling or wall cavities before you install it.
German Construction: A single-phase AC motor sits inside a white powder-coated metal casing made in Germany, giving you a solid, finished housing for exposed or concealed installs.

Classic vs. Classic HO: Choose Your Airflow

The 10-inch Classic Series comes in 2 output options, Classic and Classic HO, which differ in airflow, power draw, weight, and heat tolerance.

Classic: Model ru14505 moves up to 594 CFM on 1.2 amps, the lower power draw of the two, handles air temperatures up to 140 degrees F, and weighs 9.88 pounds, the lighter option.
Classic HO: Model ru14506 pushes up to 805 CFM for longer or more demanding duct runs, draws 2.5 amps for that extra output, weighs 12.11 pounds, the heavier of the two, and is rated for air temperatures up to 113 degrees F.

Sylvane's Expert Take

If you're dealing with a far room that never gets enough airflow from a 10-inch duct, the Classic Series is a good place to start. The Classic HO suits long runs with several bends, while the Classic is the safer pick when that air runs warm. Variable-speed control matters most here, because you can turn either model down when full output is more than you need. Since it plugs in, you can move or swap it later without rewiring.
