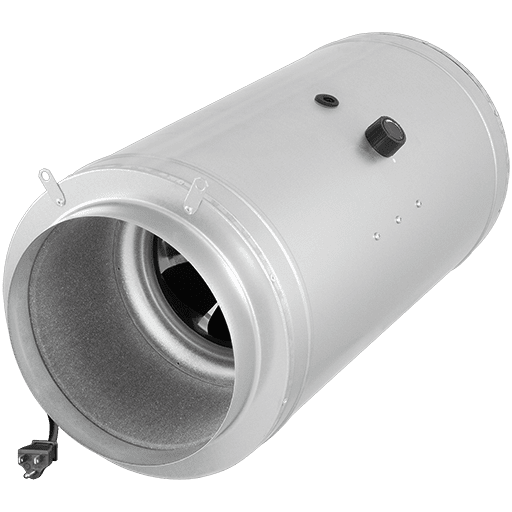

Ruck Air Movement 12-In. S-Prime 1692 CFM Mixed Flow Inline Duct Fan
Ruck Air Movement 12-In. S-Prime 1692 CFM Mixed Flow Inline Duct Fan is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Ruck Air Movement 12-inch S-Prime Mixed Flow Inline Duct Fan
- Owner's Manual
Info & Guides
Info & Guides
Ruck Air Movement 12-In. S-Prime 1692 CFM Mixed Flow Inline Duct Fan
Description
Description
Ruck Air Movement 12-inch S-Prime Mixed Flow 3-speed Inline Duct Fan incorporates sound insulated casing for silent operation with the Prime mixed flow fan. The efficient AC motor has a 3-speed stepless control.
Silent & Efficient
Equipped with an efficient on-phase AC motor, the Ruck 12-inch S-Prime duct fan delivers the high efficiency pulling only 4.7 amps, saving you on energy costs.
This mixed flow inline duct fan registers a mere 39 dB at the housing break out operating at 8,000 Hz.
Features & Highlights
- 12-inch Fan
- Whisper Quiet Operation
- S-Prime EVO Mixed Flow Inline Duct Fan
- Integrated 3-Speed Switch
- Galvanized Sheet Steel Housing
- Computer Optimized Impeller Blades & Guide Vanes
- Motor is protected in the Hub Area
- Dual Pole
- 1692 Maximum CFM
- Minimum Operating Temperature of -13° Fahrenheit (-25° C)
- Maximum Operating Temperature of 104° Fahrenheit (40° C)
Summary
The Ruck S-Prime Mixed Flow Inline Duct Fan is available in this 12-inch duct size, as well as a 10-inch duct size. It features galvanized sheet steel, sound insulated casing for silent operation, and an integrated 3-speed switch.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)48.0
-
TypeLow Noise Inline Duct Fan
-
ApplicationDucting
-
CertificationsUL, CSA
-
ColorGray
-
ControlsManual
-
Maximum Air Temperature (degrees F)104
-
Maximum Cubic Feet per Minute (CFM) (CFM)1692.0
-
Amperage (Amps)4.7
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)517
-
Depth (in.)15.24
-
Depth (with front cover) (in.)15.24
-
Duct Diameter (in.)12.0
-
Height (in.)14.25
-
Height (with front cover) (in.)14.25
-
Weight (lbs.)22.73
-
Width (in.)14.25
-
Width (with front cover) (in.)14.25
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty3-Year Warranty
