Ruck Air Movement 6-In. Prime EVO 421 CFM Mixed Flow Inline Duct Fan

SKU: ru14517  |  Model: 147608
$162.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.


Add extended protection plan. (Select one)

learn more

A 1-year replacement warranty plan for commercial or residential use items under $250.

learn more

A 2-year replacement warranty plan for commercial or residential use items under $250.


Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

3-Year Warranty

What's In The Box?

  • Ruck Air Movement 6-inch Prime EVO Mixed Flow Inline Duct Fan
  • Mounting Bracket
  • Owner's Manual

Info & Guides

Description

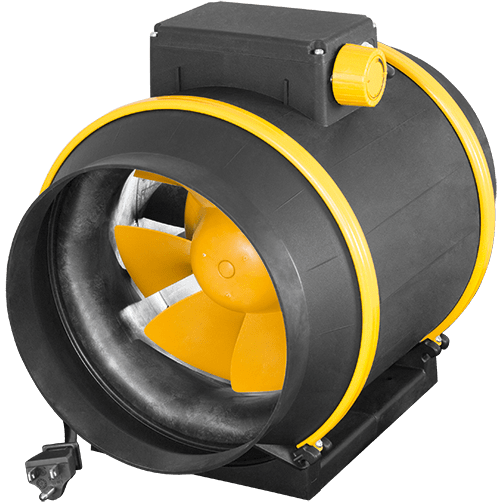

The Ruck Air Movement 6-inch Prime EVO Mixed Flow Inline Duct Fan features 3D shaped impeller blades for the best aerodynamic design, resulting in high efficiency rates.

Engineered with a single-phase AC motor with integrated 3-speed switch, this mixed flow ventilation fan operates quietly thanks to the stepless speed control.

High Efficiency & Performance

This Ruck mixed flow duct fan is designed for the highest aerodynamic efficiency through computer optimized impeller blades and guide vanes. Even more efficient than Ruck’s prime fans, the Prime EVO pulls only 1.7 amps at highest operating speed.

Features and Highlights

  • 6-inch Duct Fan
  • 3D Shaped Impeller Blades
  • Corrosion-resistant Plastic Housing
  • One-phase AC motor
  • Dual Pole
  • 421 Maximum CFM
  • Minimum Operating Temperature of -13 degrees Fahrenheit (-25° C)
  • Maximum Operating Temperature of 122 degrees Fahrenheit (50° C)
  • Included Mounting Bracket
  • Made in Germany

Summary

The Ruck Prime EVO Mixed Flow Inline Duct Fan is available in this 6-inch size, as well as 8-inch, 10-inch, and 16-inch duct sizes. It includes a mounting bracket and features corrosion-resistant housing and integrated 3-speed stepless switch.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      18.0
    • Type
      Low Noise Inline Duct Fan

    General

    • Application
      Ducting
    • Certifications
      UL, CSA
    • Color
      Yellow
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      122
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      421.0

    Power

    • Amperage (Amps)
      0.7
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120
    • Watts (W)
      70

    Dimensions

    • Depth (in.)
      9.02
    • Depth (with front cover) (in.)
      9.02
    • Duct Diameter (in.)
      6.0
    • Height (in.)
      12.6
    • Height (with front cover) (in.)
      12.6
    • Weight (lbs.)
      7.72
    • Width (in.)
      10.28
    • Width (with front cover) (in.)
      10.28

    Additional Features

    • Additional Features
      Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      3-Year Warranty
