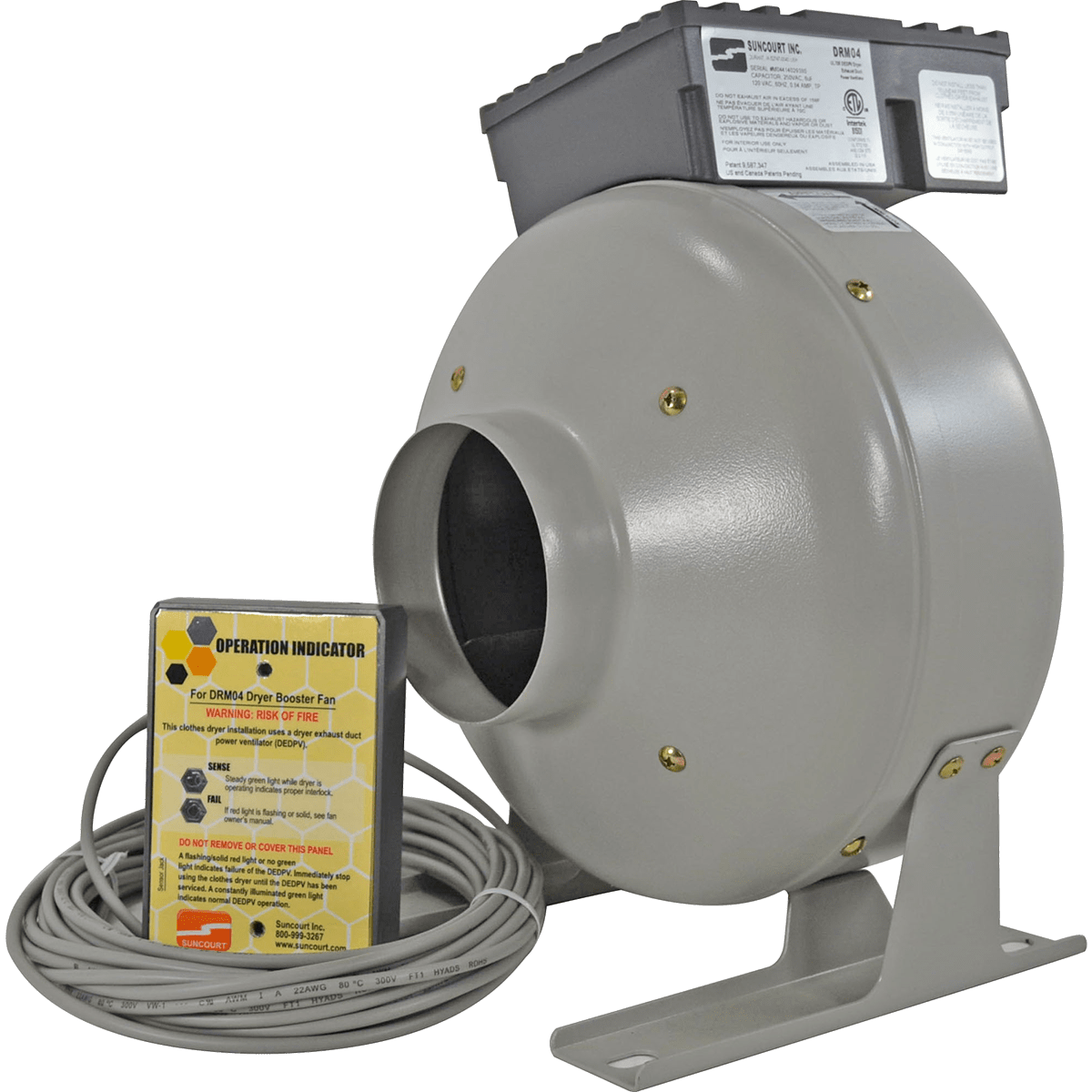

Suncourt Centrasense DEDPV Dryer Booster Fan Kit

SKU: sc9161  |  Model: DRM04
5.0
Rated 5.0 out of 5 stars
2 Reviews
$25999

Save! Shop this product Open-Box & Used

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

5-Year Warranty

What's In The Box?
  • Suncourt DRM04 Dryer Booster Fan
  • Dryer Sensor w/ Six-Foot Cord
  • English and French TFR100 Warning Card
  • 35-Foot 22-Gauge Conductor Wire
  • Band Clamps (2)
  • Metal Cleanout Sleeves (2)
  • Self-Adhesive Foam Strips (4)
  • Owner’s Manual

Info & Guides

Description

In homes where dryer exhausts cannot be run out the wall behind the dryer, the Suncourt DRM04 is a solution for dryer ducts that extend more than 25 feet in length. This dryer booster fan saves energy while reducing dryer runtimes.



Why a Suncourt Dryer Booster Fan?

Suspended lint particles can accumulate and stick in dryer ducts, resulting in clogged ducts and fire hazards. The Suncourt DRM04 increases static pressure and lint removal with an additional 204 cubic feet per minute (CFM) of airflow. Additionally, this dryer booster kit improves dryer performance for energy savings.

Installation + Safety

Installation is easy for any certified professional, as the Suncourt Centrasense integrates into any standard four-inch ductwork with horizontal or vertical placement. Other features include:

  • ETL-Certified: An ETL safety rating guarantees the booster fan meets compliance for residential use.
  • UL-705: A UL certification ensures the hardwired power ventilator meets and exceeds wiring standards in accordance with the National Electrical Code.
  • 2015 IRC: Meets all applicable building codes for the International Residential Code.

Note: Professional installation by a qualified technician is recommended.

Dryer Booster Benefits

The Suncourt dryer booster kit offers additional benefits, such as:

  • Sensor Efficiency: An electrically powered sensor adds increased efficiency and shorter start-up times over air pressure-powered sensors.
  • Short Drying Times: Minimizes the dryer runtime and energy usage on the heating element, shortening drying cycles.
  • Reduced Lint Build-Up: Suspended lint is kept moving and won’t build up inside your dryer ducts.
  • Minimal Maintenance: Inspect and clean the booster fan every three months with the removable duct clean-out sleeves.

Additional Features

  • American-Made: Designed in the USA, this booster fan kit is designed with quality in mind.
  • Minimal Energy Use: The fan only uses 97 watts of power for minimal energy use.
  • Power Cord: A six-foot, three-prong power cord is attached to the housing for easy reach to standard outlets.
  • Indicator Panel: Two indicator lights display dryer and fan status at a glance.
  • Warranty: Carries a 5-year manufacturer’s warranty.
  • Dimensions: 9.5 W x 9.5 L x 10 H-Inches

Summary

Reduce dryer runtime and decrease energy usage with a Suncourt Centrasense DEDPV Dryer Booster Fan Kit.

What Customers Love

  • Energy Reduction: Take drying time down and reduce energy consumption with a dryer booster fan.

Things to Consider

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      4.0
    • Type
      Dryer Booster Duct Fan

    General

    • Certifications
      UL, ETL
    • Color
      Gray
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      140
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      205.0
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      0.65
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120
    • Watts (W)
      97

    Dimensions

    • Depth (in.)
      9.5
    • Duct Diameter (in.)
      4.0
    • Height (in.)
      10.0
    • Weight (lbs.)
      5.45
    • Width (in.)
      9.5

    Additional Features

    • Additional Features
      Thermal Cutoff Protection

    Warranty

    • Manufacturer's Warranty
      5-Year Warranty

Recommended Accessories

Shop All Suncourt Inline Duct Fans Accessories

Customer Reviews

5.0
Rated 5.0 out of 5 stars
Based on 2 reviews
100%would recommend this product
Product QualityRated 5.0 on a scale of 1 to 5
Value for MoneyRated 4.0 on a scale of 1 to 5
Ease of UseRated 4.0 on a scale of 1 to 5
Write a Review (Opens in a new tab)
2 reviews
  • CS
    Chris S.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    2 days ago
    Home dryer booster fan kit

    This kit has all you need to safely help your dryer boost air out through longer than normal 4” vent duct work. The installation guide is detailed and very easy to understand. Fan is extremely solid and should last many years. Very happy with the purchase.

    Was this helpful?
  • J
    john
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    4 years ago
    Don't hesitate. This unit will do the job..

    New LG dryer kept faulting due to unknown vent pipe issue. Blower is perfect. Easy to use instructions. Well made. Glad i purchased this unit.!

    Was this helpful?
