TrolMaster Hydro-X Lighting Control Adapter
TrolMaster Hydro-X Lighting Control Adapter - Lantern Schedule - LMA-24 is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
What's In The Box?
What's In The Box?
- TrolMaster Lighting Control Adapter
- LMA-11
- LMA-12
- LMA-13
- LMA-14
- LMA-15
- LMA-24
- LMA-T & RJ12 Customized Waterproof Connector
Info & Guides
Info & Guides
TrolMaster Hydro-X Lighting Control Adapter
Description
Description
TrolMaster Lighting Control Adapters feature Plug & Play connection to the Hydro-X or Hydro-X Pro System for low-volt control of LED, HID, Fluorescent, and traditional grow lights.
These adapters allow commercial growers to schedule light/dark patterns in various zones for highest yield in various plants.
Each Adapter is designed for specific types of lights and/or brands and has these features for simple installation and use.
- LED Power Indicator
- Convert Digital signal to Analog signal
- Seamless connection to Hydro-X with RJ12 Cable

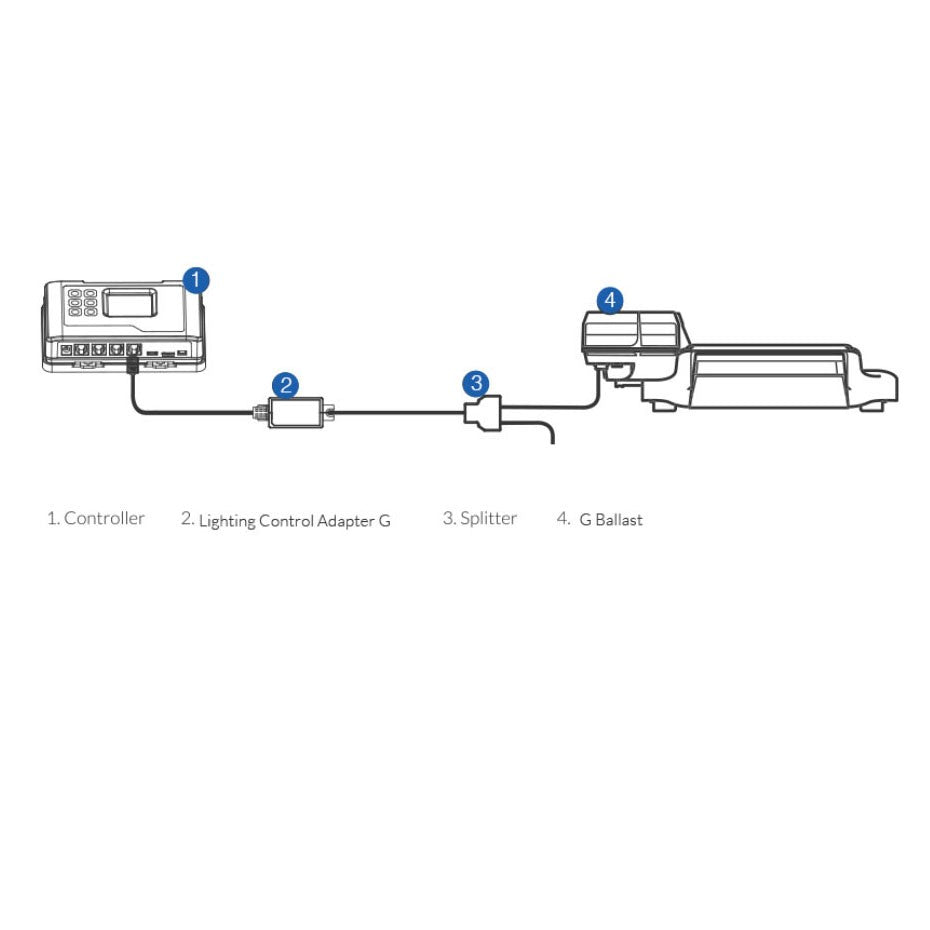

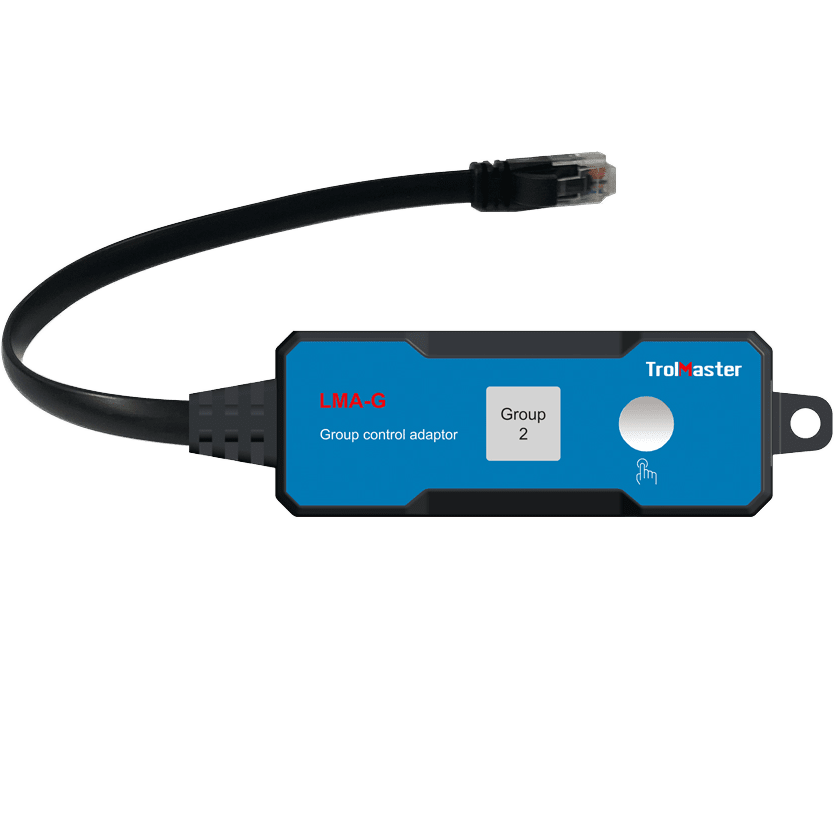

Lighting Control Adapter G (LMA-G): Designed for use with single-bar lighting fixtures like the ThinkGrow Model-I and Model-I Plus, each TrolMaster LMA-G Group Control Adapter can control one group of lights. Features and plug-and-play design for user-friendly set up and operation.

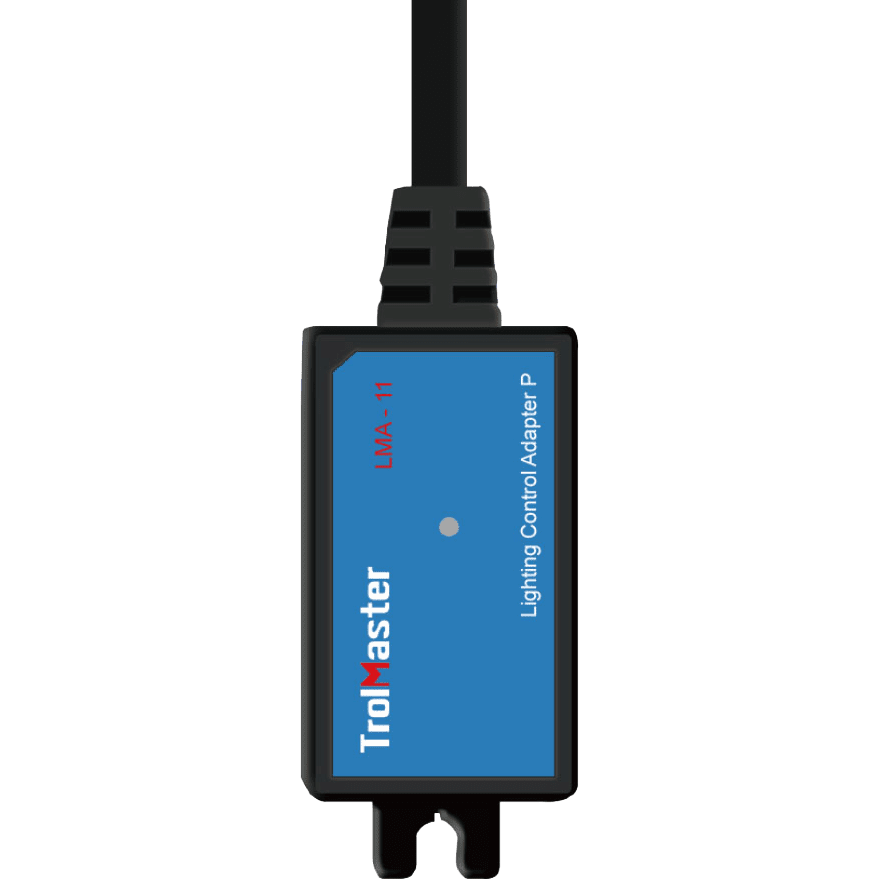

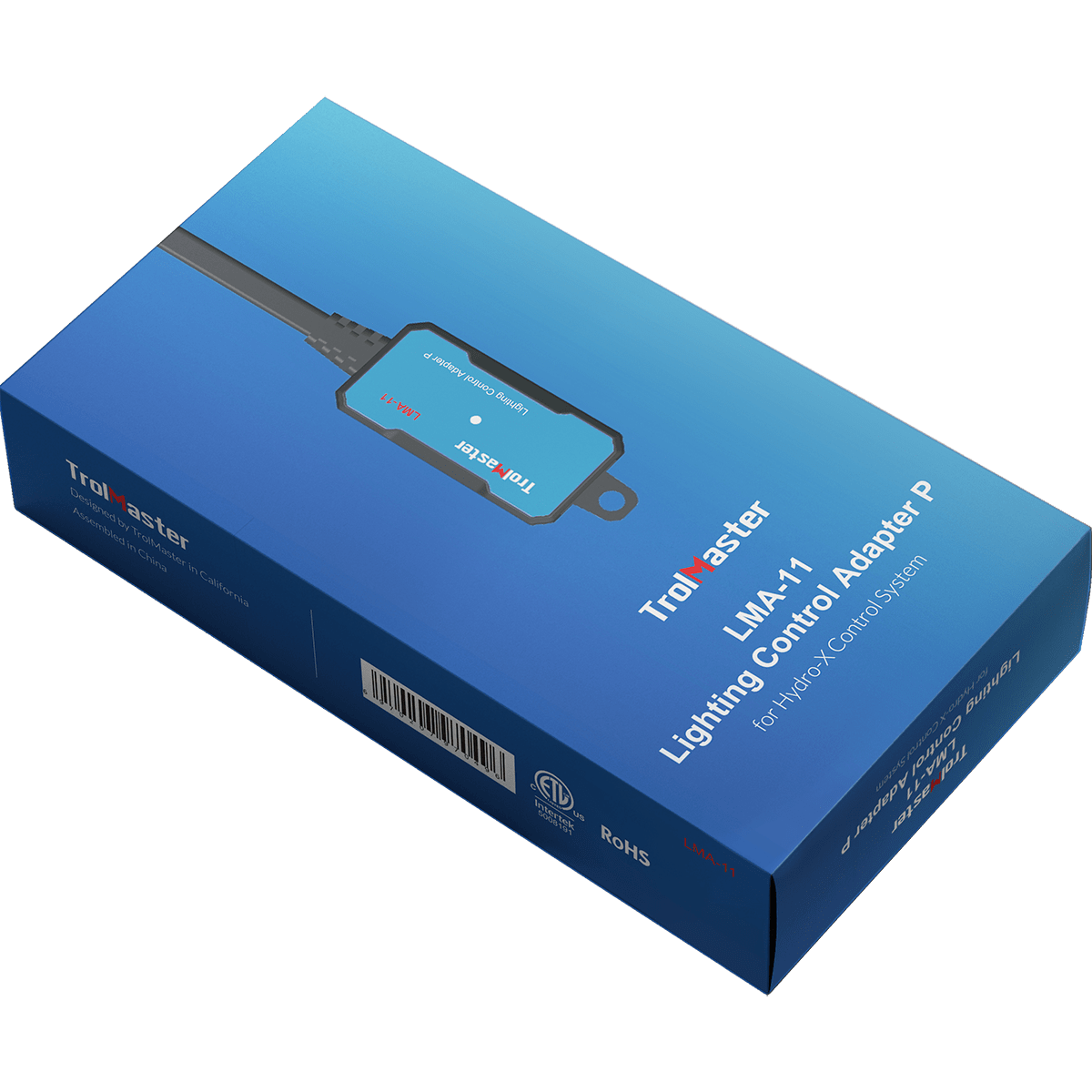

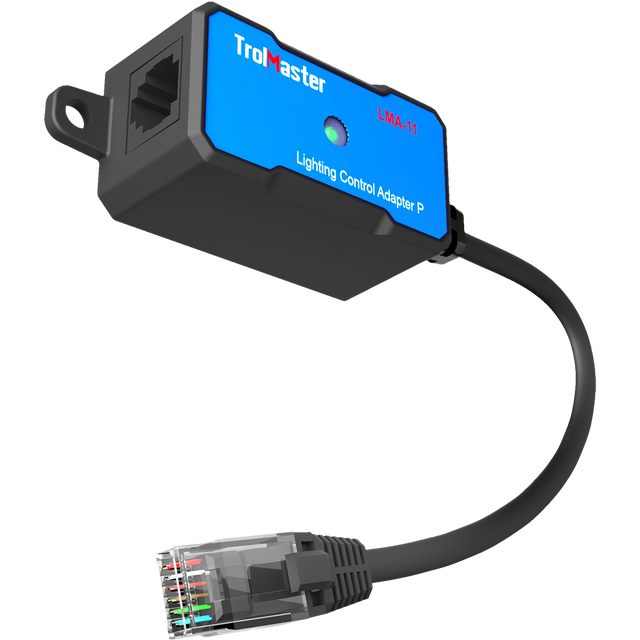

Lighting Control Adapter P (LMA-11): TrolMaster’s LMA-11 adapter is specially designed for controlling P ballast for fluorescent lamps which are UL listed.

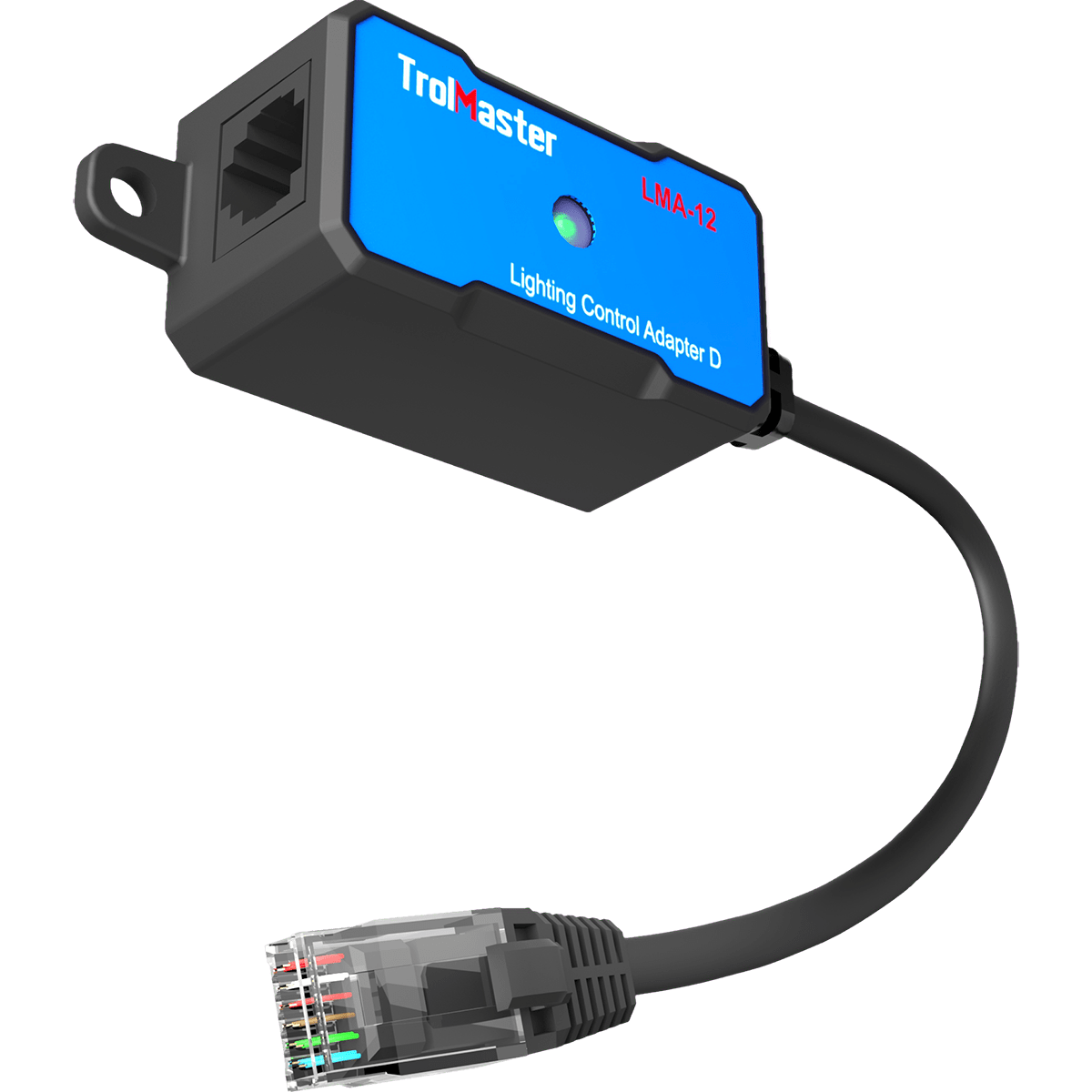

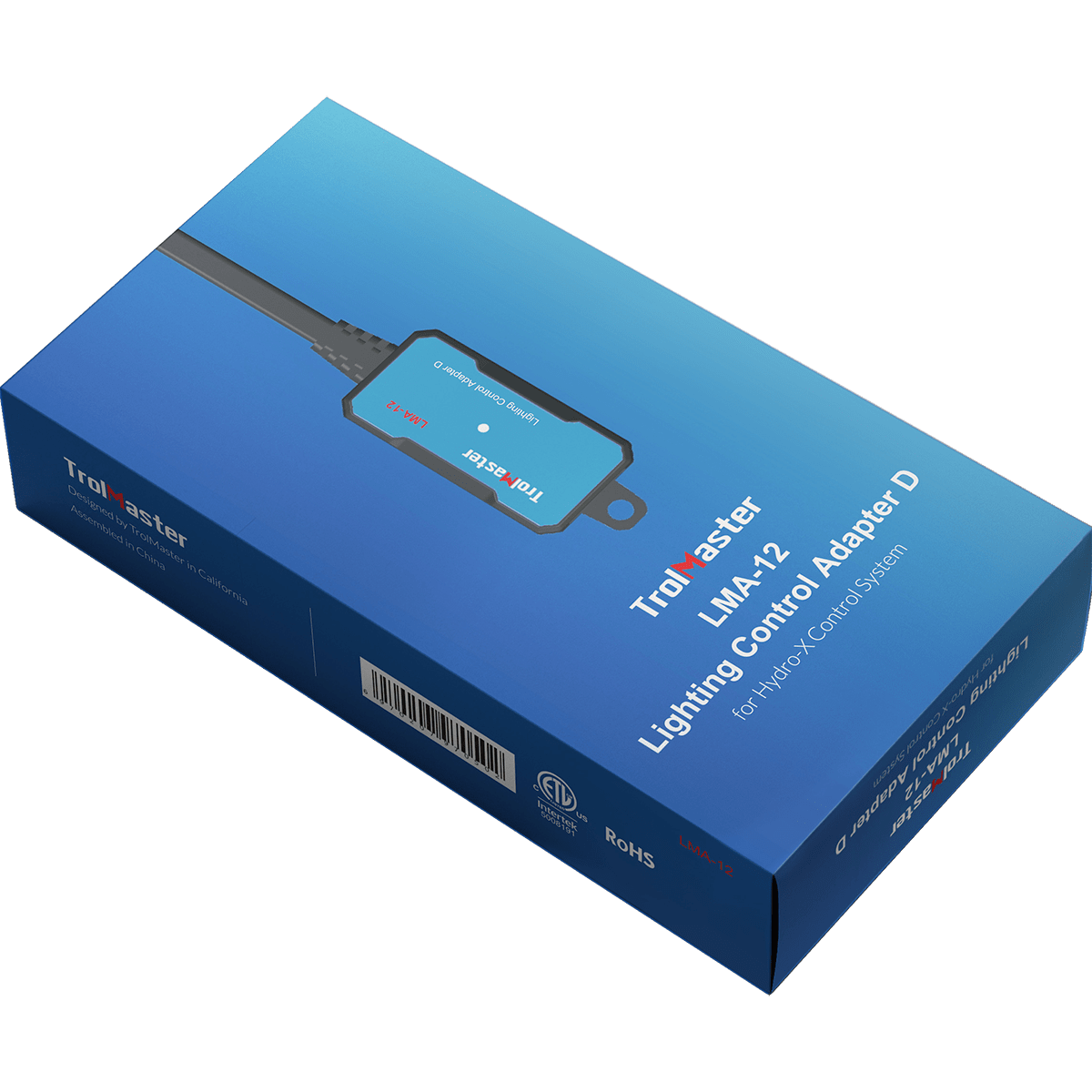

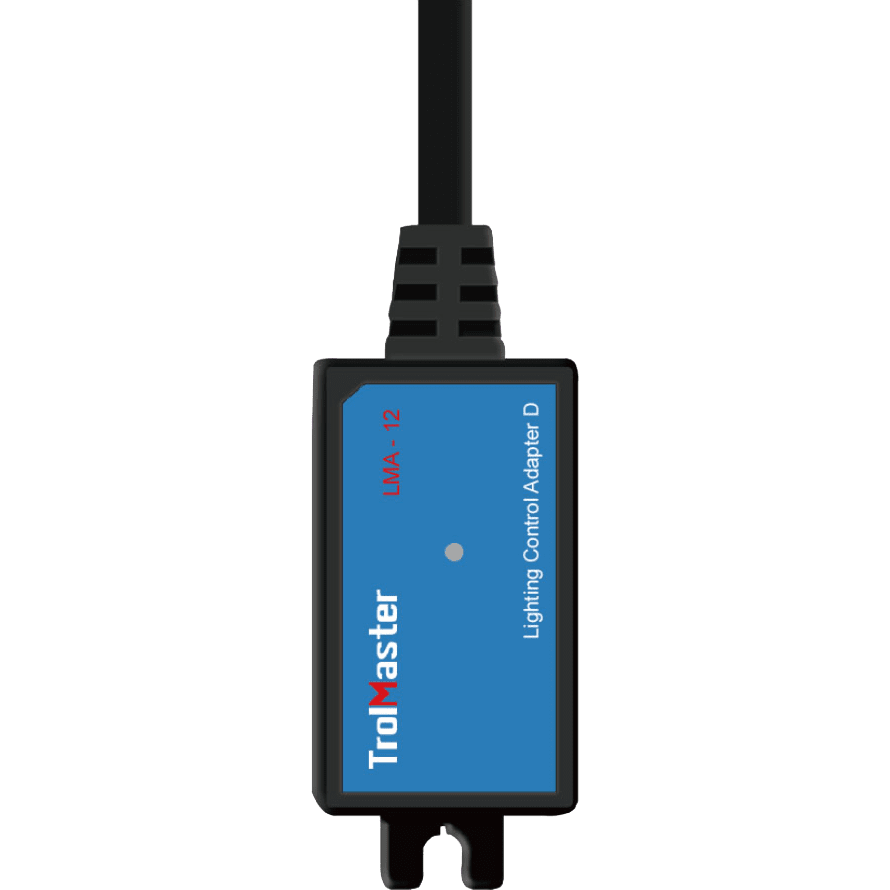

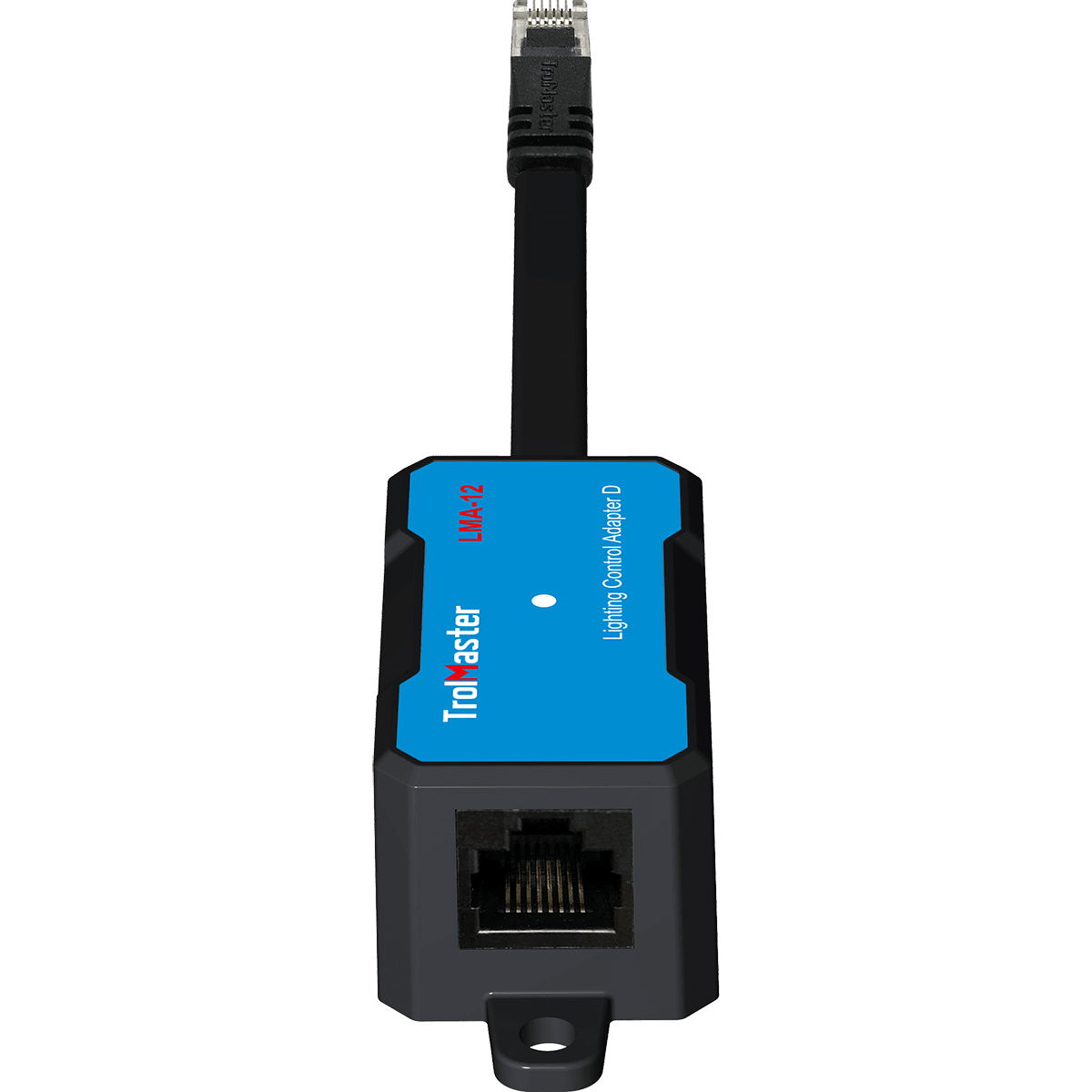

Lighting Control Adapter D (LMA-12): The LMA-12 adapter is designed for controlling D ballast.

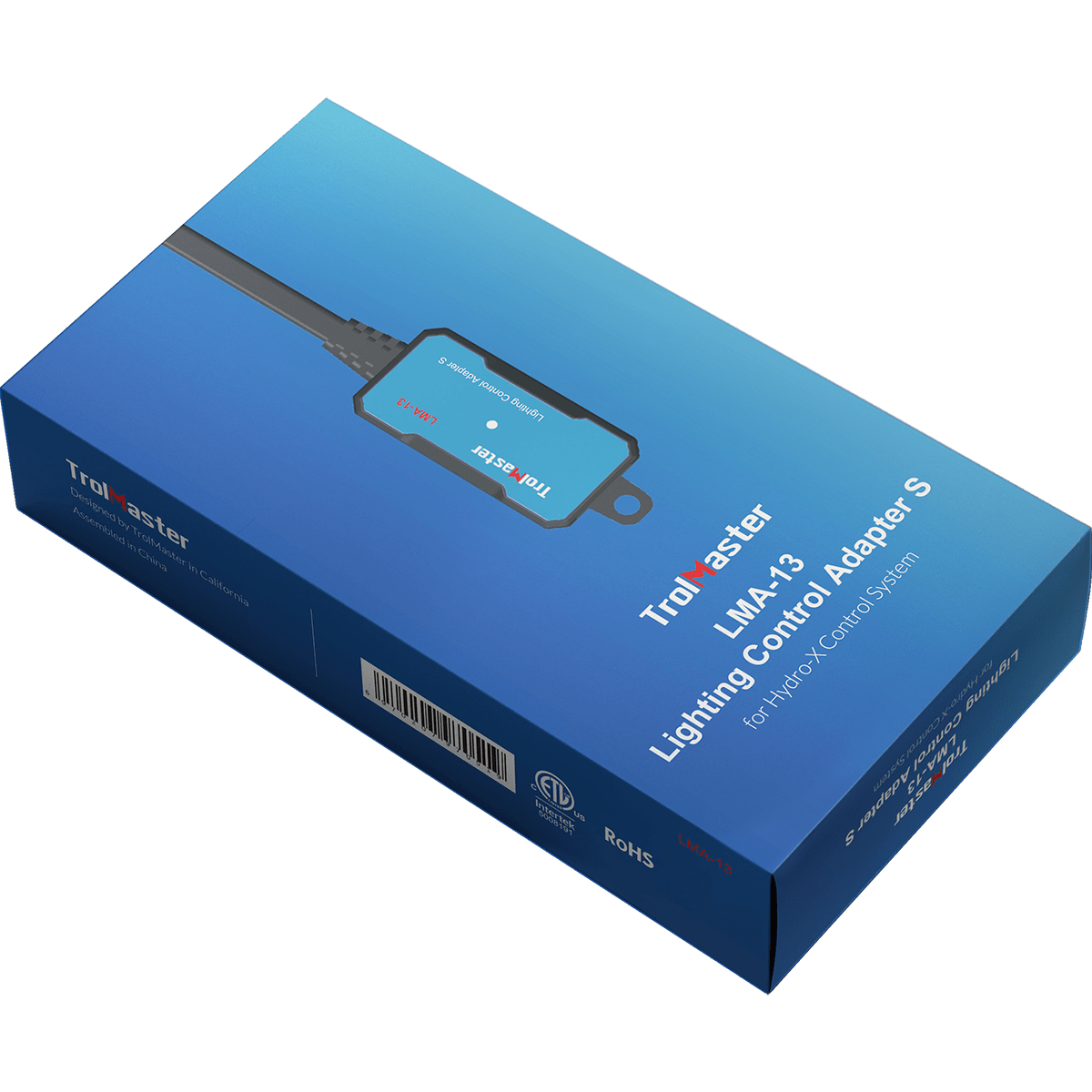

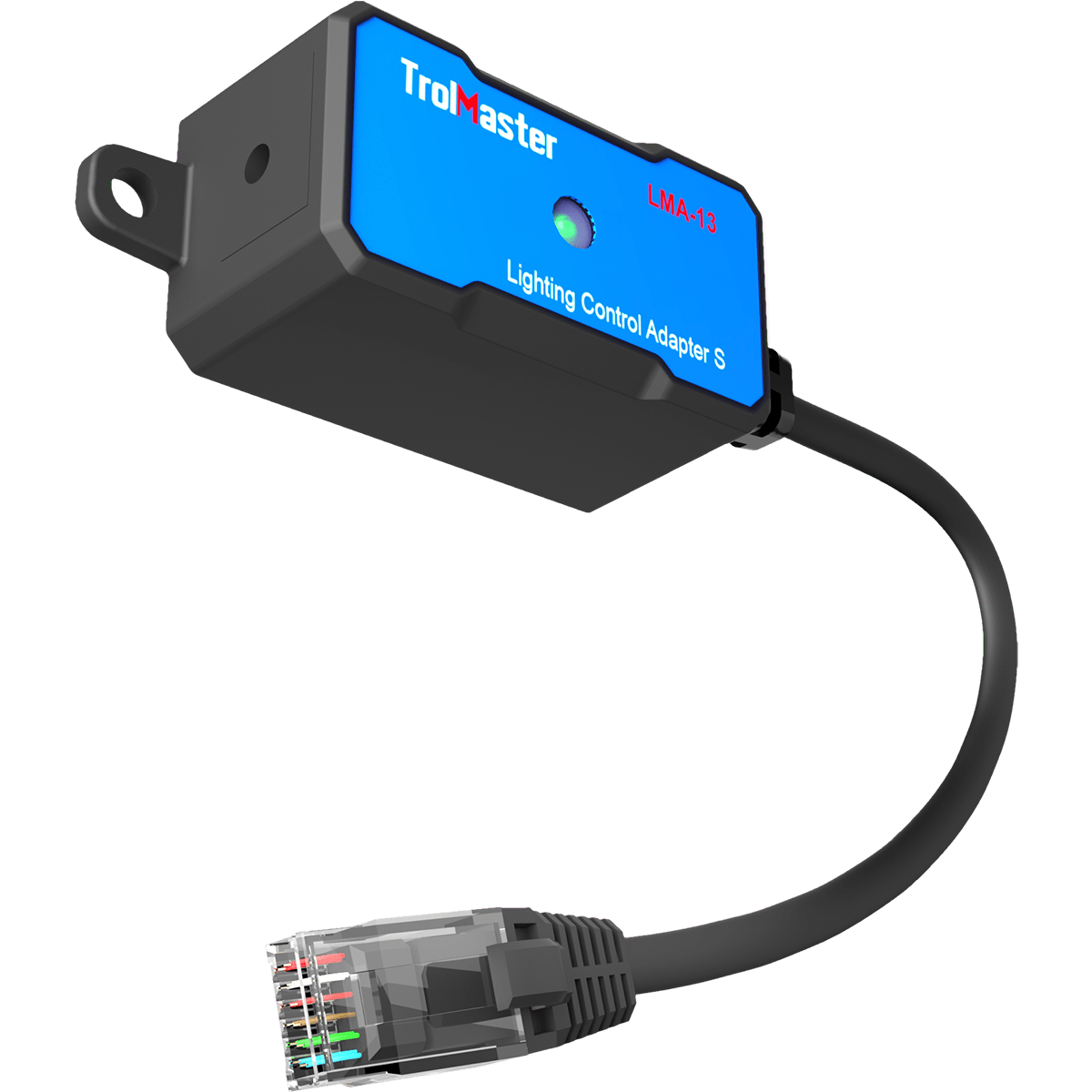

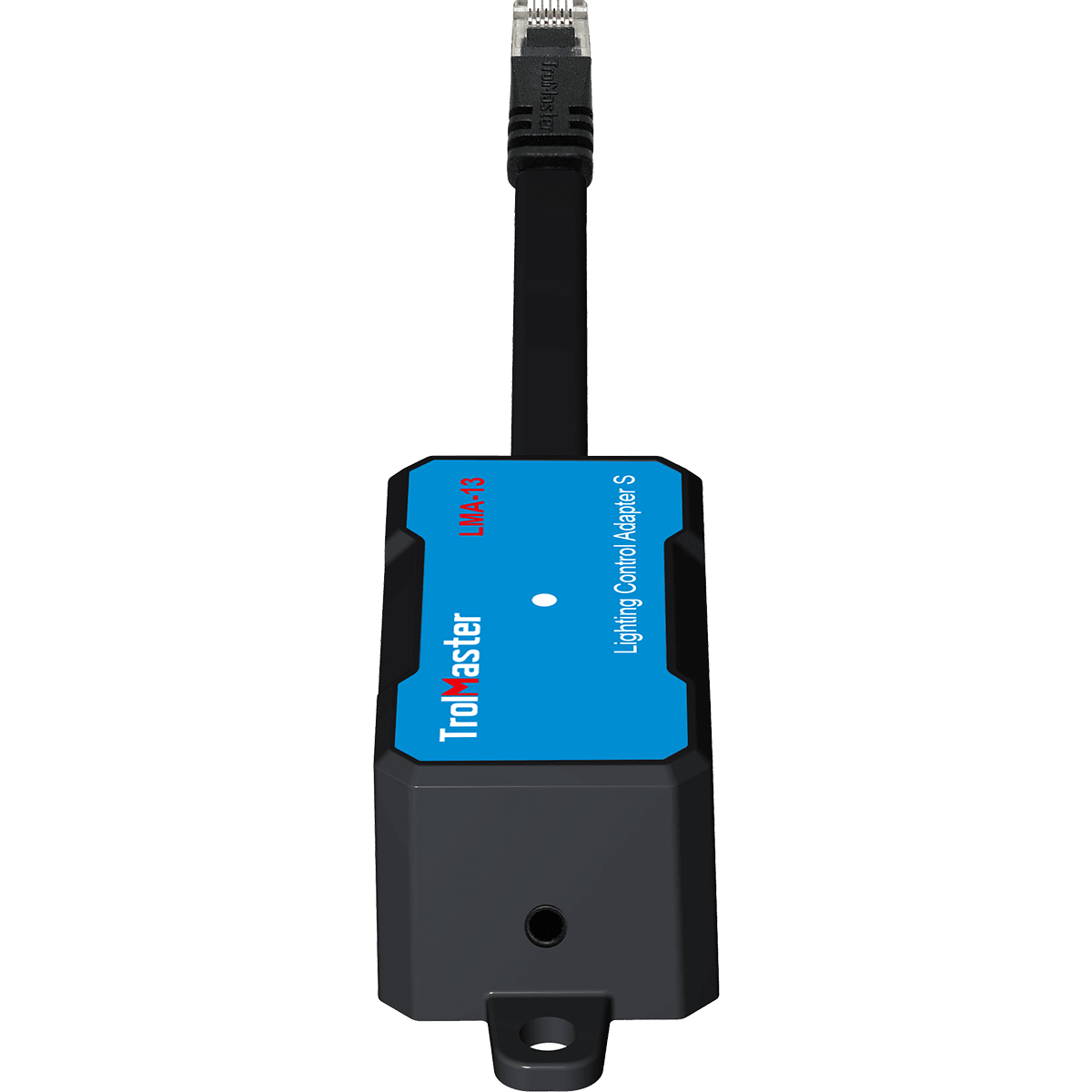

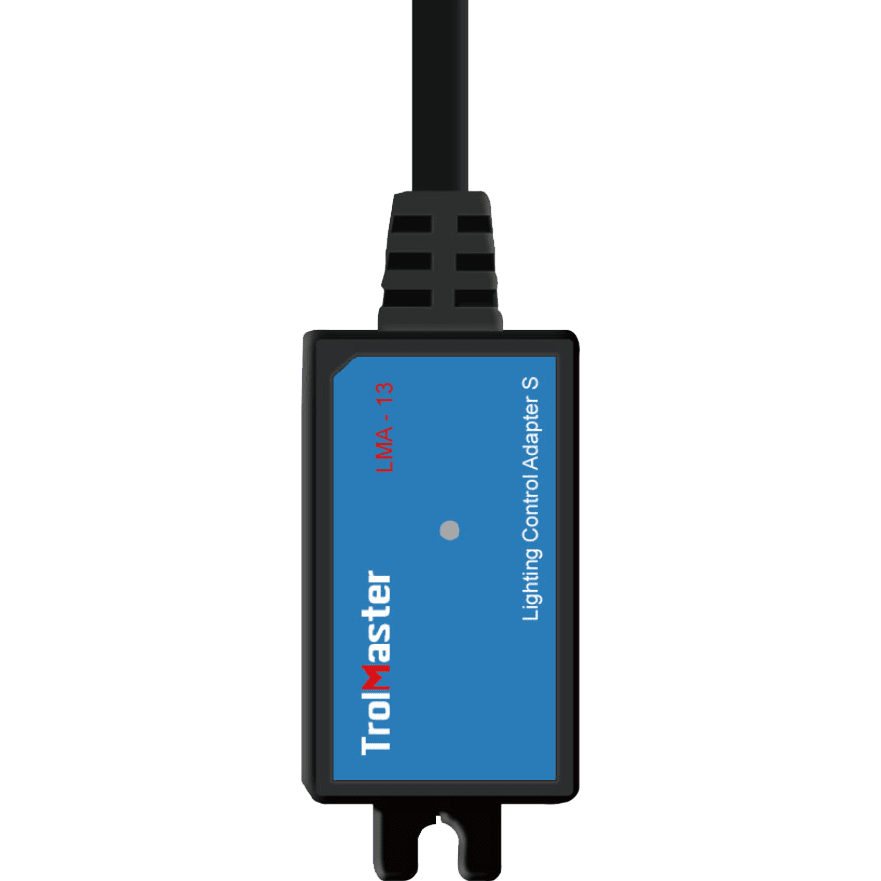

Lighting Control Adapter S (LMA-13): This lighting control adapter S is specifically designed for controlling SunSystem ballast—with the exception of SunSystem LEC 630.

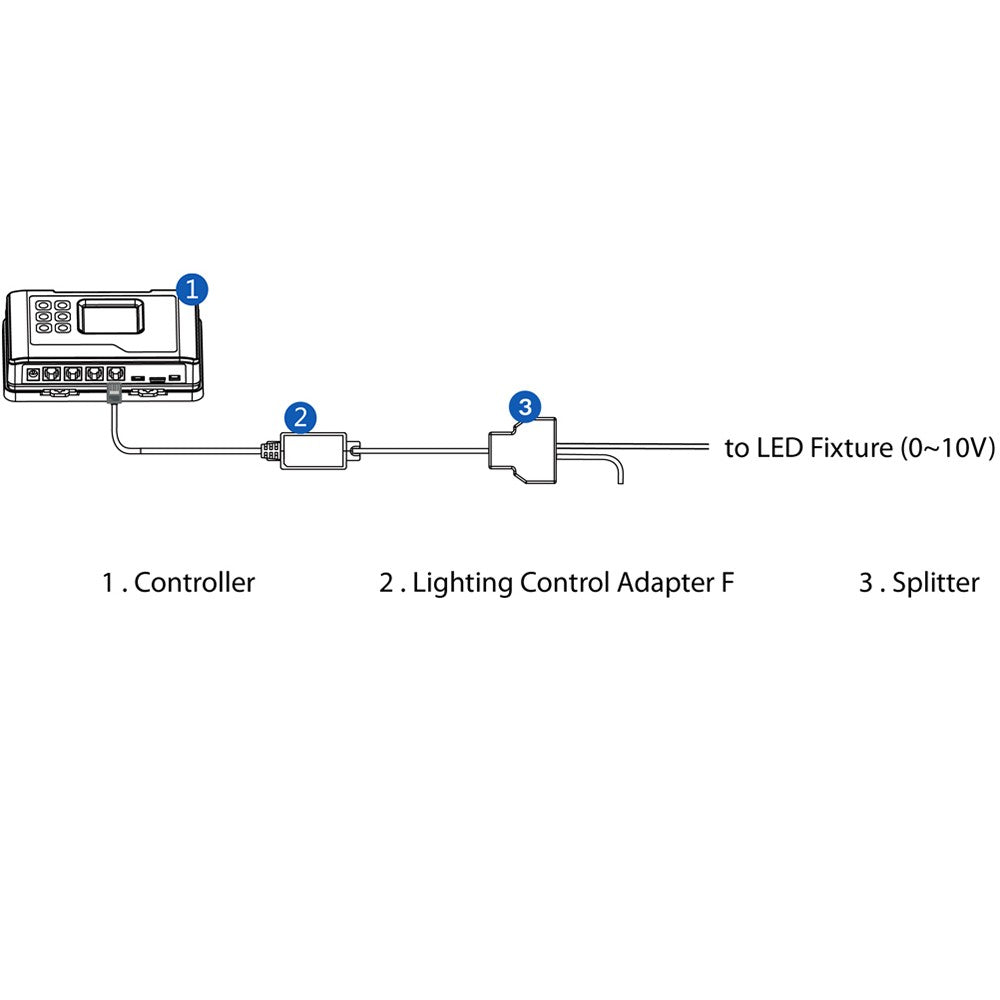

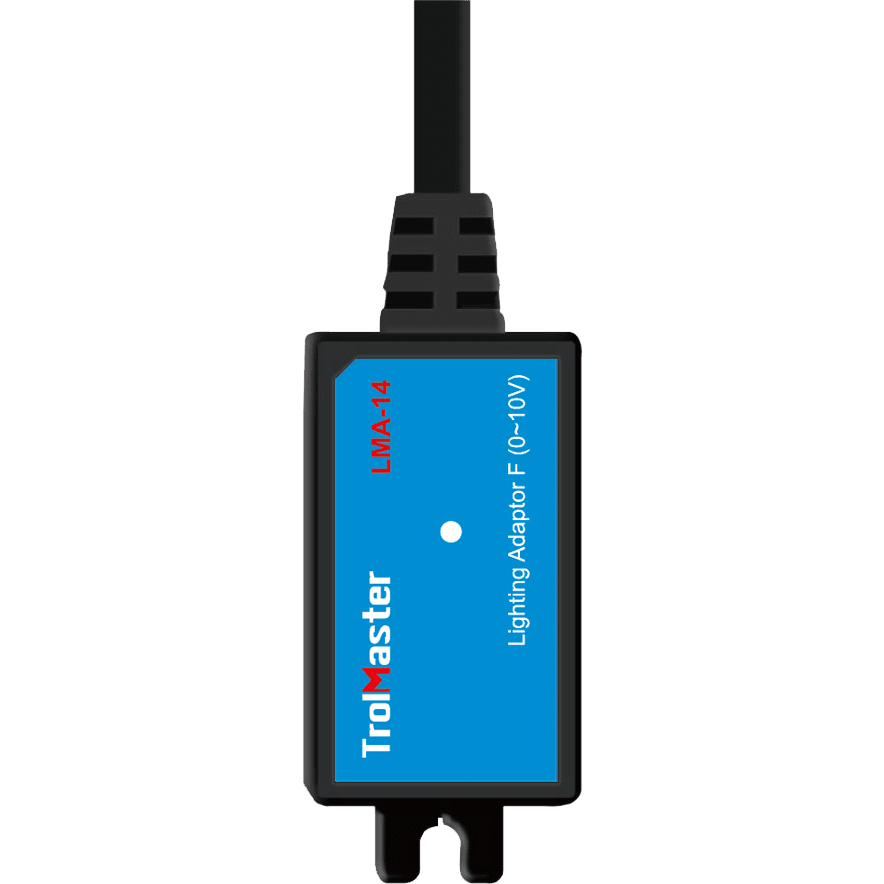

Lighting Control Adapter F (LMA-14): The TrolMaster LMA-14 lighting adapter is designed to control HID grow lights from brands like Gavita, Nanolux, Luxx, Growers Choice, Illuminar, PL, and also LED grow lights from Fluence, NextLight, Horticulture Lighting Group (HLG), and Photobio.

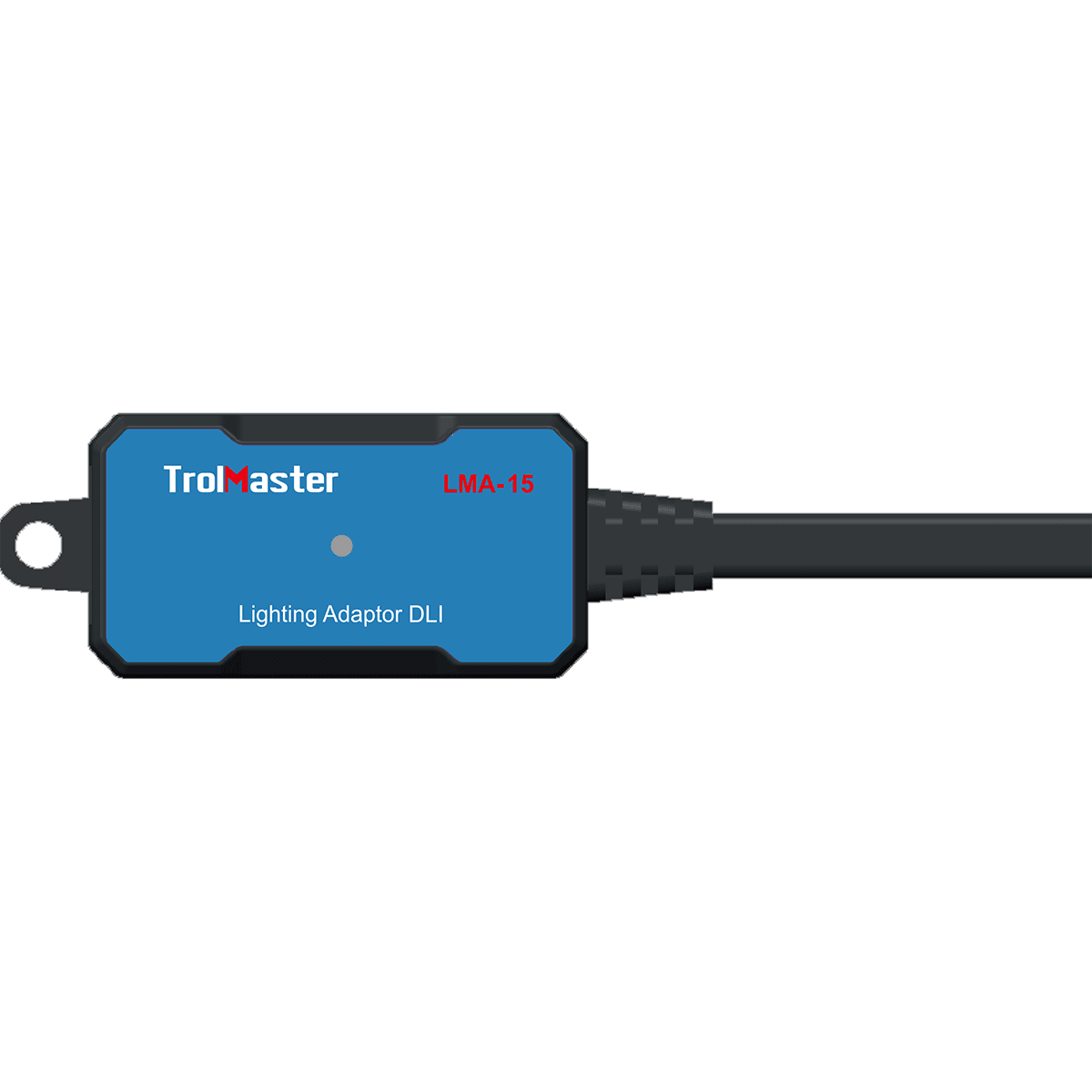

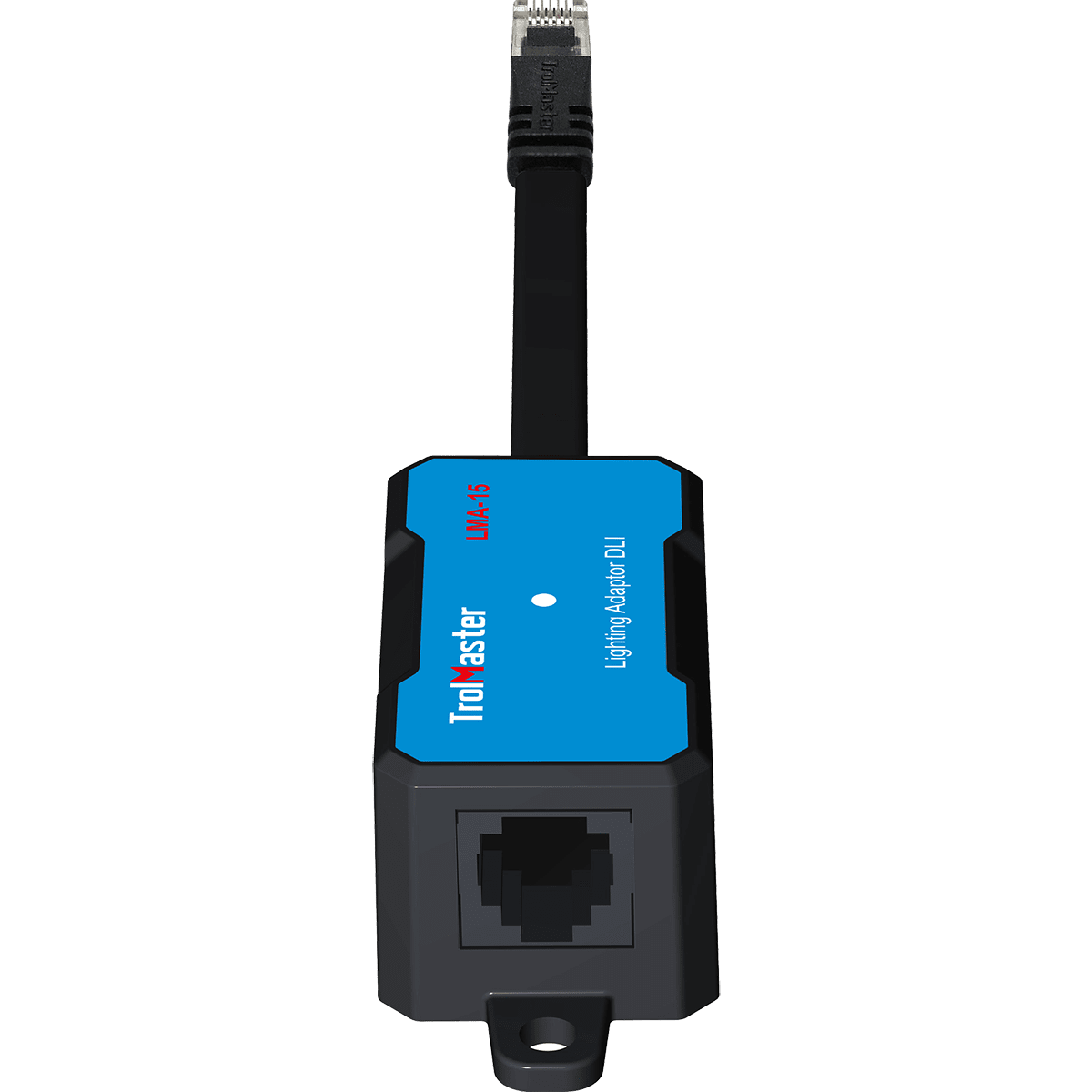

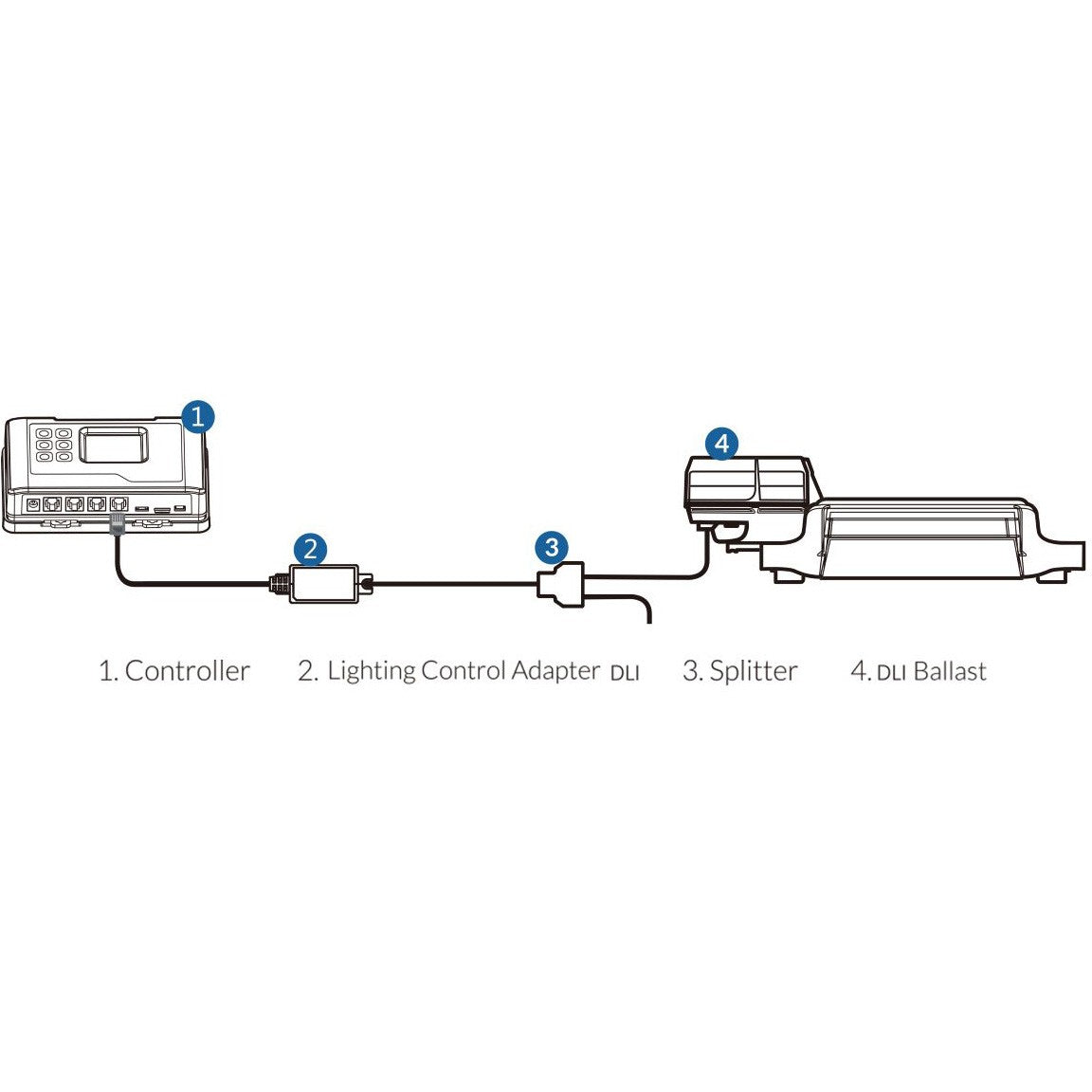

Lighting Control Adapter DLI (LMA-15): This LMA-15 lighting control adapter is designed specifically to control DLI fixtures.

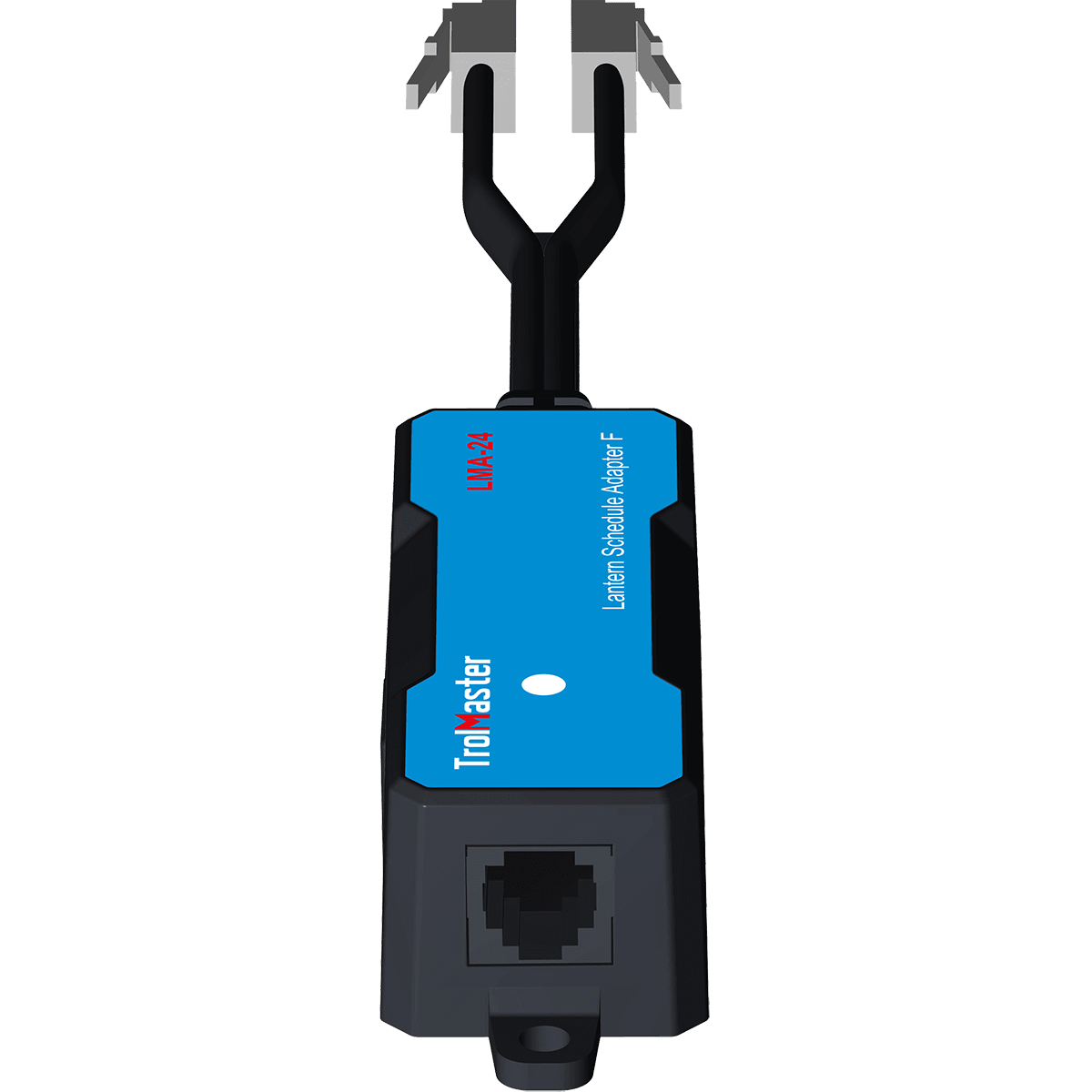

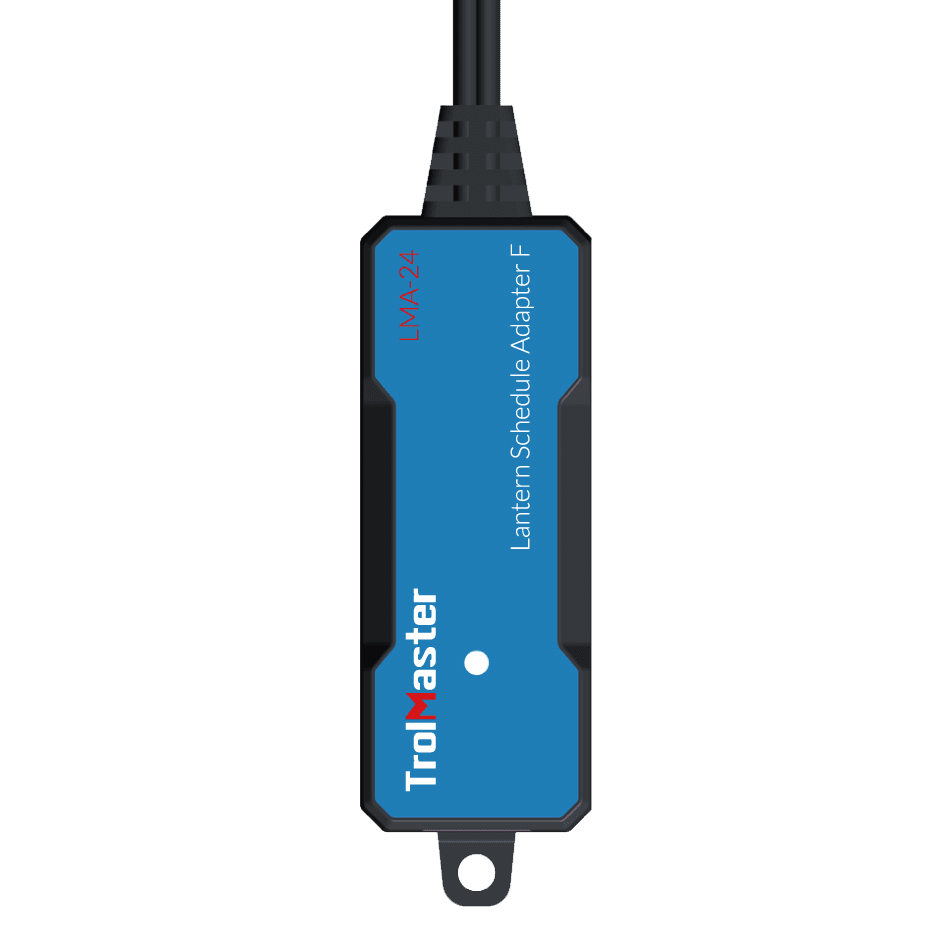

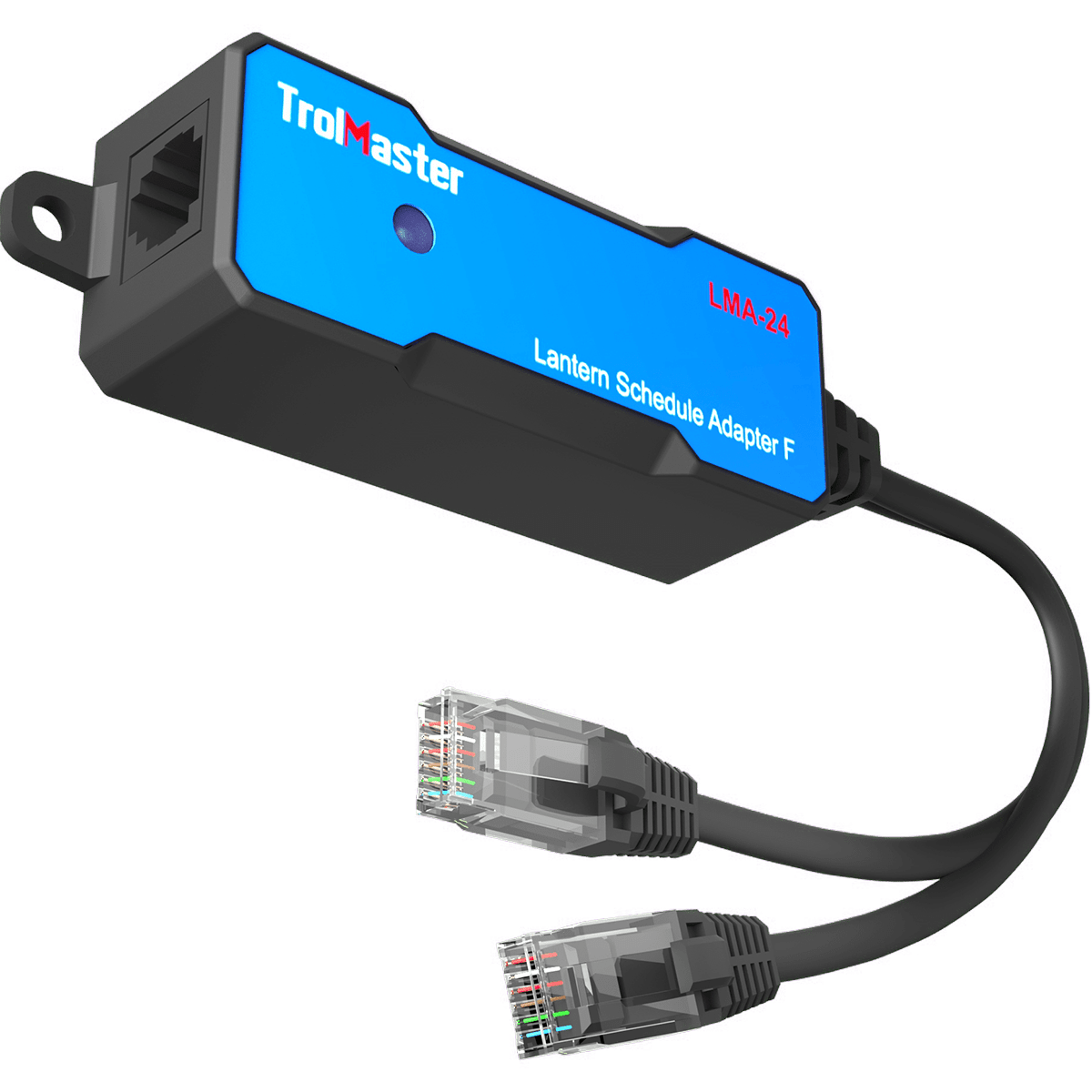

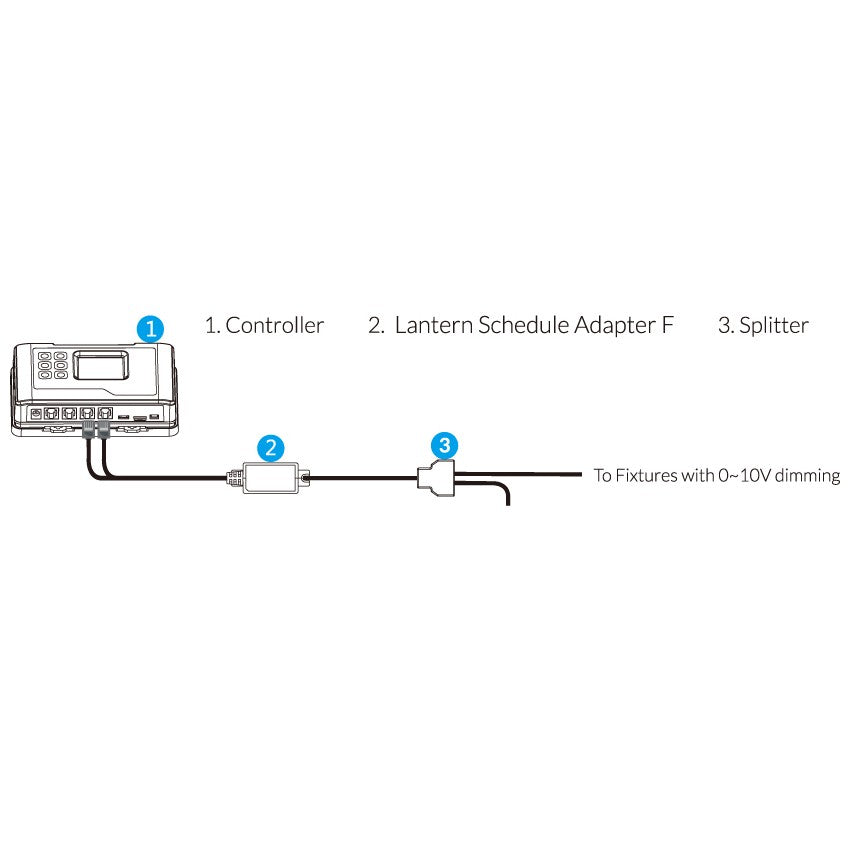

Lantern Schedule Adapter (LMA-24): Provides a lighting routine for vegetative plant growth that follows 12 hours lights on, 5.5 hours lights off, 1-hour lights on, 5.5 hours lights off; then repeating that schedule. This adapter uses both channels on the Hydro-X system to create the lantern schedule for any lights with 0-10V protocol. Compatible HID lights include Gavita, Nanolux, Luxx, Growers Choice, Illuminar, and PL. Compatible LED lights include Fluence, NextLight, and Spectrum King.

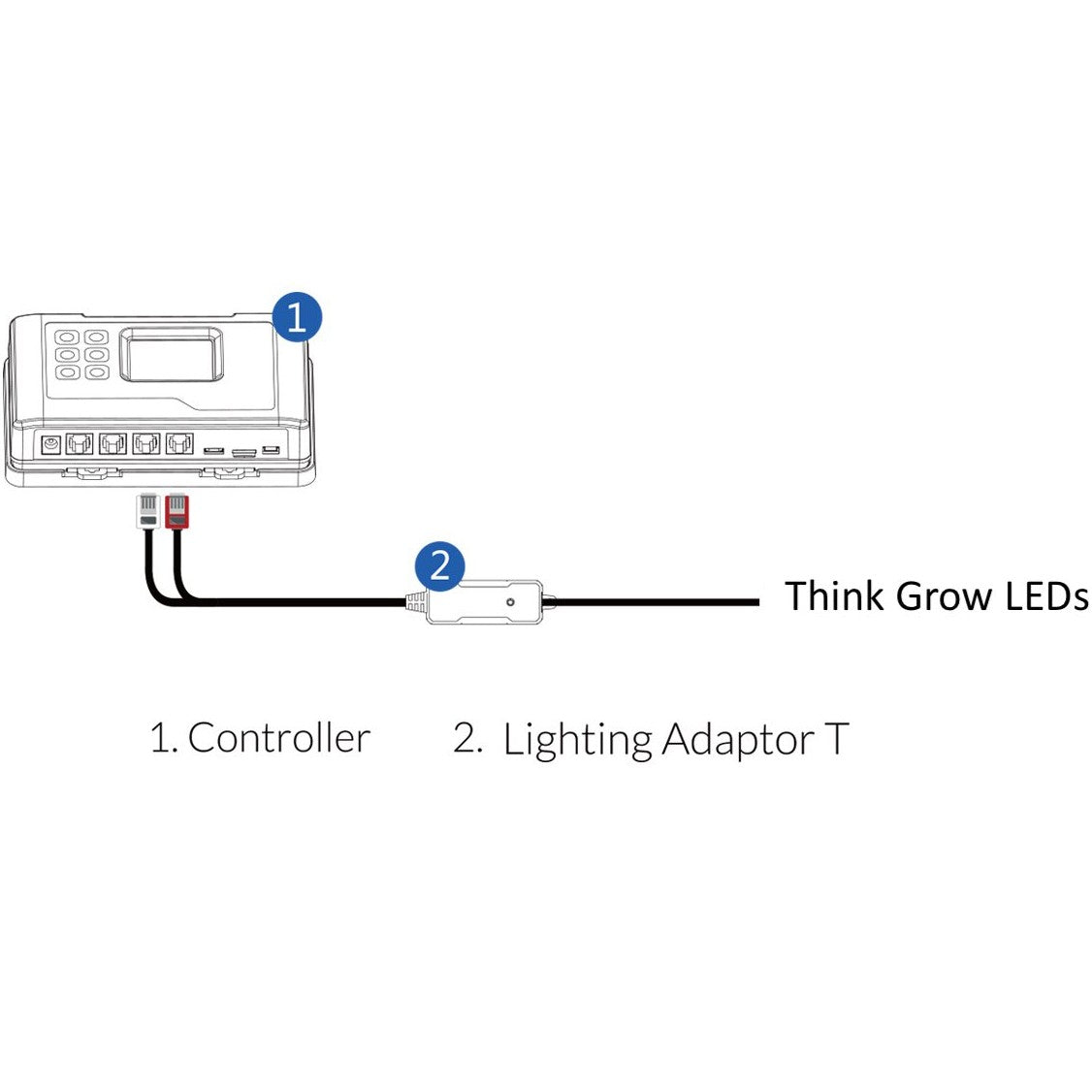

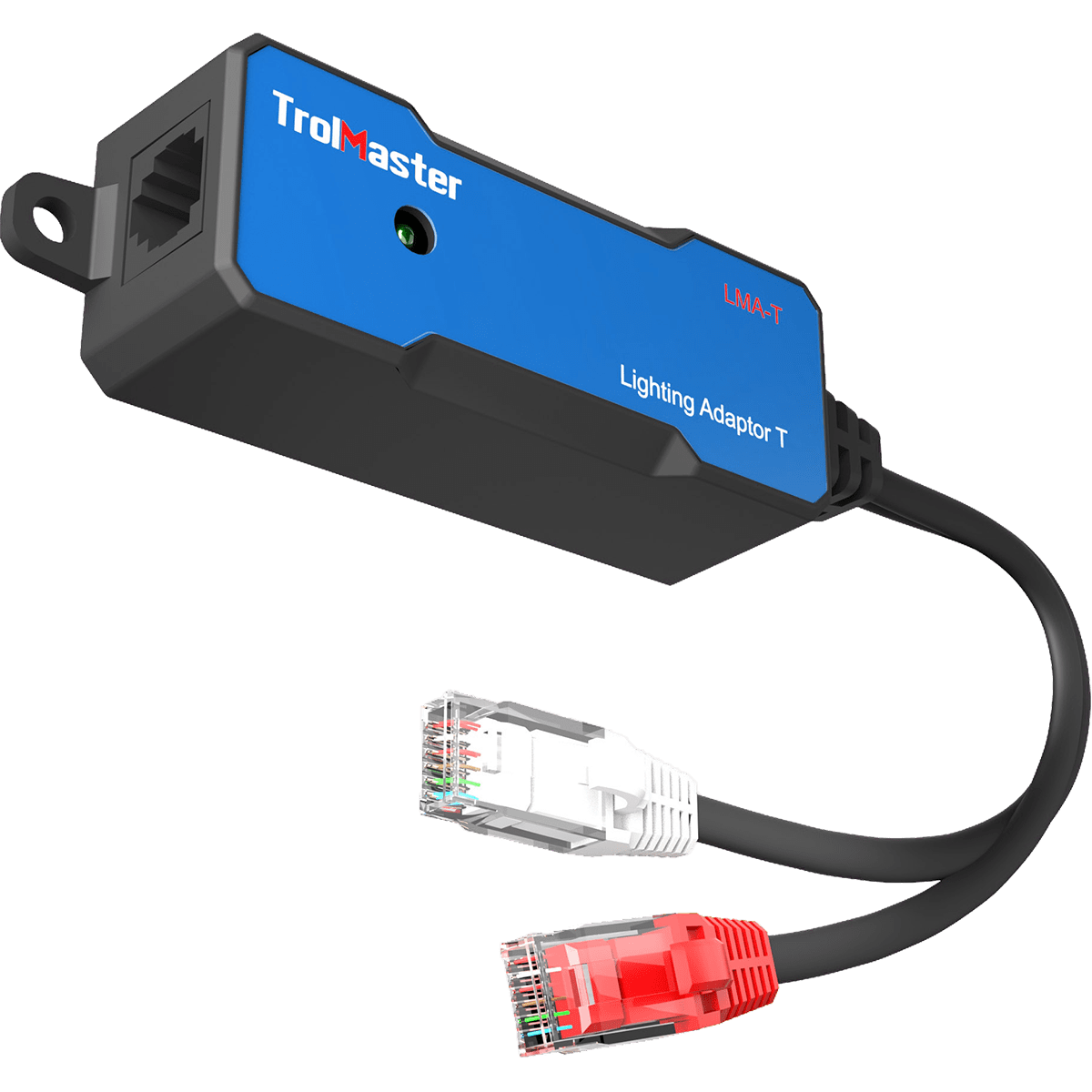

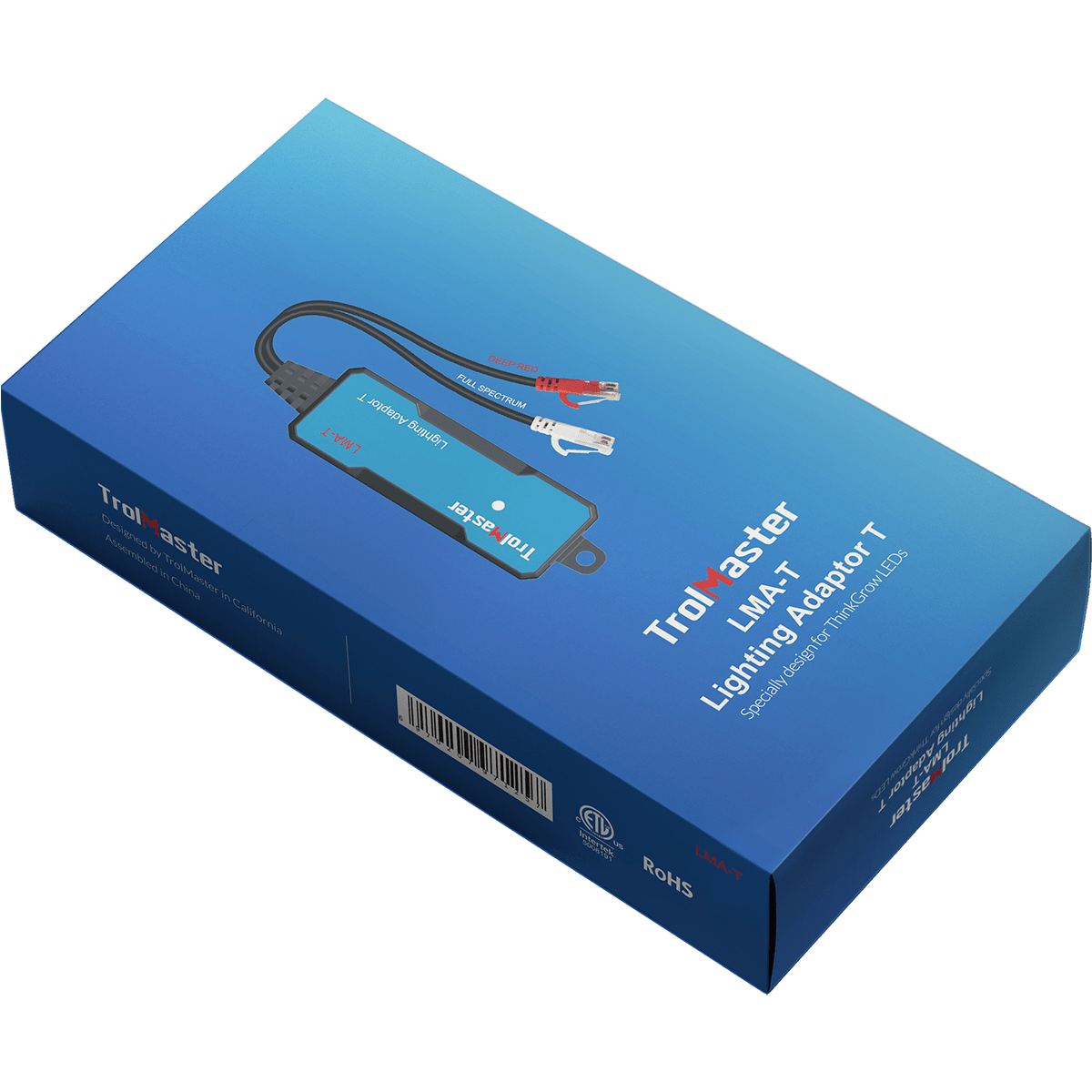

Lighting Control Adapter T (LMA-T): The LMA-T works specifically with ThinkGrow LED systems to provide two channel control for adjusting full spectrum and far-red spectrum output levels. This can be daisy-chained through the LED fixtures back to the controller with one adapter controlling up to 256 ThinkGrow LEDs.
Summary
TrolMaster Lighting Control Adapters are designed for compatibility with various types of grow lights. Control ballast on fluorescent lights, spectrum control for ThinkGrow LEDs, schedule control for HID & LED systems, and adapters for specific grow light brands.
Specifications
Specifications
-
Growing Product TypeAdapter
-
System ControlsLighting
-
Environment Temperature (degrees F)32-122
-
Maximum Operating Temperature (degrees F)122
-
Minimum Operating Temperature (degrees F)32
-
Maximum Amperage (Amps)0.20.20.20.20.20.20.2.2
-
Depth (in.)6.146.146.146.146.146.146.141.18
-
Depth (with front cover) (in.)6.146.146.146.146.146.146.141.18
-
Height (in.)1.181.181.181.181.181.181.186.14
-
Height (with front cover) (in.)1.181.181.181.181.181.181.186.14
-
Weight (lbs.)0.110.110.110.110.110.110.111
-
Width (in.)3.27
-
Width (with front cover) (in.)3.27
-
Additional FeaturesApplicable for Indoor Growing
