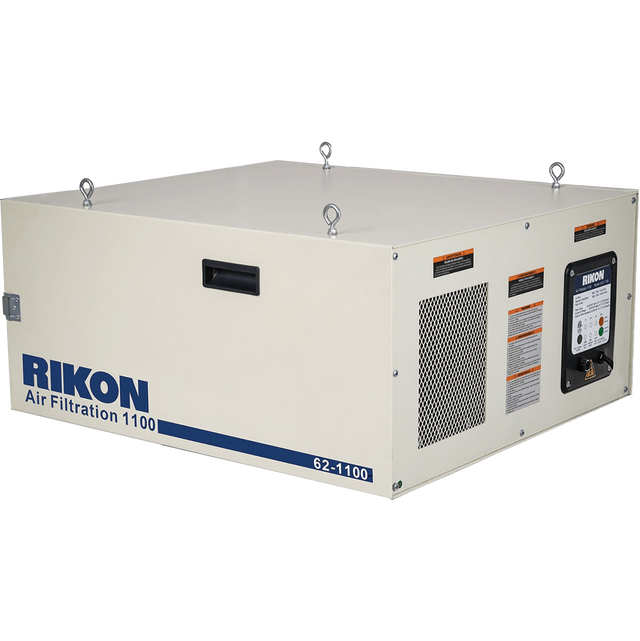

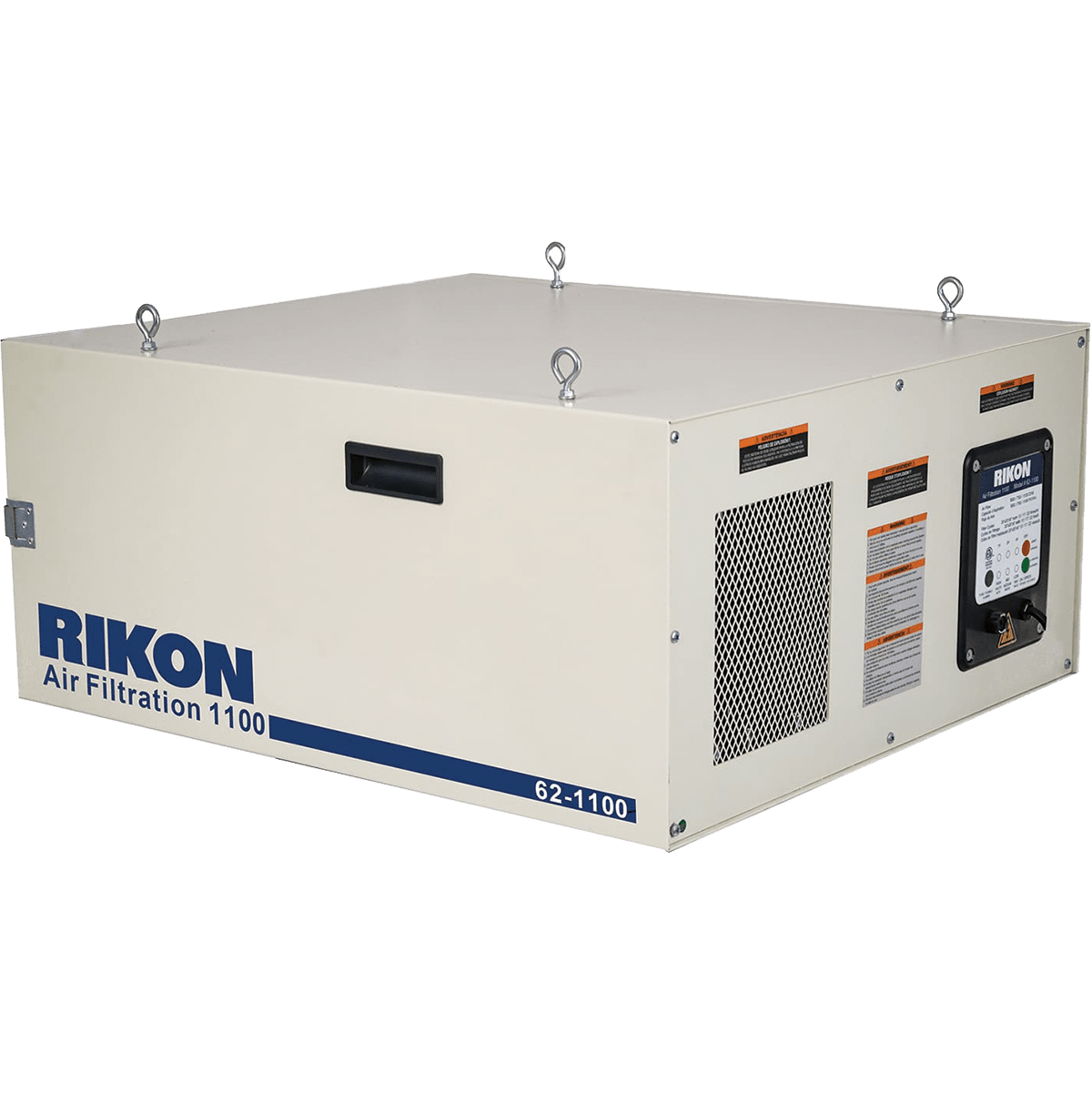

Rikon 1100 CFM Air Filtration System
Rikon 1100 CFM Air Filtration System is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Rikon 62-1100 Air Filtration System
- Remote Control
- Inner Filter and Outer Filter
- All Installation Hardware
- Owner's Manual
Info & Guides
Info & Guides
Rikon 1100 CFM Air Filtration System
Description
Description
The Rikon Air Filtration System can deal with the dust that gets past your main collection system and is designed to filter wood and other non-metallic dust. It can be installed by hanging from the ceiling or mounted on a bench and has a 20-gauge steel cabinet.

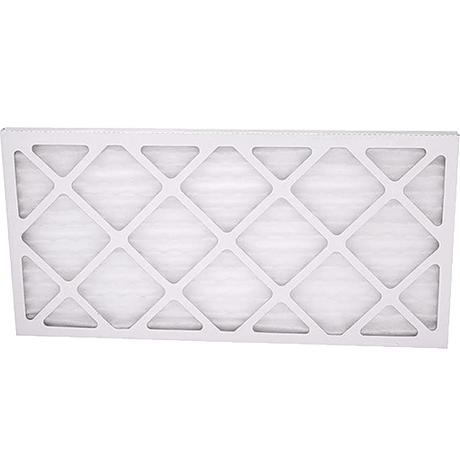

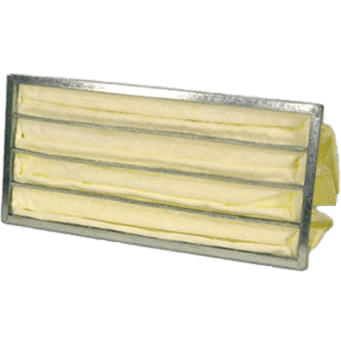

- Filtration: The inner filter can remove dust down to 1 micron, while the outer filter catches dust down to 5 microns.
- Coverage Area: It is designed to filter 400-square-foot rooms up to 22 times per hour. Larger areas may require two units.
- Air Speed: The Rikon has low, medium, and high air speeds.
- Timer: After you’ve finished working, set the timer to allow one, two, or four hours of run-time before automatically shutting off.

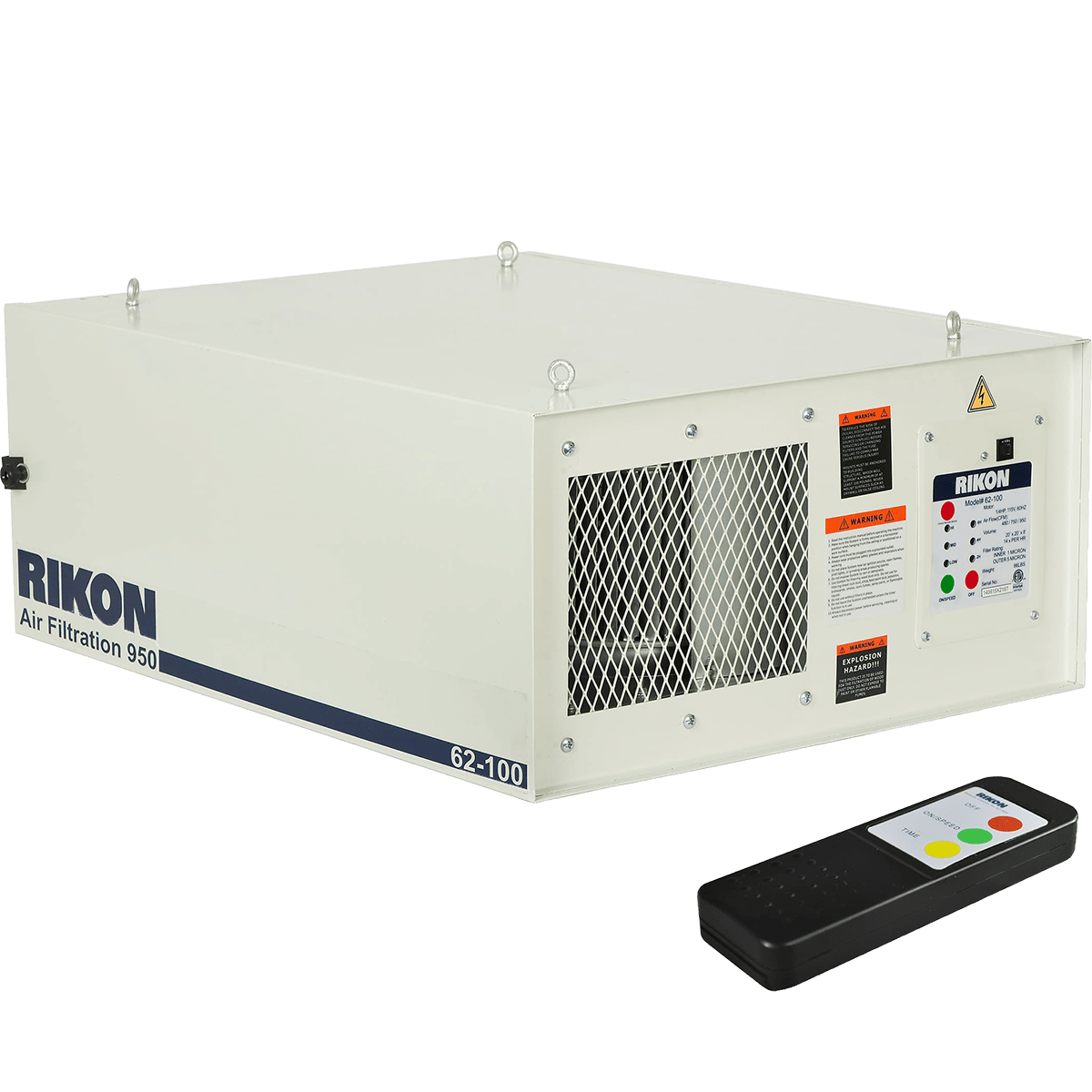

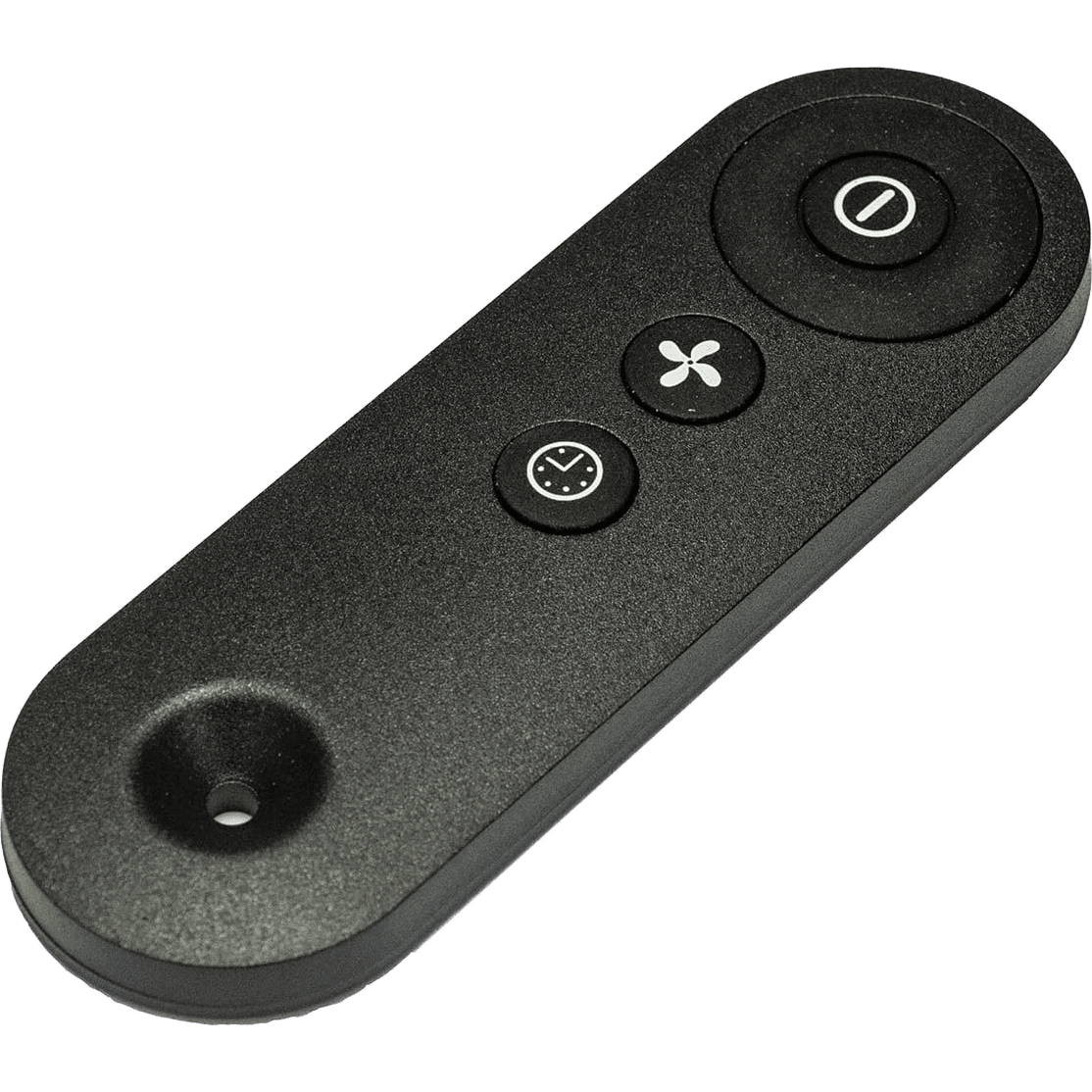

- Remote Control: The full-function remote can power the filtration system on or off, set the timer, and adjust the airflow control.
Placement of Rikon System
Placement for this air filtration system is incredibly important, whether it is suspended from the ceiling or mounted on a bench.
- Central Location: Place the filtration system in a central location above or near an area where a lot of sanding and lathing is done.
- Avoid Obstructions: Mount 7 to 8 feet away from corners, tall cabinets, or heating/cooling vents that would restrict airflow.
- Level: Ensure the system is horizontally level and at least 7 feet above the floor.
Installation
Rikon includes all the hardware required to install the air filtration system.
- Rubber feet for bench installation (4)

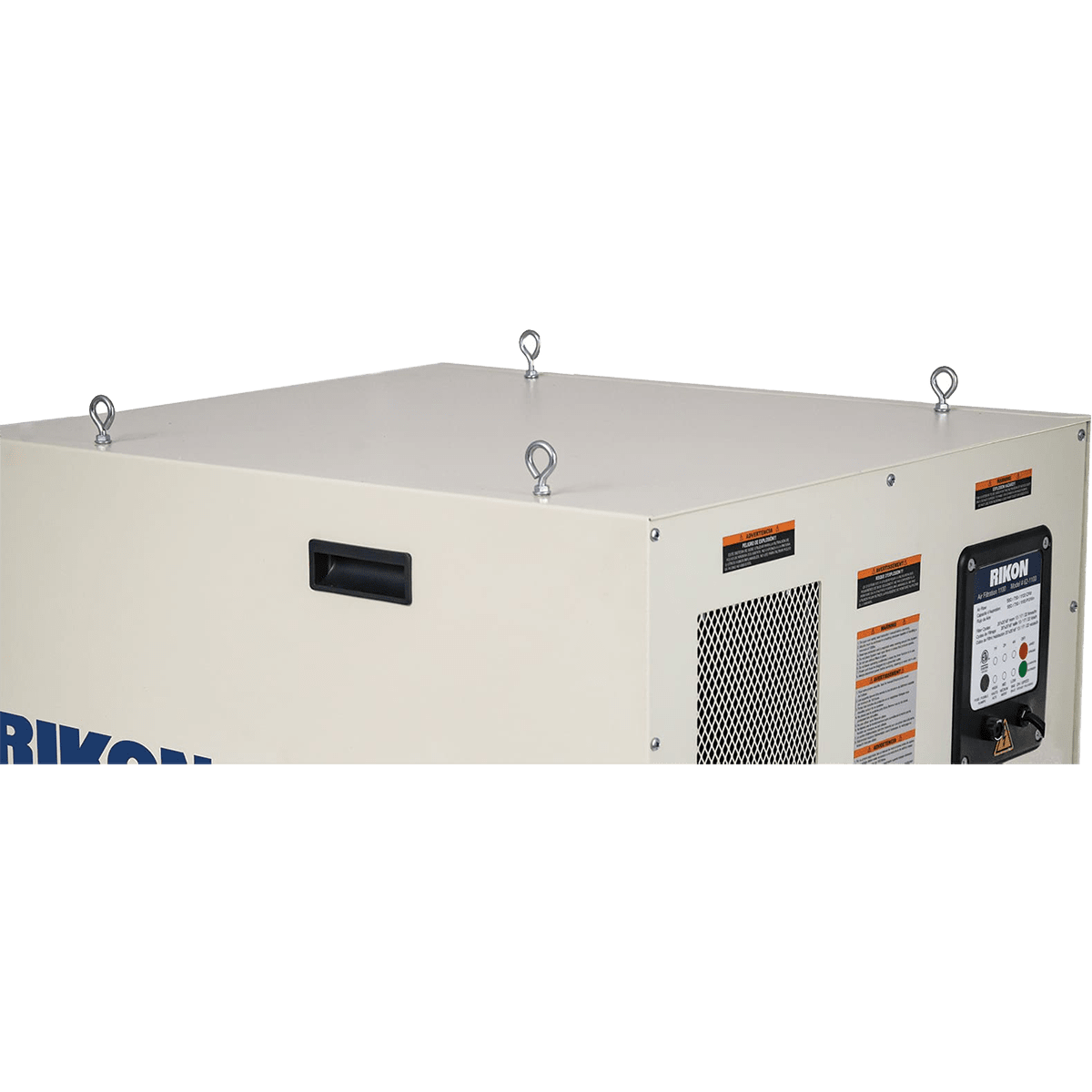

- Hanging chains (4)

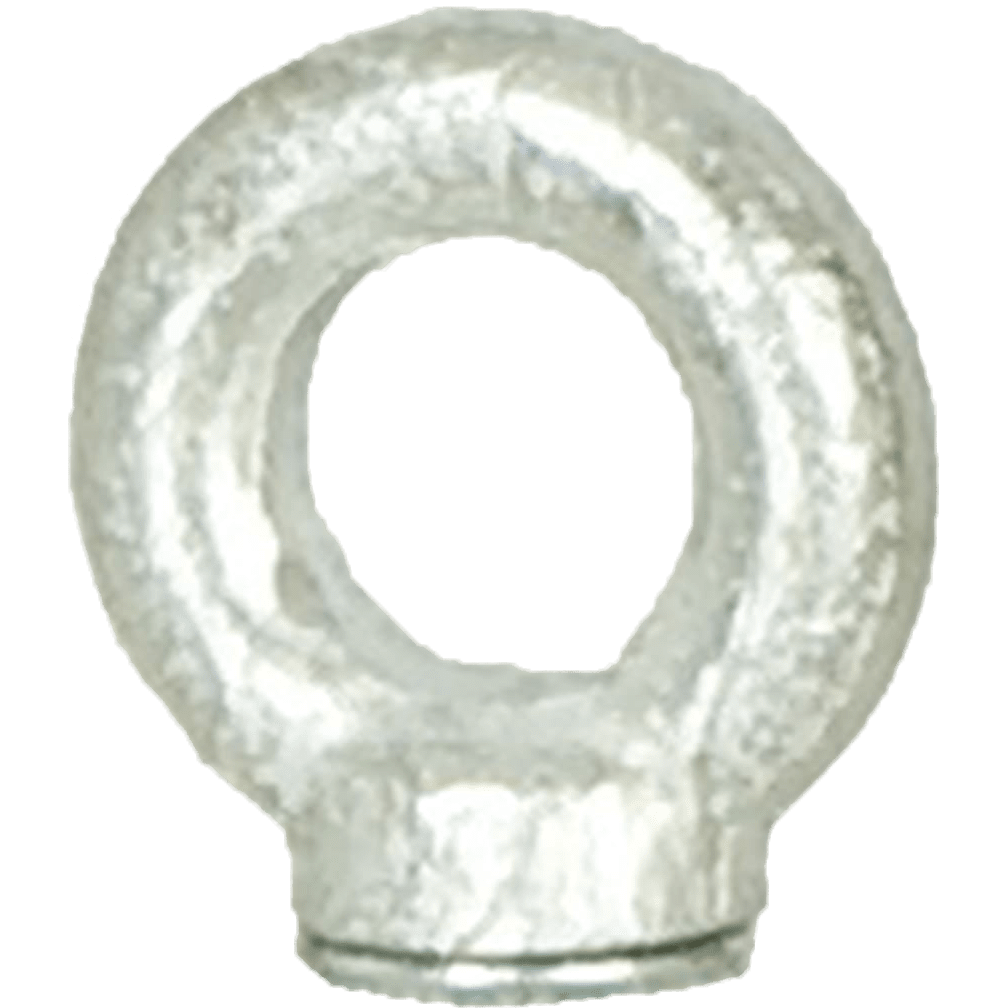

- Hangers and locknuts (4)
- Wood screw hooks (4)
Additional Specifications
- Motor: 1/2 horsepower motor
- Power: 120 V, 4.2 A, 60 Hz, Single-phase
- Airflow: 560 CFM (Low), 750 CFM (Medium), 1100 CFM (High)
Summary
The Rikon 62-1100 Air Filtration System is designed for wood-working spaces up to 400 square feet, and can be installed suspended from the ceiling or mounted on a bench. It features two filters, three fan speeds, a timer, and a convenient remote control. Installation equipment is included.
Specifications
Specifications
-
Filtration SystemPre-Filter
-
Manufacturer-Suggested Room Size (sq. ft.)400
-
Number of Speeds3
-
TypePortable, Air Scrubber
-
California Residents⚠ WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles. For more information go to www.P65Warnings.ca.gov/wood.www.p65warnings.ca.gov.
-
ColorCream
-
ControlsManual
-
Maximum Cubic Feet per Minute (CFM) (CFM)1100.0
-
Maximum Noise Level (dB)73
-
Number of Filters to Change2
-
Ozone EmissionNone
-
Pre-Filter Type5 micron
-
Recommended ForCommercial/Industrial, Woodworking
-
Amperage (Amps)4.2
-
Voltage (V)110-120
-
Depth (in.)27.75
-
Depth (with front cover) (in.)27.75
-
Height (in.)12.5
-
Height (with front cover) (in.)12.5
-
Weight (lbs.)61
-
Width (in.)24.5
-
Width (with front cover) (in.)24.5
-
Additional FeaturesProgrammable Timer, Remote Control
-
Manufacturer's Warranty5-Year Limited Warranty
