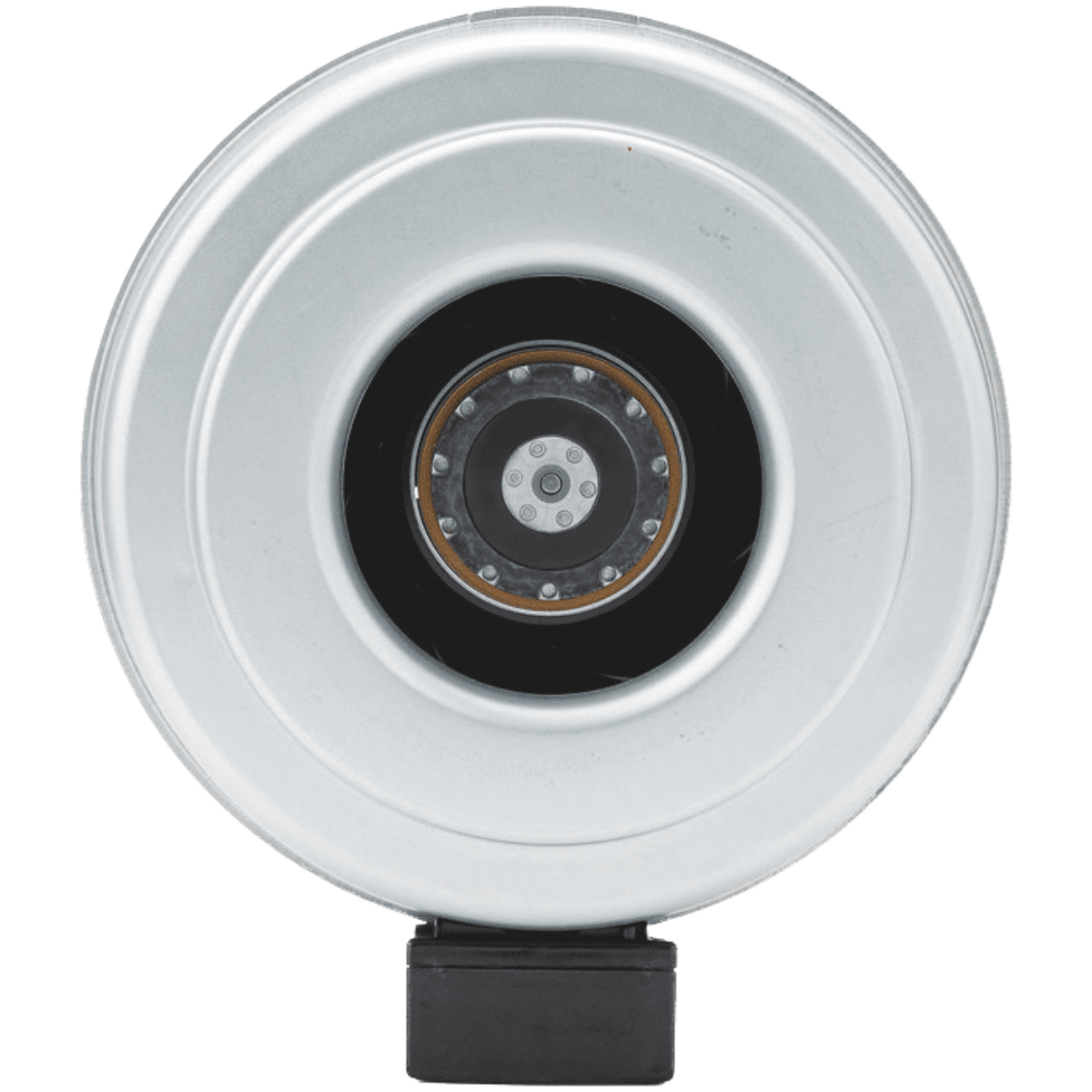

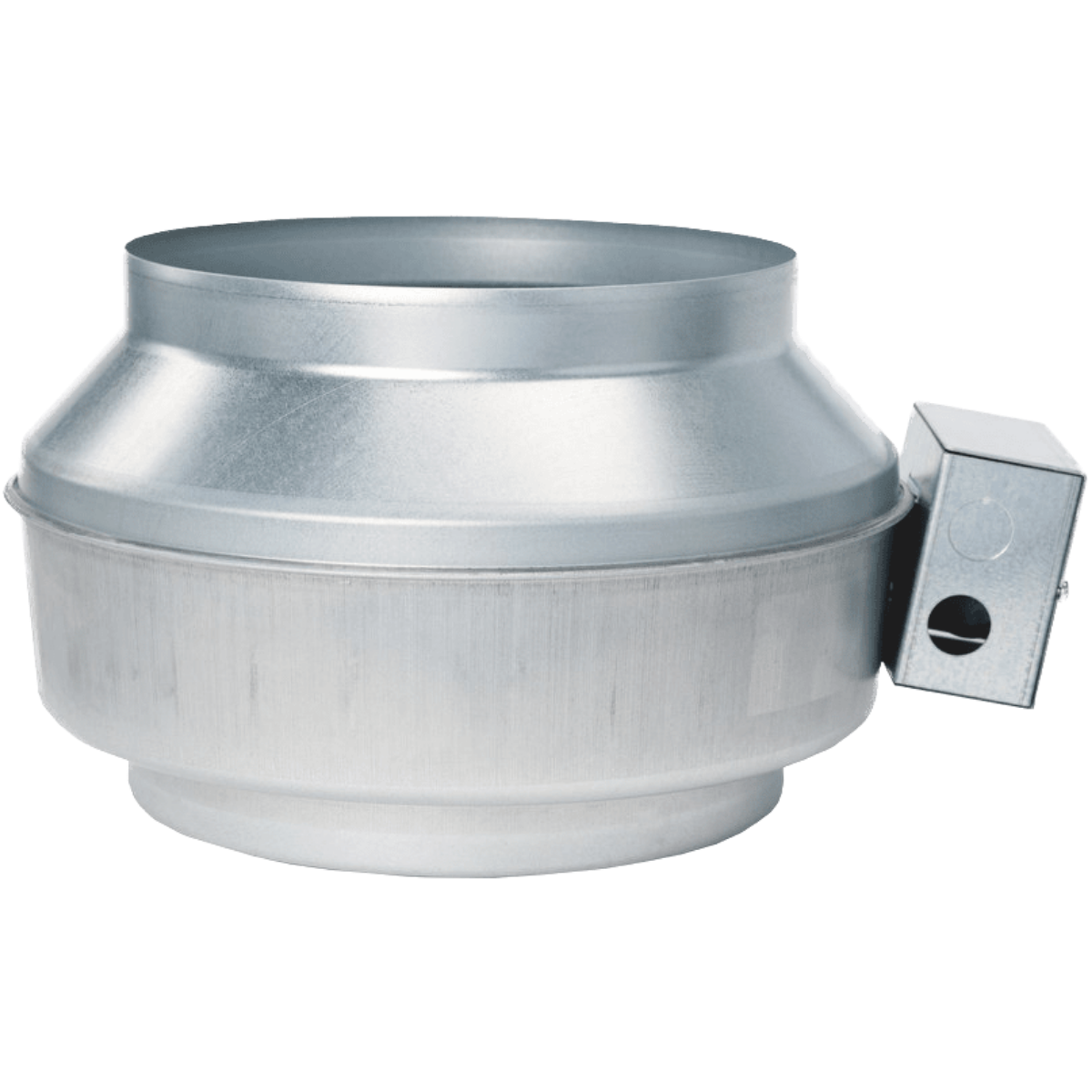

Fantech FG 10 10in. Inline Centrifugal Duct Fan

SKU: fn12444 | Model: 40411

$399⁰⁰

Option

FG 10XL - 598 CFM FG 10 - 519 CFM

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

Fantech FG 10 10-Inch Inline Centrifugal Duct Fan
Owner's Manual

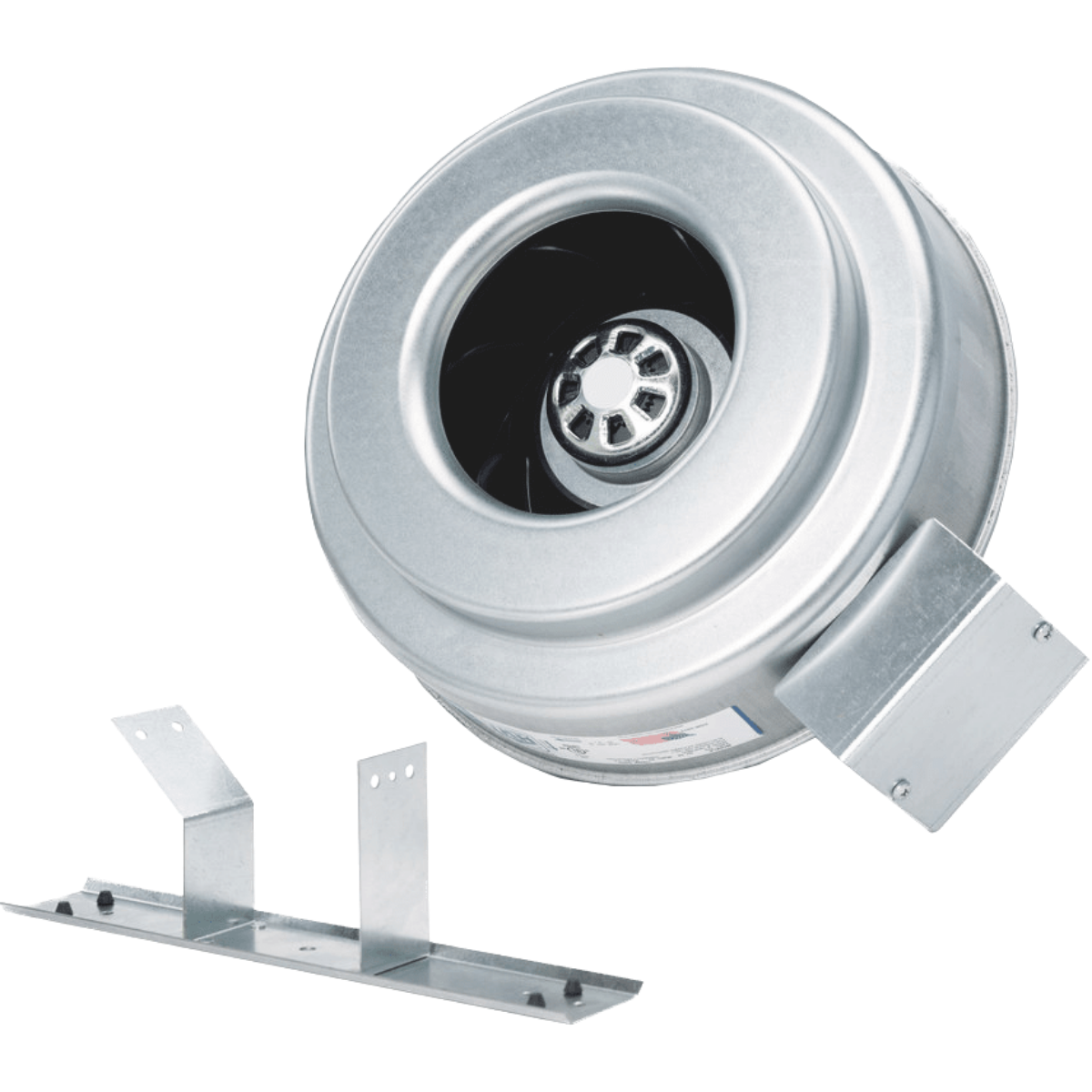

Mounting Bracket and Hardware

Info & Guides

Description

Weak airflow at the far end of a long duct run is the problem the Fantech FG 10 series is built to solve. Its straight-through airflow path lets you mount the fan at any angle and at any point along your ductwork. The prewired housing also ships with a bracket for wall or ceiling mounting. You can pick between standard and XL airflow capacities.

The galvanized steel housing meets code requirements for both residential and commercial applications, so you can specify the same fan across both kinds of projects. A long duct connection sized for 10-inch round ductwork gives you more room to secure and seal each joint while you install it.

Key Features and Benefits of the Fantech FG 10 10in. Inline Centrifugal Duct Fan

Airtight Galvanized Housing: Virtually airtight galvanized steel construction keeps air inside the duct, so the airflow you generate actually reaches the spaces you're ventilating.
EBM-Papst Motor: An EBM-Papst external rotor motorized impeller sheds heat well even at low RPM, which supports long motor life during slow, continuous operation.
Full Speed Control: The fan is 100 percent speed controllable through manual controls, letting you turn airflow down for light background ventilation or up when you need maximum exhaust.
Sealed Ball Bearings: Permanently lubricated sealed ball bearings never need oiling, so you won't have to open up the duct for routine lubrication.
Thermal Overload Protection: Automatic thermal overload protection guards the motor against overheating, which gives you an extra layer of safety in a hidden duct installation.
High-Temperature Tolerance: Handles airstream temperatures up to 140 degrees F, so warm exhaust air stays within the fan's rated operating range.
UL Certified: UL certification confirms the fan meets recognized safety standards, which helps your installation pass inspection.
Hardwired Power: Prewired for a hardwired 110-120 volt connection, so your electrician can tie it into a standard household circuit.
Long-Term Warranty: Fantech backs the fan with a 5-year limited warranty, which gives you lasting peace of mind.

Choose Your Airflow Capacity

The FG 10 line comes in 2 airflow capacities, the standard FG 10 and the higher-output FG 10XL, so you can match the fan to how much air your duct system needs to move.

FG 10: The FG 10 moves up to 519 CFM, weighs 8.9 pounds, and measures 4.75 x 10 x 13.25 inches (L x W x H), which makes it the lighter choice for ceiling mounting on moderate duct runs.
FG 10XL: Building on the FG 10, this higher-output model raises maximum airflow to 598 CFM for longer or more demanding duct runs, weighing 11.6 pounds and measuring 4.8125 x 10 x 13.25 inches (L x W x H).

Sylvane's Expert Take

If you're dealing with weak airflow from a long duct run in your home or a commercial space, this Fantech series deserves a close look. Because it mounts at any angle, you can place it wherever the duct is easiest to reach. Go with the standard model if its capacity covers your system and you'd like less weight overhead. Choose the XL when you need the extra 79 CFM. With either one, the sealed bearings mean you can install the fan once and leave it alone for years.

Specifications

Key Specifications

Number of Speeds

Variable
Sound Level (Sones) (sones)

0.0
Type

Classic Inline Duct Booster Fan

General

Application

Ducting
Certifications

FG 10XL - 598 CFM: UL, HVI, AMCA

FG 10 - 519 CFM: UL
Color

Gray
Controls

Manual
Maximum Air Temperature (degrees F)

140
Maximum Cubic Feet per Minute (CFM) (CFM)

FG 10XL - 598 CFM: 598.0

FG 10 - 519 CFM: 519.0
