Fantech FG 12 XL 12in Inline Centrifugal Duct Fan

SKU: fn12446  |  Model: 40413
$52400

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?
  • Fantech FG 12 XL 12-Inch Inline Centrifugal Duct Fan
  • Owner's Manual

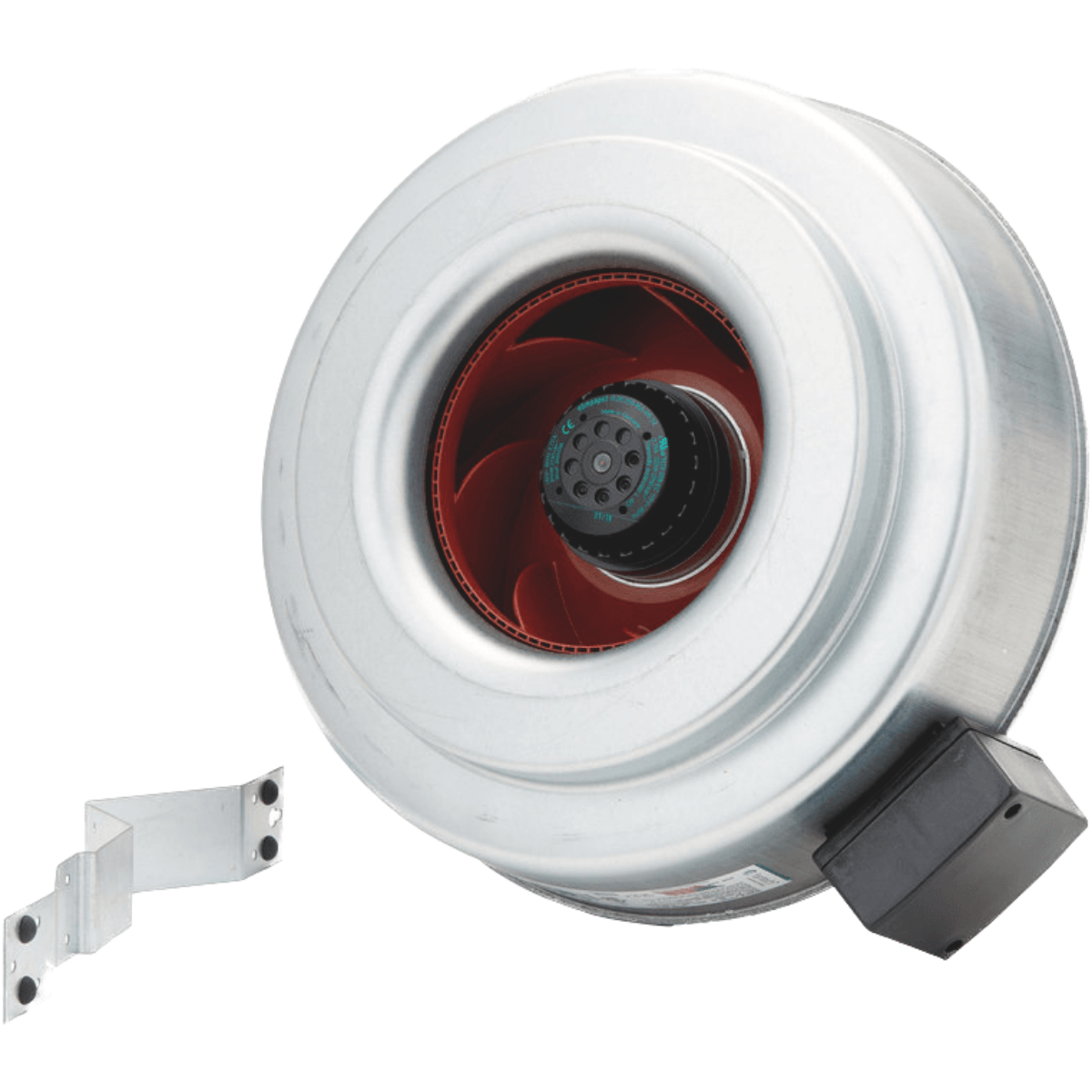

  • Mounting Bracket and Hardware

Info & Guides

Description

Delivering a long life and reliable performance thanks to an ebm-papst motor, the Fantech FG 12 XL12-Inch Inline Centrifugal Duct Fan is a virtually airtight ventilation solution. Featuring galvanized steel housing, it meets code requirements for both commercial and residential use. Installation is easy thanks to a longer duct connection, and its straight-through airflow allows this pre-wired fan to be installed at any angle and point along your ductwork.

It's available in three models.

Key Features and Benefits of the Fantech FG 12 XL 12in Inline Centrifugal Duct Fan

  • For Commercial and Residential Use: With airtight galvanized steel housing, this duct fan is rated for both commercial and residential applications.
  • Heat Dissipation: Designed with an ebm-papst external rotor motorized impeller, the Fantech FG offers superior heat dissipation even at low RPM.
  • Maintenance-Free Design: Features permanently lubricated sealed ball bearings for maintenance-free performance.
  • Safety Features: Designed with automatic thermal overload protection.
  • Speed Control: This unit is 100% speed controllable.
  • Air Stream Temperatures: The Fantech FG 12 XL is rated for air stream temperatures up to 140 degrees Fahrenheit.
  • Built to Last: Features an industry-leading 5-year limited warranty.

Summary

Efficient and easy-to-install, the Fantech FG 12 XL 12-Inch Inline Centrifugal Duct Fan is the ideal ventilation solution for commercial and residential applications.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      0.0
    • Type
      Classic Inline Duct Booster Fan

    General

    • Application
      Ducting
    • Certifications
      UL, HVI
    • Color
      Gray
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      140
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      956.0
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      2.54
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120
    • Watts (W)
      300

    Dimensions

    • Depth (in.)
      6.6875
    • Duct Diameter (in.)
      12.0
    • Height (in.)
      16.0
    • Weight (lbs.)
      13.7
    • Width (in.)
      12.0

    Warranty

    • Manufacturer's Warranty
      5-Year Limited Warranty
